Blackburn SP.62 and Hawker Siddeley « Helicrane » projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,165
Reaction score
5,701
Hi,

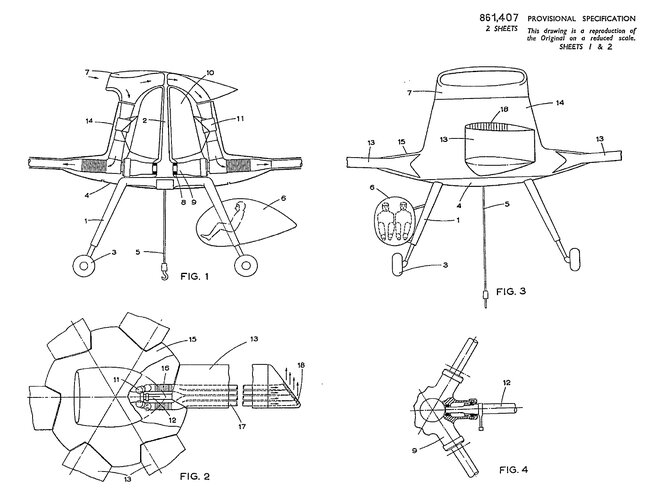

The Balckburn SP.62 was flying crane based on work carried out
by RAE,capable of lifting 50 tons,this had a rotor head containing
six Bristol Siddeley turbojets feeding gas to the rotor tips,when
Blackburn became a subsidary of Hawker group the program was
known as HS Helicrane.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
i'm looking for information about thr HS (hawker siddeley) Helicrane project. googling's drawn a blank, the only info i have is from 'Project Cancelled', pp 107-109, and these pics from the same.
there were to be three types,
HS, (small), single unspecified engine, payload, 3 tons over 60 miles, HM, (medium), 4 vipers, 37,000 lb over 200 naut miles, and HL, (large), 6 BS.89s, 96,580 lbs over 185 naut miles.


any further information would be gratefully recieved.

cheers,
Robin.


Attachments

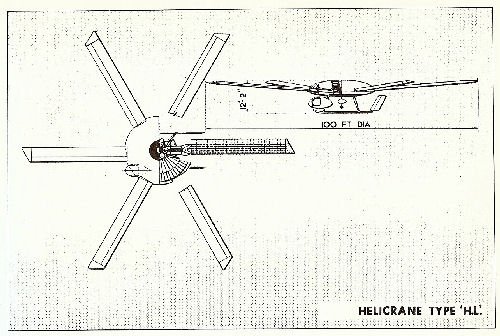

  • helicrane HL.jpg
    helicrane HL.jpg
    54.3 KB · Views: 707

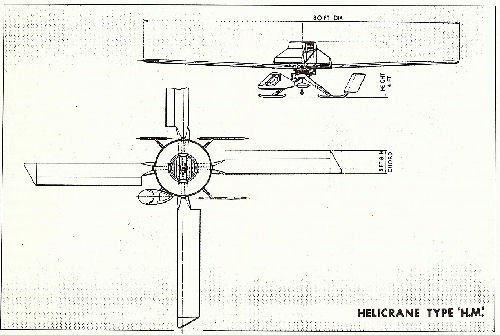

  • helicrane HM.jpg
    helicrane HM.jpg
    42.1 KB · Views: 648

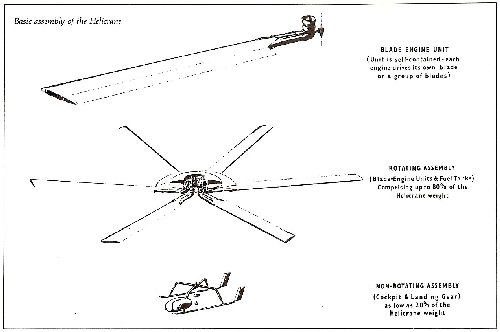

  • helicrane assembly.jpg
    helicrane assembly.jpg
    30.7 KB · Views: 619

Brickmuppet

ACCESS: Confidential
Joined
Nov 11, 2006
Messages
191
Reaction score
36
Website
brickmuppet.mee.nu
It may be related to this concept for a whirrlybird to conduct mid air recovery of Saturn 5 rocket stages.

http://www.thespacereview.com/article/1045/1


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,321
Reaction score
1,406
The large type was shown in The Aeroplane 3.1961, too, with a detachable passenger/
cargo pod. Not much additional data, just a comparison with a "conventional" helicopter,
giving a better payload/all-up weight relation for the Helicrane design.


Attachments

  • Helicrane.GIF
    7.8 KB · Views: 590

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
thanks, guys,

Brickmuppet, i believe we've already discussed 'your' helo here, it's related to the helicrane only in that it uses the same type of hot-cycle propulsion,

jemiba, thanks for that, unfortuneately, my 'Aeroplane' collection doesn't go back that far, :mad:

cheers,
Robin.


Brickmuppet

ACCESS: Confidential
Joined
Nov 11, 2006
Messages
191
Reaction score
36
Website
brickmuppet.mee.nu
robunos said:
Brickmuppet, i believe we've already discussed 'your' helo here, it's related to the helicrane only in that it uses the same type of hot-cycle propulsion,

Indeed. It's mentioned here....
http://www.secretprojects.co.uk/forum/index.php/topic,1545.0/highlight,hiller+aircraft.html

Sorry about the duplication. :-X


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
Received from forum member 'Mossie'....

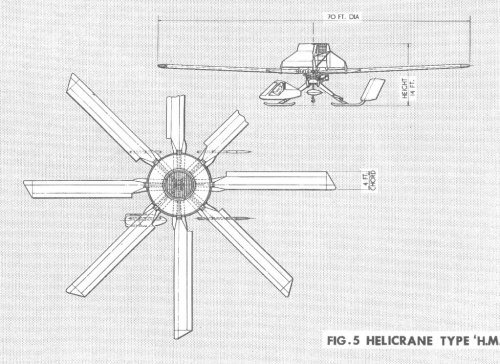

"...I was looking to build a model of the HS Helicrane HL some a few years ago & enquired at the Avro Heritage Centre. George Jenks sent me seven pages from the Helicrane brochure that I thought you might find useful. The GA diagram the HL is already on your thread, but I've scanned it at a higher resoloution than the existing images if you need this, there was also an artists impression. The version of the HM has eight blades of 4ft chord & 70ft diameter & what appears to be a one man cockpit, compared to the four blade rotor of 5ft 8in & 80ft diameter with a two man cockpit in your thread. I haven't the GA diagram of the HS published before, Derek Woods Project Cancelled is the only other source I know of for the Helicrane project..."

images below.....


cheers,
Robin.


Attachments

  • HelicraneHLPictureLarge from mossie.jpg
    HelicraneHLPictureLarge from mossie.jpg
    187 KB · Views: 165

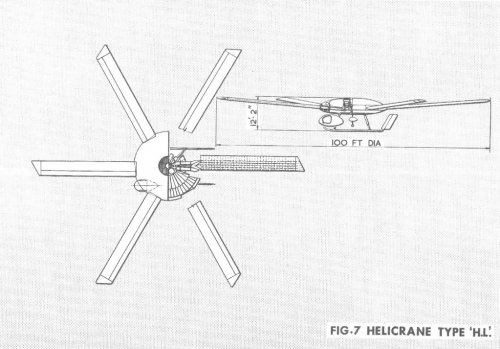

  • HelicraneHL from mossie.jpg
    HelicraneHL from mossie.jpg
    217.9 KB · Views: 152
  • HelicraneHM from mossie.jpg
    HelicraneHM from mossie.jpg
    306.9 KB · Views: 134

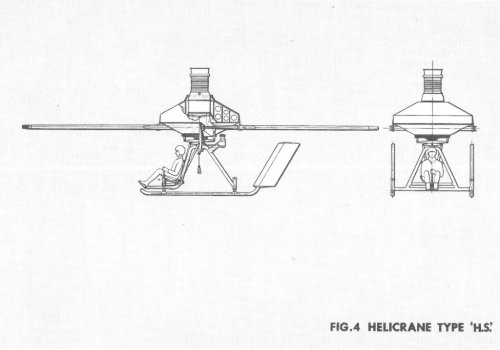

  • HelicraneHS from mossie.jpg
    HelicraneHS from mossie.jpg
    109 KB · Views: 573

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,068
Reaction score
5,687
Any idea on the timeline of the Helicrane project?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
Any idea on the timeline of the Helicrane project?

According to 'Project Cancelled', the helicrane concept was first proposed
by Blackburn's in 1959/60, following on from work performed at the RAE,
as the SP.62.
After Blackburn became part of Hawker Siddeley, the SP.62 project was
transferred to the advanced projects group at manchester, becoming the
HS Helicrane.
That's all I've got...


cheers,
Robin.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
Posted in response to an enquiry here :-

http://www.secretprojects.co.uk/forum/index.php/topic,20023.msg194514.html#msg194514

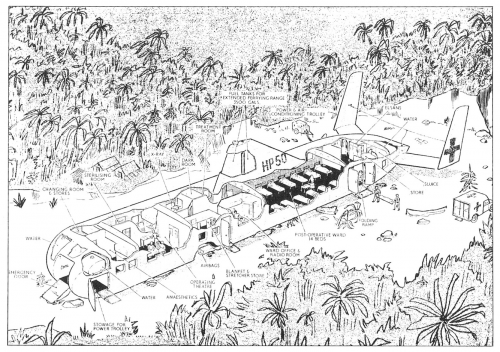

"Specialised applications for airlifted pods were also suggested, including a field workshop, a mobile headquarters, and a field hospital. The last mentioned was a remarkable design...It consisted of a rectangular section structure with twin fins, housing a 14 bed ward, operating theatre, X-Ray, sterilising, dark and treatment rooms and self contained water, air, and power supplies. Total pod load was to be about 20,000 lbs (approx. 9000 kg) in cluding staff and patients 'who could be airlifted in the pod'..."

From 'Project Cancelled', 1986 edition, pp. 107-9.

cheers,
Robin.


Attachments

  • helicrane lifted field hospial pod.png
    helicrane lifted field hospial pod.png
    737.4 KB · Views: 164

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
Does the "HP 50" number on the rotor mount suggest this is a Handley Page design? (couldn't be the model number though, since that's the much earlier Heyford).


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,178
Reaction score
316
Stargazer2006 said:
Does the "HP 50" number on the rotor mount suggest this is a Handley Page design? (couldn't be the model number though, since that's the much earlier Heyford).


More likely Helicrane Pod no. 50 or Hospital Pod no. 50, though I'd go with the first as I can't see a need for 50 Hospital Pods in the 60s British Army.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
starviking said:
More likely Helicrane Pod no. 50 or Hospital Pod no. 50, though I'd go with the first as I can't see a need for 50 Hospital Pods in the 60s British Army.

Makes sense. So... a Hawker Siddeley proposal?


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,178
Reaction score
316
Stargazer2006 said:
starviking said:
More likely Helicrane Pod no. 50 or Hospital Pod no. 50, though I'd go with the first as I can't see a need for 50 Hospital Pods in the 60s British Army.

Makes sense. So... a Hawker Siddeley proposal?


I think so, but Robunos seems to have access to the book it is referenced in - so perhaps he can confirm?


shedofdread

ACCESS: Secret
Joined
Nov 14, 2009
Messages
490
Reaction score
151
Also of interest (once again from 'Project Cancelled' (1986) p107) is that the hospital pod was "conceived with the Falklands in mind".

With regard to the '50' on the pylon - possibly a little bit of marketing on the part of HS? ("you will be needing at least fifty, won't you?" ;) ).


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
starviking said:
Stargazer2006 said:
starviking said:
More likely Helicrane Pod no. 50 or Hospital Pod no. 50, though I'd go with the first as I can't see a need for 50 Hospital Pods in the 60s British Army.

Makes sense. So... a Hawker Siddeley proposal?


I think so, but Robunos seems to have access to the book it is referenced in - so perhaps he can confirm?

Yes. according to the book, the original concept was by Blackburn, as the SP.62, following their becoming part of the Hawker Siddeley group, it was transferred to Manchester, becoming the HS Helicrane.

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,165
Reaction score
5,701
Jemiba said:
The large type was shown in The Aeroplane 3.1961, too, with a detachable passenger/
cargo pod. Not much additional data, just a comparison with a "conventional" helicopter,
giving a better payload/all-up weight relation for the Helicrane design.


My dear Jens,

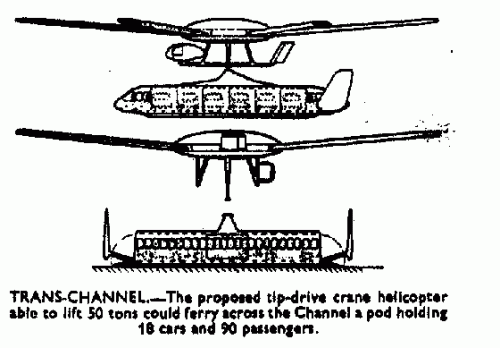

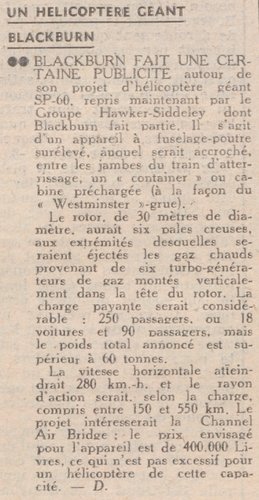

that concept was called Hawker/Blackburn SP.60,it would have a speed of 170 mph
and could carry 18 cars and 90 passenger,or only 250 passenger;


http://www.british-caledonian.com/Silver_City_Helicopters.html
http://www.flightglobal.com/pdfarchive/view/1960/1960%20-%200962.html


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,559
Reaction score
971
The Blackburn SP60 and the Avro Helicranes are examined in The Air Staff and the Helicopter, as is the spectacular Blackburn B.118.

Chris
