Bell Model 65 ATV VTOL research test-bed

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213

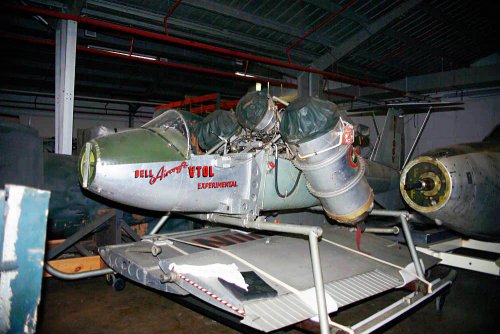

The Bell Model 65 ATV as it survives at NASM Silver Hill. Aircraft is complete and in very good shape. Photo taken October, 2009.


Attachments

  • Bell Model 65 ATV.jpg
    Bell Model 65 ATV.jpg
    125.5 KB · Views: 143

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
From
-Chariot.net

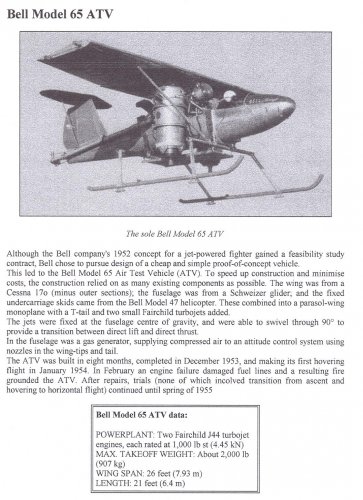

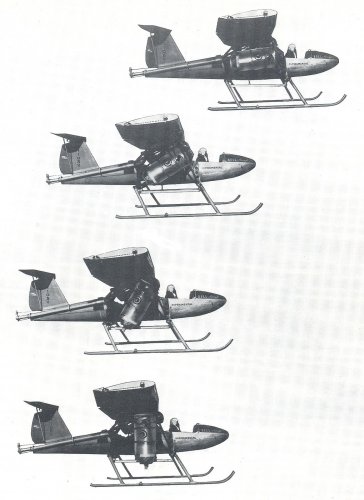

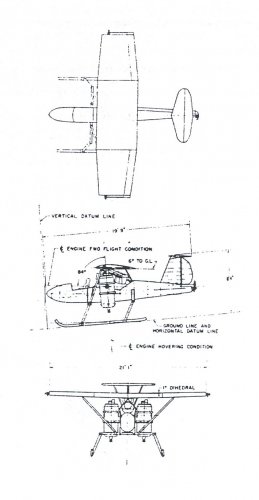

-The X planes by Jay Miller


Attachments

  • Escanear0002.jpg
    324 KB · Views: 125
  • Escanear0001.jpg
    67 KB · Views: 117

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

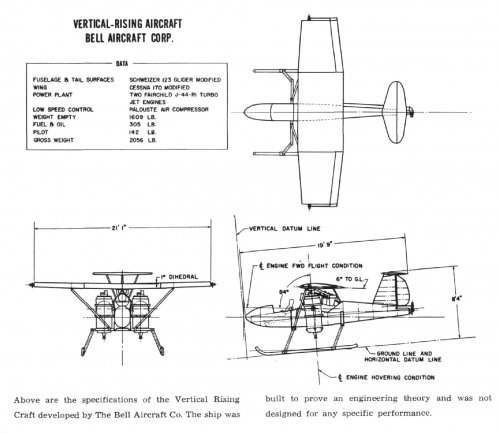

A better version of the plan shared just above by Justo appeared in the May 1955 issue of Experimenter. Interesting is the breakdown of the parts used to build it: Schweizer 1-23 fuselage and Cessna 170 wing.


Attachments

  • Bell Vertical-Rising Aircraft.jpg
    Bell Vertical-Rising Aircraft.jpg
    278.6 KB · Views: 96
