Bell Aerospace Cold Thrust Augmentation (CTA) V/STOL proposal

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Artist's impression of Bell Aerospace Cold Thrust Augmentation (CTA) V/STOL proposal.

Bell Aerospace V/STOL proposal uses the most interesting wing technology. Called "cold thrust augmentation" (CTA) minimum drag and maximum lift are produced by ducting air downward through slots in the wing. About 50 percent of engine air is bypassed through wing nozzles located in spanwise slots in the wings. The wings look like an accordion at low speed but flatten out during cruise.

Source: "Medium-Range STOLs Get Set" Popular Science December 1973


Attachments

  • BellAerospaceVSTOL.JPG
    105.1 KB · Views: 331

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
235
Given past experience with eejector systems sclaing from lab to full-xcale, I'd wager this one wouldn't have worked any better than the XV-4A (which had to get the ejector system replaced by a battery of lift jets) and the XFV-12A.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
106
I wouldn't be surprised if it worked better. There is still quite a bit of room between "working better than the XVF-12" and "working" after all. ;)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,321
Reaction score
256
of all VTOL abominations, ejectors rank VERY high. the XFV-12 installation was particularly bad because to minimize losses, you need long rectangular "trenches", which neither the foreplane nor the main wing could afford. So yeah, this might actually work *marginally* better (heavy emphasis on marginally!) ;D


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,210
Reaction score
174
"Experience is the ability to recognize the same dumb**** mistake the second time you make it."

Or the third, if you count the E-7.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

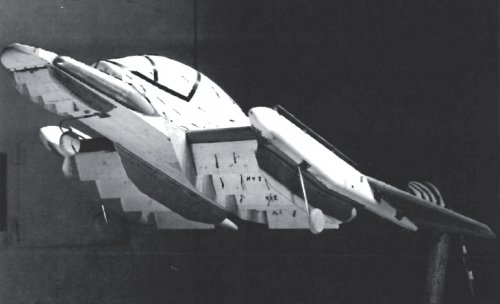

More about the CTA technology:


Attachments

  • USAF CTA.jpg
    USAF CTA.jpg
    132 KB · Views: 235

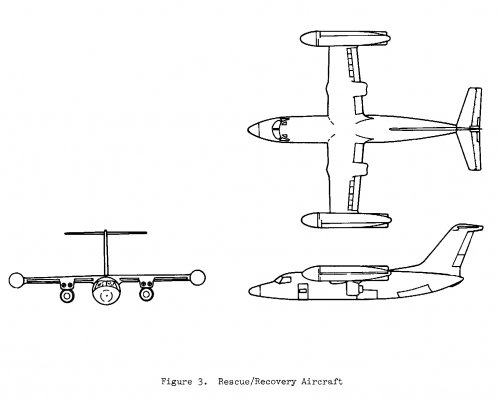

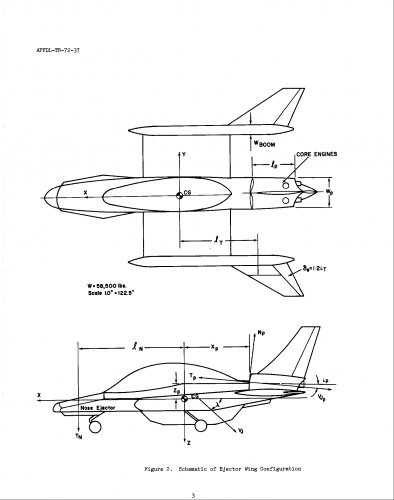

  • USAF CTA 3-view.jpg
    USAF CTA 3-view.jpg
    262.9 KB · Views: 224

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
More:


Attachments

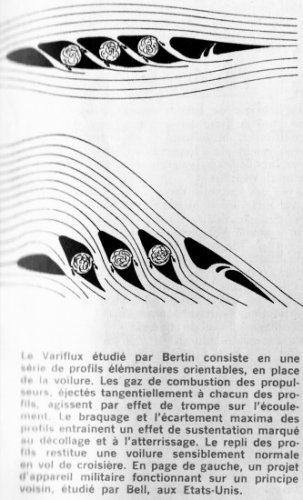

  • r_bertin.JPG
    100.6 KB · Views: 209
  • r_Bertin2.JPG
    62 KB · Views: 200
