Hi,

I suggested that the Beardmore WB.IX amphibian flying boat project,
which could carry ten passengers and one pilot,powered by four 200hp
Beardmore engines,fitted inside the hull and driving two tarctor airscrews
through gears shafting,it designed for Air Ministry Spec. 7/20.
And its span was 107 ft,lenght 61 ft and estimated speed 93 mph.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,042
Hi,

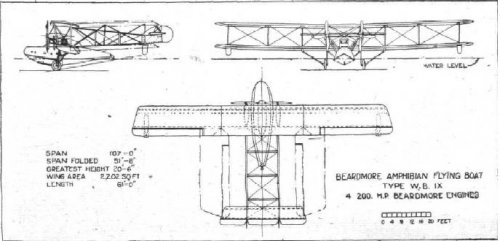

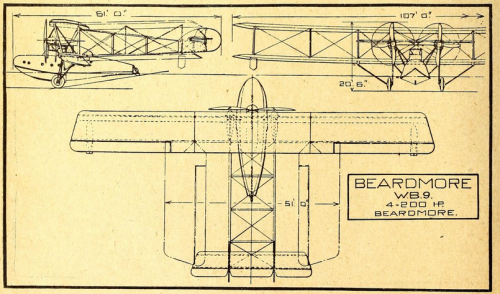

a good drawing to WB.IX;


https://archive.org/stream/aeroplane191920lond#page/22/mode/1up


Attachments

  • WB.IX.png
    850.5 KB · Views: 127
