Hi,

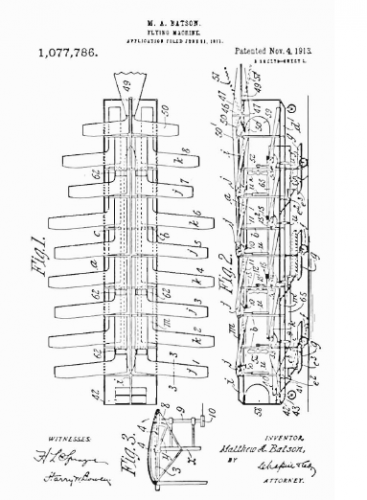

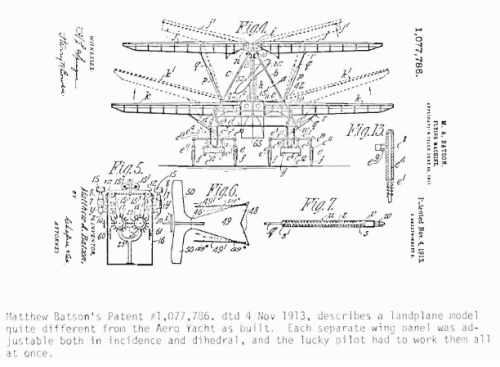

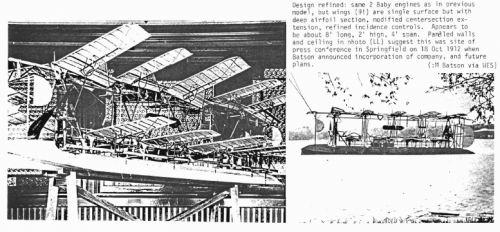

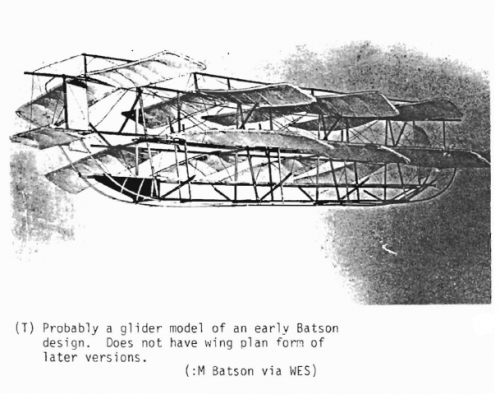

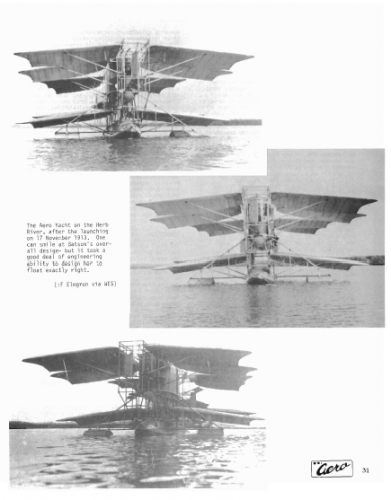

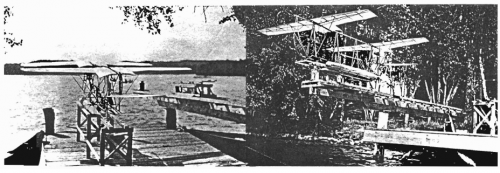

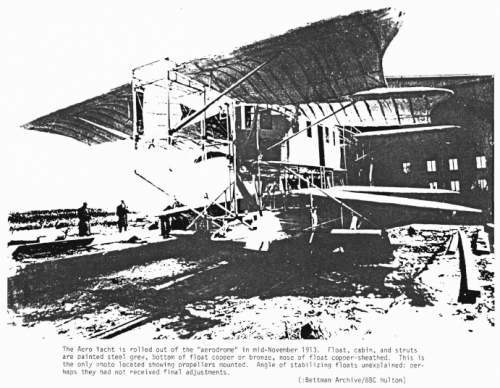

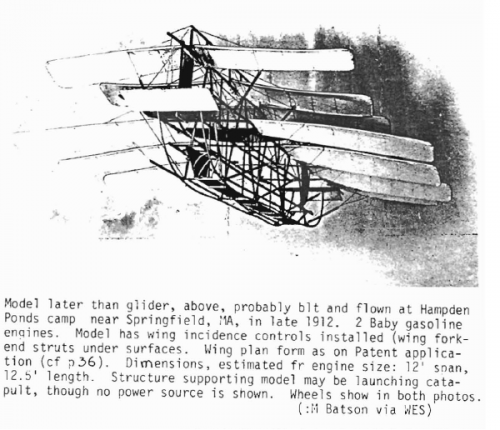

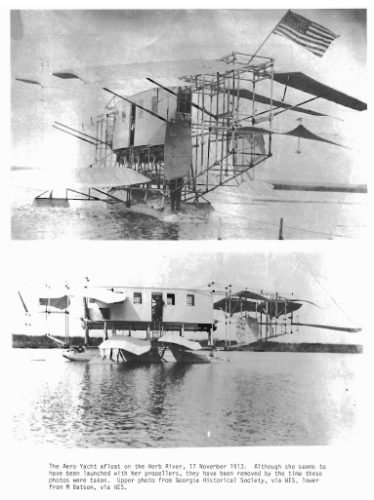

Mr. Matthew Arlington Batson formed the Batson Air Navigation Co. in USA during 1912,he designed and built two flying boats,the Air Yacht and Dragonfly,he also created some patents.

Aero WW1 (103)


Attachments

  • 1.png
    395.2 KB · Views: 295
  • 8.png
    259.7 KB · Views: 53
  • 7.png
    179 KB · Views: 55
  • 6.png
    233.6 KB · Views: 45
  • 5.png
    354 KB · Views: 209
  • 4.png
    415.4 KB · Views: 216
  • 3.png
    193.7 KB · Views: 239
  • 2.png
    187.5 KB · Views: 255
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,982

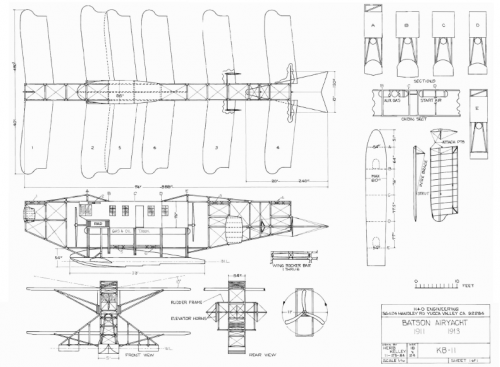

And;


Attachments

  • 14.png
    247.9 KB · Views: 59
  • 13.png
    497.3 KB · Views: 68
  • 12.png
    111.6 KB · Views: 47
  • 11.png
    99.6 KB · Views: 54
  • 10.png
    147.3 KB · Views: 58
  • 9.png
    169.9 KB · Views: 56

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,566
Reaction score
1,048
Hee!
Hee!
Looks like he suffered an overage on one size of wings and just kept bolting them together until he used up his surplus stock.
Sort of like the Caproni sort of flying houseboat.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,851
Reaction score
1,486
Some details from Scientific American Volume 109, Issue 24, 13 Dec 1913

"The machine is equipped with twelve large wing planes, one pair having a spread of 39½ feet, and four pair with a spread of 37½ feet, while a sixth pair has a spread of 30 feet. The wings are peculiarly designed with the purpose of guiding the air currents inwardly toward the body of the machine and there banking them under the base portion of the wings, which are concaved underneath and carried back along the chassis, so that the currents of air are conducted along the parts nearest the chassis. Any wing, or set of four wings or all twelve may have their angle of incidence changed at the will of the pilot by the turn of a wheel while the machine is in full flight.

The machine is equipped with three Emerson aeroplane engines, of six cylinder type, installed in the floor of the pilot house. Combined, these engines will supply 250 horse-power, driving the propellers at 1,000 revolutions per minute. Any one of the engines may be thrown out of or into action by the operation of a clutch.

The cabin of the machine is 27 feet long, and is constructed of cypress paneling 3/8 of an inch thick, over which is a covering of canvas. The lifeboat is made of three ply cypress and ash with inter-layers of canvas. The length of the machine is 74 feet and the boat 33 feet.

It is by far the most elaborate hydro-aeroplane ever attempted. The inventor expects to fly across the Atlantic in this machine. We have yet to learn what it will do in flight."

riggerbob: According to contemporary newspaper (eg: The Tacoma Times, 5 Dec 1913, pg 12), wing incidence could be varied in flight. The goal of the multi-plane arrangement was "perfect stability and security from accident, according to Captain Batson."

Hesham: I realize that the names Air Yacht and Aero Yacht refer to the same aircraft. I was wondering about which spelling was correct ... ie, which spelling did the Batson Air Navigation Co. employ?

The New England Air Museum refers to it as the Aero Yacht. So does William E. Scarborough (WW1 Aero, #103 Feb 1985) and a local area history (Isle of Hope: Wormsloe and Bethesda, Polly Wylly Cooper, Arcadia, 2002).

On the other hand, Aerofiles and ER Johnson (in American Flying Boats and Amphibious Aircraft: An Illustrated History) use Air Yacht.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,982

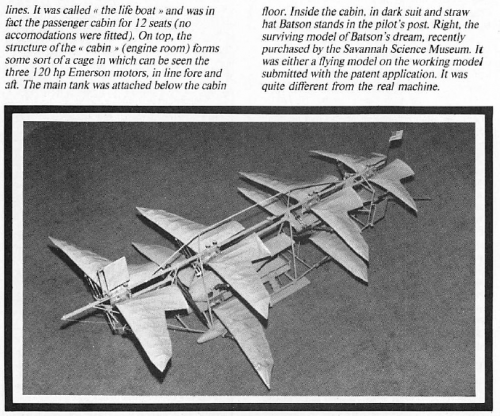

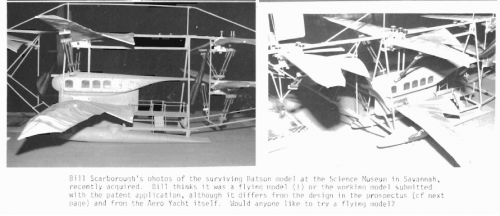

From le Fana 197.


Attachments

  • 3.png
    438.6 KB · Views: 50

Aerohydro

Early aviation enthusiast
Joined
Mar 6, 2015
Messages
36
Reaction score
72
Hello All,

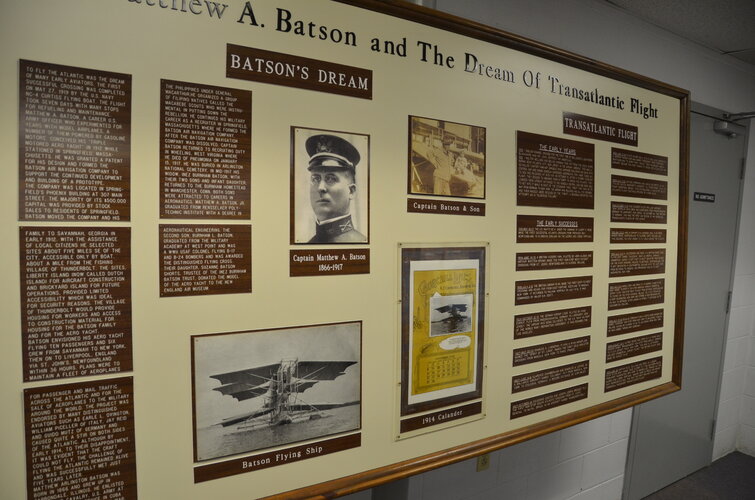

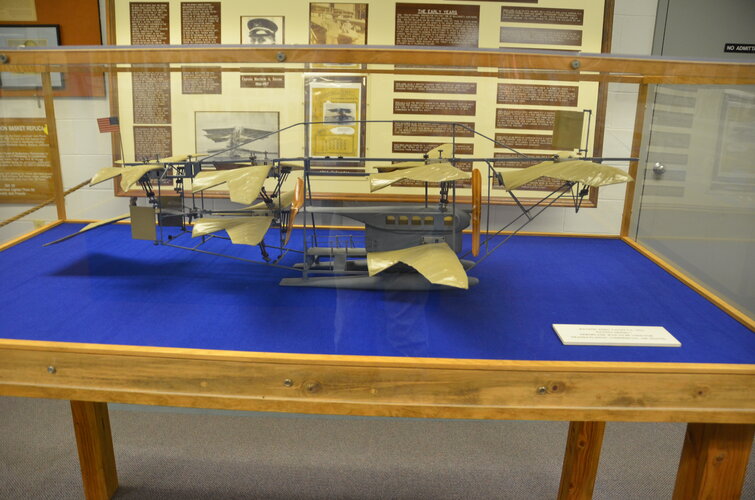

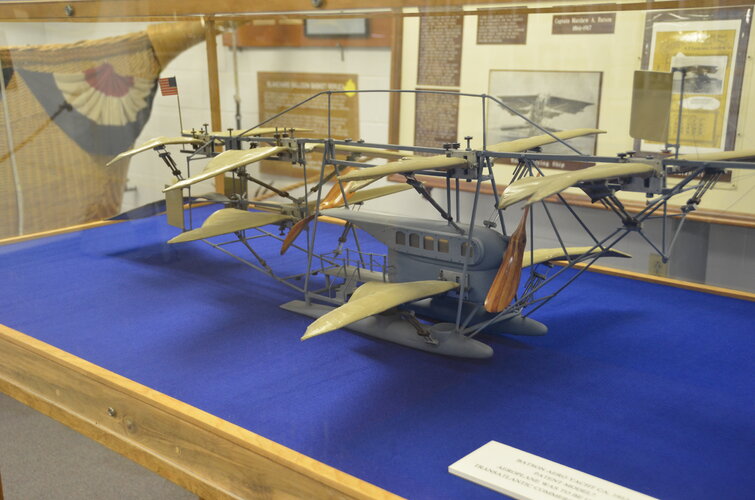

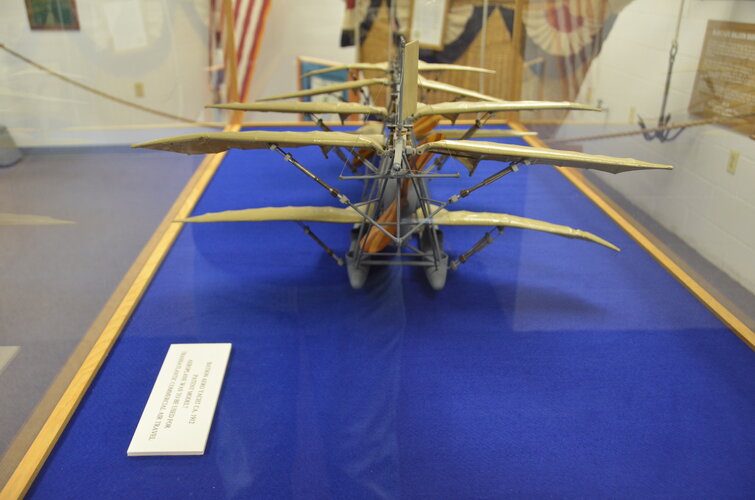

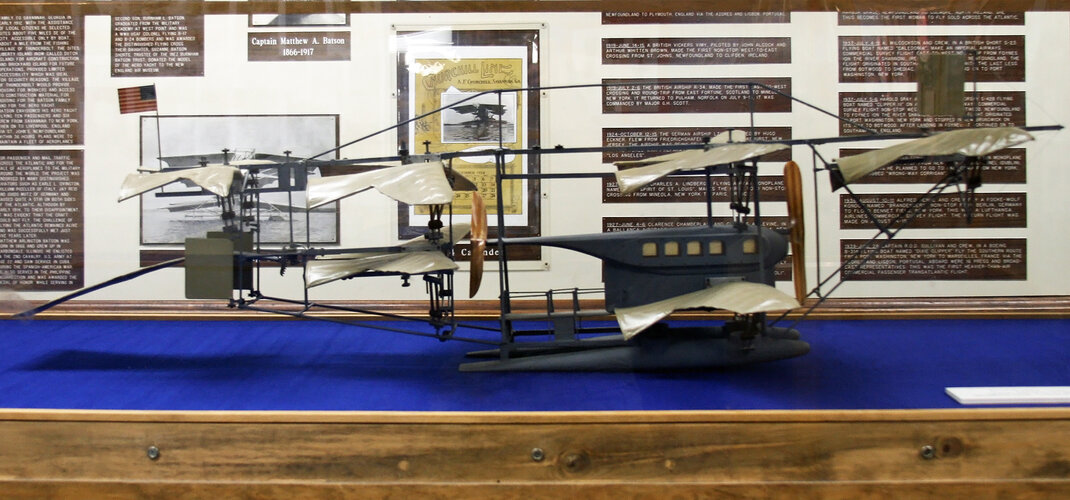

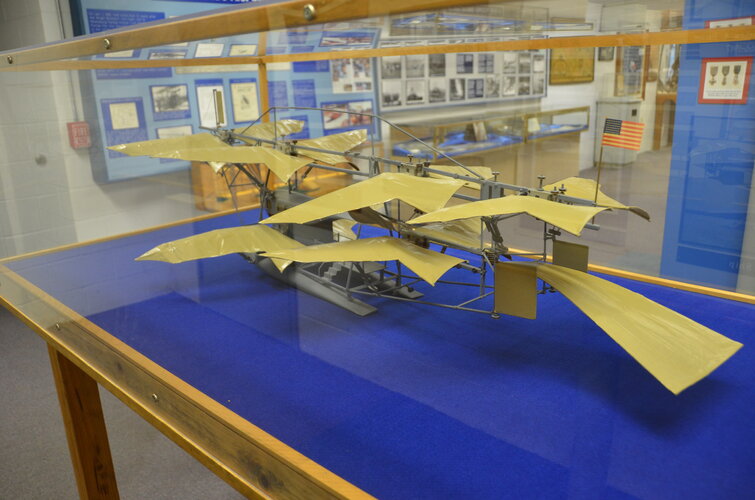

Here are some photos of the Batson Aero Yacht model, now housed at the New England Air Museum. Next to the model is a large information board, providing detail about Matthew A. Batson and his aeronautical ambitions. These images come courtesy of a Flickr album:

Flickr - Robert Rouse - New England Air Museum

Cheers,
Paul


Attachments

  • NEAM Batson Aero Yacht Model 1.jpg
    NEAM Batson Aero Yacht Model 1.jpg
    1.1 MB · Views: 13
  • NEAM Batson Aero Yacht Model 2.jpg
    NEAM Batson Aero Yacht Model 2.jpg
    6.9 MB · Views: 13
  • NEAM Batson Aero Yacht Model 3.jpg
    NEAM Batson Aero Yacht Model 3.jpg
    6.2 MB · Views: 16
  • NEAM Batson Aero Yacht Model 4.jpg
    NEAM Batson Aero Yacht Model 4.jpg
    6.5 MB · Views: 12
  • NEAM Batson Aero Yacht Model 5.jpg
    NEAM Batson Aero Yacht Model 5.jpg
    6.5 MB · Views: 12
  • NEAM Batson Aero Yacht Model 6.jpg
    NEAM Batson Aero Yacht Model 6.jpg
    6.6 MB · Views: 16

Aerohydro

Early aviation enthusiast
Joined
Mar 6, 2015
Messages
36
Reaction score
72
Hello All,

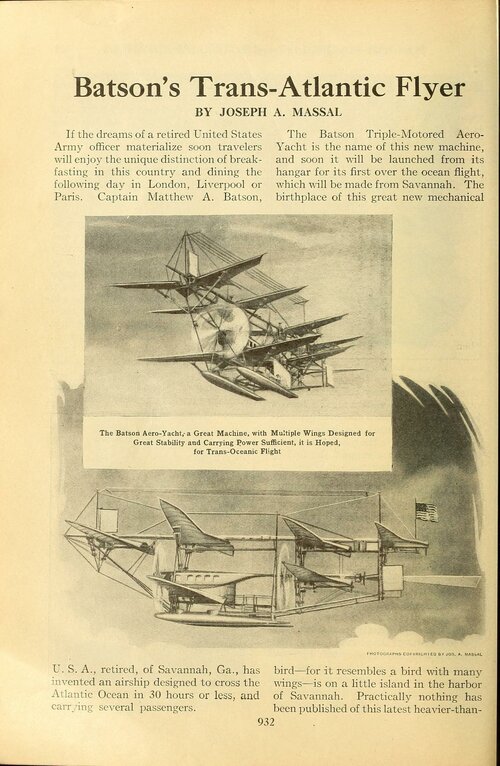

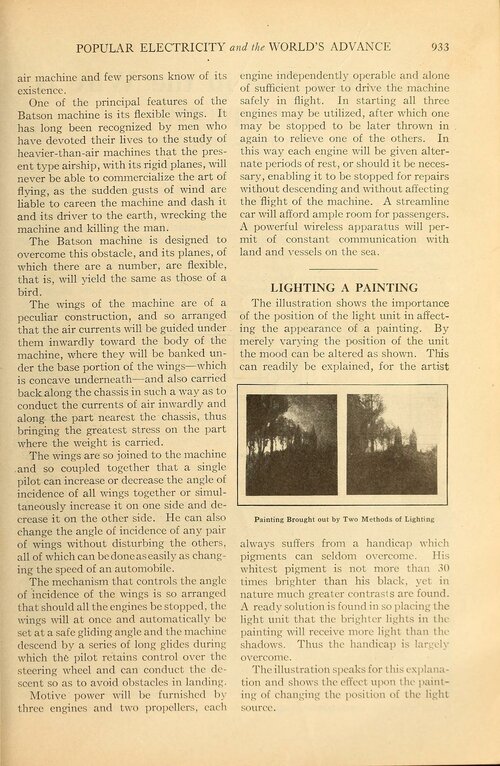

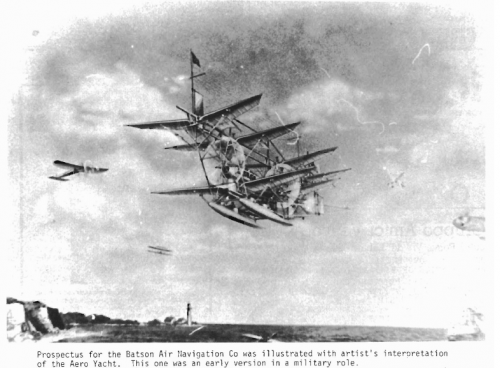

A couple of sketches of the Batson Aero Yacht, showing it flying through the air. These were included a contemporary article about Batson's machine, and which can be accessed here:

Archive.com - "Popular Electricity Magazine" - December 1913 - pages 932-933

The first illustration is essentially the same as the one used for the Batson Air Navigation Company's prospectus, though with minor differences.

Cheers,
Paul


Attachments

  • Popular Electricity Magazine December 1913 pg 932.jpg
    Popular Electricity Magazine December 1913 pg 932.jpg
    314.7 KB · Views: 13
  • Popular Electricity Magazine December 1913 pg 933.jpg
    Popular Electricity Magazine December 1913 pg 933.jpg
    372.2 KB · Views: 14
