B-52 armed with LGBs

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
I recently saw a pic somewhere of an LGB, sorry don't recall which one, with a B-52 in the background & the caption stated something about the B-52 carrying the LGBs. However, there's no better pic showing placement or number carried. I asume they're carried on the wing racks. Anyone have further details?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,393
Reaction score
1,439
frank said:
I recently saw a pic somewhere of an LGB, sorry don't recall which one, with a B-52 in the background & the caption stated something about the B-52 carrying the LGBs. However, there's no better pic showing placement or number carried. I asume they're carried on the wing racks. Anyone have further details?

I have a picture at home somewhere with a B-52 loaded up with LGBs on it's pylons. ISTR they were just transporting them though. I'll dig it up later.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
Hmm, I was under the impression it transported them to target. :) I'd like to see your pic if you run across it.


sferrin said:
frank said:
I recently saw a pic somewhere of an LGB, sorry don't recall which one, with a B-52 in the background & the caption stated something about the B-52 carrying the LGBs. However, there's no better pic showing placement or number carried. I asume they're carried on the wing racks. Anyone have further details?

I have a picture at home somewhere with a B-52 loaded up with LGBs on it's pylons. ISTR they were just transporting them though. I'll dig it up later.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
http://www.military-aerospace-technology.com/article.cfm?DocID=192
“Last summer, we got a request from ACC to carry a laser-guided bomb,” Price said. “We had never carried one before. It was another one of those quick-response things. We have responded to a lot of those since 9/11 and the war on terrorism.”

The B-52 thus tested the guided bomb unit (GBU)-12 on March 28 (2003) in conjunction with the Litening II targeting pod. Historically, only fighter jets have carried laser-guided bombs. However, the B-52 can carry the bombs internally and externally and carry the capacity of six or more fighters, Morris said. A bomber like the B-52 can loiter at a high altitude and stay on station longer than a fighter. As such, it can stay in the immediate area and engage emerging threats, whereas fighters typically have enough fuel to fly to their targets and back. The B-52 demonstrated that capability on April 7 when it targeted the Baghdad airport during Operation Iraqi Freedom.

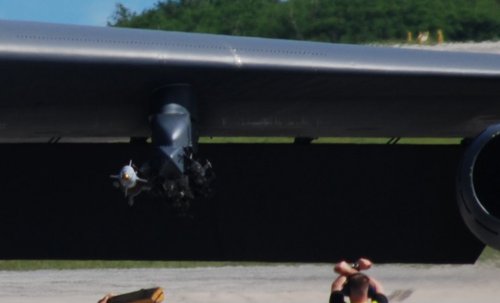

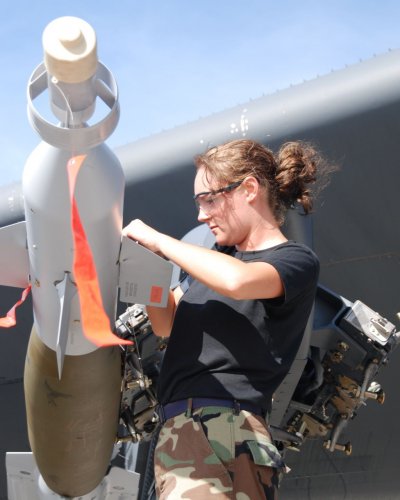

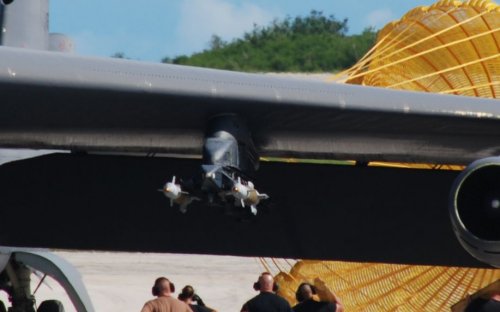

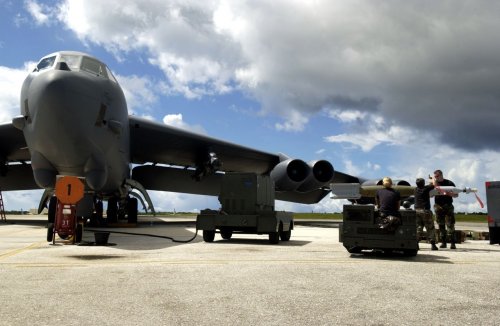

GBU-12 loading on B-52 during operation Valiant Shield (2007)
http://www.andersen.af.mil/shared/media/photodb/photos/070806-F-5853M-214.JPG
http://www.andersen.af.mil/shared/media/document/AFD-070810-005.wmv

More hi-res here http://www.917wg.afrc.af.mil/news/story_media.asp?id=123064941


Attachments

  • 070806-F-5853M-214s.jpg
    165.7 KB · Views: 197
  • 070807-F-8597S-007s.jpg
    62.9 KB · Views: 200
  • 070807-F-8597S-008s.jpg
    51.8 KB · Views: 179
  • 070807-F-8597S-010s.jpg
    126.6 KB · Views: 189

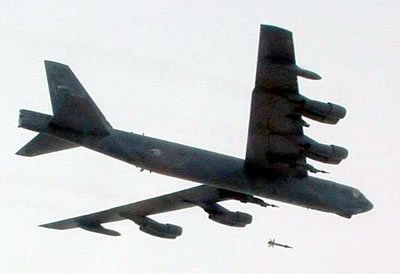

  • b-52H-lgb.jpg
    14.6 KB · Views: 223

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,472
Reaction score
202
Excuse my ignorance, but what is the utility such a big aircraft to carry 4 tiny bombs?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

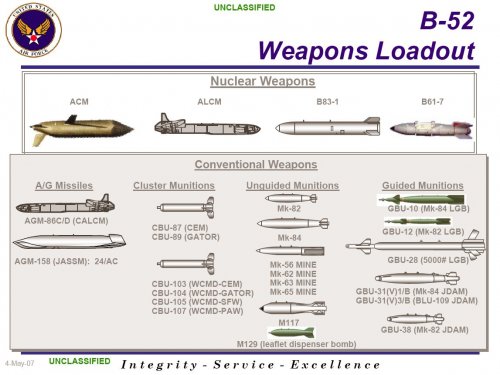

Such a rich country can afford sending B-52 with four GBUs...Talking seriously, added a capture from an article that says of internal carriage as well, so the number is at least two or three times more


Attachments

  • b52weapons2007.jpg
    120 KB · Views: 249

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
It does state they can carry as many as 6 or more fighters & loiter way longer. I still can't imagine a BUFF being that much cheaper than 6 or more fighters, regardless. Hey, it's only money, & right now, USDs ain't worth that much! :)


pometablava said:
Excuse my ignorance, but what is the utility such a big aircraft to carry 4 tiny bombs?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
Found with Google with key words B-52 and GBU-12 in approximately 0,5 minutes


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,393
Reaction score
1,439
frank said:
Hmm, I was under the impression it transported them to target. :) I'd like to see your pic if you run across it.


sferrin said:
frank said:
I recently saw a pic somewhere of an LGB, sorry don't recall which one, with a B-52 in the background & the caption stated something about the B-52 carrying the LGBs. However, there's no better pic showing placement or number carried. I asume they're carried on the wing racks. Anyone have further details?

I have a picture at home somewhere with a B-52 loaded up with LGBs on it's pylons. ISTR they were just transporting them though. I'll dig it up later.

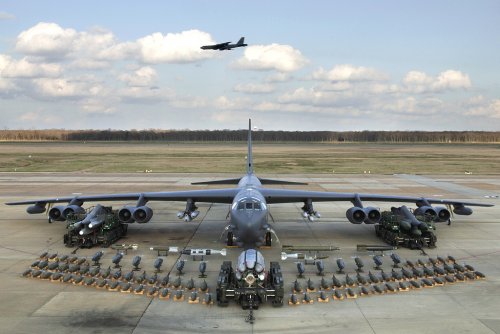

I looked on my computer and I'm thinking the picture was in a book called "Gulf Air War Debrief" which I don't have handy. Basically they loaded up the pylons with 2000lb LGBs to haul to the Gulf for fighters to use during Desert Storm. It wasn't SOP but they needed to get some there quick. F-111s carried a full load of them when they first deployed as well. Anyway, I did find this for a consolation prize ;D


Attachments

  • 060202-F-6809H-100.jpg
    293 KB · Views: 203

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
Maybe that was the diff, I looked a few months back.........


flateric said:
Found with Google with key words B-52 and GBU-12 in approximately 0,5 minutes


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
618
Reaction score
276
Hi,

I found a recent article of relevance to the topic of B-52s being armed with laser-guided bombs:



mkellytx

ACCESS: Confidential
Joined
Sep 18, 2009
Messages
113
Reaction score
59
Hi,

I found a recent article of relevance to the topic of B-52s being armed with laser-guided bombs:

There's a backstory to this one, GBU-12 ended the BUFF's Seek Eagle exemption once and for all. Before my days as a BUFF flight tester, GBU-12's were attempted from the bay from the dumb bomb racks. The fins were aligned differently than normal and the store came back up into the aircraft and hit the tail. This was after there was a store to store contact with another weapon type, which later Monte Carlo analysis showed hit the other store 996 of 1000 times. So, from then on all new stores went through Eglin and Seek Eagle.

Back in those days laser JDAM was still a Power Point slide, so if you wanted to hit a moving target it was either dumb bombs or GBU-12.
