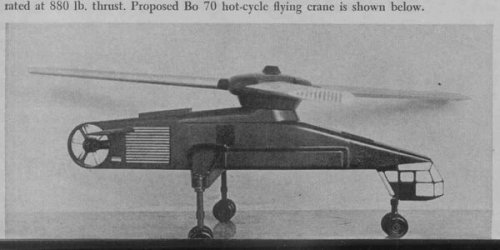

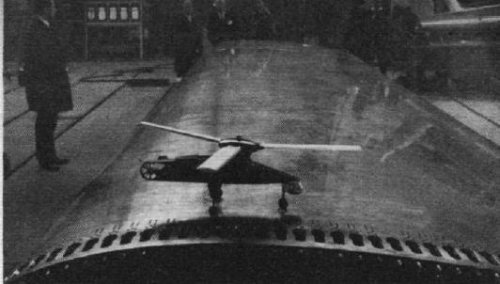

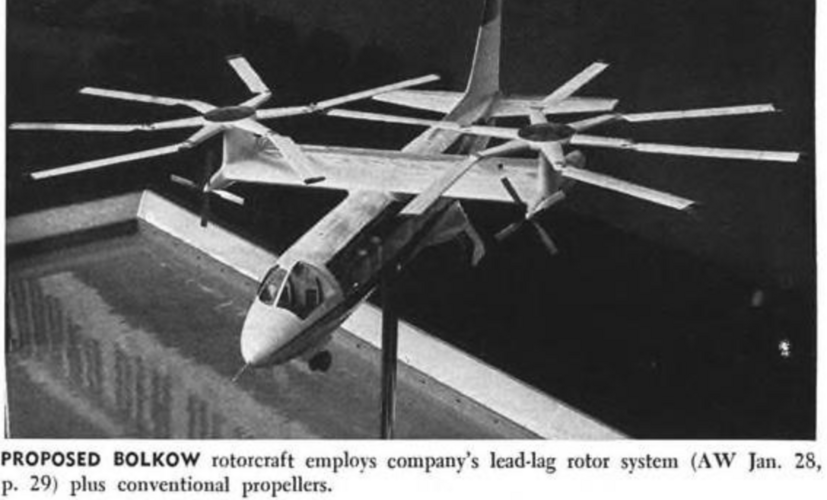

It's the Bo 70
(from Aviation Week1965 18-26)


Attachments

  • Bo-70.JPG
    25.2 KB · Views: 879

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

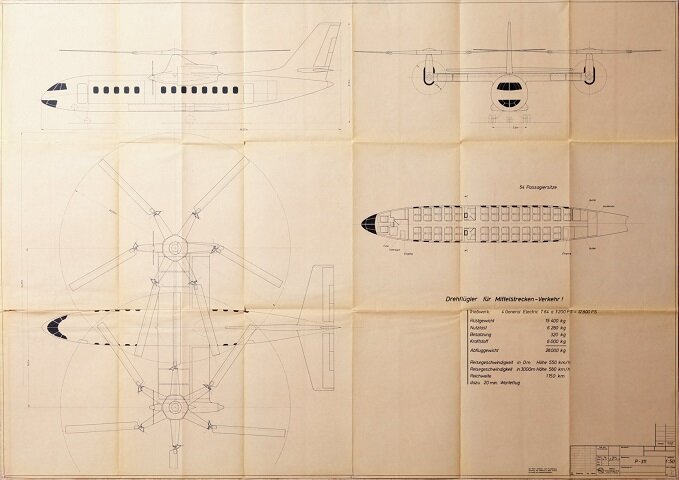

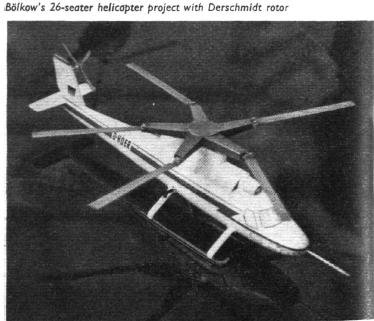

the Bolkow-Derschmidt designed a nice commuter helicopter in
1962,which was accommodated 26-passengers.

http://www.flightglobal.com/PDFArchive/View/1962/1962%20-%200688.html?search=Bolkow%20helicopter%201962


Attachments

  • Bolkow.JPG
    22 KB · Views: 683

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
982
Website
deeptowild.blogspot.com

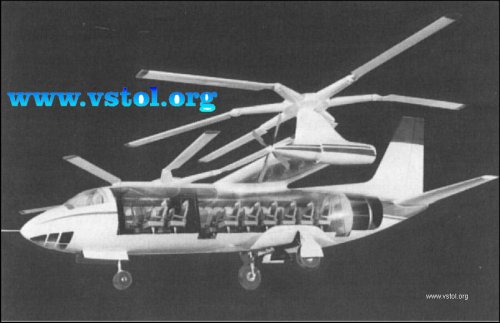

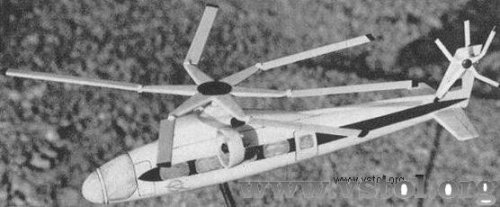

Model of Bölkow commuter helicopter with ducted propellers, Derschmidt rotor, also known as tip jet.

  • Power: two T64 engines
  • Cruise Speed: 500 km/h (270 kt)
  • Range: 1000 km (540 nm)
  • Capacity: 26 seat


Sources:
http://www.aiaa.org/tc/vstol/unbuilt/
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001.


Attachments

  • bo2.jpg
    25.1 KB · Views: 594

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
982
Website
deeptowild.blogspot.com

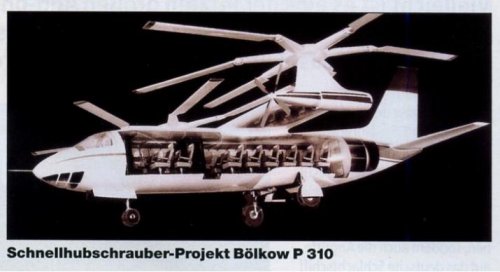

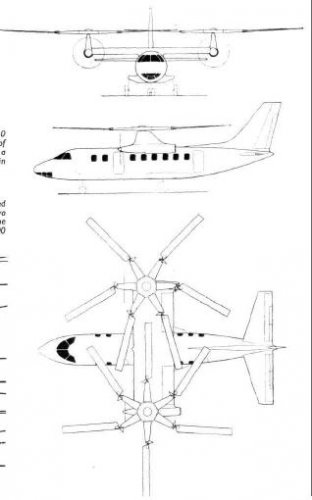

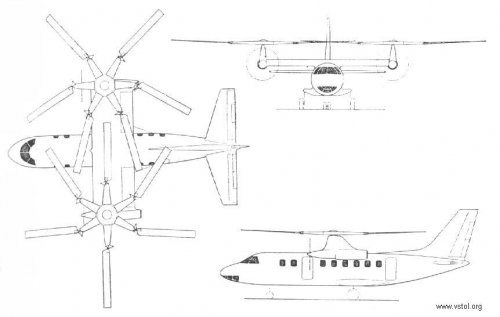

Bölkow Bo310 helicopter with two intermeshing Derschmidt rotors driven by turbines of 3,200 to 3,400 hp. As in the defunct Rotodyne, rotor loading is reduced by a fixed wing and two propellers are provided for forward thrust and placed at zero pitch for hovering flight.

Presented 1963 at the Paris - Le Bourget Aerosalon
  • Power: two Lycoming T55 turboshaft engines (each with 3,400 hp)
  • Rotors: two swiveling rotors, each with a diameter of 13.20 m (43.3 ft)
  • Cruise Speed: 500 km/h (270 kt)
  • Range: 700 km (380 nm)
  • Width: 22.45 m (73.7 ft)
  • Length: 18.30 m (60 ft)
  • Height:6.45 m (21.1 ft)
  • Fuselage: 2.30 m (7.5 ft) diameter
  • Maximum Take-off Weight: 10 t (22,050 lb)
  • Capacity: 24 seat

Sources:
http://www.aiaa.org/tc/vstol/unbuilt/

"Shapes and Sizes: A Technical Miscellany from Paris". Flight International. June 20, 1963. p. 967.
http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200998.html
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001.


Attachments

  • bo_310_3.jpg
    32 KB · Views: 173
  • bo_310.jpg
    62.3 KB · Views: 161

dragon72

ACCESS: Confidential
Joined
Aug 8, 2006
Messages
63
Reaction score
4
Any idea why the cranked rotors. I assume it's like a swept wing, reducing the relative mach speed but I wouldn't imagine it would make that much difference and it would become a much more difficult structure the way the forces would act on it.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
It's a "Derschmidt Rotor". Hans Derschmidt filed a patent for that rotor, which was actually
flight tested in the MBB Bo 46.
The reason was, that ´with the additional hinge the advancing blade could bend back and
so reduce tip speed somewhat, allowing for greater forward speed of te helicopter.
Tests weren't really succesful, as the system proved to be overly complex and fragile.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807

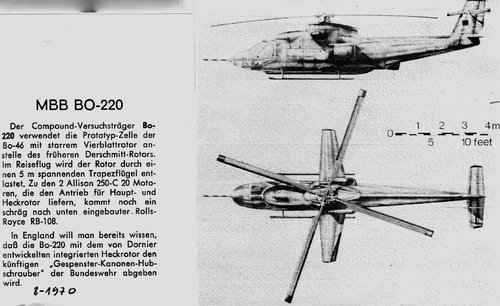

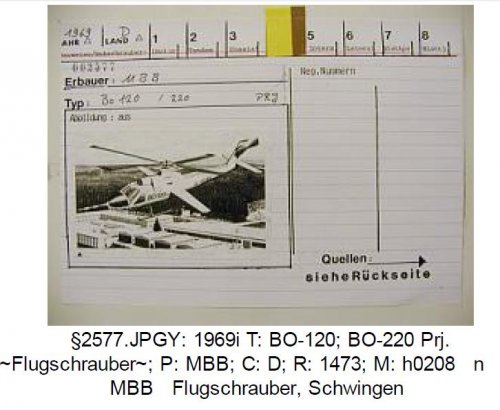

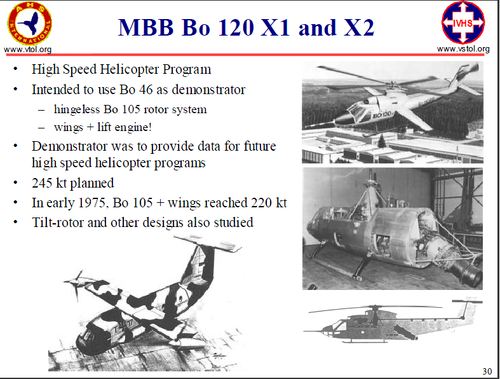

Bo-120 and Bo-220 seem to be related designs. My bet is that the former may have been a two-blade version while the latter was the four-blade shown in the picture (but it's only guess work I'll admit).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
I think you are right My dear Stargazer,


I saw old version (Bo.120) with two-blade.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

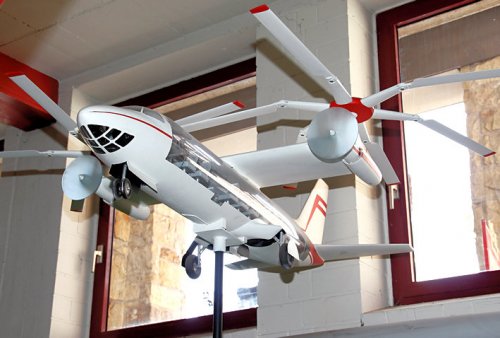

here is the Bolkow Bo.310 project Model.


Attachments

  • 310.JPG
    35.1 KB · Views: 123

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

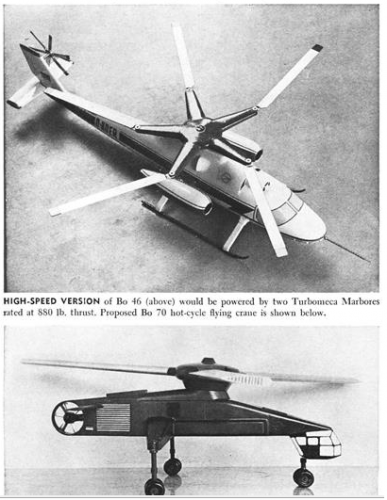

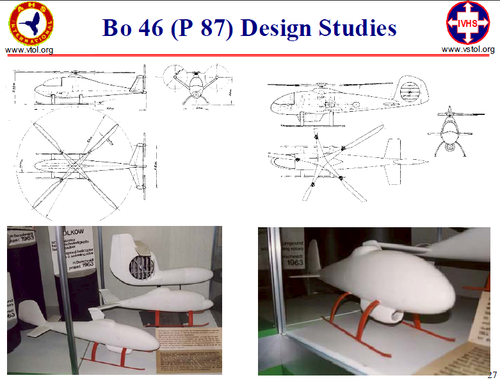

here is a development of Bo.46 and a Bo.70 helicopter projects.

http://archive.aviationweek.com/image/spread/19650614/156/2


Attachments

  • 1.png
    218.5 KB · Views: 132

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20

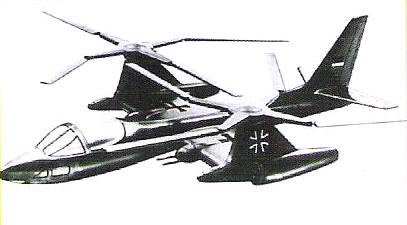

Hi, Bolkow concept with Derschmidt High-speed Rotors: http://www.unicopter.com/1742.html


Attachments

  • Interleaving_Bolkow.jpg
    17.3 KB · Views: 149

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022

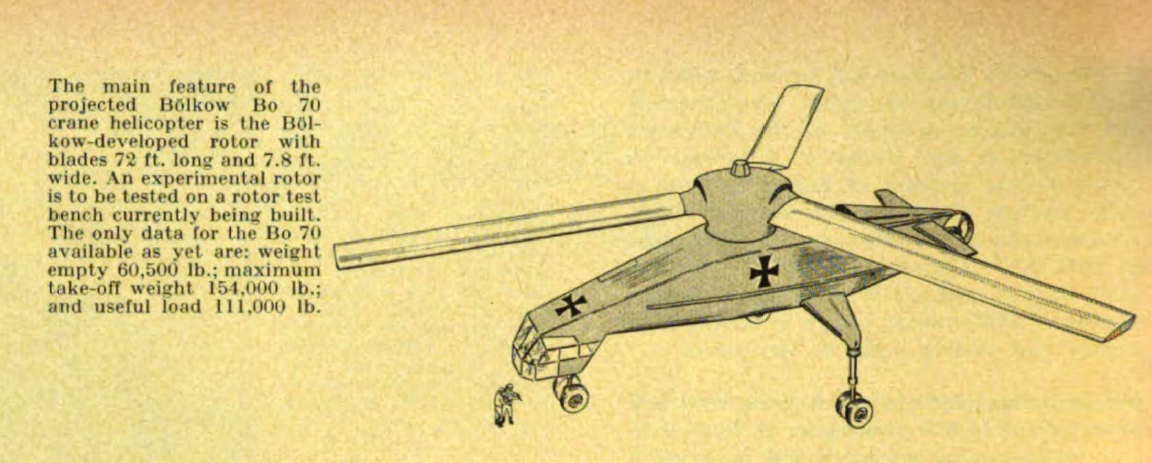

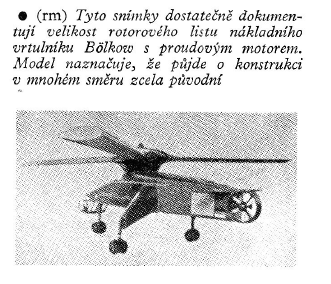

From L+K 4/1965,

the Bolkow Bo.70.


Attachments

  • 1   4-1965.png
    1 4-1965.png
    75.7 KB · Views: 134

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

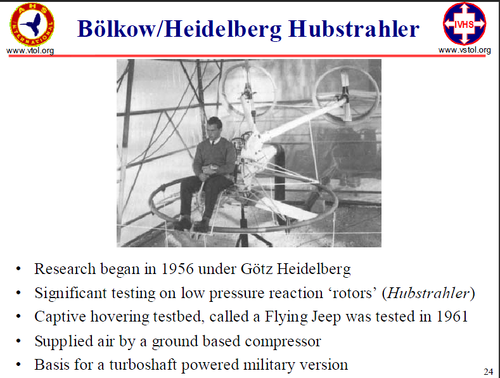

here is some Bolkow/MBB Projects

German V/STOL Rotorcraft and Propellercraft
Designs of the Twentieth Century


Attachments

  • 0.png
    167.3 KB · Views: 86
  • 1.png
    246.8 KB · Views: 99
  • 2.png
    195.2 KB · Views: 124

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

I have in my files a two proposals for MBB,and one of them was developed from BK.117 as EC.145,but I don't
remember where is it now ?.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
This one is a Colani "design" ("Aerodynamic Helicopter") 1977

Thank you my dear Richard,and I correct and transfer it to a proper topic,but the Info in
reply # 19 was right ?!.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
From AIAA;

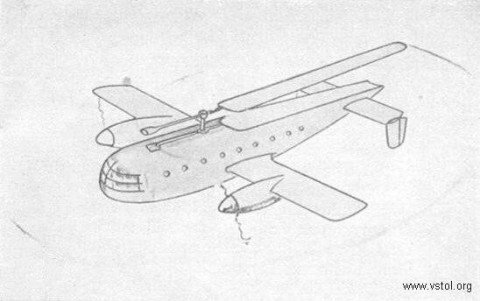

Single bladed rotor transporter studied in 1955-56.
  • Rotor: 40 m (diameter) single-bladed. The rotor could then be stopped and retracted, flush with the upper fuselage surface for cruise.
  • Capacity: 30 seats


Attachments

  • bo[1].jpg
    30.9 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

although the book Ludwig Bölkow und sein Werk. Ottobrunner Innovationen is great and
has many Projects,but it explains only a number of concepts from P.61 to P.111,but before
that and beginning of P.1 to P.60 is completely mysterious ?,any help.
