Avia B.34 variants and derivatives

[hesham]

Hi,

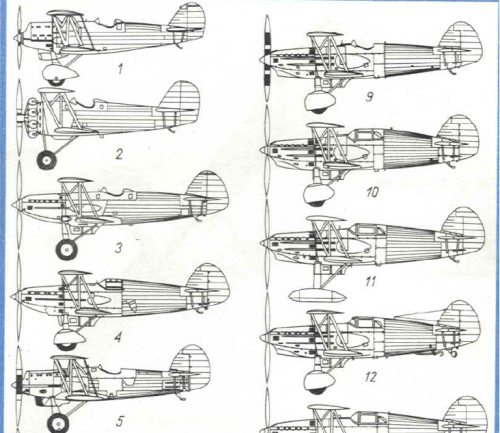

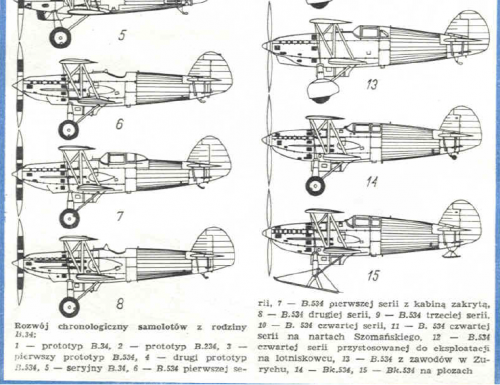

here is a drawings to Czech Avia B.34 single seat fighter with some of its

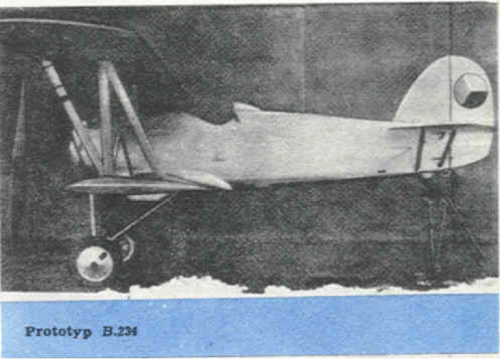

variants and derivatives,also B.234 prototype.


Typy Broni



[Bazinga]

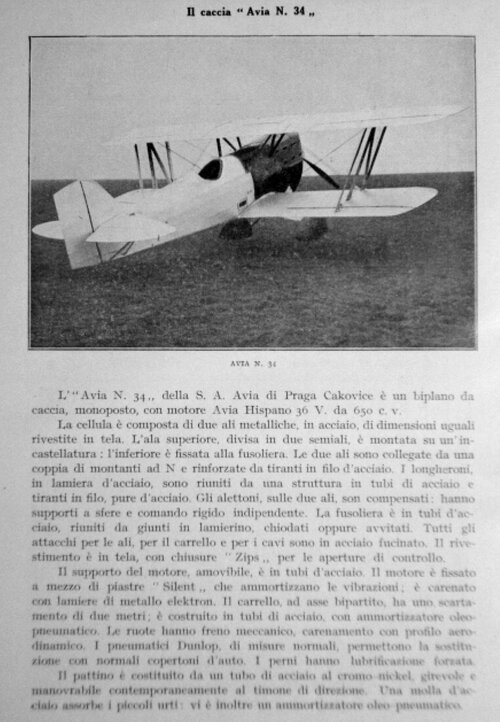

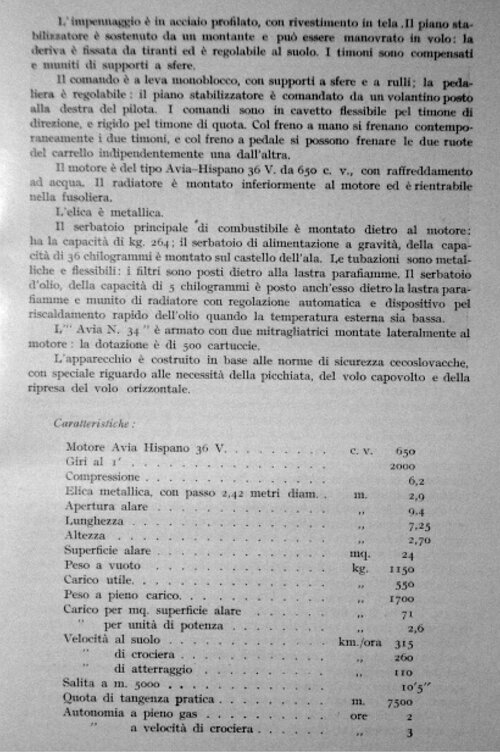

1932 Rivista Aeronautica from Italy. The Italian article mentions N.34 but the timeframe must point to B.34. Probably just an abbreviation of "numero"
