An odd combination of weapons

klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
445
Reaction score
742

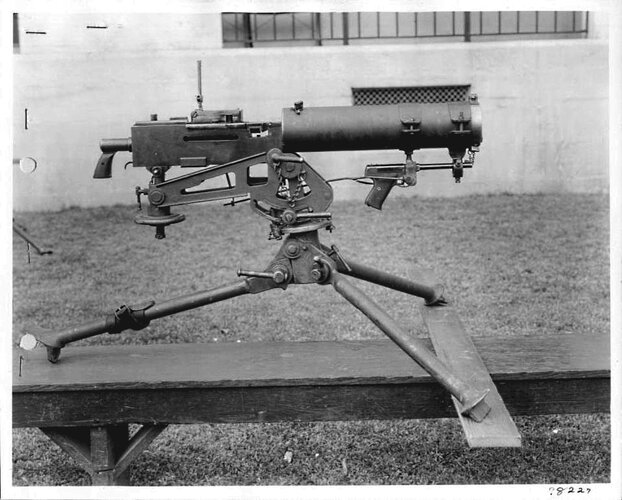

At first glance it's a Browning MG with a Colt pistol, if I'm not mistaken, which must surely date from the ww1 period. A rather unusual combination, what is the purpose of the function of this mechanism?


Attachments

  • a.jpg
    383.3 KB · Views: 102

TomS

ACCESS: Above Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
5,921
Reaction score
4,425
At first glance it's a Browning MG with a Colt pistol, if I'm not mistaken, which must surely date from the ww1 period. A rather unusual combination, what is the purpose of the function of this mechanism?

Probably training with cheaper pistol ammunition instead of full power MG ammo.


MadRat

ACCESS: Confidential
Joined
Jan 29, 2010
Messages
88
Reaction score
61
The pistol was for shows offs that operated in god mode.

A little pow-pow to go with rat-a-tat-tat.


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
199
Reaction score
113
A .22 rimfire pistol would allow cheap basic training almost anywhere that has some sort of a backstop. No need to go to a big range to verify that your boys can aim.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,739
Reaction score
1,454
Great War version of a Johnny Seven gun*.
I have a hazy recollection of a photo of a Bren fitted to something like a Bofors for AA practice but don't remember where I saw it.

Chris
*if you remember this, you're showing your age.


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
199
Reaction score
113
I recall practise on a "light" anti tank weapon that had a subcaliber attachment for firing a pistol round.


timmymagic

I really should change my personal text
Joined
Aug 24, 2011
Messages
338
Reaction score
698

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,198
Reaction score
1,614
Back in the good-old-days, Canadian tankers inserted a .22 chamber into a Sherman tank barrel to practice tank-gunnery on an indoor, small-bore range.


klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
445
Reaction score
742

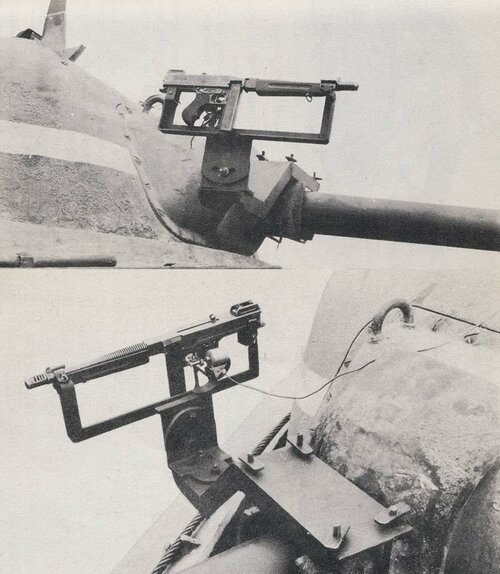

Subcaliber firing with coaxial weapon was used for training for tank crews.here a standard submachine gun mounted outside the tank.


Attachments

  • tank-submachine-gun.jpg
    111.1 KB · Views: 56

perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
199
Reaction score
113
Coincidentally, somebody on a Finnish model flying forum just mentioned machineguns mounted on ZU-23-2 AA guns for practice. Specifially, busy nights in 80s and 90s, repairing target drones after hits from 7.62mm bullets were mentioned.

(Didn't find any pics or information on what exactly the co-axial gun was)

edit:
An assault rifle, presumably Rk 62 (improved AK), was attached to the ZU-23-2.
Mounting a former aircraft machinegun, with longer rounds, on 40mm Bofors guns was also mentioned.

Last edited:

klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
445
Reaction score
742

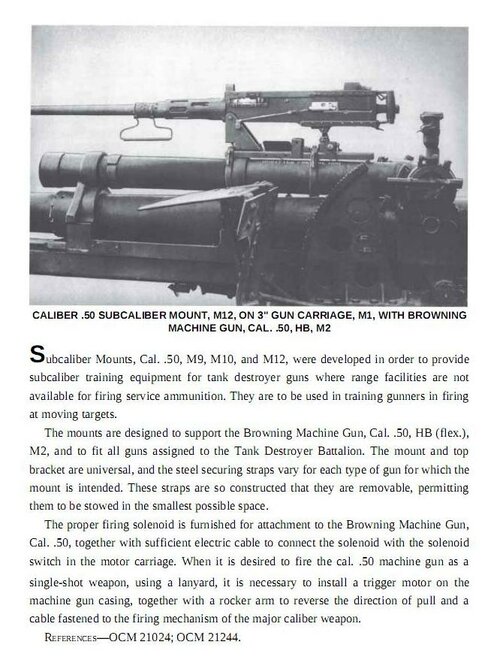

The American Arsenal - The World War II - Official Standard Ordnance Catalogue-Introduction by Ian V.Hogg-2014


Attachments

  • 01.jpg
    103.1 KB · Views: 32

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
1,155
Reaction score
811

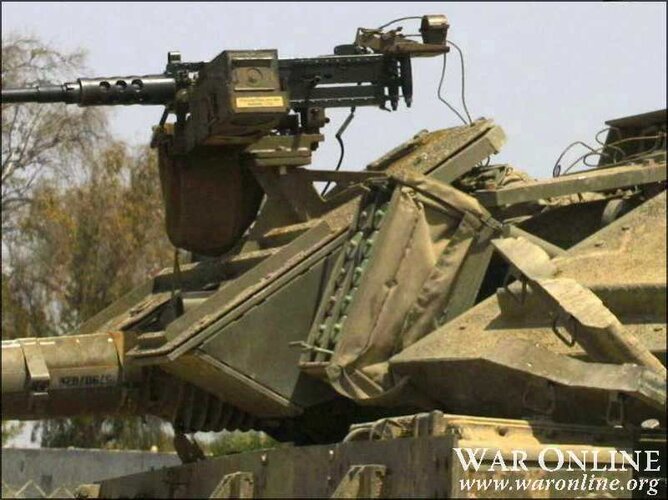

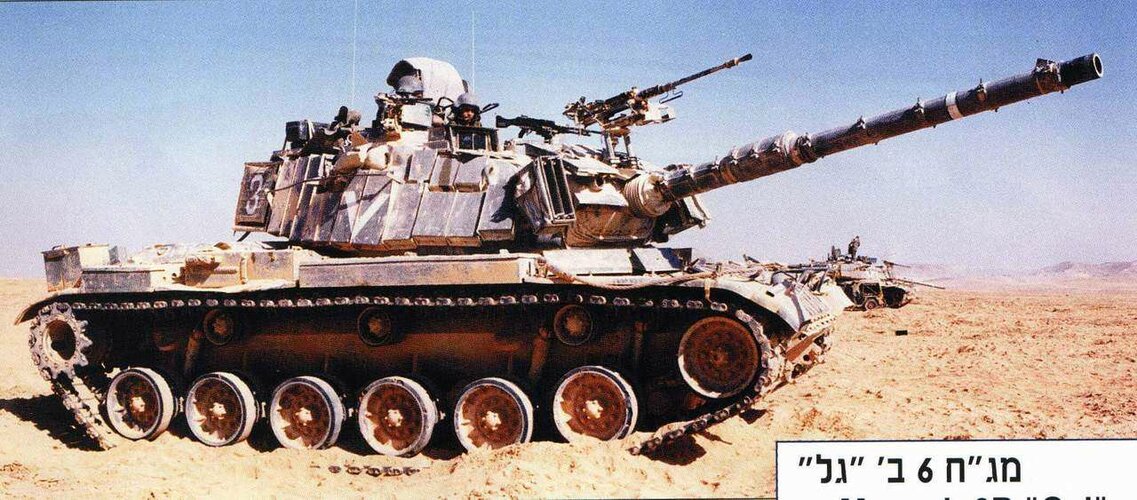

Was standard on the late version of Magach tanks (M60 upgrades)


Attachments

  • Magach 6B Batash (aka 7D) -mantlet.jpg
    Magach 6B Batash (aka 7D) -mantlet.jpg
    51.1 KB · Views: 25
  • Magach 6B gal 01.jpg
    Magach 6B gal 01.jpg
    119.4 KB · Views: 34

klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
445
Reaction score
742

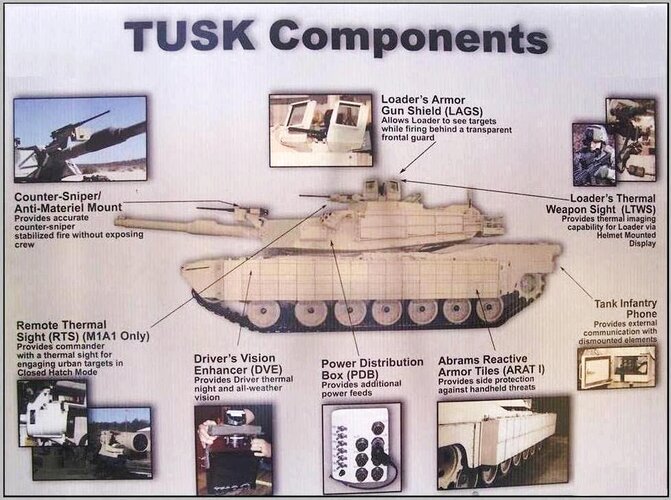

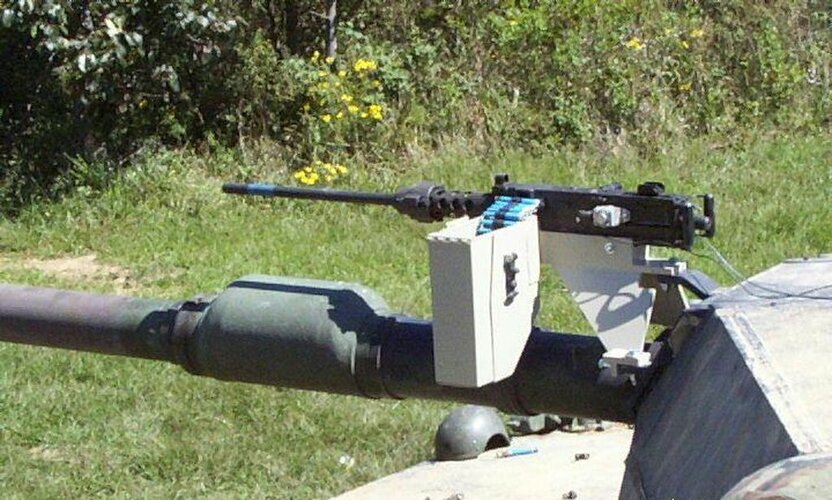

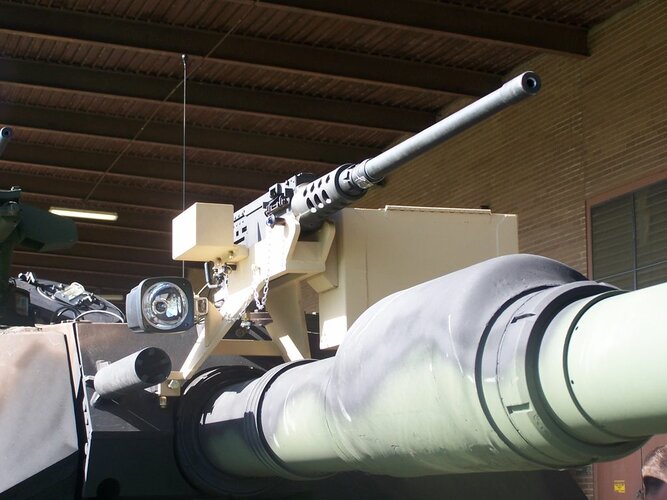

some seemingly similar subcaliber weapon systems may be confusing and seem like tank gunnery training practice but in fact their mission is quite different like Counter-sniper/anti-material mount , abbreviated as CSAMM, is a remote weapon system , the M2 .50cal Machinegun is not a coaxial machinegun, it was used against sniper and material without requiring the gunner to use the 120mm tank gun.(http://www.gunmasters.com/CSAMM-PHOTOS.htm ).


Attachments

  • 01.jpg
    483.6 KB · Views: 30
  • 02.jpg
    109.9 KB · Views: 25
  • 03.jpg
    153.1 KB · Views: 36

BB1984

I really should change my personal text
Joined
Aug 21, 2011
Messages
116
Reaction score
144
some seemingly similar subcaliber weapon systems may be confusing and seem like tank gunnery training practice but in fact their mission is quite different like Counter-sniper/anti-material mount , abbreviated as CSAMM, is a remote weapon system , the M2 .50cal Machinegun is not a coaxial machinegun, it was used against sniper and material without requiring the gunner to use the 120mm tank gun.(http://www.gunmasters.com/CSAMM-PHOTOS.htm ).

At least one thread for this development goes back to the Telfare device, a mount for a .50 over the tank main gun for low cost training. The US not only used these, they provided them to Israel for the same purpose.

The Israelis saw the possible combat use, especially for urban operations, since it allowed precise firing (using the tank FCS) of relatively few rounds, heavy enough to penetrate cover but without significant collateral damage. However they didn't like the Telfare for this purpose because it had too much flexibility in the mounting for operational use, so they refined/improved the mounting. The idea then came back to the US via observation of the Israeli experience with them in Lebanon (for instance it's advocated in a 2001 edition of Armor magazine). I'm not sure if the Israelis initially used the Telfare and then improved it after combat use, or just saw the application and then only used their own improved version(s) in combat.

Just FYI, the Telfare was named after its inventor, SFC Nathaniel Telfare who was a US Army tank gunnery instructor.

Last edited:
