AF-86 Ground Attack Project Model

kitnut617

CLEARANCE: Secret
Joined
Dec 15, 2006
Messages
221
Reaction score
1

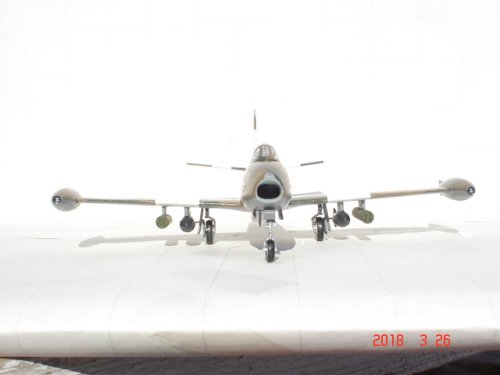

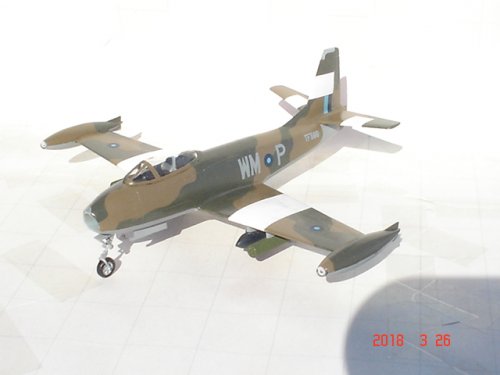

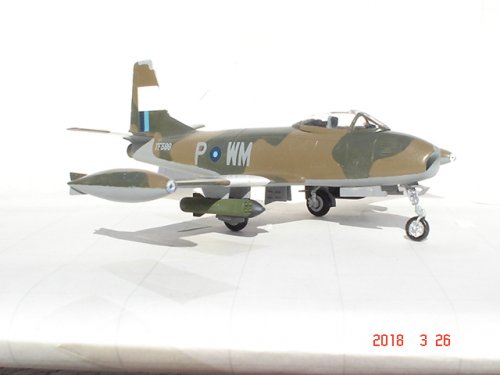

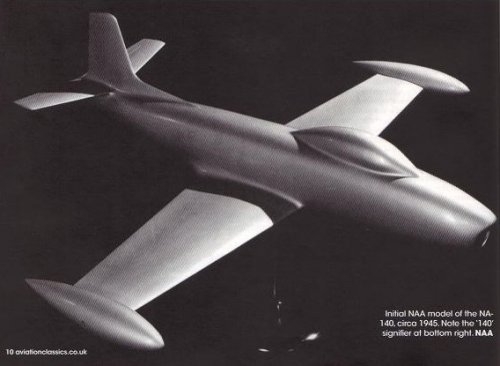

Not sure if this is appropriate in this thread but after seeing a photo of a NA project for the original XP-86 (top pic) I built a model of it but it ended up like in the bottom pics. It is for a Ground Attack version.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
7
kitnut617 said:
Not sure if this is appropriate in this thread
Not sure either... Funny that I actually removed a link to my own ground attack What-If photo recreation from this thread only yesterday!


kitnut617

CLEARANCE: Secret
Joined
Dec 15, 2006
Messages
221
Reaction score
1
Skyblazer said:
kitnut617 said:
Not sure if this is appropriate in this thread
Not sure either... Funny that I actually removed a link to my own ground attack What-If photo recreation from this thread only yesterday!
Would you move my post to somewhere where it is more appropriate then please.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,612
Reaction score
0
kitnut617 said:
Not sure if this is appropriate in this thread but after seeing a photo of a NA project for the original XP-86 (top pic) I built a model of it but it ended up like in the bottom pics. It is for a Ground Attack version.
Would it have been any different/improvement over the Republic F-84 Thunderjet, in terms of performance - weapons load carrying, take off distance, range....?


Regards
Pioneer


kitnut617

CLEARANCE: Secret
Joined
Dec 15, 2006
Messages
221
Reaction score
1
Pioneer said:
kitnut617 said:
Not sure if this is appropriate in this thread but after seeing a photo of a NA project for the original XP-86 (top pic) I built a model of it but it ended up like in the bottom pics. It is for a Ground Attack version.
Would it have been any different/improvement over the Republic F-84 Thunderjet, in terms of performance - weapons load carrying, take off distance, range....?


Regards
Pioneer
From what I've read about the original straight wing XF-86, no. The references say that was mainly why it wasn't proceeded with. Not until it was redesigned with the swept wing was the performance greatly improved (over 100mph different)


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Easy for the espculative cutaway drawing...!


kitnut617

CLEARANCE: Secret
Joined
Dec 15, 2006
Messages
221
Reaction score
1

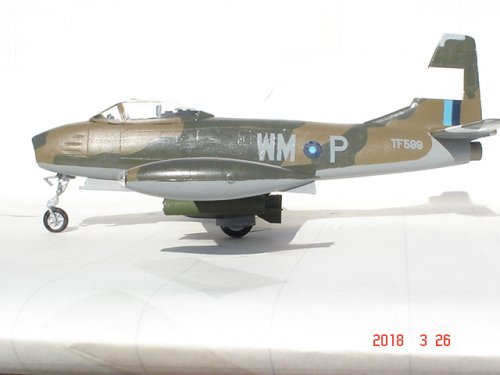

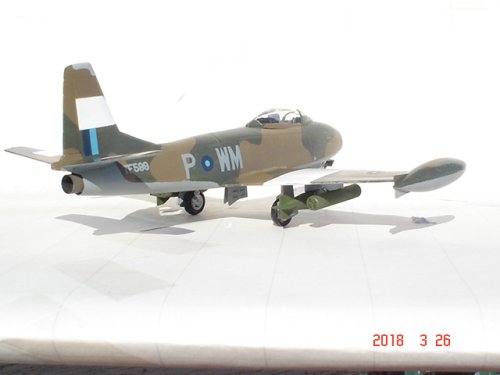

FYI Motorcar, I used a F-86A fuselage, FJ-1 wings and horizontal tail planes, F-82 fin and rudder. I placed the main gear in the same location as on both F-86 and FJ-1 in relation to the fuselage. This moved the wing root back a bit. I also moved the wing wheel bays towards the fuselage so the wheel end of the bays were in the fuselage. Other than that it was a straight forward build. For the load out I had read that RP pods were developed right after the war, as was the streamlined tail cone for the bombs.

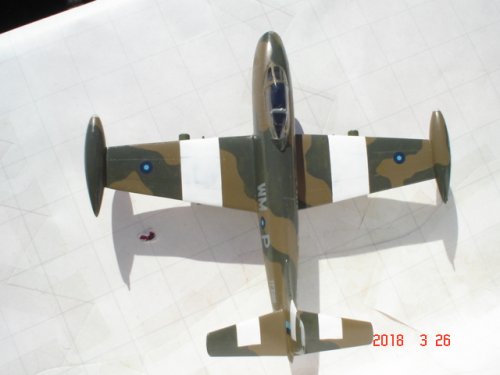

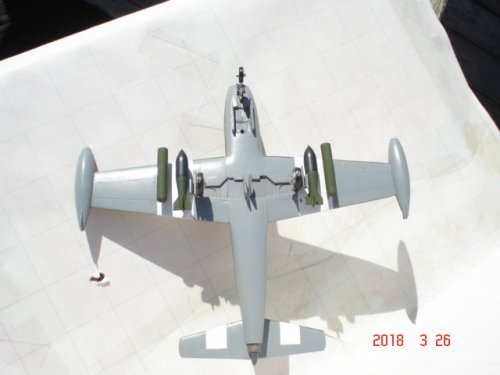

A few more pics. This was built for participation in the 'Allied '46' group build on the Beyond the Sprues Forum


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
I already have the idea of how to do it, just like you already have the hardware and donors ...! It's a matter of hours on the mouse and ready ...!

Motocar

Top
