It's an amazingly surprising design. The build quality is top notch but I have to admit that I fail to reckon most of the logics that led to that... Including the staggering cost (1B$?!) claimed to finance the project.

I understand that they re-used the latest LO aerodynamics trick of the industry (even one of the access panel looks to come directly from the black world).

But why so much reliance in body lift when an extra wing span would have done the trick?

Why a tail with staggered wing/horizontal when launch at alpha will see a drastic CG shift that would command to be the design point criteria?

Why having such a dual exhaust when engines Pods installation would lead naturally to separated exhausts?

Let's admit, this thing could better be a future stealth tactical tanker than a civilian rocket launcher...

Last edited:

dark sidius

ACCESS: Secret
Joined
Aug 1, 2008
Messages
471
Reaction score
56
It's an amazingly surprising design. The build quality is top notch but I have to admit that I fail to reckon most of the logics that led to that... Including the staggering cost (1B$?!) claimed to finance the project.

I understand that they re-used the latest LO aerodynamics trick of the industry (even one of the access panel looks to come directly from the black world).

But why so much reliance in body lift when an extra wing span would have done the trick?

Why a tail with staggered wing/horizontal when launch at alpha will see a drastic CG shift that would command to be the design point criteria?

Why having such a dual exhaust when engines Pods installation would lead naturally to separated exhausts?

Let's admit, this thing could better be a future stealth tactical tanker than a civilian rocket launcher...
Or a big supersonic ucav wingman with high altitude capability, or abble to launch hypersonic missile with the belly rocket place.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,006
Reaction score
2,421
It's an amazingly surprising design. The build quality is top notch but I have to admit that I fail to reckon most of the logics that led to that... Including the staggering cost (1B$?!) claimed to finance the project.

I understand that they re-used the latest LO aerodynamics trick of the industry (even one of the access panel looks to come directly from the black world).

But why so much reliance in body lift when an extra wing span would have done the trick?

Why a tail with staggered wing/horizontal when launch at alpha will see a drastic CG shift that would command to be the design point criteria?

Why having such a dual exhaust when engines Pods installation would lead naturally to separated exhausts?

Let's admit, this thing could better be a future stealth tactical tanker than a civilian rocket launcher...
Or a big supersonic ucav wingman with high altitude capability, or abble to launch hypersonic missile with the belly rocket place.
Where did they say it was supersonic? :confused:


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,760
Reaction score
2,079
Where did they say it was supersonic? :confused:

Several sources mention it.




The early renders show a much more elongated vehicle with a delta wing planform that at least LOOKS very fast indeed. The newer model seems to be a bit less aggressive.

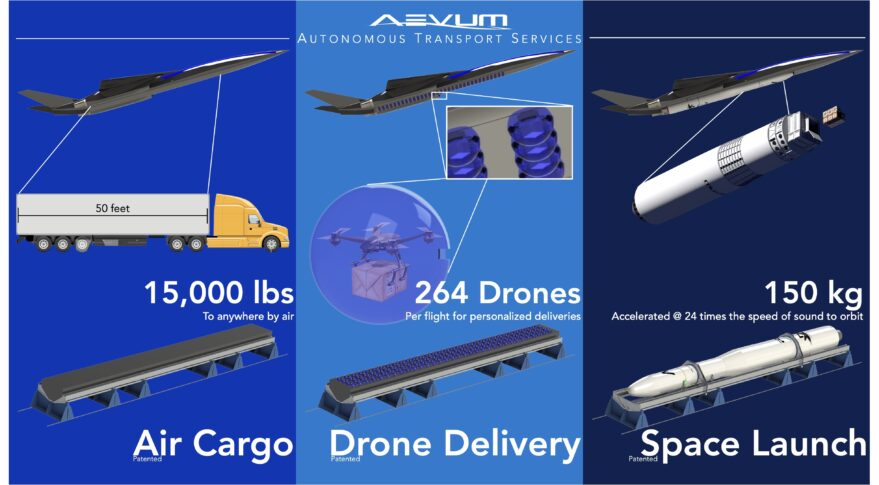

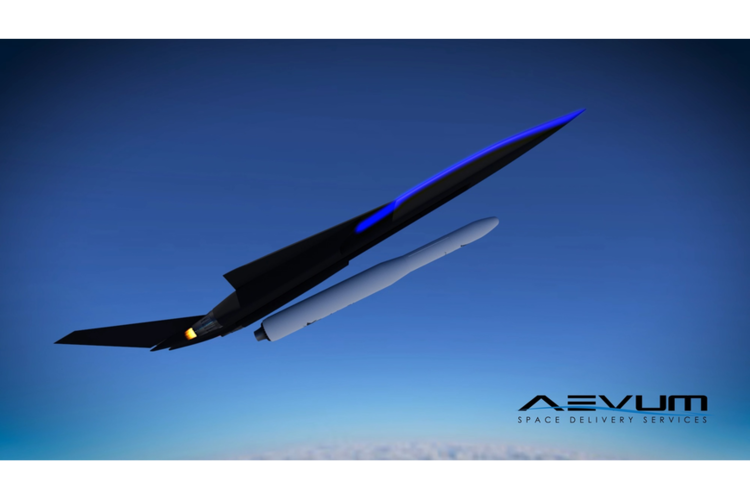

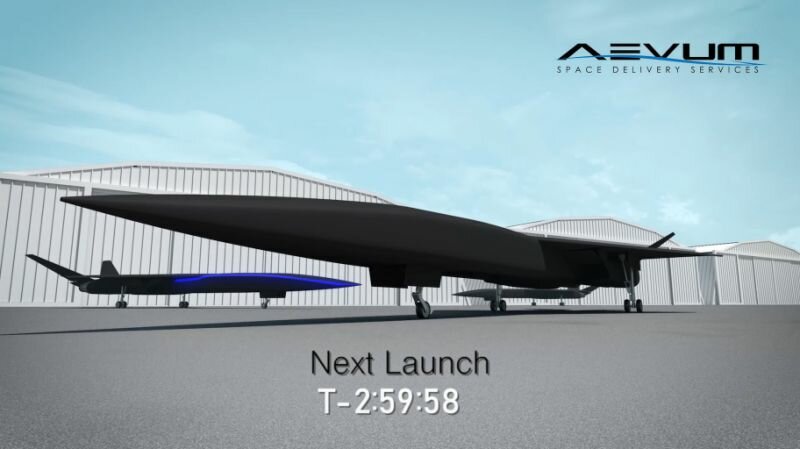

Older:

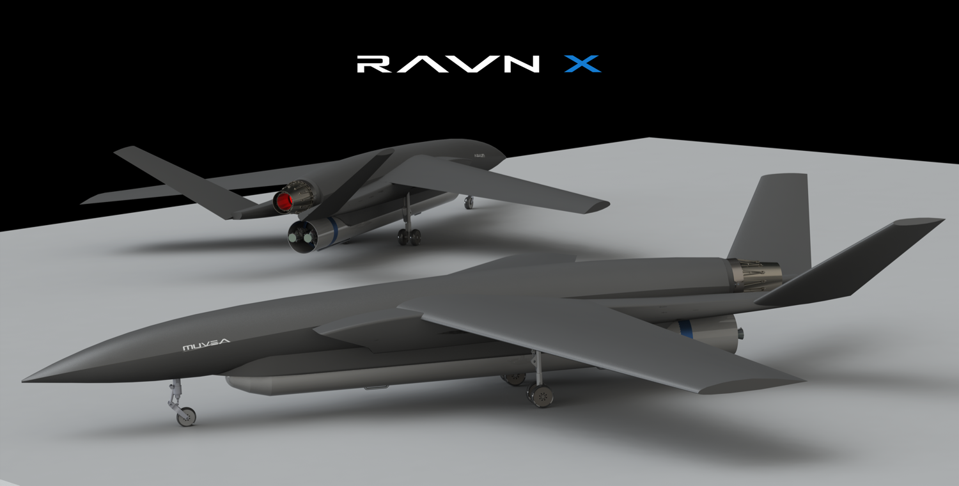

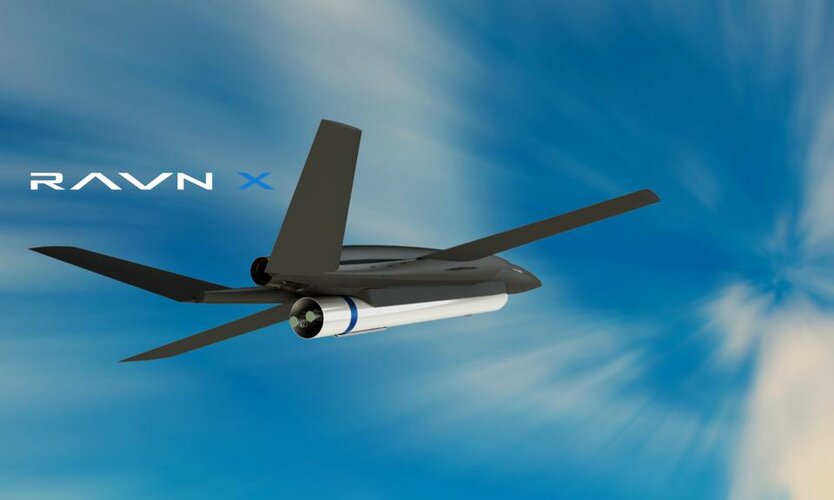

Newer:
960x0 (1).png

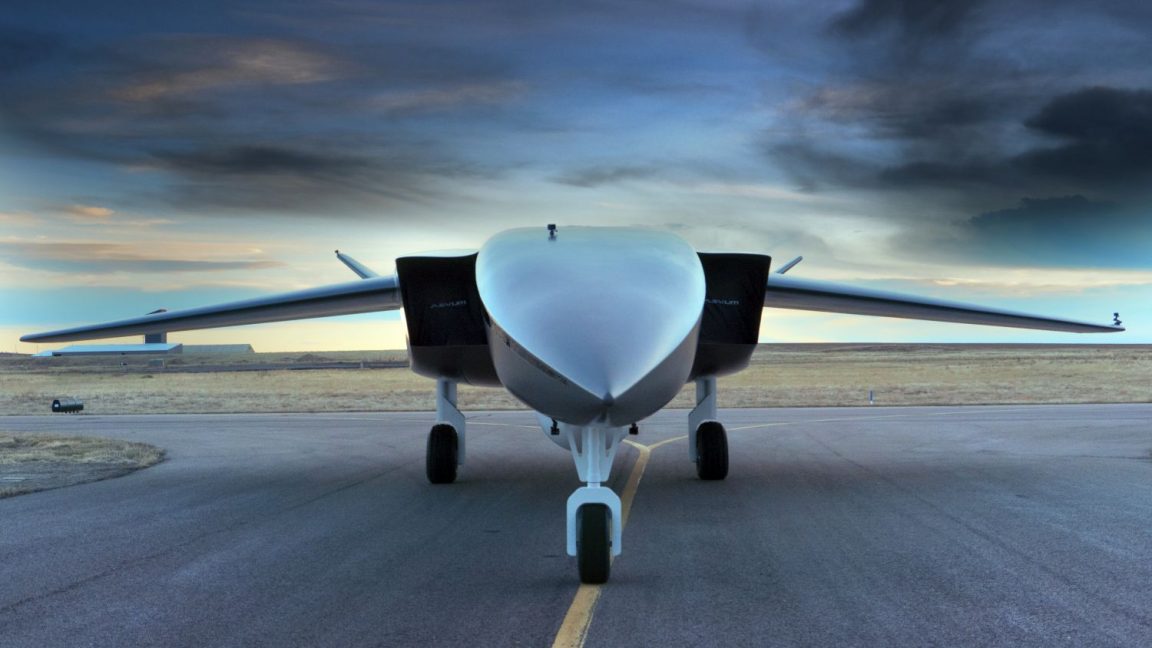

Ars Technica has an article with some interesting specs. The upper stage is supposed to deliver a 100kg payload to a 500km sun-synchronous orbit. And the whole system (including rocket) works on Jet-A. Not even RP-1. That supposedly costs them about 1% in Isp but makes for much easier propellant availablility. (LOX is still a limiting factor, though.)


Last edited:

dark sidius

ACCESS: Secret
Joined
Aug 1, 2008
Messages
471
Reaction score
56
Financing with a part of pentagon money and futur launcher for a Us Space Force mission.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,760
Reaction score
2,079
Thanks for breaking this out as its own thread.

I think it's possible that the images posted above as "older" are actually of the larger planned RAVN vehicle, which is supposed to put 300kg into orbit.



LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
195
Interesting.

I'm sure there's a rationale for using a scaled-up Generic Loyal Wingman shape for a space-launch platform. Doesn't look remotely like the way Rutan did it, but what does he know?

I've no doubt that they can get from roll-out to flight next year, and launch in 2022, despite the fact that the level of detail on their rolling mock-up would shame a 1955 Aurora kit.

I am equally confident that, overall, the cost of maintaining flight crews for this kind of operation is much, much greater than the trivial task of getting Auntie FAA to let you fly a 25-ton UAV full of rocket fuel over the heads of the unsuspecting public.

And nothing says "game-changing departure from conventional design practice" so much as the fact that the company lists four people on LinkedIn, including the CEO, the PR lady and a photographer, but not including anyone who has actually, like, built an airplane. You don't want people mired in the old ways of doing things.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
678
Reaction score
164
I'm sure there's a rationale for using a scaled-up Generic Loyal Wingman shape for a space-launch platform.
Easy to download the CAD from Turbosquid and then embiggen and make a few changes before sending to the model maker?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,174
Reaction score
1,381
I'm sure there's a rationale for using a scaled-up Generic Loyal Wingman shape for a space-launch platform.
Easy to download the CAD from Turbosquid and then embiggen and make a few changes before sending to the model maker?
What exactly do you mean? Ravn renderings were unveiled in fall of 2019, Boeing ATS - in May 2020.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
3,788
Reaction score
2,866
@LowObservable : The Loyal Wingman shape makes sense in the way that the amount of lift you gain with that lifting fuselage is gained at low alpha, with minimal induced drag (the ejector effect of the exhaust). Hence you can have a smaller wing or a wing with lower alpha (hence drag).

IMOHO, Rutan did go full on wing lift, what needed a very high aspect ratio for low induced drag and then a far aft tail plane for trim with a gammut of structural problem with the wing bending moment (hence the twin fuselage).

Here they can have a relatively low aspect ratio thick wing and introduce a sweep angle for less drag and higher speed at lower power settings, hence altitude.
Plus the lower wing span make them adaptable in term of launch site.

The main thing I am surprised is the V-tail.

Last edited:

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
195
@LowObservable : The Loyal Wingman shape makes sense in the way that the amount of lift you gain with that lifting fuselage is gained at low alpha, with minimal induced drag (the ejector effect of the exhaust). Hence you can have a smaller wing or a wing with lower alpha (hence drag).

IMOHO, Rutan did go full on wing lift, what needed a very high aspect ratio for low induced drag and then a far aft tail plane for trim with a gammut of structural problem with the wing bending moment (hence the twin fuselage).

Here they can have a relatively low aspect ratio thick wing and introduce a sweep angle for less drag and higher speed at lower power settings, hence altitude.
Plus the lower wing span make them adaptable in term of launch site.

The main thing I am surprised is the V-tail.

The V-tail looks supercalifragistically cool. It makes people think of Dr Will. And as any wandering albatross can tell you, wings are the way to get lift.

Here they can have a relatively low aspect ratio thick wing and introduce a sweep angle for less drag and higher speed at lower power settings, hence altitude.

Those dummies at Gulfstream and Bombardier have a few things to learn!


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
3,788
Reaction score
2,866

Those dummies at Gulfstream and Bombardier have a few things to learn!
Gulfstream and Bombardier use the tube and wings architecture for the simplicity of their structural benefits given the techniques and cost at the time.

Moreover, here there is no STOL requirements, no unpaved surface to think of or no speed cap with altitude... It's different, less constrained and from another age.
;)


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,733
Reaction score
3,941
Clever concept ! I kind of like it. Going supersonic for air launch - except with a drone rather than, say, a second-hand F-15.
Intriguing...


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
914

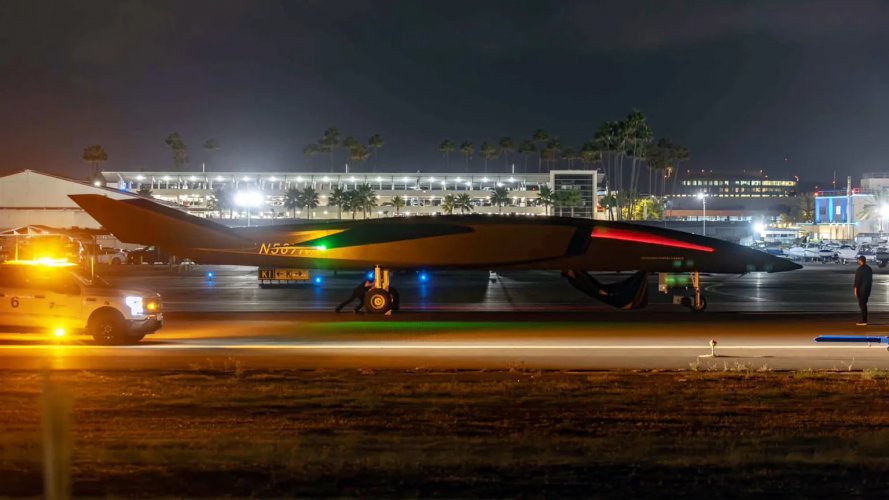

Any explanation why the landing gears look somewhat "mock-up-stylish"?? :oops:


trose213

ACCESS: Confidential
Joined
Jul 29, 2018
Messages
192
Reaction score
76
So yeah... i see a LO ASAT Platform here.
Could probably hit GEO with the payload size they are targeting.

Clever concept ! I kind of like it. Going supersonic for air launch - except with a drone rather than, say, a second-hand F-15.
Intriguing...
I presume that they wanted a bigger payload with the centerline reinforced, instead of the wings. Also, the hardest part of this concept is probably the supersonic separation. Too bad about the Phantom Express.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
914
Any explanation why the landing gears look somewhat "mock-up-stylish"?? :oops:
Because it's a mockup.


Ok ... thanks, so all this "The World’s First Autonomous Launch Vehicle and the Largest Unmanned Aircraft System" and "The build quality is top notch" is a PR stunt and the failure (like mine) to notice it is nothing real so far.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,250
Reaction score
1,909
Website
www.aerospaceprojectsreview.com
Ok ... thanks, so all this "The World’s First Autonomous Launch Vehicle and the Largest Unmanned Aircraft System" and "The build quality is top notch" is a PR stunt and the failure (like mine) to notice it is nothing real so far.



Have Blue

Amusing quip goes here.
Joined
Apr 25, 2012
Messages
3
Reaction score
2
The blue light strip running down the right side of the mockup (just like their renders and animations) is what really convinced me that this is a fully thought-out launch system and not a marketing stunt. /sarc
