Aerotow space launch concept

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,461
Hi,

http://www.geocities.com/spacetransport/xprize-htol2sto.html


Attachments

  • _eclipse1_hangar.jpg
    21.9 KB · Views: 74
  • eclipse2_diag.jpg
    23.7 KB · Views: 106

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,461
Hi,

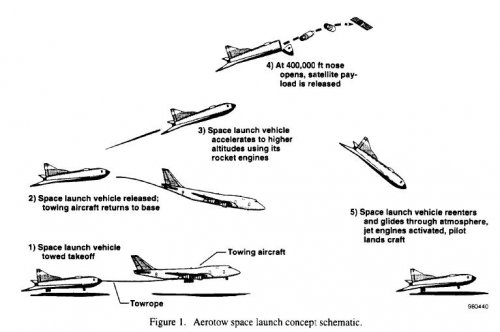

a very strange space launch concept.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19980223919_1998371978.pdf


Attachments

  • 1.JPG
    43 KB · Views: 110
  • 2.JPG
    42.6 KB · Views: 97

SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
404
Reaction score
47

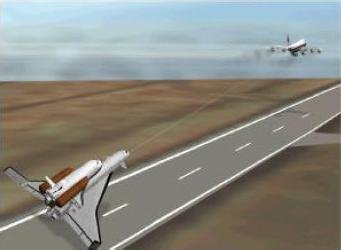

http://www.nasa.gov/centers/dryden/history/pastprojects/Eclipse/index.html

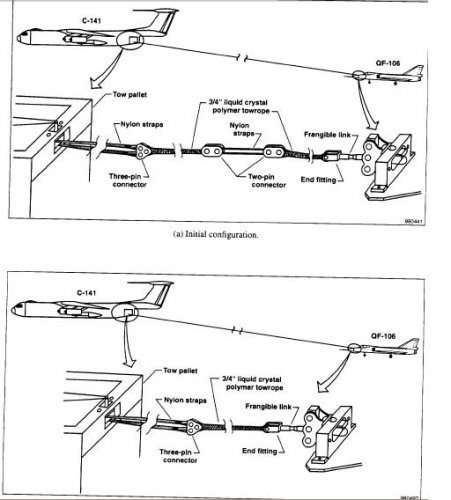

NASA Dryden Flight Research Center supported and hosted a Kelly Space and Technology, Inc., (KST)/USAF project, known as Eclipse, which demonstrated a reusable tow launch vehicle concept. The goal of the project was to successfully tow in flight a modified QF-106 delta-wing aircraft with an Air Force C-141A transport-type aircraft.
Links to pics and movies at the above address.


compton_effect

ACCESS: Confidential
Joined
Jun 13, 2007
Messages
69
Reaction score
3

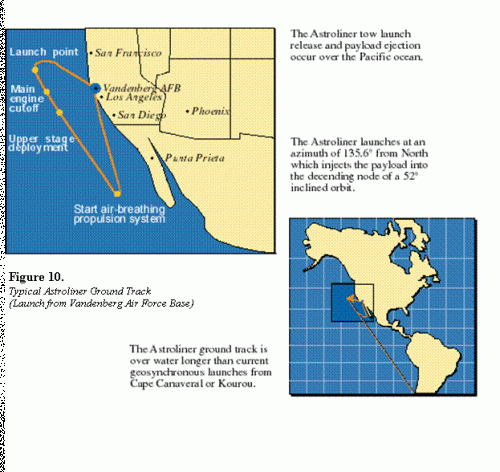

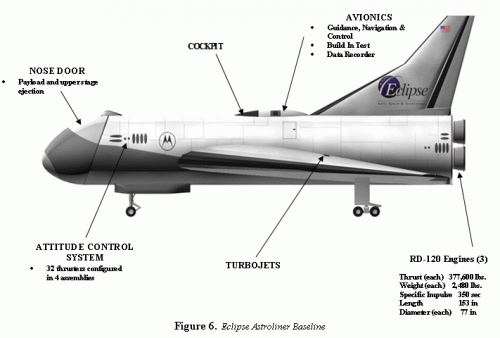

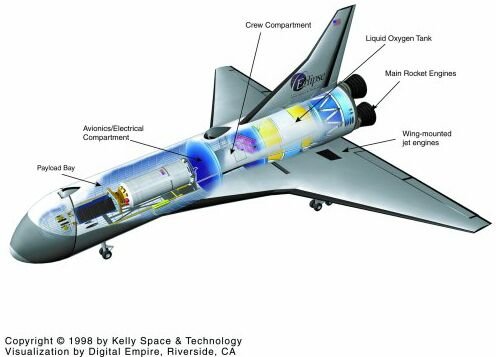

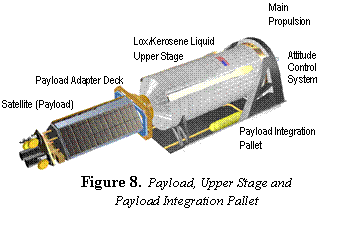

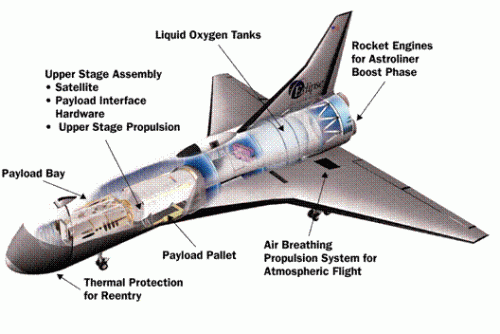

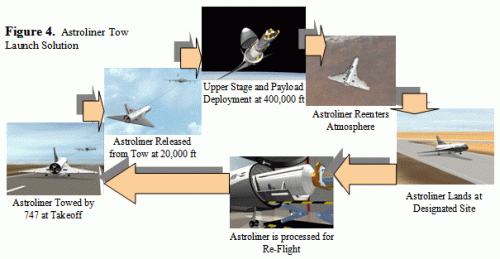

Attachments

  • webrlvt12.gif
    44.5 KB · Views: 40
  • webrlvt10.gif
    9.3 KB · Views: 45
  • webrlv9.gif
    22.9 KB · Views: 71
  • WEBRLV8.gif
    49 KB · Views: 75
  • webrlv4s.gif
    41.6 KB · Views: 57
  • webrlv3.gif
    71.2 KB · Views: 105

Dragon029

ACCESS: Top Secret
Joined
Mar 17, 2009
Messages
754
Reaction score
93
I wonder why the tow aircraft only goes to 20,000ft? Double that would seem more efficient unless there's just plain too much weight being dragged behind to get to those altitudes.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
232
Go here for a another version of the story:-

http://www.dfrc.nasa.gov/History/Publications/PDF/Eclipse.pdf

cheers,
Robin.


FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
13
Dragon029 said:
I wonder why the tow aircraft only goes to 20,000ft? Double that would seem more efficient unless there's just plain too much weight being dragged behind to get to those altitudes.

I assume it's down to the limitations of the tow aircraft. From what I've read one key claimed benefit of the towing approach is the ability to use an existing aircraft to do the towing (at least without major modifications) so there aren't the costs involved in developing a new aircraft. Part of the argument also being that unless there are high flight rates it isn't economic to have a specialist tow aircraft sitting around much of the time under-utilised.

Of course some air launch concepts take a rather different approach! For example, WhiteKnightTwo and SpaceShipTwo. I guess Virgin is banking on space tourism flights, and maybe subsequently nano-sat launches, being frequent enough that the cost of a specialist carrier aircraft is recouped. Of course they also get a higher launch altitude for the spaceship (about 45,000ft) but I don't know how significant that difference is.


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
The tow-launch concept allows you to offload the mass of your first-stage engines and fuel to the towing aircraft, but the wings must be sized to support the weight of the launcher during cruise at 20Kft, and the landing gear must be sized to support the fully-loaded weight of the launcher. 20kft is about half the altitude of captive-carry concepts like Pegasus. I wonder how much delta-V must be expended at the lower altitudes (where nozzle efficiency is reduced and drag is higher) just to get to the Pegasus ignition altitude.


selenite

ACCESS: Restricted
Joined
Jun 1, 2010
Messages
2
Reaction score
0
Picking your launch altitude is a trade-off between the energy you get from height and the additional dry weight needed to get there. The lower you are the less wing you need to hold up the glider.

We had a similar issue at Pioneer, see page 11 here:
http://www.kelthaven.org/papers/AAS99-129slides.pdf


FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
13

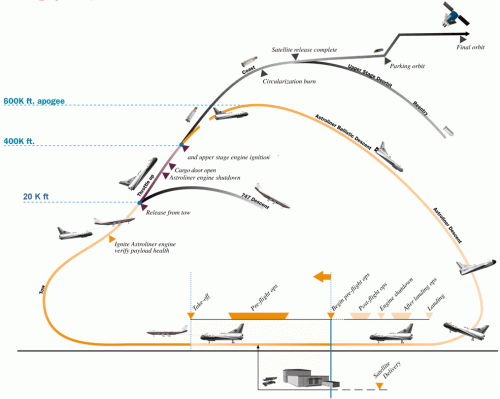

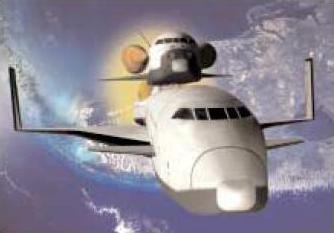

Here's some information on a TSTO (not including the towing aircraft) Astroliner. Taken from the FAA 2001 RLV report:

[quote author=FAA 2001 RLV report]
Slowed development of the NGSO satellite market has prompted a change in Kelly Space and Technology efforts to develop space transportation capabilities. Last year, Kelly planned to design and develop the Astroliner vehicle for launch in 2002. The company is now focused on development of “Second Generation” RLV capabilities that will serve sub-orbital, NGSO, geostationary orbit and ISS customers.

Kelly’s piloted Second Generation RLV system will be based on its patented horizontal takeoff and landing, tow-launch technique and is designed to carry humans and cargoes to and from destinations off the Earth. The two-stage-to-orbit (TSTO) system will be towed to its various airborne launch sites using a modified Boeing 747 aircraft. The RLV’s on-board turbine engines will supplement the thrust of the tow aircraft during the initial ascent. The RLV system will be released at the launch site and, using its rocket engines, ascend to stage separation. The second stage system for the specific mission will proceed to orbit. The first stage will return to its planned landing site, using its turbine engines again for powered landing on conventional runways.

Kelly’s RLV system includes a number of different upper stage vehicles, including cargo-only delivery/return vehicles, and a seven person Crew Transfer Vehicle (CTV). The system is designed to serve all current and future customers anticipated through 2030, including both government and private citizen space travelers. The system design will readily accommodate the use of customer-supplied orbit transfer stages in conjunction with their satellites or other cargoes. The CTV incorporates its own propulsion system for orbit-deorbit and orbital maneuvering needs.
[/quote]


Attachments

  • astroliner-2stage-takeoff.JPG
    10 KB · Views: 9
  • astroliner-2stage-ascent.JPG
    10.9 KB · Views: 9

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
252
One little nit to pick. Shouldn't that concept be called Three Stage to Orbit? The 747 is part of the launch process so shouldn't it be counted as a stage?


FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
13
The Artist said:
Shouldn't that concept be called Three Stage to Orbit? The 747 is part of the launch process so shouldn't it be counted as a stage?

Yes, I agree. Kelly Space themselves have I think been a bit inconsistent at times (assuming they provided the material for the FAA report). I guess they call it a TSTO, excluding 747, perhaps because it sounds better(?!) or to emphasise that those two are the 'bespoke' stages? However, the summary box in the same FAA report section says: "Number of stages: 3-4 (including towing aircraft)" [Maybe TSTO means three-stages-to-orbit in this case ;D]
