This Aerojet-General report from 1964 discusses the possible future evolution of liquid oxygen / liquid hydrogen -fueled rocket engines from 1966 to 1986. From the M-1 rocket engine to the notional Advanced Engine, Ducted Rocket, and then Advanced Air Cycle for post Saturn launch vehicle applications such as Nova.

Advanced Engine Systems by RC Stiff, Aerojet-General Corporation
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720062794_1972062794.pdf


Attachments

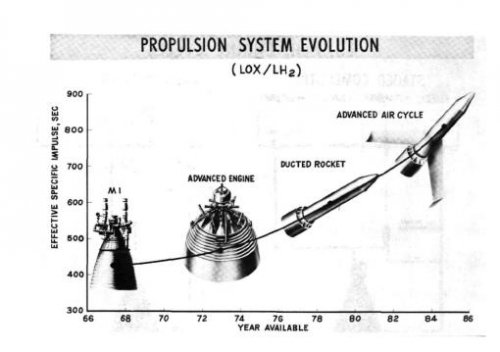

  • PropulsionSystemEvolution.JPG
    21.8 KB · Views: 49

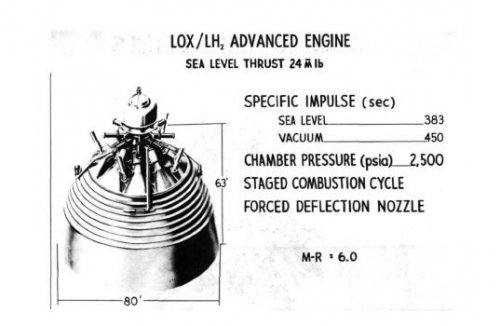

  • AdvancedEngine.JPG
    26.9 KB · Views: 43

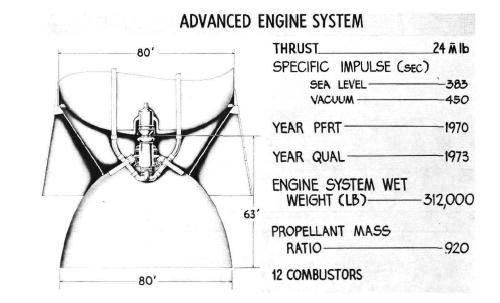

  • AdvancedEngine2.JPG
    23.7 KB · Views: 39

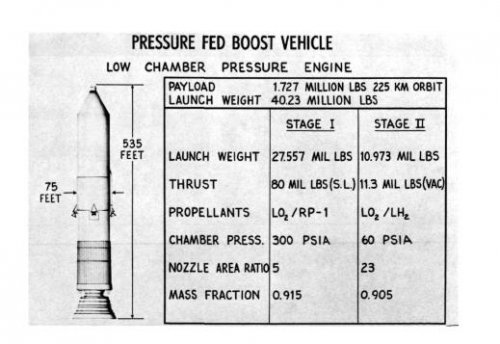

  • PressureFedBoostVehicle.JPG
    33.3 KB · Views: 42
The 'Pressure Fed Boost Vehicle' appears to be the 'Sea Dragon'......


cheers,
Robin.
