A twin boom heavy-lift launcher Ekranoplane

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Hi,

http://www.spaceagepub.com/calendar/SCarchive/SC-20060320.html


Attachments

  • calendar032006one.jpg
    27.2 KB · Views: 1,008

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
from: "Technology and arms/Техника и вооружение" magazine


Attachments

  • Marengo.jpg
    47.7 KB · Views: 705

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
I wonder about the economics of a big jet seaplane as a booster as they are calling it an Ekranoplan but talking about 10,000-12,000 m launch altitude. If you're going to bringing it to that kind of alitude then why use a sea-based solution?

On the other hand, a wing-in-ground-effect vehicle might well be a good way bring a single-stage-to-orbit spaceplane up to high subsonic speed. Ground effect over the water allows great flexibility and launch sites--almost any major port will do.

The bonus is not only in the "free" speed at take-off, since as long as the orbiter could jettison fuel in a hurry in an aborted takeoff, then its landing gear (perhaps just skids) could be designed for the light landing weight only not the heavy take-off weight.


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
447
Reaction score
86
Website
rp-one.net
The advantages, I suspect, are geography (launch near the equator / with no restrictions on direction) and a reduction in weather delays (high transit speed, unlike the semi-sub platforms, then launch above the weather if it can't be avoided). IIRC these, rather than height or altitude, are usually the given advantages for air-launch. The use of a WIG launch platform just increases the size of the rocket usable, in comparison to an airliner derived system.

RP1


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
305
Reaction score
108

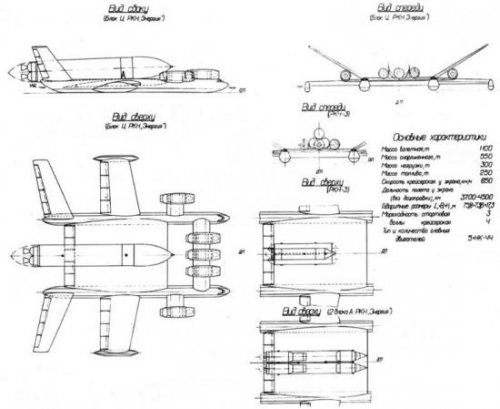

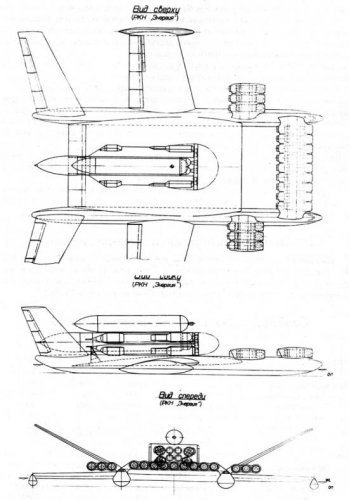

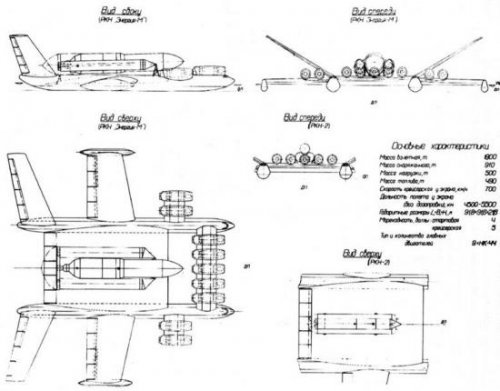

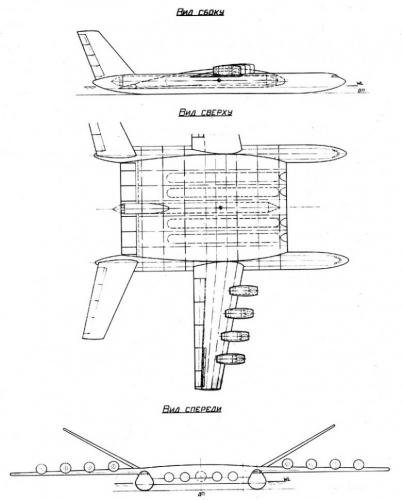

This twin boom ekranoplan reminds me on the "Три Богатыря" (three hulks [or so]). I hope it was not posted somewhere else... This russian ekranoplan (concept of the 1980´s) would have been a real monster: 5000 tons TOM. Designed to carry the whole energiya/Buran system (fast to any point). The great Jozef Gatial did some drawings for avicopress.
Greetings
Athpilot


Attachments

  • Tri_bogatirya_01.jpg
    22.6 KB · Views: 443
  • Tri_bogatirya_02.jpg
    31.8 KB · Views: 436
  • Tri_bogatirya_03.jpg
    33.2 KB · Views: 415
  • Tri_bogatirya_04.jpg
    53.5 KB · Views: 411
  • 3397380.png
    350.8 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Amazing pictures Athpilot,many thanks.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
456
athpilot said:
This twin boom ekranoplan reminds me on the "Три Богатыря" (three hulks [or so]). I hope it was not posted somewhere else... This russian ekranoplan (concept of the 1980´s) would have been a real monster: 5000 tons TOM. Designed to carry the whole energiya/Buran system (fast to any point). The great Jozef Gatial did some drawings for avicopress.

Beriev OKB I guess?


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
305
Reaction score
108
Skyblazer said:
athpilot said:
This twin boom ekranoplan reminds me on the "Три Богатыря" (three hulks [or so]). I hope it was not posted somewhere else... This russian ekranoplan (concept of the 1980´s) would have been a real monster: 5000 tons TOM. Designed to carry the whole energiya/Buran system (fast to any point). The great Jozef Gatial did some drawings for avicopress.

Beriev OKB I guess?

Oh I don´t know. I don´t have much informations about it. I found it together by doing research on the Energiya rocket. So it could be that this design study was done by NPO Energiya. Because the vessel ha to be designed for the payload (the rocket system) and not vice versa. Does anyone know here?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Nice find my dear Borovik,


and they said,the work is done with American company called Aerokon.


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
305
Reaction score
108
The Text says it was done with help of Aerocon, but not that it was a Aerocon-WIG. So I believe it is not the same projekt (even the names are different). The pictures, models and drawings shows different vessels!


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
20
No, of course it's not, Aerocon WIG is different beast. Aerocon was a proponent of joint US-USSR cooperation on the large WIG designs as mentioned in this paper.
The Wingship's Potential. For Strategic Lift
http://goo.gl/w4vzbH
