6th generation fighter concepts

lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
564
Reaction score
0
Website
defense-and-freedom.blogspot.de
Shape, position and span of the canards doesn't look effective.

The -143 look cool at least.


Here are some ideas for 6th gen, assuming a fusion of radar stealth with extensive electronic countermeasures:

- fully movable wingtips as on Su-50 instead of ailerons
- no vertical tail with "2D" TVC
- two engines, but not terribly large ones
- rotating front section with cockpit. Reasoning:
Rotation allows for having a large mission package bay + basic air combat missile load bays + engine air inlets on the upside hidden from most radars while flying at 60-70 k ft altitude
opposite is necessary for + 9-11 g manoeuvres (mostly evasive manoeuvres) and munition release
- keep areas for sensors: IR/UV missile approach sensors (~DAS), tail radar with rotating AESA antenna (Su-3x-like)
- retractable IRST
- retractable DIRCM laser (same side as bomb bay, air inlets)
- F-22-like nose section + really large delta wing


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi lastdingo,sorry for the late replay,about the design,i used the original Northrop concept posted here in the forum to make my drawings,i know that the canard shape looks a bit odd,but it was based on the original Northrop design.

best regards

Pedro


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
This is another drawing,made by using Rodrigo Avella Esave design and Lockheed Martin X-44 concept

PSA-186



this one was made using Northrop Lap concept,posted here in the forum(i think the original illustration was made by Kurt Beswick,and Scott Lowther),my modification was to give it variable geometry wings and inlets above the fuselage;

PSB-137



pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Thanks alot hesham,sorry for the late replay.

best regards

pedro


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi everyone,happy new year,here are some more new drawings,the first one is a stealth strike fighter,with variable geometry wings,made using Rodrigo Avella J-50 as a base;

PSA-146A



and the second is a 6th generation fighter,made using Rodrigo Avella J-50 (new version) as a base

PSA-184



Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,453
Reaction score
0
pedrospe said:
and the second is a 6th generation fighter,made using Rodrigo Avella J-50 (new version) as a base

PSA-184

Thanks for posting your artworks ... however one question concerning this J-50.

It has a Chinese designation, is armed with the PL-15 and the new PL-X but has USAF-markings????

Or am I wrong?

Best,
Deino


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi Deino,i just used a design made by Rodrigo Avella as a base to make my drawings and in it´s original design Rodrigo uses chinese missiles and chinese markings and named is concept J-50,if you want to see Rodrigo original designs,just go to is deviantart page.


best regards

Pedro


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,453
Reaction score
0
pedrospe said:
Hi Deino,i just used a design made by Rodrigo Avella as a base to make my drawings and in it´s original design Rodrigo uses chinese missiles and chinese markings and named is concept J-50,if you want to see Rodrigo original designs,just go to is deviantart page.


best regards

Pedro

No, it was no critics, it's impressive, amazing ... I like it very much!

All I wondered is why it still has the USAF-markings on it and not the PLAAF-symbol?

Best,
Deino


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0

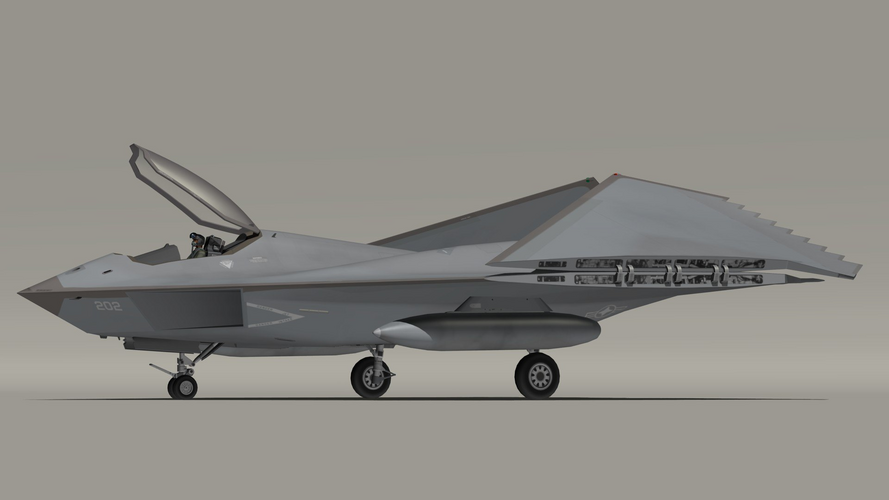

Thanks Deino,just finished this new drawing of a 6th generation fighter based on Boeing F-X and Rodrigo Avella J-50 design,this time i added amraam missiles to the weapons bay,

PSA-196



athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
238
Reaction score
0
pedrospe said:
Thanks Deino,just finished this new drawing of a 6th generation fighter based on Boeing F-X and Rodrigo Avella J-50 design,this time i added amraam missiles to the weapons bay,

PSA-196

Hi! This one is very coll and impressive. But wouldn´t it need a (vertical) tailfin?
Cheers
Athpilot


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
105
Reaction score
0
And you can use other surfaces ta yaw the aircraft, instead of conventional rudders.


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi athpilot,if you remember the latest Boeing and Northrop concepts,for next generation fighters,they do not have a vertical tail,and use alternative means to control the aircraft,just look at the X-36,X-45,X-47 and the B-2 examples,none of them uses a conventional vertical tail,and yet the look very manoeuvrable.

best regards

pedro


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi everyone,this are two new 6th generation fighter drawings,they are both based on Rodrigo Avella J-50 and Goila Cristian future fighter concepts,

PSA-181



PSA-179



pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Russian 6th generation fighter concept,based on Rodrigo Avella J-50;


PSA-164



pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
...another view of PSA-184,with low observable weapons containers;

PSA-184 2



pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Hi everyone,i been working on this one for a while now,it is based on Rodrigo Avella J-50 and the Northrop Switch blade concept;

PSA-147





pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
261
Reaction score
0
Future jas-39 grippen replacement;


JAS-42 Flash



SpudmanWP

CLEARANCE: Top Secret
Joined
Nov 10, 2008
Messages
974
Reaction score
0
Look up the definition of radar corner reflector 'cause that is what that is. :eek:

Remember that in the world of VLO, 90 degree angles are BAD NEWS and that thing is covered with them.
