Zeppelin LZ- airships series

[Stargazer]

From Air Service Information Circular No. 391, November 1, 1922:

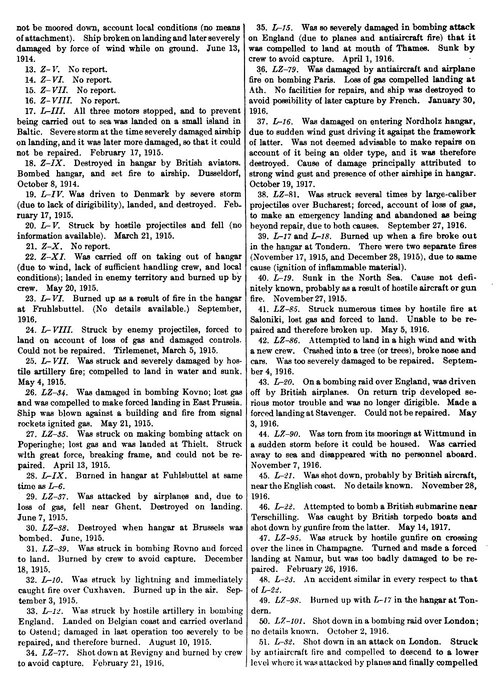

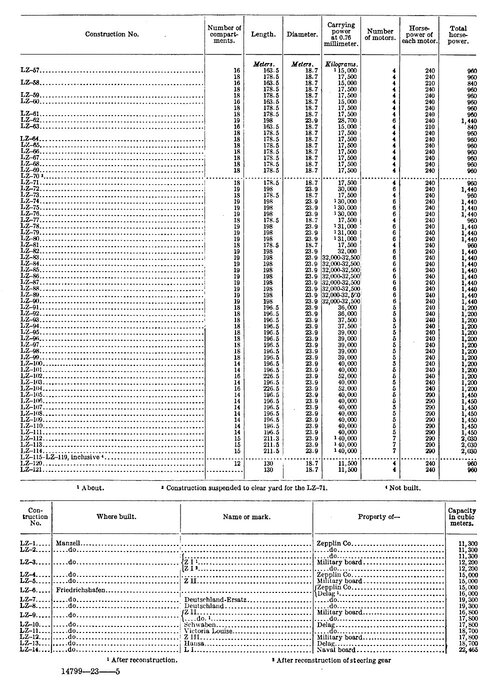

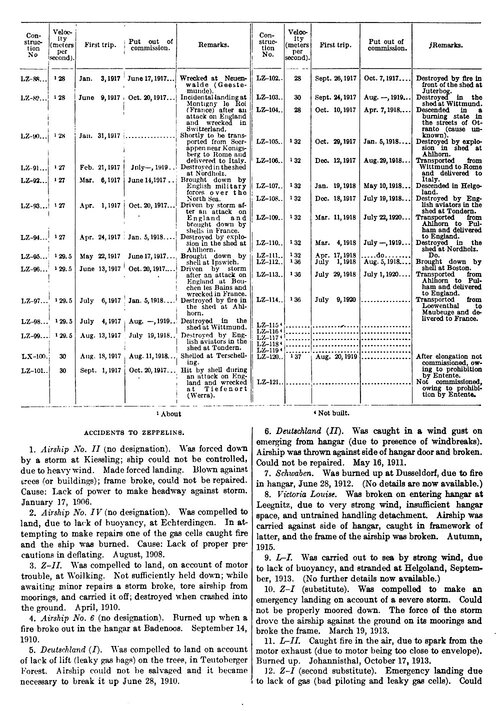

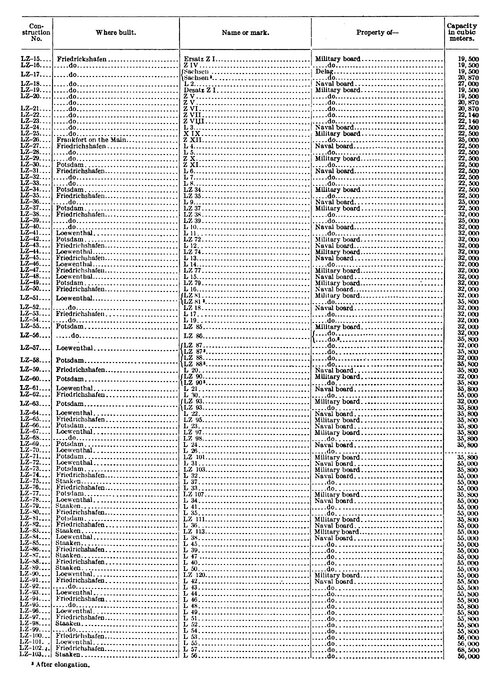

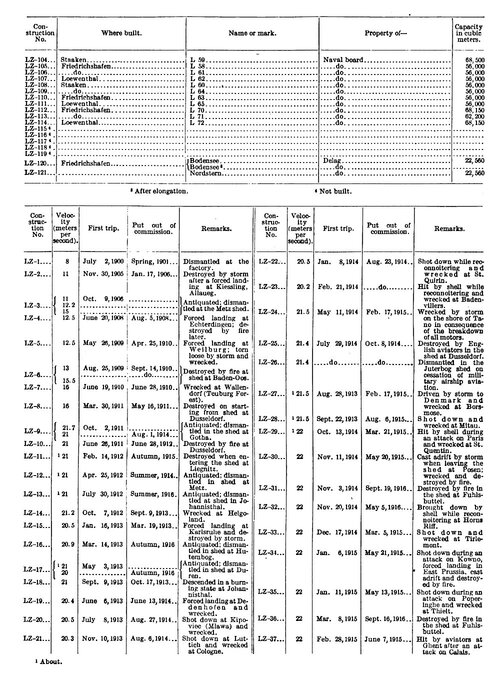

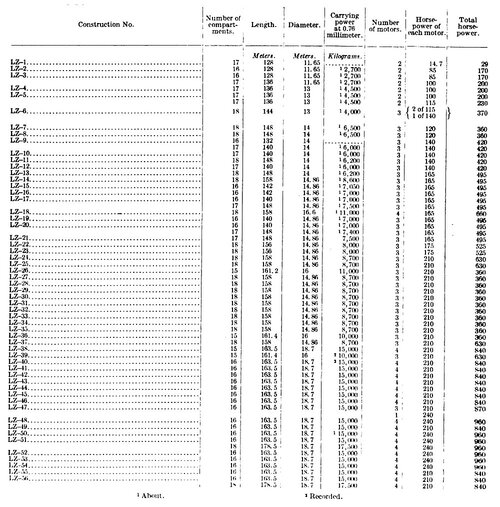

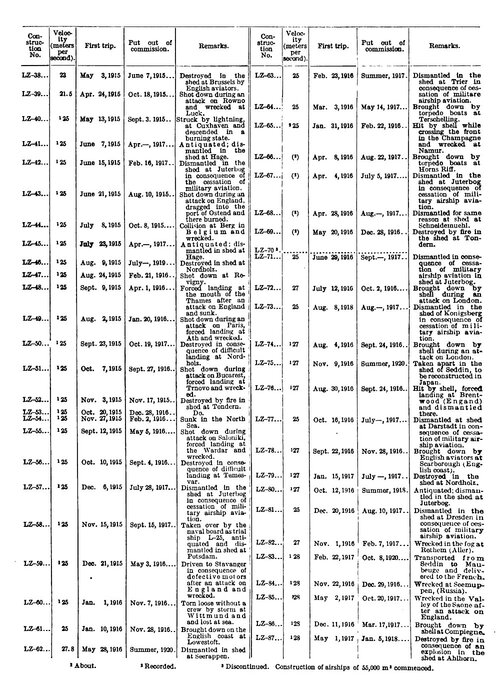

Below are given charts and explanatory data from Doctor Eckner relative to the comparison of airships and the use of nondimensional characteristics. The characteristic data of all the different Zeppelin models, from their first model to the last war-time model, giving their construction number, where built, name or mark, whose property, capacity in cubic meters, and all data relative to Zeppelin accidents also follows.



[JJMM]

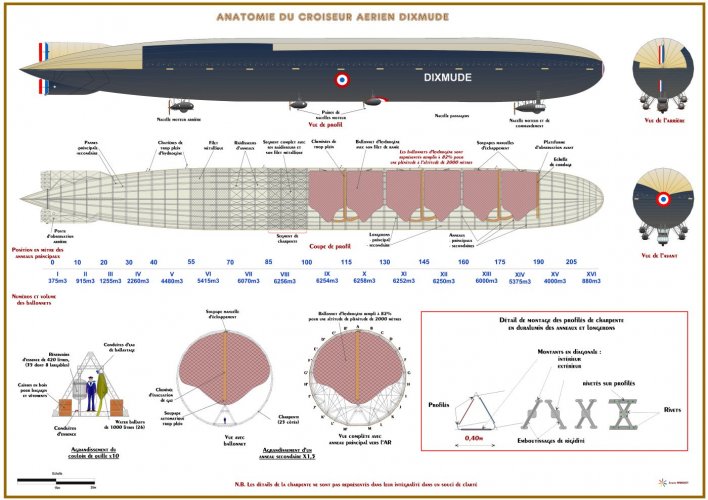

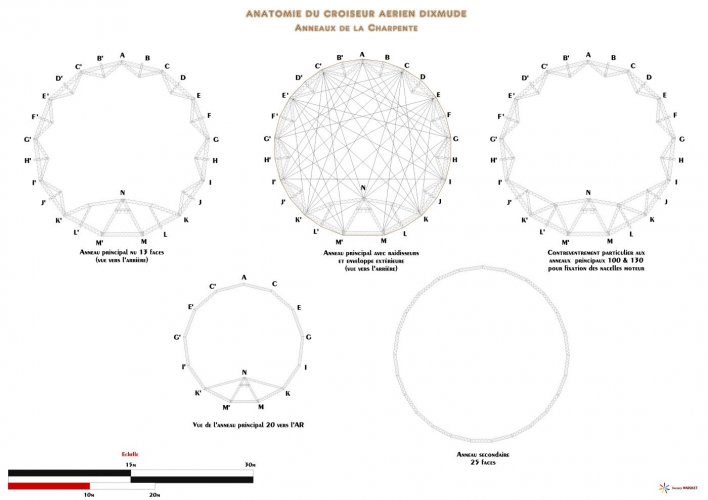

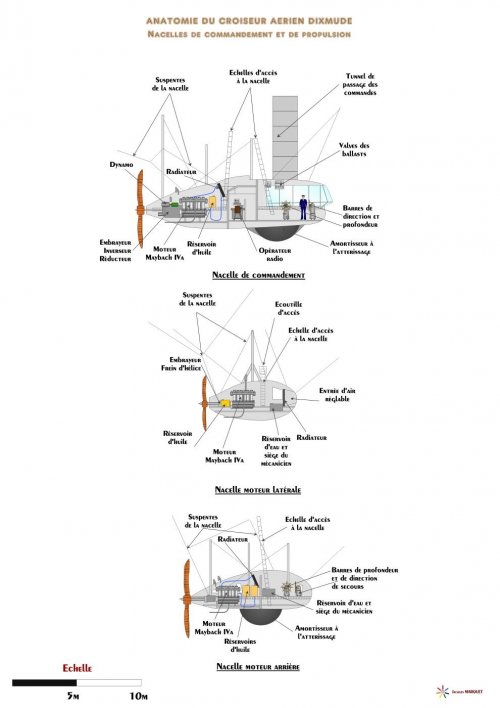

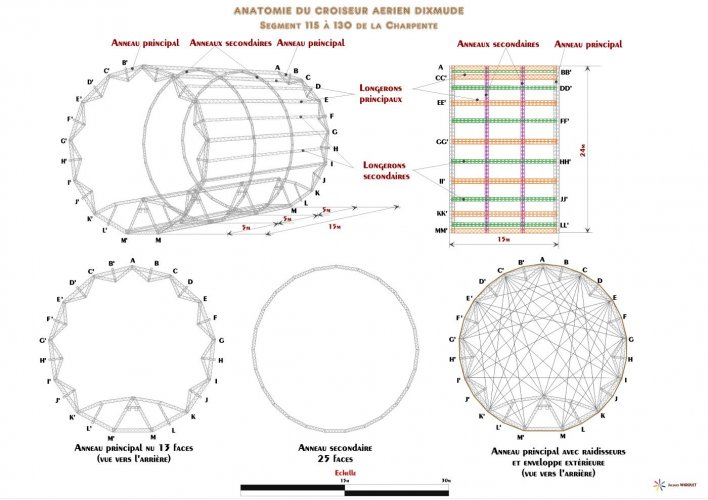

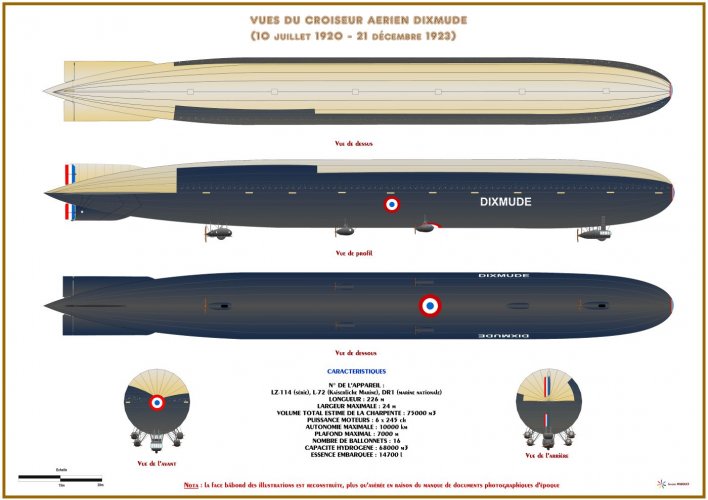

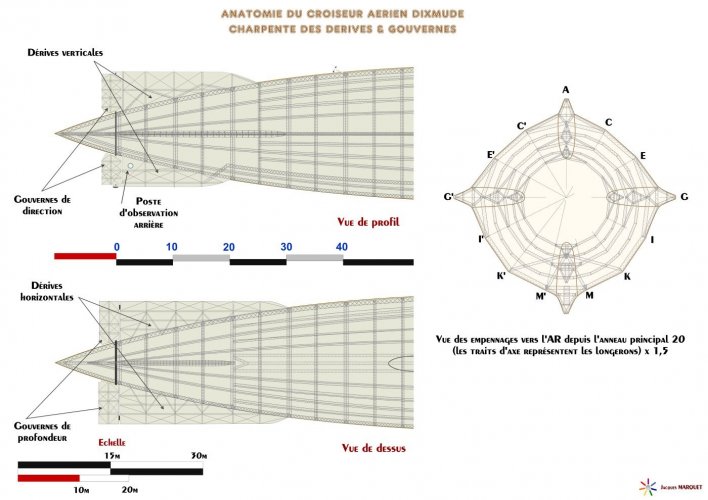

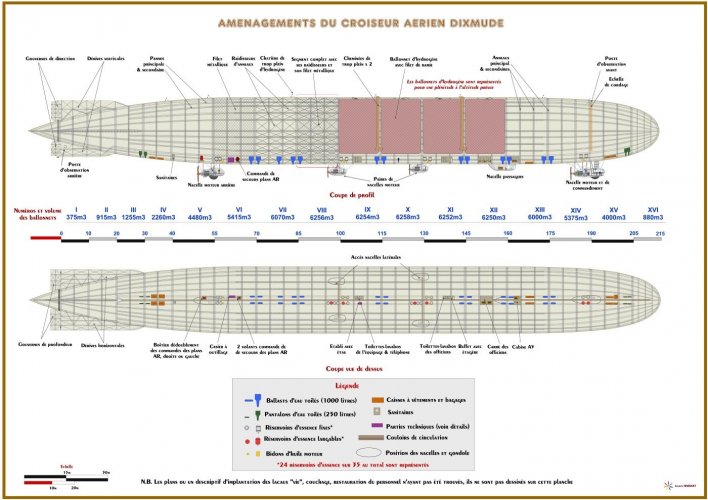

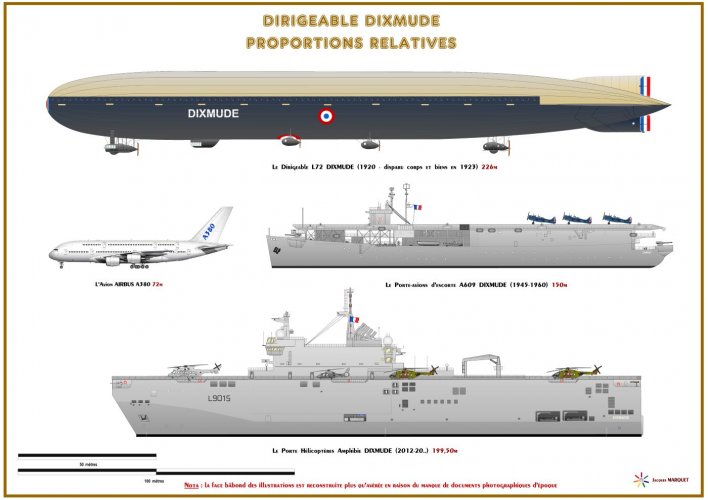

For the centenary of its disappearance end of 2023, I had the idea to draw, in full and in section, the ex-LZ-114 Dixmude airship, taken from the Germans to repair war damage. Requests for plans were never submitted by the Friedrichshafen Museum, despite reminders, so I used sketches made by the French officers.
Sorry for the captions being in French; it's too long to redo with an English translation, sorry...
A rare video :
