Soviet/Russian Radar System Designations List

[Tzoli]

I am trying to collect the numerous and sadly partly inconsistent designations the Russians used for their naval Electronical systems, like Radars,Sonars etc.
I will update them time to time but feel free to add more info like correct designation, variants and design/operational dates.

Non-Series Radars

Non-Series Radars

Argon - Fire Control Radar for the SS-N-12 Sandbox Missile (1970)
Binom - Fire Control Radar for the SS-N-3 Shaddock (1961?)
Burya - Fire Control Radar for the RBU-6000 (???)
Don-1 - Navigational/Surface Search Radar (???)
Don-2 - Navigational/Surface Search Radar (???)
Donets-1 - Navigational/Surface Search Radar (???)
Donets-2 - Navigational/Surface Search Radar (???)
Fakel - IFF System (1947?)
Fakel-M0 / Fakel-MO - IFF System (1948?)
Fakel-M3 - IFF System (1954?)
Fakel-MZ - IFF System (1949?)
Fut-B - Gunnery Fire Control Radar (1980?)
Fut-N - Air/Surface-Search Radar (1980?)
Grom-M - Fire Control Radar for the SA-N-3 Goblet Missile (1969)
Gyuys - Air-Search Radar (1948?)
Gyuys-1 - Air-Search Radar (1948?)
Gyuys-1M - Air-Search Radar (1949?)
Gyuys-1M4 - Air-Search Radar (1949?)
Gyuys-2 - Air-Search Radar (1950?)
Kantata-M - ESM/Electronic Support Measurement Radar (???)
Khrom-KM - IFF System (???)
Kivach - Navigational/Surface Search Radar (1956?)
Kolchan - Fire Control Radar for the SS-N-1 Scrubber Missile (1954)
Korall - ESM/Electronic Support Measurement Radar (???)
Korall-NK - Fire Control Radar for the SS-N-2 Styx Missile (1960?)
Korall-11 - ESM/Electronic Support Measurement Radar (1949?)
Korall-11A - ESM/Electronic Support Measurement Radar (1952?)
Korall-14 - ESM/Electronic Support Measurement Radar (1950?)
Korall-14A - ESM/Electronic Support Measurement Radar (1954?)
Korvet-Sevan - 152mm Gunnery Fire Control Radar (1960?)
Krab-11 - ESM/Electronic Support Measurement Radar (1965?)
Kremniy-1 - IFF System (1952?)
Kremniy-2 - IFF System (1958)
Kremniy-2M - IFF System (1971?)
Machta - Reconnaissance Radar? (???)
Musson-U-1155 - Fire Control Radar for the SS-N-14 Silex Missile (1980?)
Neptun - Navigational/Surface Search Radar (1948?)
Nikhrom-M - IFF System (1980?)
Nickel-KM - IFF System (1980?)
Nord - IFF System (???)
Pegas - Sonar (1949?)
Pegas-1 - Sonar (1950?)
Pegas-2 - Sonar (1951?)
Pegas-2M - Sonar (1958?)
PUSTB-1123 Sprut - Fire Control Radar for the SS-N-15 Starfish Missile (1969)
Purga - Fire Control Radar for the SS-N-15 Starfish Missile (1975?)
Razliv - Navigational/Surface Search Radar (1961?)
Redan - Gunnery Fire Control Radar (1946?)
Redan-1 - Gunnery Fire Control Radar (1947?)
Redan-2 - 152mm Gunnery Fire Control Radar (1948?)
Redan-3 - 152mm Gunnery Fire Control Radar (1948?)
Redan-4 - 130mm Gunnery Fire Control Radar (1949?)
Rif - Surface-Search Radar (1948?)
Rif-1 - Surface-Search Radar (1949?)
Rif-A - Surface-Search Radar (1953?)
Rym - Navigational/Surface-Search Radar (1948?)
Rym-1 - Navigational/Surface-Search Radar (1949?)
Sandal-V - Radar? (???)
Tamir-5N - Sonar (1948?)
Uspekh-U - Missile Downlink Radar (???)
Volga / Don Kay - Navigational / Surface Search Radar (1962?)
Vympel - Gunnery Fire Control Radar (1946?)
Vympel-1 - Gunnery Fire Control Radar (1947?)
Vympel-2 - 100mm Gunnery Fire Control Radar (1948?)
Yakor - 100mm Gunnery Fire Control Radar (1950?)
Yakor-M - Gunnery Fire Control Radar (1951?)
Yakor-M2 - Gunnery Fire Control Radar (1954?)
Zalp - 152mm Gunnery Fire Control Radar? (1950?)
Zalp-M - 152mm Gunnery Fire Control Radar? (???)
Zalp-M2 - 152mm Gunnery Fire Control Radar? (1975?)
Zarya - Torpedo Fire Control Radar (1949?)
Zvezda - Sonar (???)
Zvezda-M - Sonar (???)
Zvezda-M1 - Sonar (???)
Zvezda-M2 - Sonar (1992?)

Number-Letter Series

3R41 Volna / Top Dome - Fire Control Radar for the SA-N-6 Grumble Missile (1978)
3R95 - Fire Control Radar for the SA-N-9 Gauntlet Missile (1986?)
4R33 - Fire Control Radar for the SA-N-4 Gecko Missile (1971)
4R33A - Fire Control Radar for the SA-N-4 Gecko Missile (1979?)
4R33AM - Fire Control Radar for the SA-N-4 Gecko Missile (1982?)
4R90 Yatagan / Peel Group - Fire Control Radar for the SA-N-1 Goa Missile (1961?)
5P10 Puma - Universal Fire Control Radar for CIWS (2011?)
5P10E Puma - Export Universal Fire Control Radar for CIWS (2011?)
5P20K Poliment - AESA Air-Search Radar (???)
5P20K-A Monument-A - AESA Air-Search Radar (???)
5P27M Furke-2 - Air/Surface-Search Radar (???)
5P30P Poyma - Air/Surface-Search Radar (???)
5P30PE Poyma-E - Export Air/Surface-Search Radar (???)
30N6 Tomb Stone - 3D Fire Control Radar for the SA-N-20 Gargoyle Missile (???)
30N6E Flap Lid B - Export 3D Fire Control Radar for the SA-N-20 Gargoyle Missile (???)
30N6E1 Flap Lid - Export 3D Fire Control Radar for the SA-N-20 Gargoyle Missile (???)
30N6E2 Flap Lid - Export 3D Fire Control Radar for the SA-N-20 Gargoyle Missile (???)
30N6S Flap Lid B - 3D Fire Control Radar for the SA-N-20 Gargoyle Missile (???)

MG/MGK/MGS Series

MG-7 Braslet - Anti-Saboteur Sonar (???)
MG-26 Khosta - Underwater Communication System (???)
MG-311 Vychegda / Wolf Paw - Sonar (???)
MG-312 Titan - Sonar (1964?)
MG-312M Titan - Sonar (???)
MG-325 Vega - Sonar (???)
MG-332 Titan-2 - Sonar (1958?)
MG-332T Titan-2T - Sonar (???)
MGK-335 Platina - Sonar (1960?)
MGK-335S Platina-S - Sonar (1978?)
MGK-335MS Platina-MS - Sonar (1984?)
MGK-335MSE Platina-MSE - Sonar (1994?)
MG-342 Orion - Sonar (???)
MG-349 Ros-K - Sonar (1973?)
MGK-355 Polinom - Sonar (???)
MGS-407K - Sonar (1959?)
MGS-417 Amga-M - Sonar (???)
GS-572 Gerkules/Hercules - Sonar (1960?)
GS-572 Gerkules-2 - Sonar (1961?)
GS-572 Gerkules-2M - Sonar (1961?)
MG-757.3 Anapa-M - Anti-Saboteur Sonar (???)

MP/MRP Series
MRP-11-12 - ESM/Electronic Support Measurement/Direction Finding Radar (???)
MRP-13-14 Uspekh-U - ESM/Electronic Support Measurement/Direction Finding Radar (???)
MRP-15-16 Zaliv - ESM/Electronic Support Measurement/Direction Finding Radar (???)
MRP-52 Koltco - ESM/Electronic Support Measurement/Direction Finding Radar (???)

МР-123-02 Bagira - Fire Control System for 30,57,76,100mm Guns (???)
МР-123-02/3 Bagira-M - Fire Control System for 30,57,76,100mm Guns (???)
MP/MRP-150 Gurzuf-A / Gorzuf-1 - ESM/Electronic Support Measurement Radar (???)
MP/MRP-152 Gurzuf-B / Gorzuf-2 - ESM/Electronic Support Measurement Radar (???)

MP-401 Start - ESM/Electronic Support Measurement Radar (???)
MP-401S Start - ESM/Electronic Support Measurement Radar (1980?)
MP-405 Half Hat - ESM/Electronic Support Measurement Radar (1982?)
MP-405-1 Half Hat - ESM/Electronic Support Measurement Radar (1984?)
MP-407 Start-2 - ESM/Electronic Support Measurement Radar (1980?)

MP-503 Kantata - ESM/Electronic Support Measurement Radar (???)
MP-503 Kantata-M - ESM/Electronic Support Measurement Radar (???)

MR Series

MR-10 Sheet Bend - Coastal Surveillance/Target Acquisition radar (1972?)
MR-10M Sheet Bend - Coastal Surveillance/Target Acquisition radar (1982?)
MR-10M1E Sheet Bend - Coastal Surveillance/Target Acquisition radar for Export (???)
MR-90 Orekh / Front Dome - Target Illuminator/Fire Control Radar for the SA-N-7 Gadfly Missile (1980)

MR-103 Bars / Muff Cob - Fire Control Radar for the 57mm AK-725 Guns (1954)
MR-104 Rys / Drum Tilt - Fire Control Radar for the 30mm AK-230 Guns (1965?)
MR-105 Turel / Owl Screech - Fire Control Radar for the 76mm AK-726 Guns (1954)
MR-114 Yakhond - Fire Control Radar for the 76mm AK-726 Guns (1960?)
MR-123 Vympel / Bass Tilt - Fire Control Radar for the 30mm AK-630 Guns (1976)
MR-123 Vympel-A / Bass Tilt - Fire Control Radar for the 30mm AK-630 Guns (1979)
MR-145 Drakon / Kite Screech-A - Fire Control Radar for the 100mm AK-100 Guns (1967)
MR-184 Lev / Kite Screech-B - Fire Control Radar for the 130mm AK-130 Guns (1980)

MR-200 Kaktus - Air-Search Radar (1961?)
MR-201 Nayada-M / Najada-M - Short-range Surface Search/Navigational Radar (???)
MR-212 Vaygach / Palm Fond - Short-range Surface Search/Navigational Radar (???)
MR-212 Vaygach-U / Palm Fond - Short-range Surface Search/Navigational Radar (???)
MR-220 Reyd / Peel Cone - Target Acquisitional/Navigational/Air-Surface Search Radar (1971?)
MR-231 Nayada / Najada - Navigational/Surface Search Radar (???)
MR-231S - Long-Range Navigational/Surface Search Radar (???)
MR-231-1 Pal - Navigational/Surface Search Radar (???)
MR-231-2 Liman - Navigational/Surface Search Radar (???)
MR-231-3 Waigatsch - Navigational/Surface Search Radar (???)
MR-231-4 Gals - Navigational/Surface Search Radar (???)
MR-232-2 - Navigational/Surface Search Radar (???)
MR-244 Ekran - Navigational/Surface Search Radar (???)
MR-262 Ograda - ESM/Electronic Support Measurement Radar (???)
MR-262M Ograda-M - ESM/Electronic Support Measurement Radar (???)

MR-302 Rubka / Strut Curve - Air/Surface-Search Radar (1962?)
MR-300 Angara / Head Net - 2D Air/Surface-Search/Target Acquisition Radar (1960?)
MR-310 Angara-A / Head Net A - 3D Air/Surface-Search/Target Acquisition Radar (1966?)
MR-320 Topaz / Strut Pair - Air-Search/Target Acquisition Radar (1976)
MR-320 Topaz-2 / Strut Pair - Air-Search/Target Acquisition Radar (???)
MR-331 Rangout / Square Tie - Air/Surface-Search/Navigational/Target Acquisition Radar for SS-N-2 Styx Missiles (1960)
MR-350 Podkat / Cross Sword - Surface-Search/Fire Control Radar (1980?)
MR-360 Podkat / Cross Sword - Surface-Search/Fire Control Radar (1989?)

MR-500 Kliver / Big Net - Air/Surface-Search Radar (1965)
MR-510 Kil - Air-Search Radar (1965?)
MR-510 Kil-U - Air-Search Radar (1970?)

MR-600 Voskhod / Top Sail - 3D Air-Search Radar (1967-68)
MR-650 Podberezovik - 3D Air/Surface-Search Radar (2008?)

MR-700 Fregat / Top Steer - 3D Air/Surface-Search Radar (???)
MR-700 Fregat-M / Top Steer - 3D Air/Surface-Search Radar (???)
MR-700M Fregat-M1 / Top Steer - 3D Air/Surface-Search Radar (???)
MR-710 Fregat / Top Steer - 3D Air/Surface-Search Radar (???)
MR-710 Fregat-M / Top Steer - 3D Air/Surface-Search Radar (1974?)
MR-710 Fregat-M2 / Top Steer - 3D Air/Surface-Search Radar (???)
MR-710 Fregat-M2EM / Top Steer - 3D Air/Surface-Search Radar (1994?)
MR-750 Fregat-M2 / Top Plate - 3D Air/Surface-Search Radar (1987?)
MR-750 Fregat-MA / Top Plate - 3D Air/Surface-Search Radar (???)
MR-750 Fregat-MA2 / Top Plate - 3D Air/Surface-Search Radar (???)
MR-750 Fregat-MAE / Top Plate - 3D Air/Surface-Search Radar for Export (???)
MR-760 Fregat-MA / Top Plate - 3D Air/Surface-Search Radar (1980?)

MR-800 Flag / Top Pair - Combined MR-500 and MR-600 radars



[SOC]

"3R41 Volna / Top Dome - Fire Control Radar for the SA-N-20 Gargoyle Missile (1978)"

This is actually the fire control radar for the SA-N-6 GRUMBLE. The SA-N-20 used a 30N6 TOMB STONE bolted to Pyotr Veliky in place of the forward TOP DOME installation.



[Tzoli]

"3R41 Volna / Top Dome - Fire Control Radar for the SA-N-20 Gargoyle Missile (1978)"

This is actually the fire control radar for the SA-N-6 GRUMBLE. The SA-N-20 used a 30N6 TOMB STONE bolted to Pyotr Veliky in place of the forward TOP DOME installation.

Added and a few variants of it



[AM]

I am trying to collect the numerous and sadly partly inconsistent designations the Russians used for their naval Electronical systems, like Radars,Sonars etc.
I will update them time to time but feel free to add more info like correct designation, variants and design/operational dates.

Non-Series Radars

Non-Series Radars

Argon - Fire Control Radar for the SS-N-12 Sandbox Missile (1970)
Binom - Fire Control Radar for the SS-N-3 Shaddock (1961?)
Burya - Fire Control Radar for the RBU-6000 (???)
...

Hi all

it's my file about M-series. Cyrillic only, sorry



[Tzoli]

Hi all

it's my file about M-series. Cyrillic only, sorry

Thanks that will help at least with the names and designations. Don't you know their design/introduction dates?



[AM]

Thanks that will help at least with the names and designations. Don't you know their design/introduction dates?

The dates of the development and introduction of weapons in the USSR and Russia are absolutely secret information. Public information about this, as a rule, has nothing in common with reality.

PS. Now Russian Navy use "5П-Series"



[Tzoli]

Well I deduct that at least between the launch and commissioning of the ship should the equipment be introduced officially no?



[AM]

Thanks that will help at least with the names and designations. Don't you know their design/introduction dates?

no, very often the equipment is in the “trial operation” or “testing” phase on combat-ready ships



[Tzoli]

I see.
Do you have list of the sonars as well?



[AM]

I see.
Do you have list of the sonars as well?

What series are you interested in?
MG, MGA, MGV, MGI, MGK, MGP, MGS?



[Tzoli]

All? I wish to list here all the radars/sonars.



[AM]

All? I wish to list here all the radars/sonars.

ok. 1st.



[Tzoli]

ok. 1st.

Do you have info on the glide path spotlights of the Privod-SV system?
курсо-глиссадные прожекторы системы «Привод-СВ»

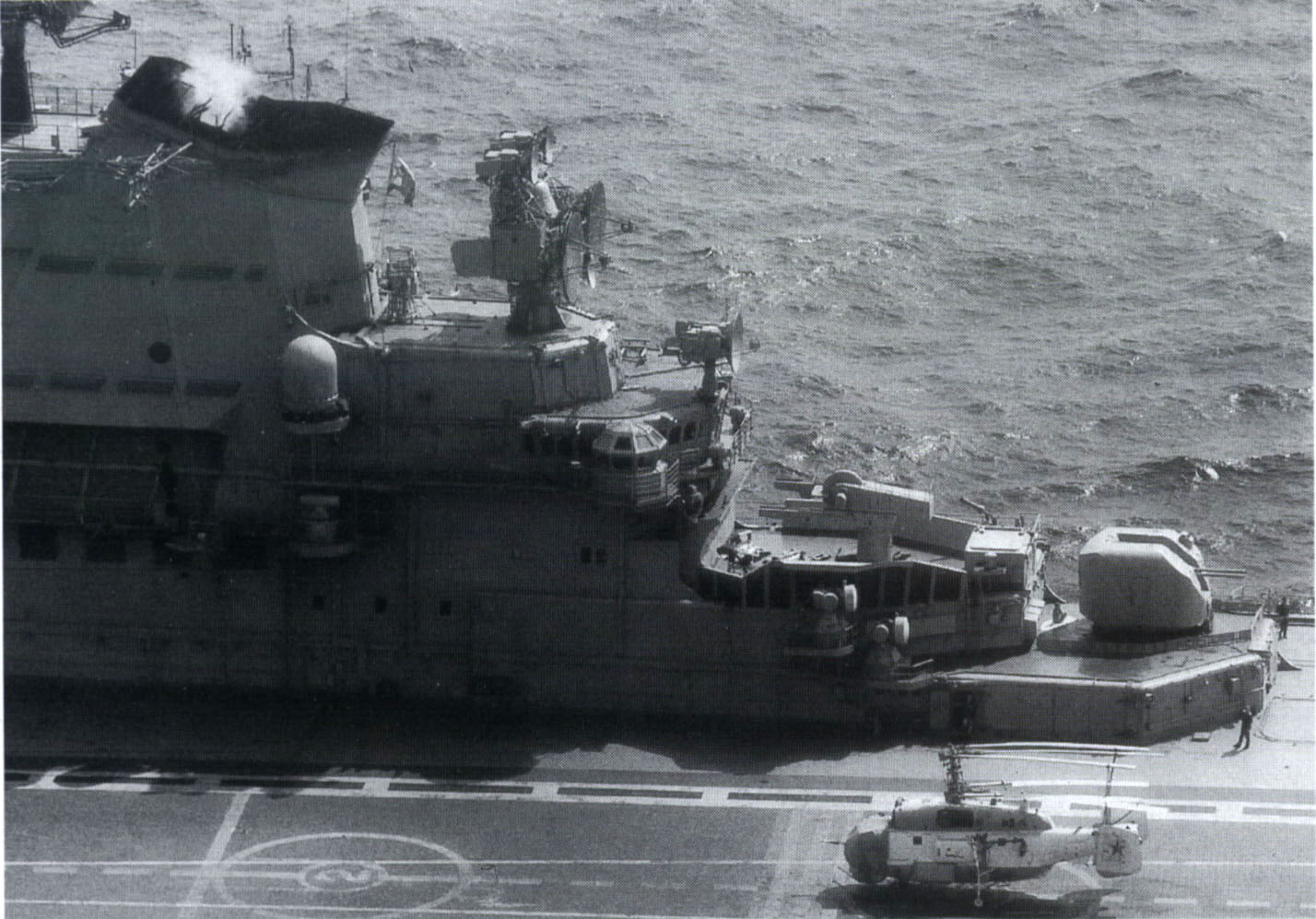

It's on the Kiev, 2 near and under the aft missile launcher on platforms:
https://navsource.narod.ru/photos/02/161/02161118.jpg

Dimensions, drawings?
