PWS (Podlaska Wytwórnia Samolotów) Aircraft Designations

I've made a start on a PWS designation list - relying heavily upon listings in the Samoloty w Lotnictwie Polskim website - http://www.samolotypolskie.pl/

As usual, there are plenty of gaps to fill! Additions and corrections welcome.

PWS Aircraft Designations

PWS licensed-built a number of aircraft designs. These included a range of Potez biplane reconnaissance bomber - 35 x Potez XVA2, 150 x Potez XXVA2, and 155 (sources vary) x Potez XXVII. PWS also took over development of the Bartel BM-4h biplane trainer when the 'Samolot' (Wielkopolska Wytwórnia Samolotów) firm failed after a factory fire.

Bartel BM-4h 2-seat biplane primary trainer, licenced x 50
- BM-4h: Prototype, 1 x 120 hp DH Gipsy III 4-cyl inline
- BM-4h: Series, 1 x 120 hp Walter Junior 4 4-cyl inline
-- http://www.airwar.ru/image/idop/other1/bm4/bm4-4.jpg
-- 2v: http://www.samolotypolskie.pl/uploads/Products/product_440/Bartel_BM-4h_rys.jpg

One license-built aircraft that did receive a designation of sorts was the Avia BH-33 biplane fighter. Polish examples of this Czech fighter were designation PWS-A - 'A' for Avia.

Un-numbered PWS Aircraft Designations

PWS-A - Avia BH-33 biplane fighter, licenced 1929-30, x 50
- PWS-A: Skoda Jupiter VII 9-cyl radial, span (upper) 8.9 m
-- Should have been PWS-9 but 'A' for 'Avia' used instead*
-- * See Boogey's Reply #11 (below)

The unbuilt Stemal VII project was brought to PWS by its designer, Stefan Malinowski. The later designation style, PWS-Stemal VII, suggests that PWS also regarded this airliner concept as a potential license-built design.

PWS-Stemal VII - [Project] 1928 high-wing monoplane airliner
- Stemal VII-PWS: Init. designation, 1 crew + 4 pax
- PWS-Stemal VII: Final designation, Dural const., span 10 m
- PWS-Stemal VII: 1 x 220 hp Skoda-Wright J5 Whirlwind
-- http://www.samolotypolskie.pl/uploads/Products/product_2267/preview_stemal.jpg

Numbered PWS Aircraft Designations

Most PWS aircraft designations followed a simple numerical sequence. But there were examples of type numbers being reapplied. Most Polish sources show the designation style as PWS-xx, with the type number separated from PWS with a hyphen. Other publication use a space or a period.

Some PWS designations are shown with French-style alpha-numeric role/crew number suffixes. This seems to have been a Lotnictwo Wojska Polskiego (Polish Air Force) practice rather than a PWS style. PWS sub-type suffices are usually letters (sometimes small letters, sometimes capitals).

Designers names were sometimes acknowledged in later designations. 'M', 'U', and 'Z' designations are explained below the Numbered PWS Aircraft Designations listings.

One anomoly in the 'M' designations is the PWS-17 night fighter project which was also refered to as the PWS-17M2. But, at times, it is listed as the PWS M-2. The PWS-17M2 designation is clearly a Lotnictwo Wojska Polskiego French-style role designator. But the 'M' in M-2 is clearly _not_ a reference to inż Józef Medwecki. See Boogey's Reply #11 (below)

___________________________________________________________

Numbered PWS Aircraft Designations

PWS-1 -- 1927 2-seat parasol fighter/recce-bomber prototype, x 1
- PWS-1 : 1 x 480 hp Skoda LD Eb, wooden wings, span 13.8 m
- PWS-1 bis: 1929 mod., thin-section dural wing, span 13.7 m
-- PWS-1: http://www.airwar.ru/image/idop/fww1/pws1/pws1-1.jpg
-- PWS-1 bis: http://www.airwar.ru/image/idop/fww1/pws1/pws1-2.jpg
-- 3v: http://www.samolotypolskie.pl/uploads/Products/product_2219/PWS-1_rys.jpg

PWS-2 -- (Project) 1926 2-seat single-engined trainer

PWS-3 -- 1927 2-seat parasol sport a/c* prototype, x 1
- PWS-3 : Multi-role airframe w/ lower fuselage beam**
- PWS-3A: [hypothetical designation, no record]
- PWS-3B: Prototype, wooden constr., P-PWSS/SP-ACJ
-- PWS-3B: 1 x 60 hp Walter NZ 60 5-cyl, span 9.7 m
- PWS-3 bis: [Project] 2-seat parasol liaison a/c
-- * Some source list PWS-3 as an 'observation a/c'
-- ** Beam to allow multiple upper fuselage types

PWS-4 -- 1928 single-seat shoulder-wing sports a/c, x 1
- PWS-4: 1 x 90 hp Salmson AD.9 radial, span 7.6 m
-- http://www.bialapodlaska.myoptimus.com/wp-content/uploads/2013/03/1-PWS-sportowy-jednomiescowy.jpg
-- 3v: http://richard.ferriere.free.fr/3vues/pws4_3v.jpg

PWS-5 -- 1928 2-seat liaison biplane, orig. desig. PWS-7
- PWS-5 : 1 x 220 hp Skoda-Wright J5 Whirlwind, span 9.0 m
- PWS-5a: 1st prototype, flew Dec 1928, no lower ailerons
- PWS-5b: 2nd prototype, flew Feb 1929, ailerons, spinner
- PWS-5T2: PolAF prod. a/c desig., liaison/obs./target tug

PWS-6 -- 1930 2-seat liaison biplane, impr. PWS-5, span 9.6 m
- PWS-6: 220 hp Skoda-Wright J5, slotted upper wings, x 1
-- 3v: http://www.samolotypolskie.pl/uploads/Products/product_2224/PWS-6_rys.jpg

PWS-7 -- 1928 2-seat liaison biplane, re-designated PWS-5

PWS-8 -- 1930 2-seat tandem biplane sports plane, span 10 m
- PWS-8: As built, 1 x 80 hp AS Genet, strut-braced wings
- PWS-8: Mod., 1 x 85 hp Walter Vega NZ, wire-braced wings

PWS-9 -- Not applied, would have been used for PWS-A*
-- * See Boogey's Reply #11 (below)

PWS-10 - 1930 single-seat parasol-wing fighter, span 10.5 m
- PWS-10 : 1 x 450 hp Lorraine-Dietrich LD-12Eb W-12, x 80
- PWS-10/I : 1st prototype, 1930
- PWS-10/II: 2nd prototype
- PWS-10M1 : Series vers. (desig. single-seat fighter?)*
-- * M for myśliwskie, based on assumption for PWS-17M2
- PWS-15 : PWS-10M1 with revised wing, 1 x prototype conv.
-- 5v: http://www.aviarmor.net/aww2/_photo_aircraft/f_pol/pws10/pws10_d1.jpg

PWS-11 - 1929 PWS-11SM parasol fighter-trainer, span 9 m
- PWS-11SM: Single-seater, 1 x 220 hp Skoda-Wright J-5A
- PWS-11 : 1929 1st prototype, some directional instability
- PWS-11a: Mod. 1st prototype, revised tail surfaces
- PWS-11 bis: 1930 2nd prototype, revised fuselage
- PWS-13 : Proposed production vers. of PWS-11 bis
-- 3v: http://richard.ferriere.free.fr/3vues/pws11_3v.jpg

PWS-12 - 1929 2-seat biplane trainer, span 9 m, x 2*
- PWS-12: 1929 1st prototype, wooden const., x 1 built
- PWS-12bis: 1930 2nd prototype, mixed const., x 1 built
-- 1931: PWS-12bis mod. into aerobatic a/c, SP-AKE
-- * 20 x PWS-12 ordered for PolAF, transf. to PWS-14
-- PWS-12bis: 1 x 220 hp Skoda-Wright J-5A Whirlwind**
-- ** J-5 powered Bartel BM-6b prototype led to PWS-12

PWS-13 - (Project) 1931 parasol fighter-trainer, span 9 m
- PWS-13: Single-seat trainer, 1 x 220 hp Skoda J-5A
-- PWS-11 bis prod. vers., order x 30 anticipated
-- PWS-13 steel-tube fuselage vs PWS-11 bis' wood

PWS-14 - 1933 2-seat biplane trainer, span 9 m, x 21
- PWS-14: Mixed contr. version of PWS-12bis*
-- * In PolAF service PWS-14 retained PWS-12 desig.

PWS-15 - 193? parasol fighter, revised PWS-10M1, x 1
- PWS-15: PWS-10M1 with revised wing, 1 x prototype

PWS-16 - 1933 2-seat biplane trainer, span 9 m, x 40
- PWS-16: 1 x 220 hp Skoda-Wright J-5A Whirlwind, x 20
- PWS-16bis: Aerobatic trainer derivative, x 20 built
- PWS-26: Armed trainer derivative of the PWS-16
-- http://www.airwar.ru/image/idop/other1/pws16/pws16-2.jpg

PWS-17 - (Project) 1929* tandem 2-seat night fighter
- PWS-17: Parasol wing, twin tails, fixed u/c
-- PWS-17: 1 x 525/575 hp Jupiter or Mercury IV S2
-- * Or 1932 [??], aka PWS-17M2, same as PWS M-2**
-- ** NB: 'M' desig. does _not_ refer to Medwecki
-- PWS-17 design related to PWS-19 recce-bomber

PWS-18 - 1936 2-seat biplane trainer,* span m, x 45
- PWS-18 : Local mod./adaptation of Avro 621 Tutor
- PWS-18a: PWS-18 adapted to inverted flight
-- 1 x 220 hp Wright J5B Whirlwind, span 10.97 m

PWS-19 - 1931 parasol 2-seat recce a/c, span 14.5 m
- PWS-19: Recce-bomber vers. of PWS-17 project*
-- * Or PWS-17 was night fighter vers. of PWS-19
- PWS-19A2: Planned prod'n reconnaissance vers.
- PWS-19B2: Planned prod'n light bomber vers.
-- 1 x Bristol Jupiter VIIF or P&W Hornet HT2

PWS-20 - 1929 'Gniezno' single-engined high-wing airliner
- PWS-20T : 1929 1st prototype, 2 + 6, span 17.6 m
- PWS-20 bis: 1930 revised prototype, SP-AAZ
- PWS-20 ter: [Project]twin wooden float vers.
- PWS-20 ter/hydro: [Project] Military floatplane*
-- * 2 vers. proposed: transport and torpedo bomber

PWS-21 - 1930 single-engined high-wing airliner
- PWS-21 : [Project] Init. concept (rejected by LOT)
- PWS-21 bis: 1st prototype, SP-AEC, span 15.0 m
-- PWS-21 bis was poor performer, led to PWS-24

PWS-22 - (Project) 3-4-seat parasol night bomber, span 28 m
- PWS-22: 2 x push/pull 420 hp Bristol Jupiter IV 9Asb
-- Zbysław Ciołkosz/Antoni Uszacki design, aka PWS-22B3N
-- http://www.samolotypolskie.pl/samoloty/2239/84/PWS-22B3N2

PWS-23 - (Project) 3-seat parasol night bomber, span 30.8 m
- PWS-23: 2 x tractor, 1 x pusher Jupiter IV 9Asb
- PWS-23: Bomber, aka PWS-23 B3N, only scale models built
- PWS-23 bis: Transport/airliner, aka PWS-23T
-- http://www.samolotypolskie.pl/samoloty/2240/84/PWS-232

PWS-24 - 1931 single-engined high-wing airliner, span 15 m
- PWS-24 : Init. desig'd PWS-24T, 1st prototype
-- 1st prototype: 1 x 220 hp Skoda-Wright J5
- PWS-24 : Initial prod'n version, x 5 built
- PWS-24 bis: Prototype, 1 x 300 hp LD Algol 9na
- PWS-24 bis: Prod'n, 1 x 400 hp P&W Wasp Junior TB

PWS-25 - (??)

PWS-26 - 1936 biplane aerobatic/combat trainer, span 9.0 m
- PWS-26: Refined PWS-16bis, prototype flew autumn 1936
- PWS-26: Series 1937-39 x 310 (sources vary 320 or 260)
- PWS-26 bis: Refined last of series prod'n aircraft
-- PWS-26: 1 x 220 hp Skoda-Wright J5 Whirlwind

PWS-27 - (Project) 1937 2-seat biplane trainer
- PWS-27: Revised PWS-26, eliptical upper wing
-- PWS-27: 1 x 220 hp Avia Wright J5B Whirlwind
-- Init. desig. PWS Z-27, then changed to PWS-27
-- http://www.samolotypolskie.pl/uploads/Products/product_2243/preview_pws-27-pws-z-27_src_1.jpg

PWS-28 - (Project) 1938 2-seat biplane aerobatic/trainer a/c
- PWS-28: PWS-27 deriv. with Avia Delfin 3T or G-1620A Mors

PWS-29 - (??)

PWS-30 - (Project) Airliner, became PZL-30B/LWS-6 Zubr
- PWS-30: aka PZL-30, designed by Zbysław Ciołkosz
-- http://teatrnn.pl/leksykon/node/1905/zbyslaw_ciolkosz_1902–1960

PWS-31 - (??)

PWS-32 - (??)

PWS-33 Wyżeł (Pointer) - twin-engined trainer* prototypes, x 2
- PWS-33: 2 x 120 hp PZInz Major 4B 4-cyl inlines, span ~9.3 m
- PWS-33/I : 1st prototype, flown August 1938
- PWS-33/II: 2nd prototype, flown late January 1939
-- * Training PZL-38 Wilk crews, cancelled with PZL-33
- PWS-??: [Project] Wyżeł II w/ Avia Delfin 3T radials**
-- ** Intended as crew trainer for PZL-48 Lampart
-- http://www.samolotypolskie.pl/uploads/Products/product_2245/preview_pws-33-wyzel_src_1.jpg

PWS-34 - (??)
-- NB: 'PWS-34 Chart' seems to be a 'what-if' design

PWS-35 Ogar (Greyhound) - 1938 2-seat biplane aerobatic trainer
- PWS-35: Based on Lvov Polytechnic student design, NPR-1
- PWS-35/I : 1st prototype, 1 x 120 hp PZInz Major 4 4-cyl.
- PWS-35/II: 2nd prototype,* 1 x 120 hp DH Gipsy Major 4-cyl
-- * PWS-35/II had larger tail to correct spin characteristics
-- 1939, PolAF ordered 150 (cut to 50) prod'n vers. as PWS-36**
-- ** Some 17 in various stages of completion, Sept 1939

PWS-36 Ogar - (Project) production PWS-35 for Pol AF*
-- * NB: Here PWS-36 is a PolAF desig. not PWS desig.

PWS-36 - (Project) 1939 sports monoplane/military liaison a/c
- PWS-36: Low-wing tandem-seat trainer, 1 x 50-60 hp engine
-- Either a duplicate designation or 'PWS-36' is in error
-- Compared with or inspired by Belgian Tipsy S.2

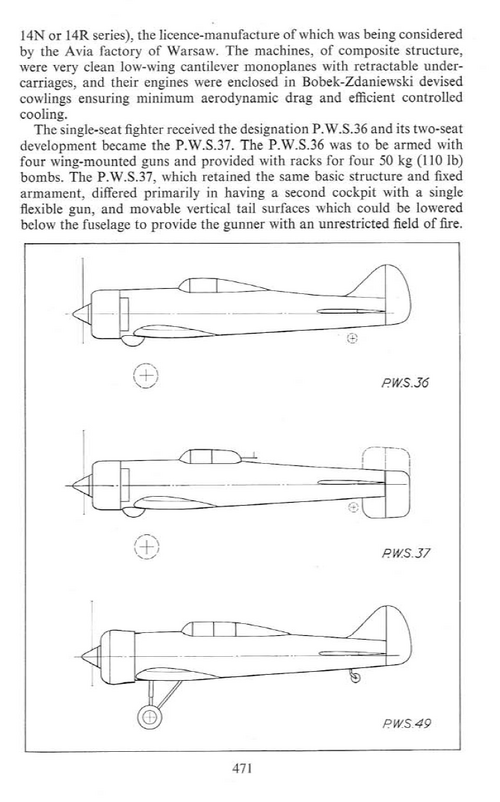

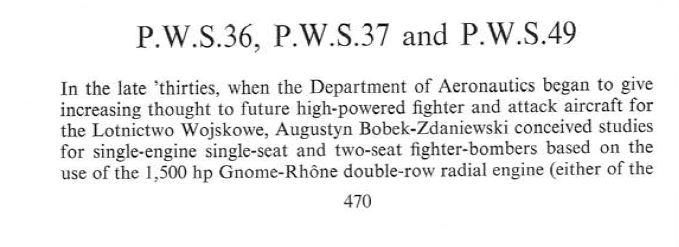

PWS-36 - (Project) 1939 study; single-seat fighter aircraft
- PWS-36: Part of PWS-36-PWS-37-PWS-49 study sequence
- PWS-36: 1 x 1,500 hp GR 14N or 14R radial; span 9.75 m
- PWS-36: Retractable main u/c; wood wings; mixed constr.
-- Either a duplicate designation or 'PWS-36' is in error.

PWS-37 - (Project) liaison a/c, abandoned when team* broke up
-- * Was Kazimierz Nowicki, Marian Piątek, Michał Rosnowski

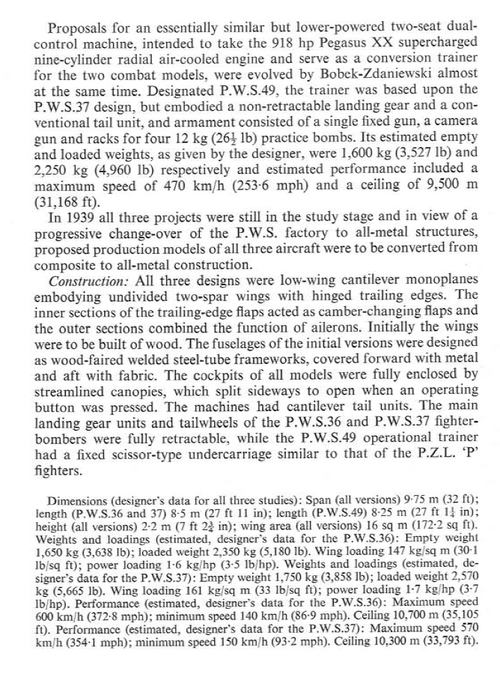

PWS-37 - (Project) 1939 study; 2-seat attack a/c; variable tail*
-- NB: Contrast w/ above; Augustyn Bobek-Zdaniewski design
- PWS-37: Part of PWS-36-PWS-37-PWS-49 study sequence
- PWS-37: 1 x 1,500 hp GR 14N or 14R radial; span 9.75 m
- PWS-37: Retractable main u/c; wood wings; mixed constr.
-- * Raised for T/O; lowered to improve gunner's field of fire
-- Either a duplicate designation or 'PWS-37' is in error

PWS-38 - (??)

PWS-39 - (??)

PWS-40 (I) - (Project) 1927 2-seat biplane trainer
- PWS-40: 1 x 95 hp Salmson AC-7 radial, span 8.60 m
-- http://www.samolotypolskie.pl/samoloty/2264/84/PWS-402

PWS-40 (II) - Junak (Young Brave) - 1939 low-wing monoplane trainer
- PWS-ZZ: Init. desig. after Antoni Zagórski and Jerzy Zbrożek
- PWS-40: 1 x 60 hp Avia 3 4-cyl inline, span 10.2 m, x 1

PWS-41 - (Project) 1939 2-seat low-wing advanced trainer*
- PWS-41: Wooden construction, fixed u/c, span ~11.0 m
-- PWS-41 powered by 1 x 280 hp Avia Delfin 3T 9-cyl
-- * Intended as PZL-46 Sum recce-bomber crew trainer

PWS-42 - (Project) 1939 monoplane fighter,* span ~9.0 m
- PWS-42: 1 x 660-730 hp Gnome-Rhône 14M7 Mars 14-cyl radial
-- * Low-wing light fighter/interceptor, Plymax const'n

PWS-43 - (??)

PWS-44 - (??)

PWS-45 - (??)

PWS-46 - (Project) 1939 poss. devel. of PWS-42 fighter*
- PWS-46: Poss. 1 x Gnome-Rhône 'Super Mars' radial
-- * Wartime Soviet sources suggest improved PWS-42

PWS-46 - (Project) 1939 twin-fuselage* recce-bomber
- PWS-46: Poss. prelim. design desig. for PWS-60/1939

PWS-47 - (??)

PWS-48 - (??)

PWS-49 - (Project) 2-seat advanced trainer; PWS-37 deriv.
- PWS-49: Part of PWS-36-PWS-37-PWS-49 study sequence
- PWS-49: 1 x 918 hp Bristol Pegasus XX; span 9.75 m
- PWS-49: Fixed main u/c; wood wings; mixed fuselage constr.

PWS-50 - 1930 2-seat shoulder-wing sports a/c, span 11 m
- PWS-50: Wooden const., 1 x 85 hp ADC Cirrus III 4-cyl
-- For Challenge International de Tourisme 1930, SP-ADB

PWS-51 - 1930 2-seat low-wing sports a/c, span 10.8 m
- PWS-51: Mixed const., orig. 1 x 80 hp AS Genet
- PWS-51: Re-engined with 1 x 85 hp Walter Vega NZ
- PWS-51: Re-engined with 1 x 85 hp ADC Cirrus III
-- For Challenge International de Tourisme 1930, SP-ADC

PWS-52 - 1930 2-seat high-wing sports a/c, span 11.52 m
- PWS-52: Desig. as 2-3 comm, obs, trainer, seaplane
- PWS-52: Orig. engined with 1 x 85 hp DH Gipsy I 4-cyl
- PWS-52: Re-engined with 1 x 120 hp DH Gipsy III 4-cyl
-- For Challenge International de Tourisme 1930, SP-ADD
-- http://www.airwar.ru/image/idop/law1/pws52/pws52-1.jpg

PWS-53 - (??)

PWS-54 - 1933 single-engined high-wing airliner prototype
- PWS-54: 1 x 220 hp Wright J5, mixed const., span 12.3 m

PWS-55 - (??)

PWS-56 - (??)
-- NB: Wikipedia credits Oblt Gordon Gollob of ZG 76 with shooting down a 'PWS 56' biplane on 5 Sept 1939. This claim is attributed to Fraschka, Günther (1994) Knights of the Reich. Atglen, PA: Schiffer Military/Aviation History. ISBN 978-0-88740-580-8

PWS-57 - (??)
-- NB: Seen as typo for PWS-54 airliner

PWS-58 - (??)

PWS-59 - (??)

PWS-60 (I) - (Project) 1930 2-seat multi-purpose seaplane*
-- * Patrol, observation, liaison, trainer
-- http://www.samolotypolskie.pl/samoloty/2258/84/PWS-60

PWS-60 (II) - (Project) 1939 twin-fuselage heavy fighter*
- PWS-60 (II): Reported as alt. designation for PWS-46
-- * Or recce-bomber, aka PWS-60/1939 or, poss., PWS-46

PWS-61 - (Project) 1930 2-3-seat low-wing float recce-bomber
- PWS-61: 1 x 480-520 hp Skoda Jupiter VII F, mixed constr.
-- Heinkel He 8-inspired twin-float recce/torpedo bomber
-- http://www.samolotypolskie.pl/samoloty/2259/126/PWS-612

PWS-62 - (Project) 1931 3-seat shoulder-wing seaplane
- PWS-62: Twin float torpedo bomber, 2 x Jupiter VII F
-- http://www.samolotypolskie.pl/samoloty/2260/126/PWS-622


___________________________________________________________

Last edited:
PWS Glider Designations (PWS took over glider-builder DZS in 1937)

PWS-101 - 1937 single-seat gull-wing competition sailplane
- PWS-101: Fitted with ballast tanks, air brakes, span 19.0 m
-- PWS-101 designed to participate in 1937 Rhön-Wasserkuppe
-- Originally named Rekin (Shark), name tranf. to PWS-102

PWS-102 Rekin (Shark) - 1939 high-performance glider, span 19 m
- PWS-102 : Prototype design, flown May 1939
- PWS-102 bis: 1939, revised wing design, x 2 built*
-- * Second PWS-102 bis completed by Soviets in 1940

PWS-103 - 1940 aerobatic sailplane, PWS-102 devel, span 19 m
- PWS-103: Designed specif. for 1940 Helsinki Olympic Games
-- Two PWS-103 prototypes completed by Soviets 1939/1940

___________________________________________________________


PWS 'MN' and 'M' Aircraft Designations

The PWS 'MN' aircraft designation is for technician Józef Medwecki and inż Zygmunt Nowakowski. The MN-4 sequence is actually a follow-on from a WWS Samolot designation - MN-3 (included below for completeness). The MN-4 predates the 'M' series (below).

WWS Samolot MN-3 - 1928 4-seat parasol sports a/c, x 1
- MN-3 : Open cockpit, tandem pairs of staggered seats
- MN-3 : 1 x 45 hp Anzani 6-cyl. 2-row radial, span 11.00 m
- MN-3 : Wooden wing/tailplane, steel-tube fuselage constr.
-- Built for 1928 Polish Konkursu Awionetek contest
-- Anzani engine failed & MN-3 was retired; conv. to MN-4

PWS MN-4 - 1933 2-seat, single-engined parasol tourer, x 1
- MN-4 : MN-3 with fwd cockpit seats removed (in 1932/1933)
- MN-4 : 1 x 85 hp Cirrus III 4-cyl. inline, span 11.00 m
-- http://www.samolotypolskie.pl/samoloty/1828/82/MN-3-MN-42

PWS 'M' aircraft designations are for designer Józef Medwecki. Only two designs are definitely attributed to Medwecki - the PWS M-8 and M-9.

I have included the 'M-2' as a possible alternative designation for the PWS-17M2. This is probably incorrect since the PWS-17 was designed by Zbysław Ciołkosz and Antoni Uszacki, not by Józef Medwecki. See Reply #11

PWS M-2 - (Project) Tandem 2-seat parasol night fighter
- PWS M-2: Same as PWS-17 monoplane night fighter project

PWS M-8 - (Project) 1935 shoulder-wing 2-seat obs./recce a/c
- PWS M-8: 1 x radial, retr. u/c, low-placed vert. tail
-- PWS M-8 was an unsuccessful competitor to LWS-3 Mewa

PWS M-9 - 1939 2-seat light sports high-wing monoplane, span 11 m
- M-9: 1 x 85 hp Cirrus III, Pol AF liaison after Sept 1939
-- M-9 design (with Władysław Kiryluk)* infl. by PWS-52
-- NB: M-9 may be amateur build, thus not attributable to PWS
-- http://www.samolotypolskie.pl/samoloty/1824/126/M-9
-- 3v: http://www.airwar.ru/image/idop/law1/m9/m9-1.gif


___________________________________________________________


PWS 'TW' and 'U' Aircraft Designations

Another inherited designation was TW-12 from the designer Henryk Toczołowski with Józef Wulf. The airframe was built by PWS (with the cooperation of the PWS Aviation Club). Tests by the IBTL, Warsaw, revealed low-speed handling problems, resulting in the sole TW-12's conversion into a single-seater.

TW-12 - 1933 Low-winged monoplane single-engine sports a/c, x 1
- TW-12 : (As built) Tandem 2-seater, ply-covered wooden constr.
- TW-12 : 1 x 80 hp Armstrong Siddeley Genet, span 10.50 m
- TW-12 : (As mod.) Forward cockpit blanked off, rudder enlarged
-- http://www.samolotypolskie.pl/samoloty/2999/87/TW-122

PWS 'U' aircraft designations are for designer Antoni Uszacki.

Antoni Uszacki collaborated on a number of PWS designs. Solely attributed to Uszacki were the PWS-18 trainer, PWS-19 and PWS-52 light aircraft, and PWS-54 airliner as well as several unbuilt projects - the PWS-17m2 night fighter, PWS-22B3N bomber, and PWS-23 bomber/transport. Only a 1934 unbuilt project for an observation and liaison aircraft received a distinct designation - PWS U-6.

The 'U' in PWS U-6 is obviously for Uszacki but this designator does not seem to have been applied to any other Uszacki-designed PWS aircraft.

PWS U-6 - (Project) 1934 parasol observation/liaison, span 14 m
- PWS U-6: Proposed repl. Lublin R.XIII, reduced scaled PWS.19
-- PWS U-6: 1 x 430 hp PZL WS-G-1620B Mors II 9-cyl radial

___________________________________________________________


PWS 'Z' Aircraft Designations

PWS 'Z' aircraft designations are for designer August Bobek-Zdaniewski.

PWS Z-7 - (Project) 1934 R.XIII obs./liaison a/c replacement
- PWS Z-7 : 2-seat high-wing monoplane, spatted u/c, span 11 m
- PWS Z-7b: 11.5 m span, diff. u/c; vertically-movable tailfin

PWS Z-17 - (Project) 193? single-seat fighter (to replace PZL-7)
- PWS Z-17: Sęp I (Vulture), cockpit canopy, semi-retractable u/c
-- Z-17: High braced fwd-swept wings, 1 x Bristol Jupiter VIIF
-- 3v: http://www.samolotypolskie.pl/uploads/Products/product_2270/PWS_Z-17_Sp_I_rys.jpg

PWS Z-18 - [Project] 1935 single-seat fighter (to replace PZL P-11c)
- PWS Z-18: Sęp II, cockpit canopy, semi-retract. u/c, span 10 m
-- PWS Z-18: Advanced vers. of PWS Z-17, 1 x 918 hp Bristol Pegasus XX
-- 3v: http://www.samolotypolskie.pl/uploads/Products/product_2271/PWS_Z-18_Sp_II_rys.jpg

PWS Z-36 - [Project] 1939 single-seat monoplane fighter, 1 x GR-14
- PWS Z-36: Low-winged monoplane, fwd-retr. u/c, all-around canopy

PWS Z-37 - [Project] 1939 2-seat monoplane fighter, 1 x GR-14 radial
- PWS Z-37: Low-winged monoplane, vertically-moveable tailfin/rudder
-- PWS Z-37 was 2-seat fighter devel. of single-seat PWS Z-36
-- http://www.samolotypolskie.pl/uploads/Products/product_2272/preview_PWS_Z-37.jpg

PWS Z-47 - [Project] 1935 advanced trainer vers. of PWS Z-17 fighter
- PWS Z-47: Sęp III (Vulture), 1 x 430-470 hp powerplant*
-- PWS Z-47 was single-seat fighter/trainer devel. of Z-17 & Z-18
-- * 430 hp G-1620B Mors II (Otter) listed by samolotpolskie.pl
-- http://www.samolotypolskie.pl/samoloty/2273/84/PWS-Z-47

PWS Z-49 - [Project] 1938 low-winged monoplane 2-seat trainer
- PWS Z-49: Tandem 2-seat, 980 hp PZL Bristol Pegasus XX radial
-- PWS Z-49 was 2-seat fighter/trainer devel. of Z-36 & Z-37
-- Tandem 2-seat cockpit, canopy, fixed main u/c, 2-blade prop
-- http://www.samolotypolskie.pl/uploads/Products/product_3599/preview_PWS_Z-49.jpg

___________________________________________________________

Last edited:
Excellent work as usual my dear Apophenia,

and I can add one this,as I know the PWS-105 was also a sailpane,no more details,but
I will check.

Thanks Hesham. Interesting to hear about a PWS-105 ... must be a PWS-104 too ;)

Apophenia said:
Thanks Hesham. Interesting to hear about a PWS-105 ... must be a PWS-104 too ;)
Click to expand...

My dear Apophenia,

I will check about that too.

Hi Apophenia, excellent work. I've checked the pdf file wrt PWS-49, you're right, Odr is just the beginnig of : Odręczny tekst pot wycinkiem
trudny do odczytania = Hand-written note under [well, actually "unter" ;-)] the scrap, hard to decipher. The timescale mentioned in the the text (Nov 1929) strongly suggests simply PWS-4, so the designation PWS-49 probably did not exist at all. Best, K.

Thanks for checking that klaud3. There are a range of PWS-5x designations in 1930. But, I think that you are right ... this 'PWS-49' is a garbled reference to the PWS-4.

Hi,

Mr. Stefan Malinowski designed the MAL,it was a two-seat cantilever high-wing monoplane light
bomber Project,powered by one 450 hp Lorraine-Dietrich engine,co-operation with PWS.

http://www.samolotypolskie.pl/samoloty/1780/82/MAL2

Thanks Hesham. Always interesting to see mjr inż. Malinowski's name pop up!

So, MAL was an IBTL (Instytut Badań Technicznych Lotnictwa) project. I suppose if it had gotten further along in development, MAL would have been given a Stemal name or, if headed towards production, a PWS designation.

Yes my dear Apophenia,

and in Stemal designation;

http://www.secretprojects.co.uk/forum/index.php/topic,16576.msg159734.html#msg159734

Apophenia said:
PWS 'M' Aircraft Designations

PWS 'M' aircraft designations are for designer Józef Medwecki. Only two designs are definitely attributed to Medwecki - the PWS M-8 and M-9.

I have included the 'M-2' as a possible alternative designation for the PWS-17M2. This is probably incorrect since the PWS-17 was designed by Zbysław Ciołkosz and Antoni Uszacki, not by Józef Medwecki.

PWS M-2 - [Project] Tandem 2-seat parasol night fighter
- PWS M-2: Same as PWS-17 monoplane night fighter project


______________________________________________________
Click to expand...

In case of the PWS-17 M2 fighter project the letter M means simply " Samolot Myśliwski " ( Fighter Aircraft )
and the number 2 - Dwumiejscowy ( Two-seater ). For example original designation of the PWS-10 fighter was PWS-10 M1 ( Single-seater Fighter ).
In fact properly designation of the PWS-A ( Avia BH-33 ) fighter should be PWS-9 as it was the ninth construction made in the PWS factory,
but it was decided to state that the airplane is licence-built of the Czech Avia project.

Nice Info my dear Boogey,

and can I ask why the company jumped to numbers 50 & 60 during its early series ?.

I am going to answer You with pleasure after the laptop of my friend gets loaded, my eyes will rest a little bit
and my awkward translation of the matter from " Samoloty Wojskowe w Polsce 1924 - 1939 " by Andrzej Morgała from Polish to English will be done.

Thank you my dear Boogey,

and I have this book,but could we find the answer in it ?.

hesham said:
Thank you my dear Boogey,

and I have this book,but could we find the answer in it ?.
Click to expand...

Page 392 in edition II, Bellona SA, Warszawa 2003 - 2014, KOŃCOWE MISCELLANEA, Oznaczenia typów samolotów przez wytwórnie
- Podlaska Wytwórnia Samolotów.
I hope You know a person speaking Polish who would help You translate the designation systems of the PWS aircraft.
Generaly there were two changes of the system. Therefore the matter is very complicated and full of inconsequences.
Fifties series were provided for sporting & liason airplanes ( sporting PWS-50, PWS-51, PWS-52 ; I think PWS-54 has its designation
as the evolution of PWS-24 ) and sixties for hydroplanes ( PWS-60, PWS-61, PWS-62 ).

@ Apophenia
PWS-30 - [Project] 19?? passenger a/c, no details
-PWS-30: Designed by Zbysław Ciołkosz
-- http://teatrnn.pl/leksykon/node/1905/zbyslaw_ciolkosz_1902–1960
Click to expand...

It's passenger PZL-30 which became the PZL-30 B / LWS-6 Żubr bomber.

Projekty i koncepcje
W okresie przedwojennym był twórcą lub współtwórcą koncepcji i projektów m.in. dwumiejscowego eskortowego samolotu myśliwskiego PWS–1, pasażerskiego PWS–30, sportowego PWS–52, liniowego PWS–19, pocztowo-pasażerskich PWS–54 i PZL–27, pasażerskiego PZL–30, bombowych LWS–4 i LWS–6 oraz sanitarnego LWS–2 i obserwacyjnego LWS–3 „Mewa”.
Click to expand...

from " Mała encyklopedia lotników polskich " by Jerzy R. Koneczny and Tadeusz Malinowski, Warszawa 1983, the book quoted by Apophenia.

There is one numeral fault in designation of the PWS-30 as it should be PWS-20, after all an aircraft designed by Ciołkosz.

Boogey said:
In case of the PWS-17 M2 fighter project the letter M means simply " Samolot Myśliwski " ( Fighter Aircraft )
and the number 2 - Dwumiejscowy ( Two-seater ). For example original designation of the PWS-10 fighter was PWS-10 M1 ( Single-seater Fighter ).
In fact properly designation of the PWS-A ( Avia BH-33 ) fighter should be PWS-9 as it was the ninth construction made in the PWS factory,
but it was decided to state that the airplane is licence-built of the Czech Avia project.
Click to expand...

Thanks for that Boogey. Changes made

Hi first of all that was excellent work on the PWS designations by all, especially Apophenia. However I have one correction that should be made. On the PWS-23 the net page reference at the end should be http://www.samolotypolskie.pl/samoloty/2240/84/PWS-232 not as listed above, which is actually a repeat of the previous PWS-22 entry.

Picked up another anomaly I'm afraid. The Z-47 is listed as a two-seat trainer version of the Z-17. However http://www.samolotypolskie.pl/samoloty/2273/84/PWS-Z-47 states that it is a single seat aircraft, which I would justify as making the aircraft an advanced trainer, similar to the way that something like the MS230 or the Fury (biplane) was used later on in their careers.

Yeah, it is difficult to square that sideview drawing with a typical 'liaison' aircraft. It looks very much like a combat type. However, we do not actually know what role was envisioned for that design.

Was that variable-geometry tail design a variation on a theme? Was it the final PWS-37 concept? We really don't know.

And Samolotypolskie does make errors. In one page, they claim that a PWS-37 prototype was actually completed. But, of course, the PWS-37 airframe was never built. -- http://www.samolotypolskie.pl/samoloty/1946/126/Niespal-Jozef

The all Infos are here,and we can check from his source.


Attachments

  • 20.png
    85.7 KB · Views: 5
  • 21.png
    263.7 KB · Views: 5
  • 22.png
    501.5 KB · Views: 5
From his source,

In 1939, the series production of the "Wyżta" and "Ogar" was prepared. In 1939, the designs of the PWS-41 training aircraft by engineer W. Czerwiński and engineer Stanisław Lassota, the PWS-42 fighter aircraft by engineer Z. Jabłoński and K. Nowicki, and the preliminary design of the bomber aircraft by engineer Z. Ciołkosz were created. The design of the PWS-37 liaison aircraft from 1937, developed by the designers of "Ogar", was not implemented.


Attachments

  • 23.png
    306.7 KB · Views: 2
Thanks hesham. I've added this info about the PWS-36/PWS-37/PW-49 sequence (but left if the conflicting PWS-36/PWS-37 designations. The reference (and link) to the Muzeum Lotnictwa's cryptic 'PWS-49 Odr' I have now deleted.


Similar threads

Back
Top Bottom
