K.A. Antonov Helicoplane of 1910

[hesham]

Hi,

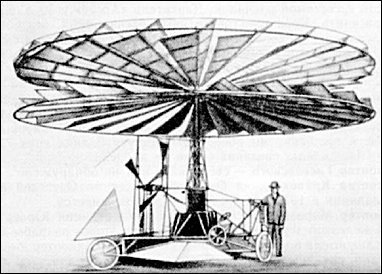

here is a helicoplane of 1910,designed by K.A. Antonov;

http://www.aviastar.org/helicopters_eng/antonov.php

In 1907 military engineer K.A.Antonov applied for, and in 1912 obtained a patent for his"Helicoplane". Aircraft was built and tested in St.Petersburg (1910).It was a helicopter of coaxial scheme with additional propeller for horizontal movement. All rotors were driven by single 35hp engine. Aircraft had a collective pitch control of main rotors. It was supposed that 0° pitch will be used for parachuting or gliding.
Despite all systems worked as expected, "Helicoplane" failed to takeoff.



[Luxonardo]

Hi,

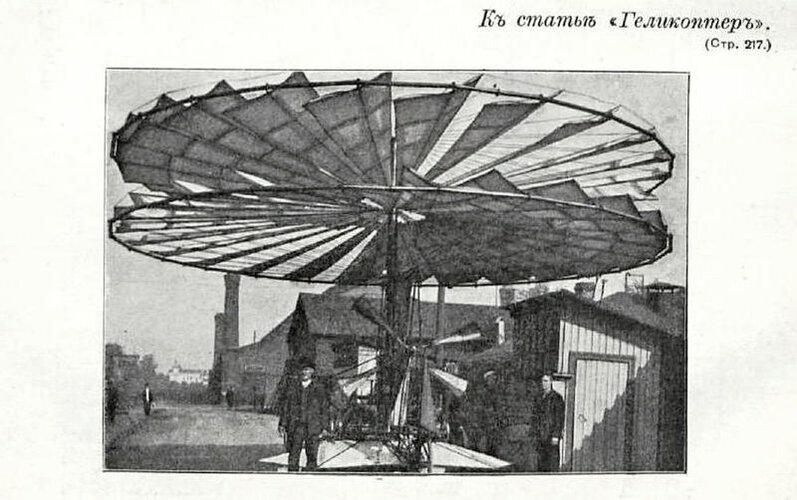

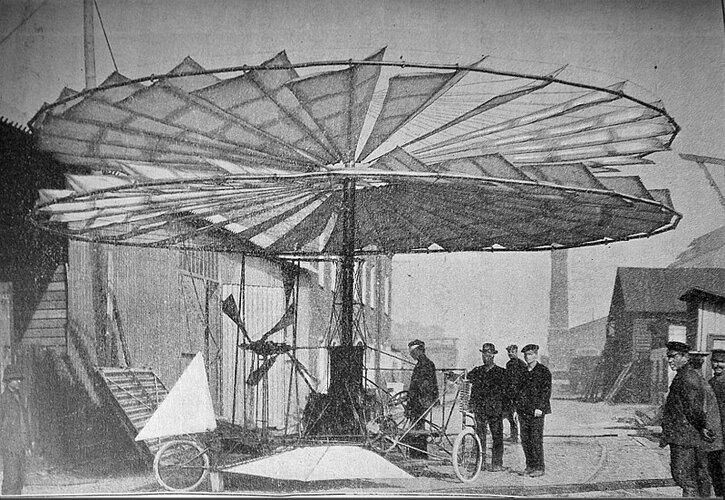

Found these photos on Wikimedia.



[redstar72]

Here is some info about the designer:
https://viupetra2.3dn.ru/publ/antonov_k_a/13-1-0-2050



[redstar72]

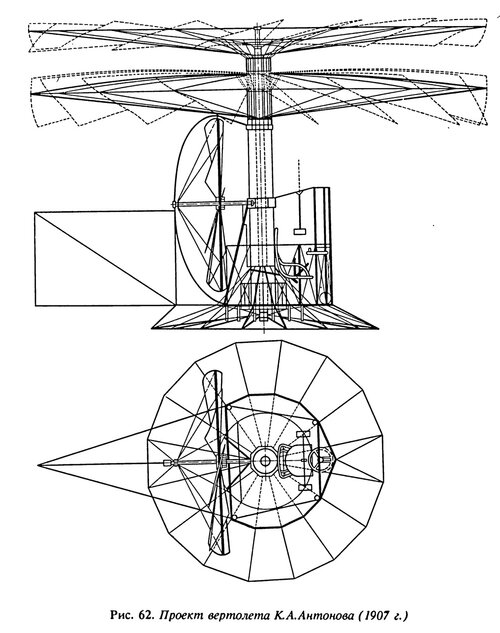

The patent drawing:
