Thank you my dears,

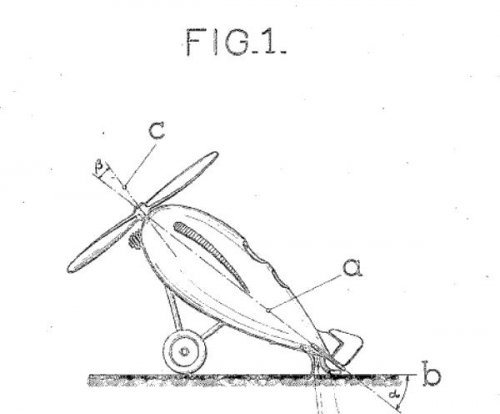

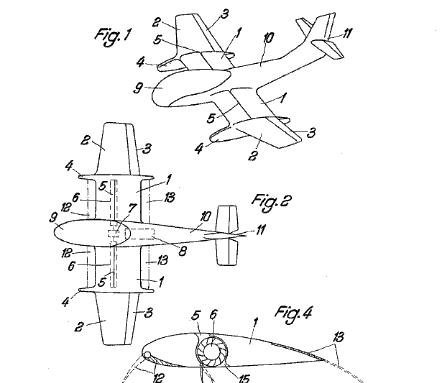

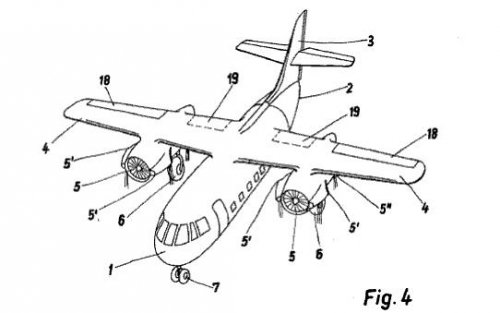

and anther strange Dornier patent foraircraft
wit ground effect landing gear.
http://www.google.com/patents?id=_IJwAAAAEBAJ&pg=PA1&dq=dornier+aircraft&num=100#PPA1,M1



[hesham]

Hi,

the Dornier helicopter with high forward speed.
http://www.google.com/patents?id=dK8rAAAAEBAJ&printsec=abstract&zoom=4&dq=dornier+airplane&num=100#PPP2,M1



[hesham]

Hi,

I think this Dornier aircraft was familiar.
http://www.google.com/patents?id=WGVuAAAAEBAJ&pg=PA1962&dq=dornier+airplane&num=100#PPA1962,M1



[hesham]

Hi,

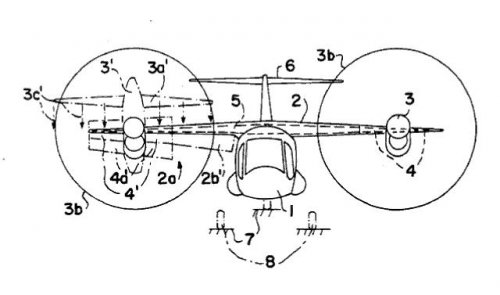

I don't know what was that tilt-wing aircraft for Dornier.
http://www.google.com/patents?id=WFMnAAAAEBAJ&printsec=abstract&zoom=4#PPP1,M1



[Pelzig]

Seeing a topic is already made, I'm taking it back a bit. Now, I know this 1939 design likely did not result in an actual prototype. But, the novel thing about it is when an enemy plane attacks from behind, the "backseater" assumes control of the aircraft from the pilot to engage the enemy with the fixed rear guns. Not sure how practical that really is....



[Pelzig]

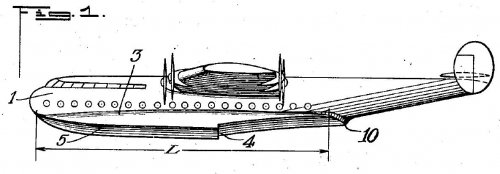

A 1938 design for a rather interestingly configured flying boat/aircraft. Certainly not a design which Dornier seemed to pursue but does show Claude Dornier's thinking. ;D



[Pelzig]

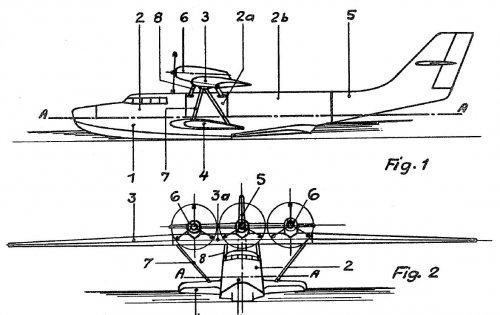

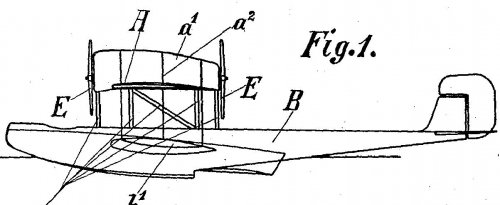

A 1920 flying boat design patent which does appear to have been turned into the Dornier Do J "Wal" (Do 16).



[Pelzig]

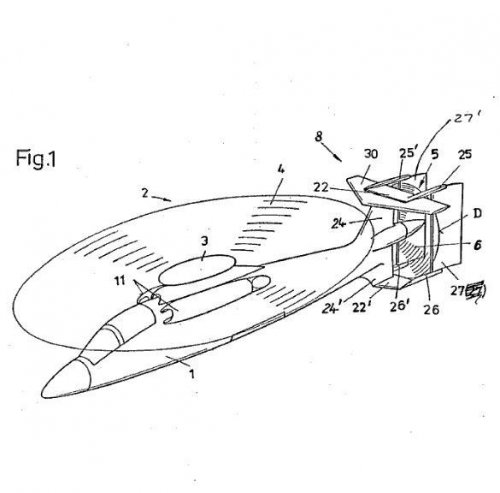

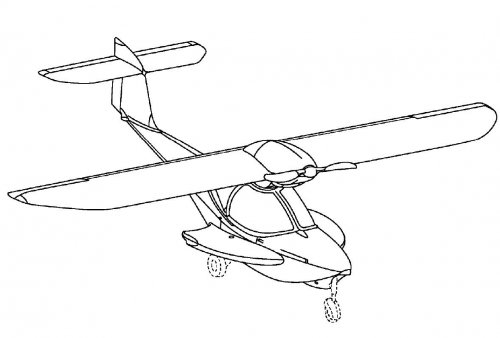

Not a Claude Dornier patent but one by Iren Dornier, Claude's grandson. This 2007 patent eventually evolved into the Dornier S-Ray 007. According to Iren, the S-Ray was based on the 1921 Dornier "Libelle" (Do A).



[Pelzig]

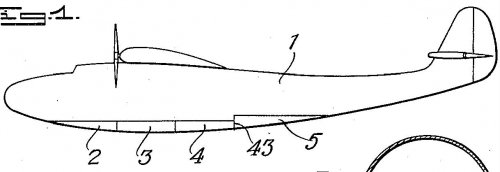

1939 design which clearly looks to have evolved into the Do 214 flying boat project.



[Pelzig]

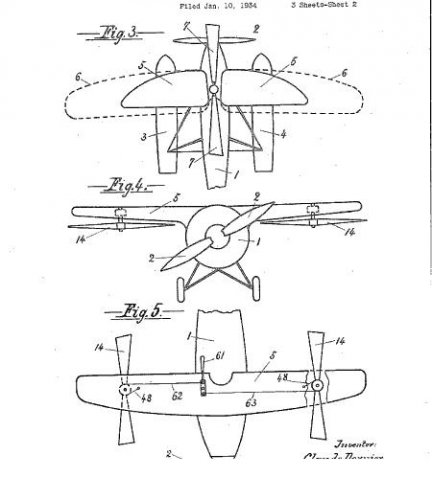

1934 patent submission for a airplane and flying boat which have engines which can tilt upwards. Although the aircraft, as shown in the patent, don't appear to have been further developed, I suspect the technology of the patent found application in the later Dornier Do 26 and Do 212.



[Pelzig]

This patent, filed in 1978, obviously shows the heritage of the Dornier Do 24. I think this may be a patent pertaining to the Do 26ATT which was built in 1979 and first flown in 1983. It was later updated by Iren Dornier for his world tour flights starting in 2004.



[Pelzig]

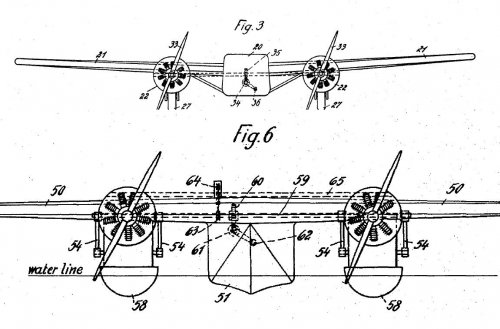

1939 flying boat design. The main focus of the patent is the retractable floats. As described here, I don't recall any Dornier design using them but perhaps the research resulted in the retractable wing floats of the Do 26.



[hesham]

Hi,

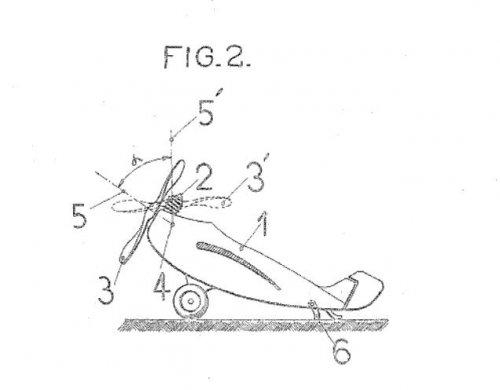

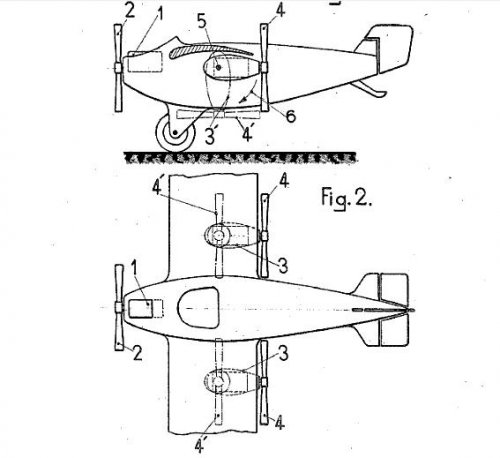

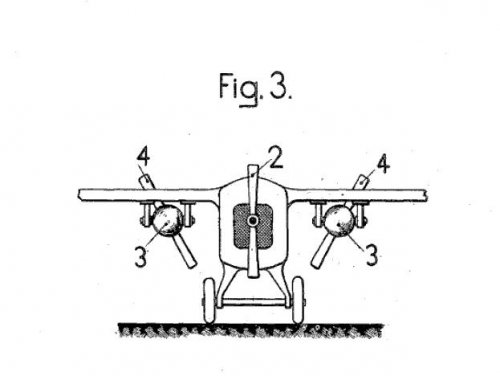

here is a tilt-propelled aircraft of 1923.


http://www.google.com/patents?id=TVdIAAAAEBAJ&pg=PA3&dq=dornier+helicopter&hl=en&ei=WEhtTquMJIegOsqfvb4F&sa=X&oi=book_result&ct=result&resnum=9&ved=0CEQQ6AEwCA#v=onepage&q&f=true



[hesham]

Hi,


anther Dornier VTOL aircraft of 1934.


http://www.google.com/patents?id=h2NZAAAAEBAJ&pg=PA4&dq=dornier+helicopter&hl=en&ei=WEhtTquMJIegOsqfvb4F&sa=X&oi=book_result&ct=result&resnum=10&ved=0CEcQ6AEwCQ#v=onepage&q&f=true



[hesham]

Hi,

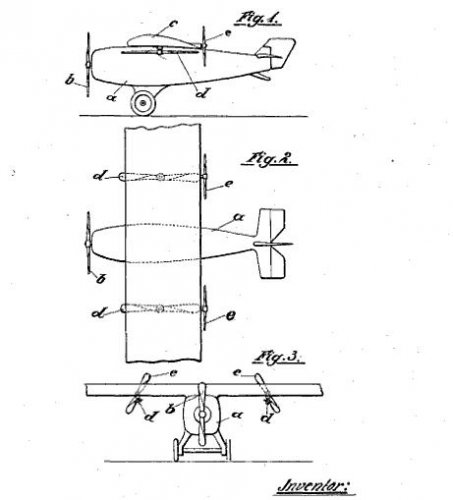

a strange Dornier VTOL aircraft of 1921 and 1924,the second looks like
an early aircraft in this topic.


http://www.google.com/patents?id=YXdaAAAAEBAJ&pg=PA3&dq=claudius+dornier+airplane&hl=en&ei=181vTqPsAuvT4QS8-t2YCQ&sa=X&oi=book_result&ct=result&resnum=6&ved=0CDwQ6AEwBQ#v=onepage&q&f=false
http://www.google.com/patents?id=5TNLAAAAEBAJ&pg=PA2&dq=claudius+dornier+airplane&hl=en&ei=DM1vTvKkJYeE4gSyqb2WCQ&sa=X&oi=book_result&ct=result&resnum=3&ved=0CDIQ6AEwAjgK#v=onepage&q&f=false



[Jemiba]

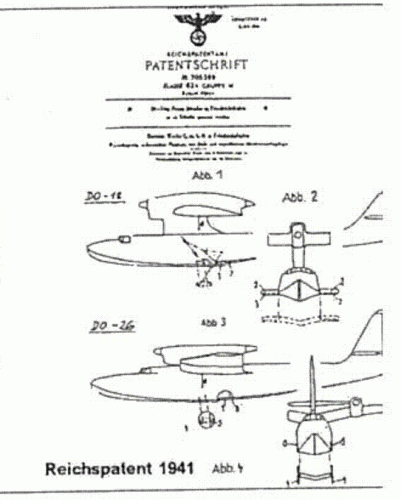

As early as 1941 Dornier filed patents for fitting hydrofoils to flyingboats, shown in
the patent drawing with the Do 18 and Do 26.
(From „Zeppelins Flieger – Das Flugzeug im Zeppelin.Konzern und in seinen Nachfolgebetrieben“, different authors)



[Stargazer]

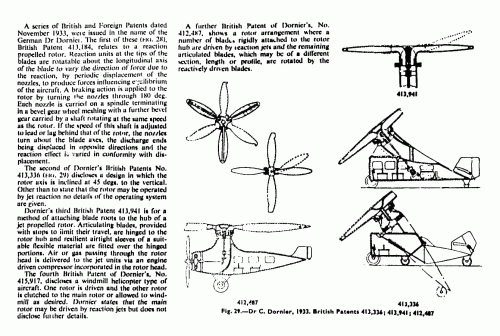

Dornier helicopter patents dated 1933:



[Schneiderman]

Hi

Go to

http://worldwide.espacenet.com/

I would suggest searching on Claude Dornier, Claudius Dornier or Dornier Werke. There are hundreds of patents.

How about this, for example



[Stargazer]

I would suggest searching on Claude Dornier, Claudius Dornier or Dornier Werke. There are hundreds of patents.

Thanks for the tip! I guess we've only seen the tip of the iceberg yet...



[hesham]

From My dear Tophe,


who discovered that strange Dornier aircraft concept.

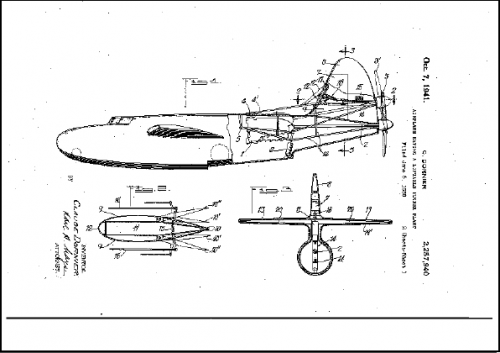

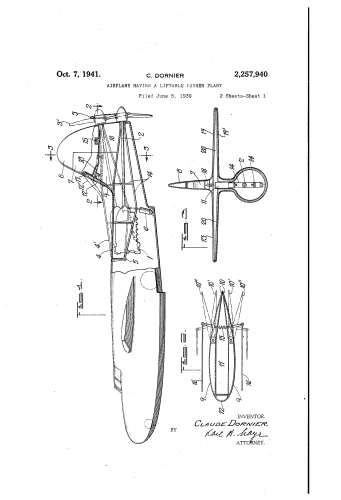

http://worldwide.espacenet.com/publicationDetails/mosaics?CC=US&NR=2257940A&KC=A&FT=D&ND=3&date=19411007&DB=EPODOC&locale=en_EP



[Stargazer]

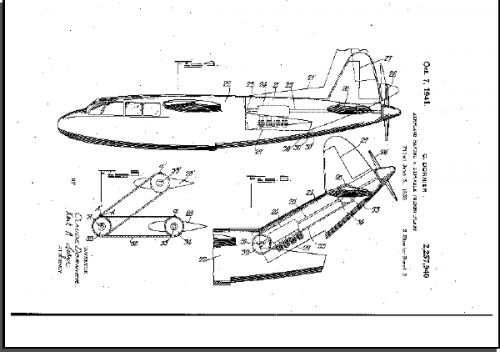

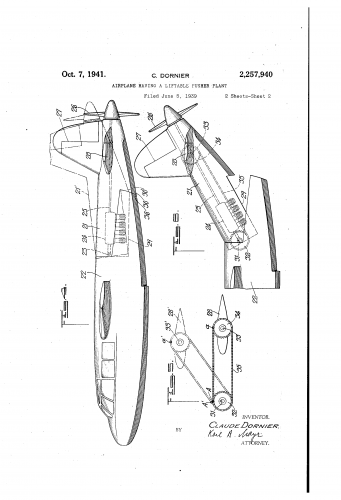

The patent:
https://www.google.com/patents/US2257940



[hesham]

Thank you my dear Skyblazer.



[Jemiba]

As tetsted in the Do 212
(http://www.secretprojects.co.uk/forum/index.php/topic,8519.msg75741.html#msg75741)



[hesham]

Oh Yes my dear Jemiba,


when I saw it,I know it was familiar.



[hesham]

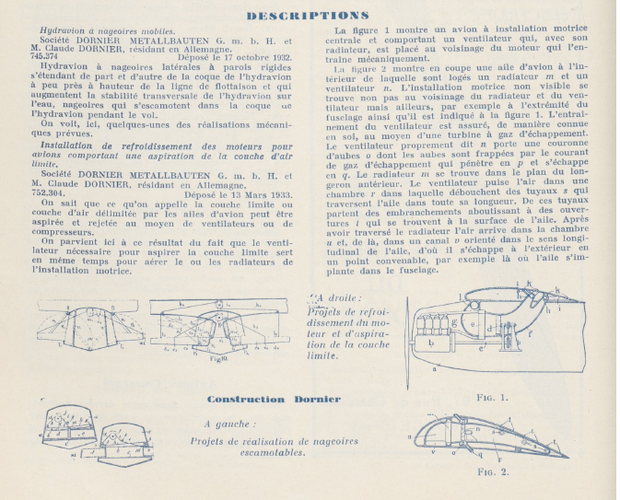

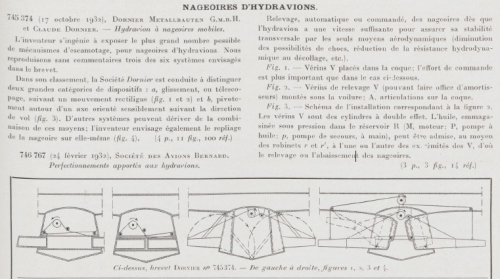

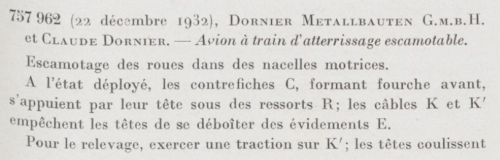

From l'Aeronautique 1934,

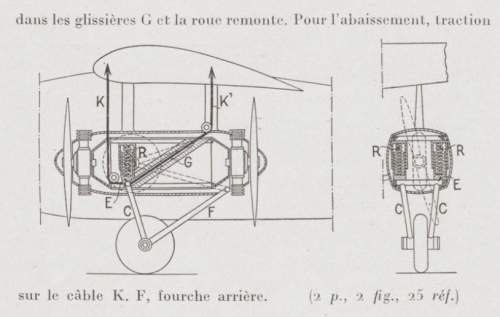

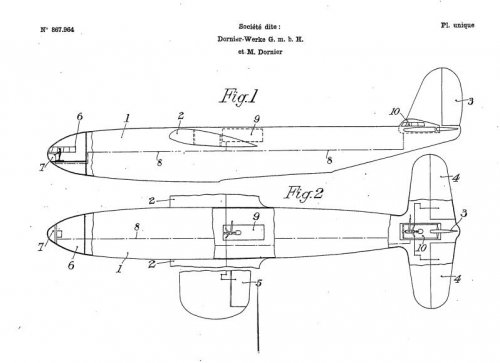

here is two patents for Dornier,one for retractable landing gear,and the second also
for retractable fins as they mention,need help in translation.



[Jemiba]

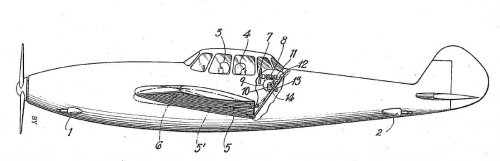

Please, patents like this one should be posted in the Patents section. The idea with
the retractable stubs for example, wasn't used by Dornier, so has no relation to a
"real project"



[hesham]

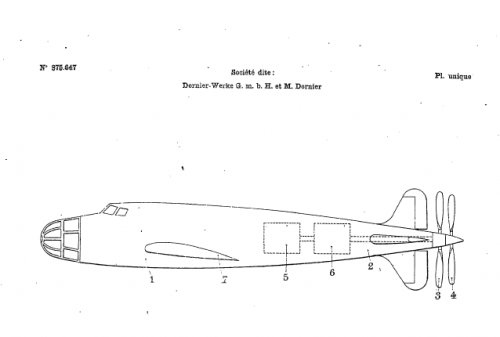

Amazing discover by my dear Tophe;

it seemed to be a pusher bomber ?.

https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=FR&NR=875647A&KC=A&FT=D&ND=3&date=19420929&DB=fr.worldwide.espacenet.com&locale=en_EP



[Jemiba]

It's a patent for an engine/prop arrangement for twin engined aircraft, that
has the same frontal area as a single engined type. NOT a patent for a special
aircraft.



[hesham]

It's a patent for an engine/prop arrangement for twin engined aircraft, that
has the same frontal area as a single engined type. NOT a patent for a special
aircraft.

OK my dear Jemiba.



[moin1900]

Some Dornier Patents.

Patent Nr / Veröffentlichungsnummer: DE731377
Title: Flugzeug für der Schallgeschwindigkeit nahe Fluggeschwindigkeit
Inventor: Claude Dornier
Year: 18.08.1937
High-speed aircraft.

Patent Nr: DE725769
Title: Flugzeug mit zwei wahlweise umlaufenden oder in einer Flucht festgestellten Einblattflügeln
Inventor: Peter Dornier
Year: 07.09.1941
Early stopped-rotor concept?

Patent Nr: CH220401
Title: Mehrmotoriges Flugzeug
Inventor: Dornier-Werke
Year: 25.03.1939
Patent shows four topviews of multi-engined aircrafts like the Dornier P.144.

https://depatisnet.dpma.de/DepatisNet/depatisnet?action=einsteiger



[hesham]

Nice find my dear Moin1900.

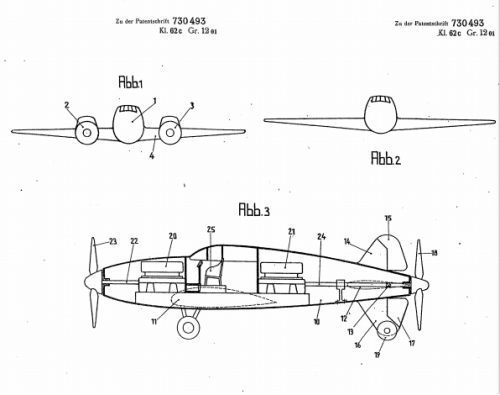

[hesham]

Hi,

what is this ,a twin engines in wing ?.

http://www.fliegerrevuex.aero/wp-content/uploads/2017/05/Dornier-Patent-Do335.pdf



[sienar]

Its just a patent for the push pull arrangement Dornier was known for. The design is completely generic.



[hesham]

From Aerophile 1934.



[hesham]

Here is artist drawing to a real Dornier helicopter patent of 1933,it differes
from the one in reply # 17.
