YF-17 ADEN vectored nozzle demonstrator with canards

[overscan (PaulMM)]

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790018955.pdf

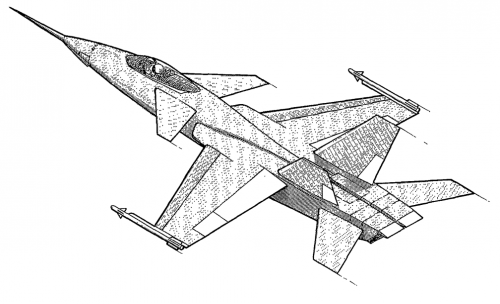

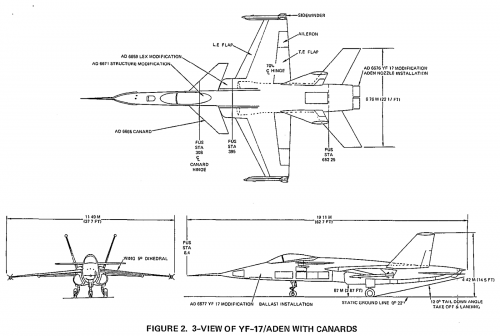

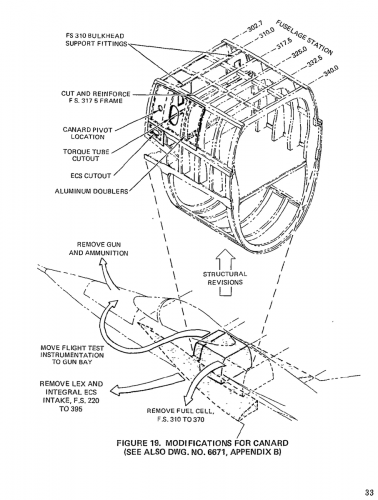

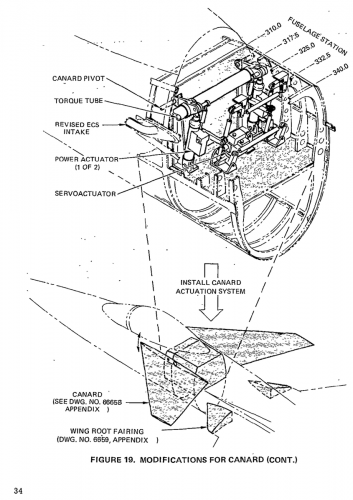

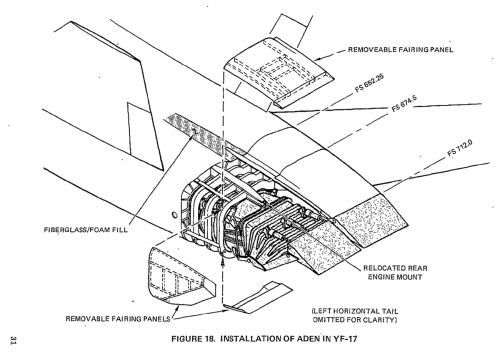

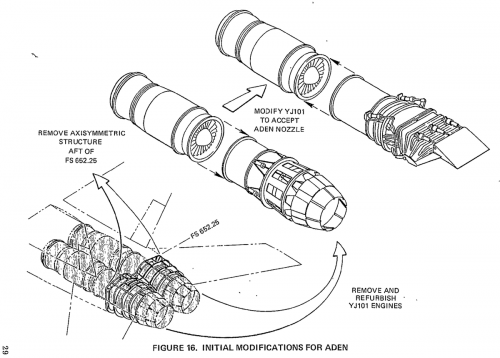

1979 Northrop / GE study for conversion of a YF-17 into a demonstrator for GE's ADEN vectoring and thrust reversing nozzle.



[pedrospe]

Great finding Paul,thanks a lot for sharing.




regards


Pedro



[VTOLicious]

Nice find!

...2 patents in regards of the ADEN nozzle design:

US4000610 A (1975): http://www.google.com/patents/US4000610
US4175385 A (1977): http://www.google.com/patents/US4175385

BR Michael



[hesham]

Great find my dear Paul.



[Hypersonics Anonymous]

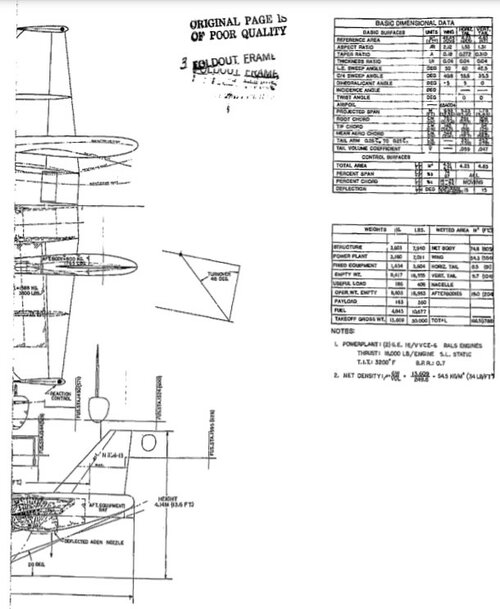

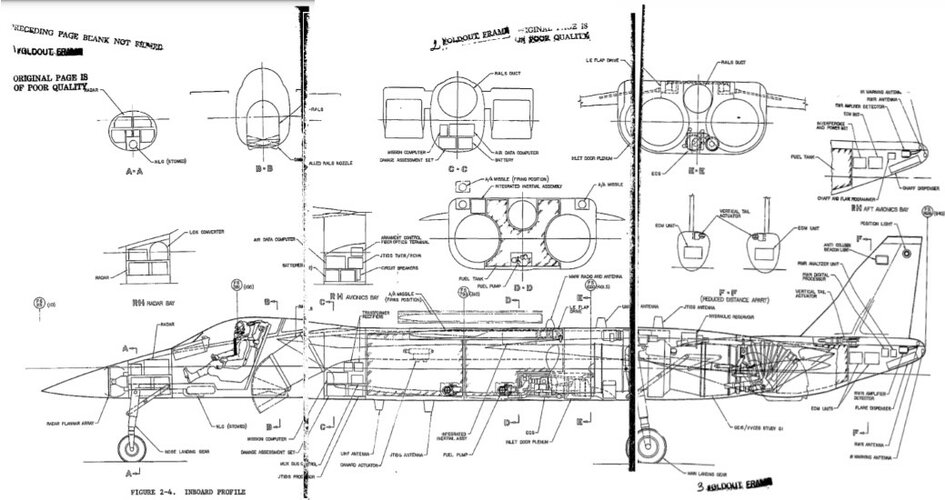

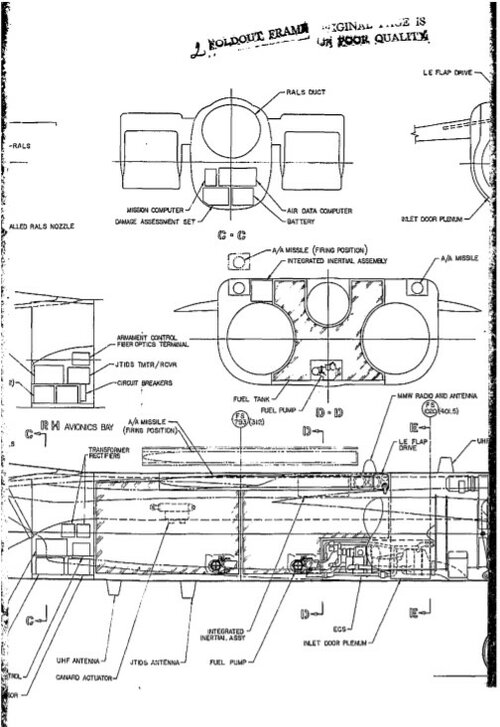

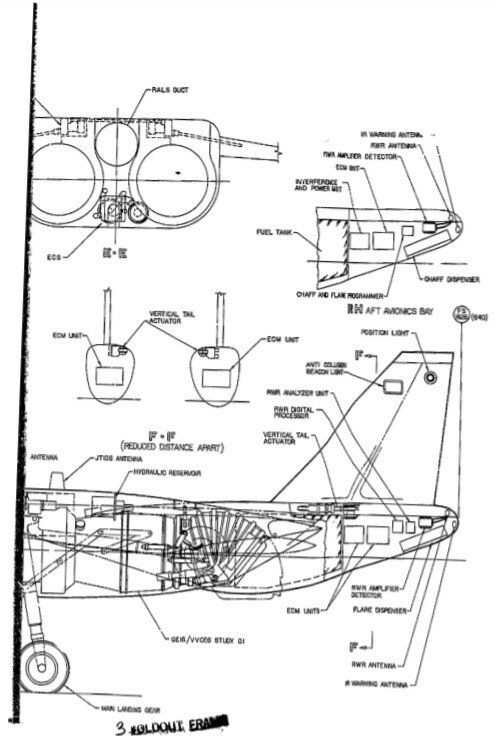

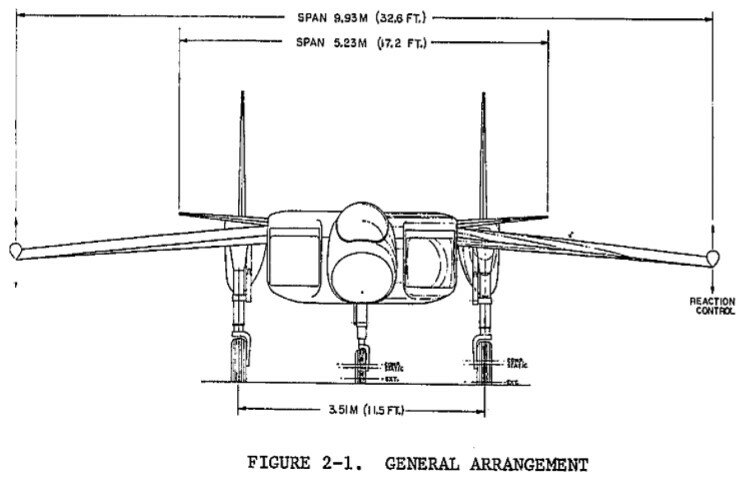

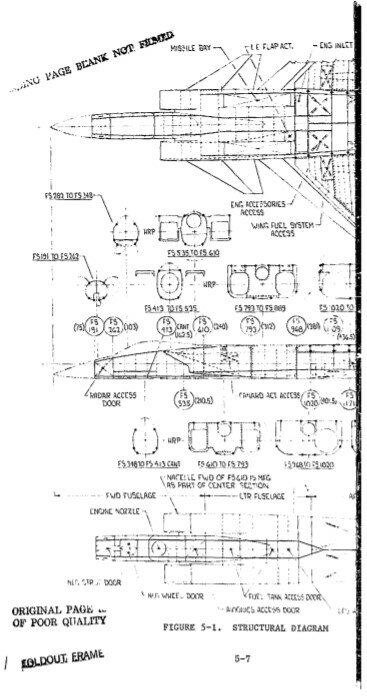

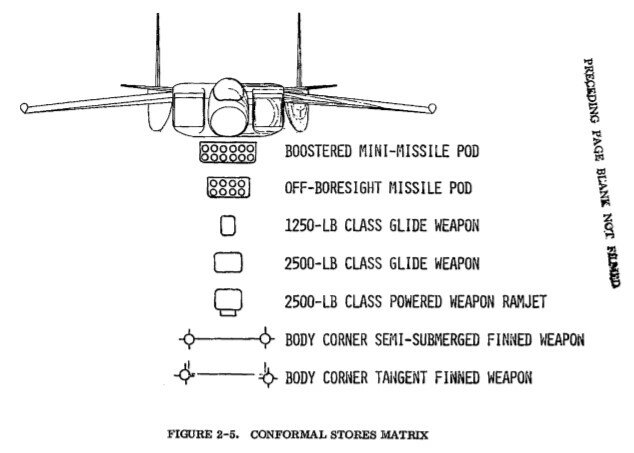

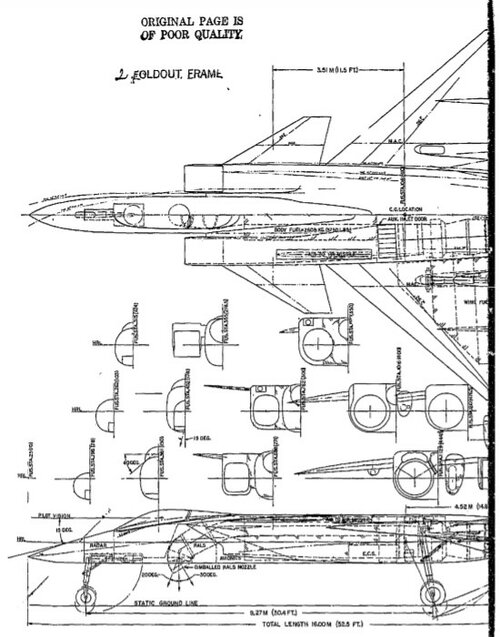

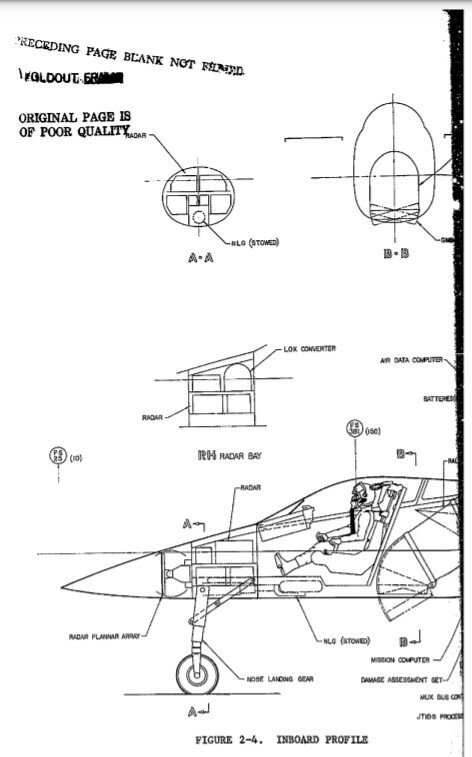

STOVL ADEN, apparently YF-17 and F-18 derived.

STUDY OF AERODYNAMIC TECHNOLOGY FOR VSTOL FIGHTERIATTACK AIRCRAFT - HORIZONTAL A TTITUDE CONCEPT https://ntrs.nasa.gov/api/citations/19790001853/downloads/19790001853.pdf

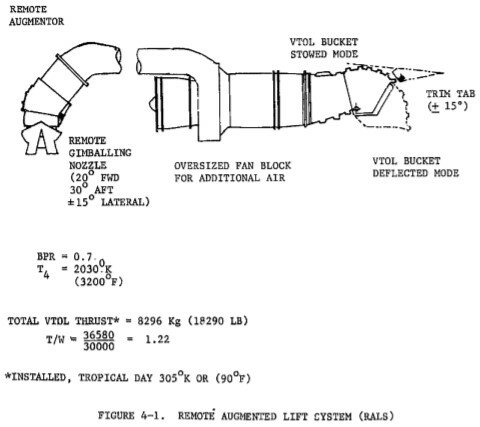

Canards are on the inlets (which are much larger, "modified F-17 7° ramp") instead of the fuselage. Uses something like the F-35 lift fan, except it's a duct from the engine that more closely resembles a harrier nozzle or something. But there's only one and it uses a gimbal to balance itself! And yes, the main engine looks like a bucket nozzle but the paper says it's ADEN and I confirmed GE is involved. Also uses a GE concept called RALS for the frontal VTOL nozzle portion.

"Producibility of the original page is poor" or "Original page is of poor quality". I tried my best.



[overscan (PaulMM)]

This is the Northrop N336 HATOL vertical takeoff fghter.



[kocovgoce]

In the case od yak-141 had a similar solution only with the difference that in the middle part they use jet engines that create thrust that can raise a lot of smoke and dust



[Hypersonics Anonymous]

This is the Northrop N336 HATOL vertical takeoff fghter.

I apologize, I wasn't aware of HATOL. Makes sense now, it's "Horizontal Attitude TakeOff and Landing". Edit: doesn't N336 have dorsal inlets, not a side mounted ones? Though the nose shape among other things is strikingly similar... I'm fairly new here (and read the rules) but should I delete it and move it to a different thread?
