United States Navy - Aircraft Carrier (Protected) - 1923

[Graham1973]

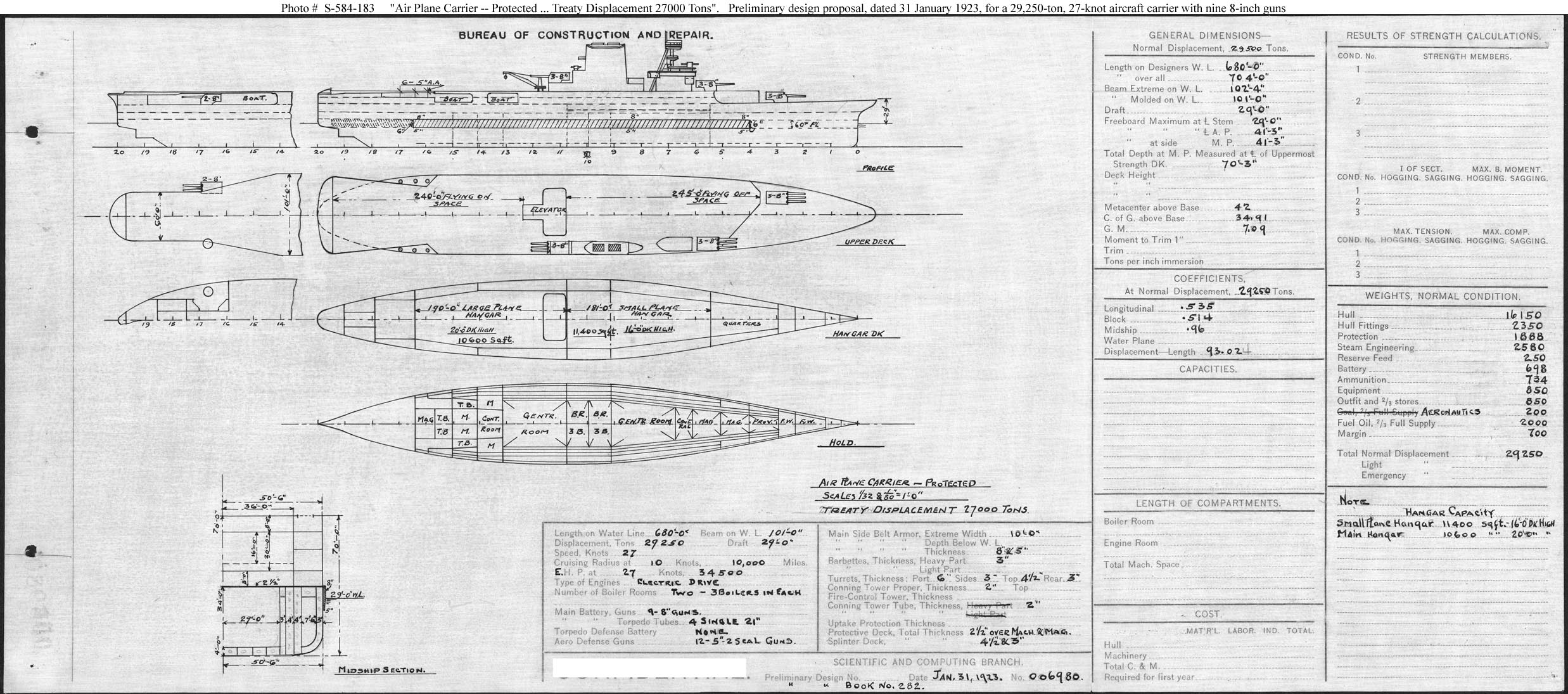

This is the largest of three designs for a purpose built aircraft carrier US naval architects came up with after the signing of the Washington Naval Treaty. As with all early carrier designs there is a heavy surface armament, in this case the main battery is similar to that used on US heavy cruisers, 3 x triple 8 inch turrets, 12 x 5inch AAguns and 4 x 21inch TT. The air complement is unspecified, but as can be seen the ship may have had a Kaga-style dual level hanger/flight deck arrangement.

In the end the US converted the incomplete Lexington and Saratoga into aircraft carriers.

Photo # S-584-183 picture data

This page provides captioning and other picture data for Photo # S-584-183
