Teledyne Ryan BQM-145 mounted on F-18 & F-16

[hesham]

Hi,

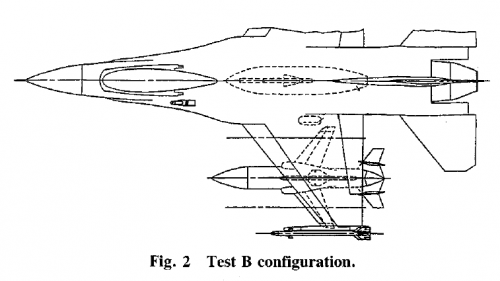

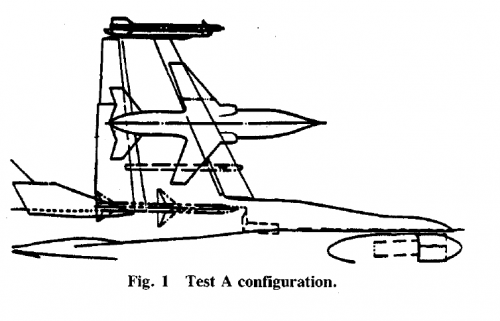

here is an AIAA report about testing the Teledyne Ryan BQM-145 Peregrine UAV,to
be mounted on F-18 and F-16 fighters.


http://arc.aiaa.org/doi/abs/10.2514/3.46534



[Stargazer]

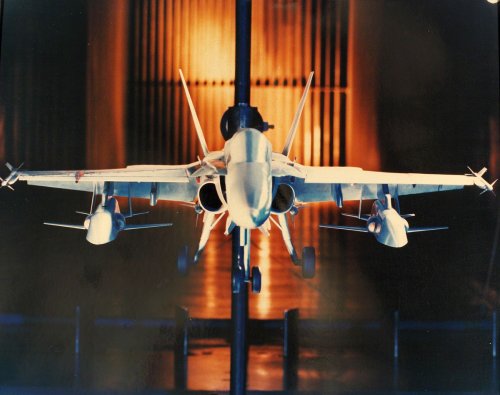

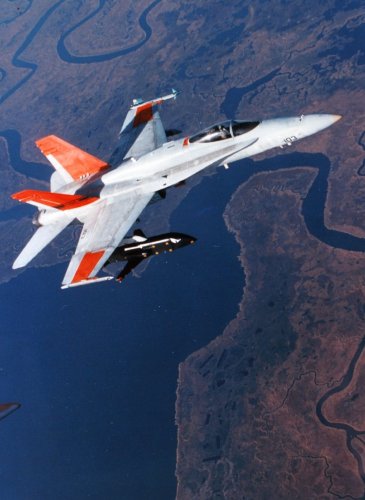

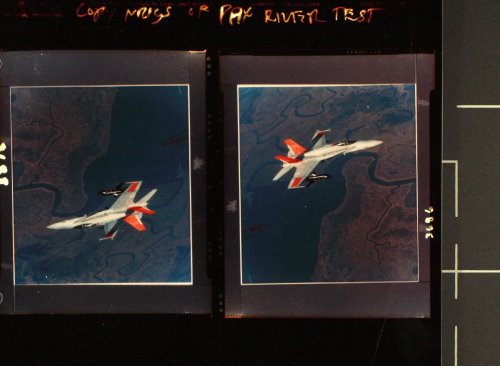

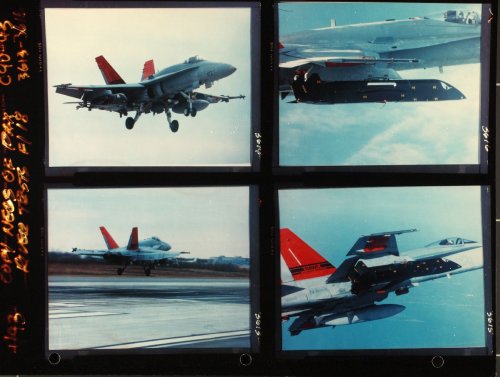

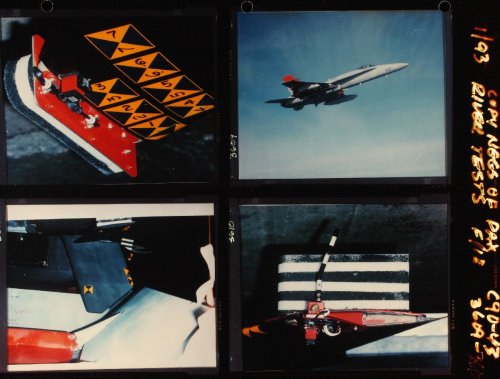

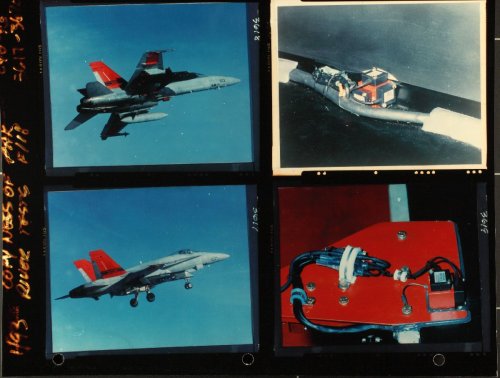

More than just a project. Although the F-16 was not chosen, the F-18 definitely was. Here are several photos of the BQM-145A test-launched from an F-18, plus a photo of a model and a beautiful painting too. Most of these pics were saved from the SDASM website:



[hesham]

Oh that's better,thank you my dear Skyblazer.
