Hi! Supermarine type 510/517.
https://www.baesystems.com/en-uk/heritage/vickers-supermarine-types-510-517-528-535

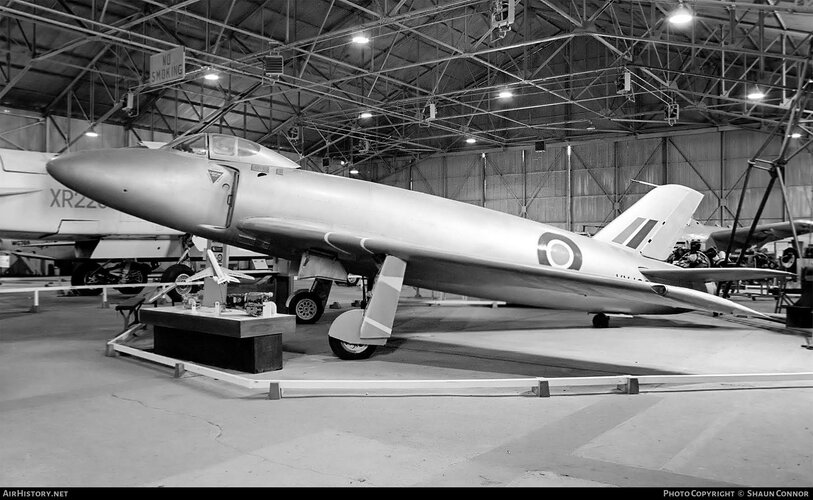

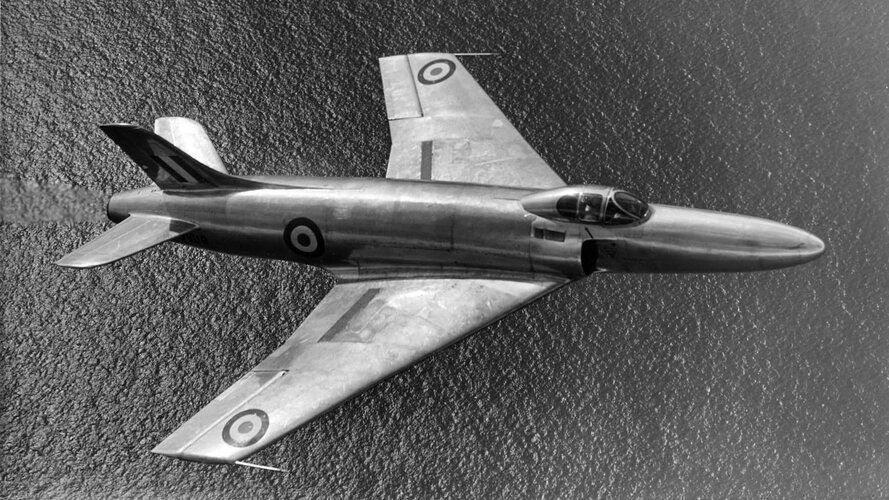

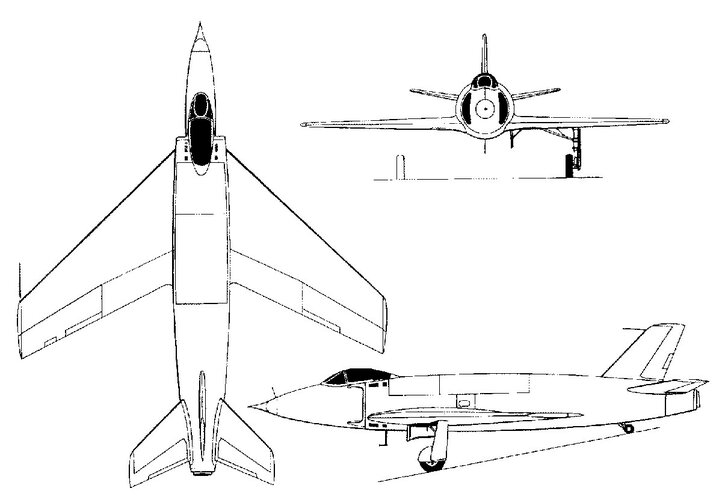

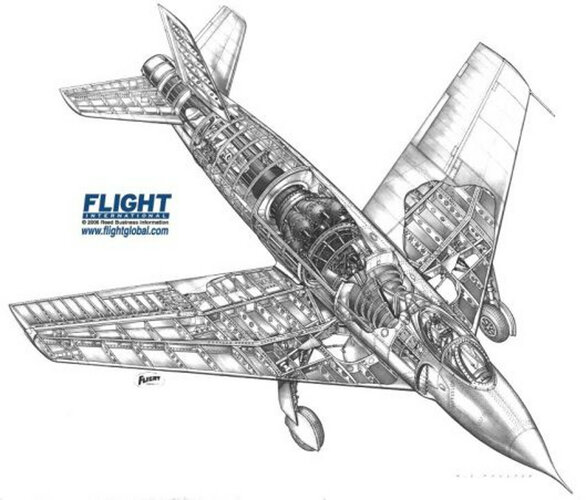

"The Vickers Supermarine Type 510 was, to all intents and purposes, a Vickers Supermarine Attacker fitted with a thin swept wing and tailplane.
The Vickers Supermarine Type 510 was designed by Vickers Supermarine against Specification E.1/46, as an experimental aircraft suitable for investigating the high subsonic regime. The design retained both the 5,100 lb Nene engine of the Vickers Supermarine Attacker, and its tailwheel undercarriage.

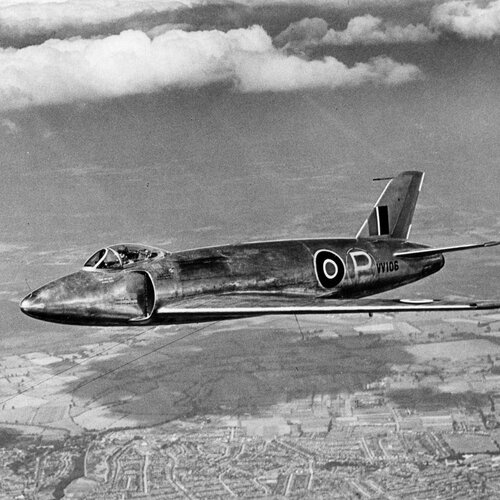

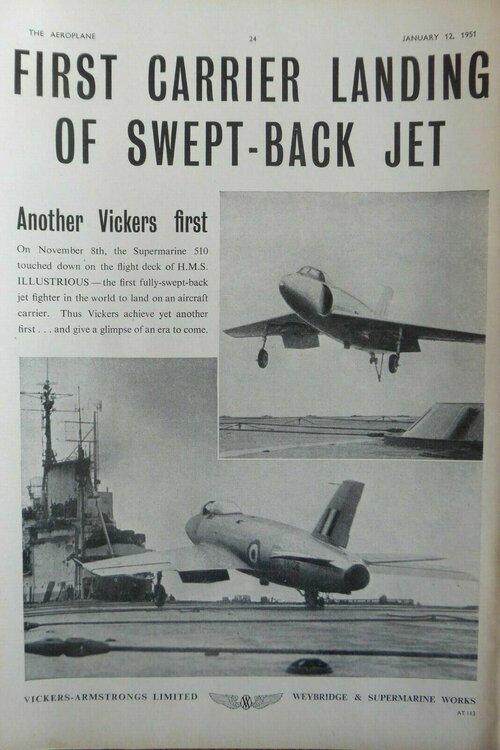

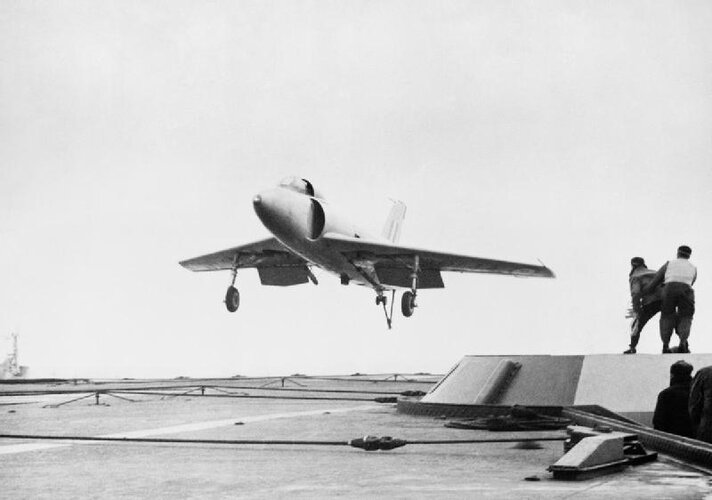

The prototype Vickers Supermarine Type 510 (VV106) was flown for the first time on 29th December 1948, and became the first swept wing type to land on an aircraft carrier in November 1950. As it was not equipped for catapult launching, take-off was effected using rocket assisted take-off gear (RATOG).
The combination of the swept wing, and tailwheel undercarriage, gave the Type 510 difficult handling characteristics in crosswind operation. There was also some longitudinal instability at the stall. Despite a number of proposed modifications from Vickers Supermarine, interest in the project faded away.

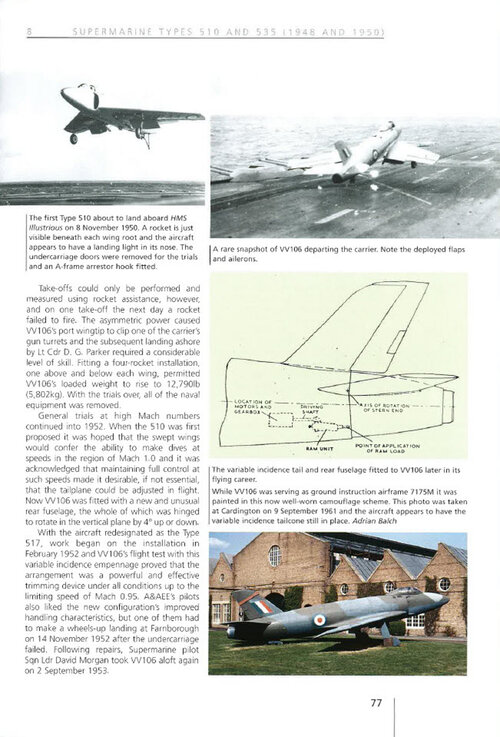

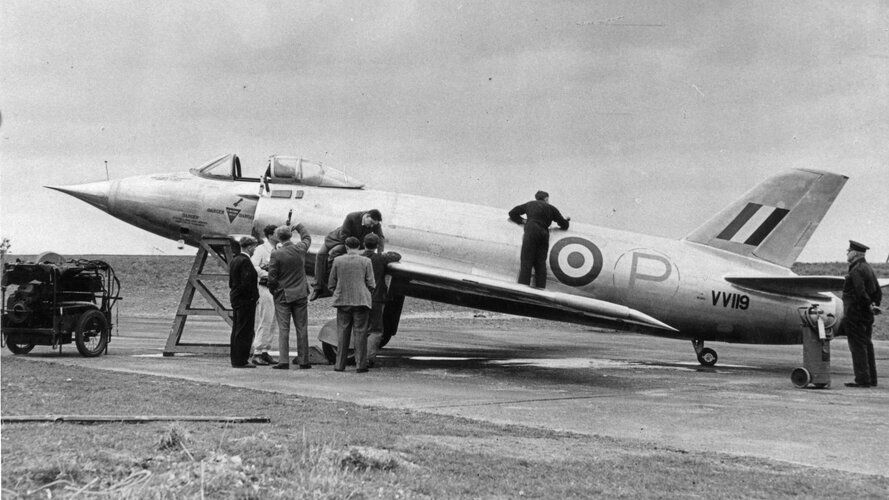

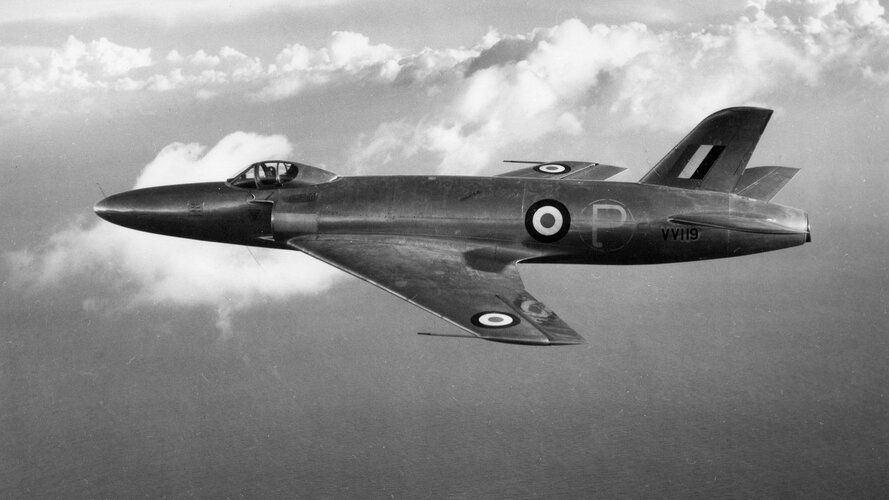

The Vickers Supermarine Type 517 was in essence, the Type 510 modified to have a hinged rear fuselage to facilitate a powerful trim system. The second prototype (VV119) was first flown as the Vickers Supermarine Type 528 on 27th March 1950, retaining the tailwheel undercarriage layout.

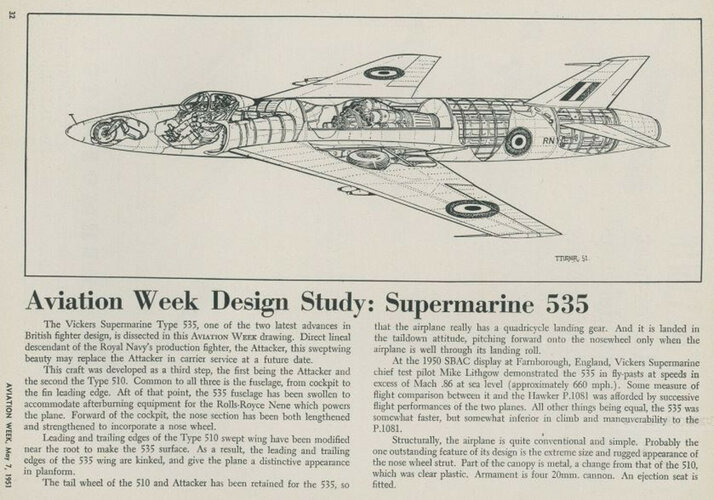

Shortly afterward, the aircraft was modified further with a lengthened nose, engine reheat (afterburning) and tricycle undercarriage. With these changes it was redesignated as the Vickers Supermarine Type 535 Swift, making its maiden flight in August 1950.
"
https://www.baesystems.com/en-uk/heritage/vickers-supermarine-types-510-517-528-535
"The Vickers Supermarine Type 510 was, to all intents and purposes, a Vickers Supermarine Attacker fitted with a thin swept wing and tailplane.
The Vickers Supermarine Type 510 was designed by Vickers Supermarine against Specification E.1/46, as an experimental aircraft suitable for investigating the high subsonic regime. The design retained both the 5,100 lb Nene engine of the Vickers Supermarine Attacker, and its tailwheel undercarriage.
The prototype Vickers Supermarine Type 510 (VV106) was flown for the first time on 29th December 1948, and became the first swept wing type to land on an aircraft carrier in November 1950. As it was not equipped for catapult launching, take-off was effected using rocket assisted take-off gear (RATOG).
The combination of the swept wing, and tailwheel undercarriage, gave the Type 510 difficult handling characteristics in crosswind operation. There was also some longitudinal instability at the stall. Despite a number of proposed modifications from Vickers Supermarine, interest in the project faded away.
The Vickers Supermarine Type 517 was in essence, the Type 510 modified to have a hinged rear fuselage to facilitate a powerful trim system. The second prototype (VV119) was first flown as the Vickers Supermarine Type 528 on 27th March 1950, retaining the tailwheel undercarriage layout.
Shortly afterward, the aircraft was modified further with a lengthened nose, engine reheat (afterburning) and tricycle undercarriage. With these changes it was redesignated as the Vickers Supermarine Type 535 Swift, making its maiden flight in August 1950.
| 2 Prototypes | VV106 initially Type 510, modified to become Type 517 VV119 initially Type 528, modified to become Type 535 |
