Sukhoi ekranoplans

[Triton]

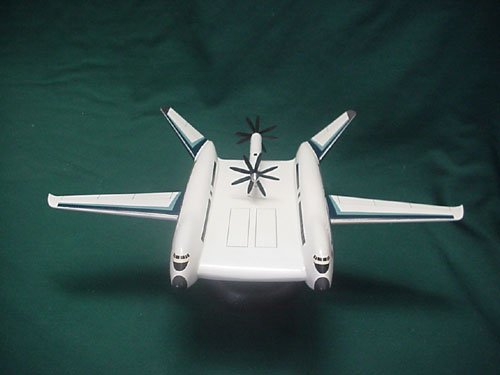

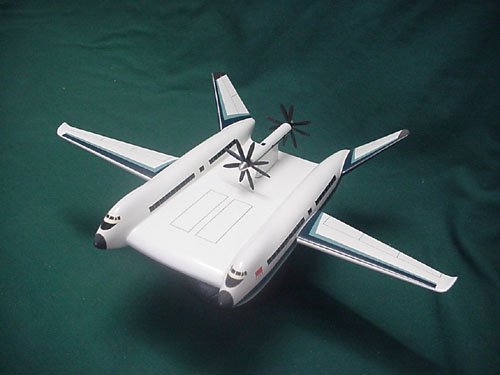

Model of Sukhoi S-90-200 from USSR-Russian Aviation and Space Collectibles.

Description:

13" wing span resin model from Sukhoi Design Bureau, including Sukhoi factory brochure with detailed description of S-90-200 amphibious wing-in-ground effect Ekranoplan. Plane intended for carrying passengers and cargo on routes laying over the water surface or flat parts of terrain.Used as an amphibious vehicle in the regions that have not been equipped with airfields and support facilities.It can use the water or ground surface including snow-covered or swamp areas to take off and land. Wig intended to be used in air forces as well (all cabins of the upper and lower decks able to carry 400 people) as troops carrier or cargo vehicle.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_49&products_id=715



[Triton]

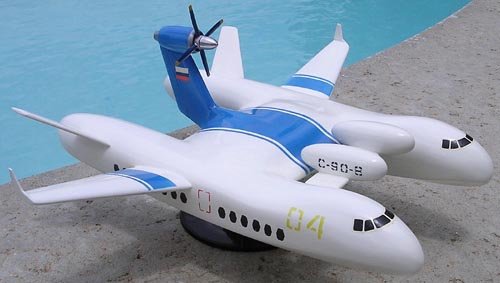

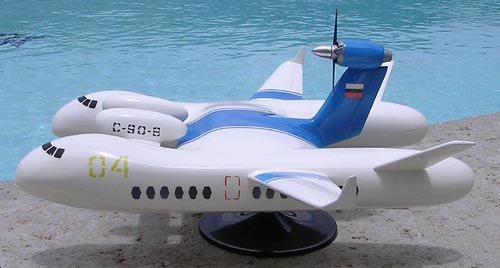

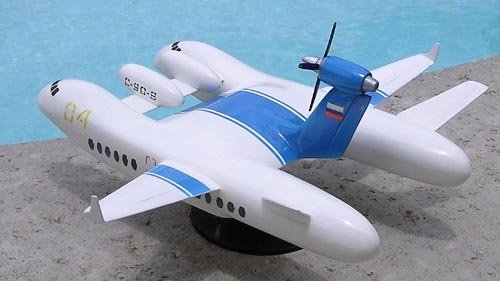

Model of Sukhoi S-90-8 from USSR-Russian Aviation and Space Collectibles.

Description:

14 and 1/4 inches length exclusive model of Sukhoi Design Bureau of latest representative of WIG (Ekranoplan) vehicle family. The S-90-8 is a high speed passenger craft intended for carrying 8 passengers over a water surface on short-haul routes.Original design has perfect aerodynamic and engineering solutions, an optimized powerplant based on Czech-built M601 series produced engine, and advanced on-board equipment. Aerodynamically, the S-90-8 is a two-fuselage craft of conventional aerodynamic configuration with a center-wing section arranged between the fuselages. An engine nacelle housing the M-601 turboprop engine with 4 blades.The engine is rated at 740 h/p (551 KW). Size of original plane 11.7 meters (38.38 ft), wingspan-49.53 ft (15.1 m).

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_49&products_id=1603



[Triton]

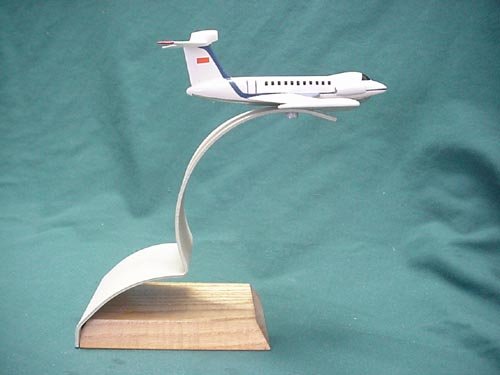

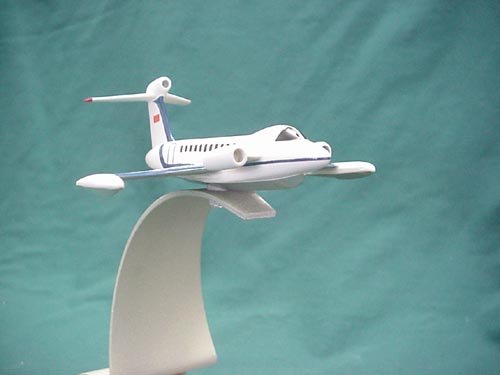

Model of Sukhoi S-90 ekranoplan from USSR-Russian Aviation and Space Collectibles.

Description:

1/200 scale resin model on ocean wave shape metal/wood base.S-90 developed by Sukhoi Design Bureau intended to have true flight capability though normally in ground effect.Fuel-6 tonnes, payload-5 tonnes (typically 40 passengers).Engines-three HBPR turbofans.Speed 400 km/h

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_49&products_id=716



[Triton]

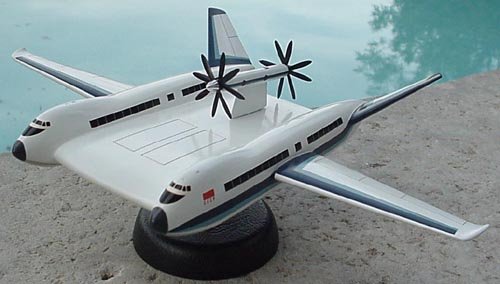

Another model of the Sukhoi S-90-200 from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:

Sukhoi Design Bureau model of the amphibious wing-in-ground effect S-90-200 model.Hand made from resin. Includes Sukhoi Design Bureau brochure with detailed description of this project ekranoplane, which intended for carrying passengers, military troops or cargo on routes laying over the water surface or flat parts of terrain.

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=48
