Russian Heavy Bomber Aircraft and Projects of 1920s

[hesham]

Hi,


here is many Russian heavy bomber aircraft and projects from 1920s;


http://lib.rus.ec/b/209826/read#t1



[bigvlada]

I've tried enhancing the photos using the computer with photoshop and blow up 3 add-on. Tried converting the raster image to vector and enlarging it. Even tried with OCR program but none of these ideas worked. In the end I just enlarged each photo and tried to guess what the specific letter was. I do not speak Russian, but N.V.Shavrov's book History of aircraft construction in USSR untill 1938 was a great help in determining the names of the designers. That man also covered the periods between 1938 and 1950 and the third one between 1951 and 1965. Such a shame these books weren't translated in english.
So, here are the results:
Picture 1:

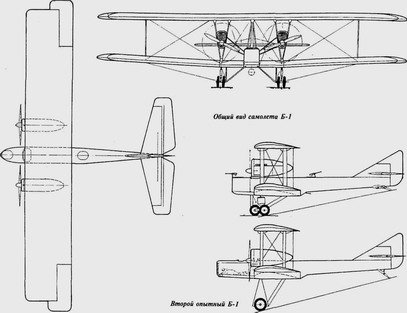

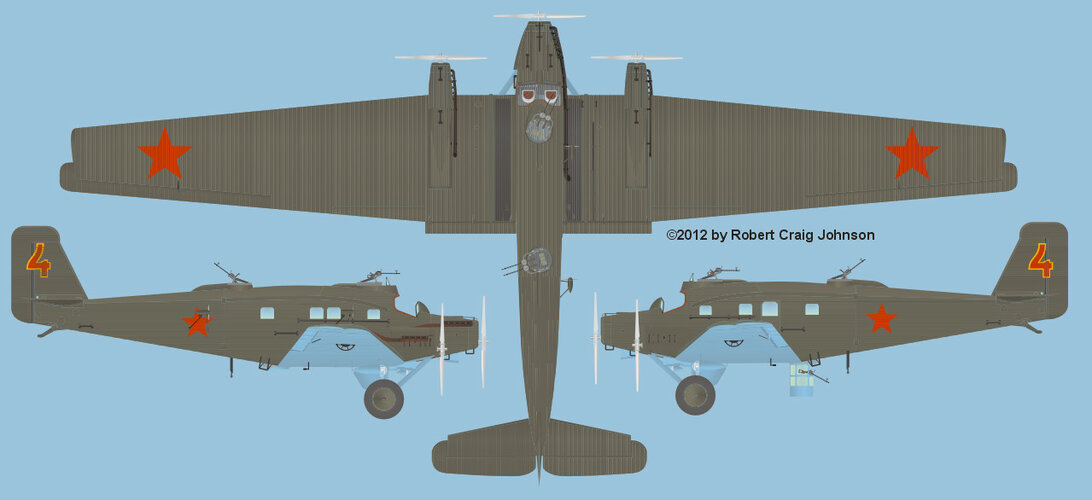

3-view of the B-1 bomber

Picture 2:
Bombers of the state aircraft-building plant No.1 (GAZ No.1), Polikarpov's home base.

Top to down:

Polikarpov biplane project
Aleksey Aleksandrovich Krylov biplane project
Aleksey Aleksandrovich Krylov monoplane project
Leonid Dmitrievich Kolpakov-Miroshnichenko biplane project
Leonid Dmitrievich Kolpakov-Miroshnichenko ...... biplane project

Picture 3:

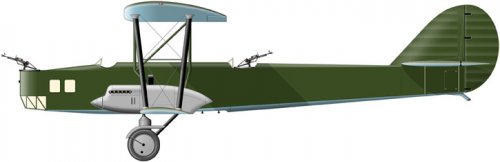

state aircraft-building plant No.1 (GAZ No.1) B2 bomber with two ........Wright Tornado III engines.

Picture 4:

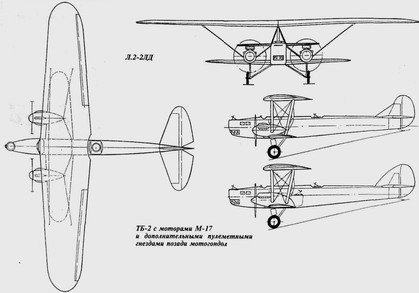

L.2-2LD

Polikarpov TB2 with M-17 engines and.....

Picture 5:

All metal monoplane bombers

Tupolev ANT-4
Junkers Jug-1,Soviet version of the Junkers K 30 bomber, purchased in small numbers from Junkers in the mid-1920s and regarded as the first effective "modern" long-range bomber in the Soviet inventory.
Tupolev TB-1

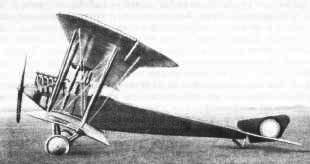

I found one picture of the Polikarpov TB 2 and one of the Kolpakov K-1 from 1917 which could have served as basis for his biplane project mentioned in pictures above.

edit: I haven't seen the link in the first post, just gave myself a facepalm. It would have been much more easier if i knew that.



[hesham]

Thank you Bigvlada.



[Stenda G]

Look carefully at the desk behind Kostkin (in white hat) and Polikarpov

From book "Polikarpov airplanes" by Vladimir Ivanov

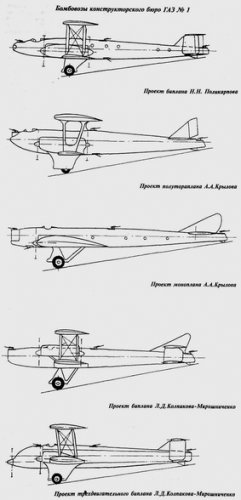

and side-view of projects in better size

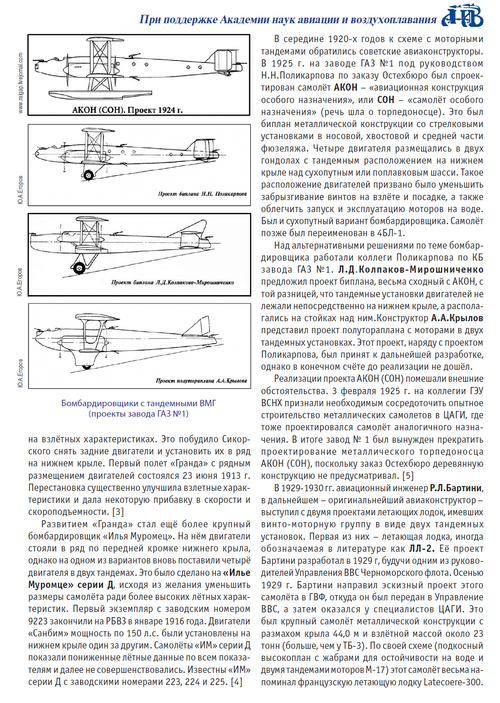

Article by Yuri Yegorov about first soviet bomber projects in Самолеты Мира 04-06/1998

http://alternathistory.com/stanovlenie-tyazheloj-bombardirovochnoj-aviatsii-sssr/



[hesham]

Hi Stenda,

I think it was Tupolev design ?.



[Stenda G]

S!
No, Hesham. Thise are frontal and top-veiw of monoplane variant with 4xLiberty by A.A.Krilov (see 2nd pic - 3d from above). All projects from GAZ No1 design bureau.

Also there is side-view of Kolpakov-Miroschnichenko 3-motor project behind the woman (the last one on the 2nd pic).

Upd: AKON (AKON - aviatsionnaya konstruktsiya osobogo nasnacheniya - special purpose aircraft) - float torpedo-bomber version for OSTECHBUREAU



[hesham]

OK Stenda.



[hesham]

From Kryl'ya Rodine 2023-5/6.



[dabbler]

https://www.secretprojects.co.uk/threads/various-polikarpov-projects.17877/page-3#post-580930



[iverson]

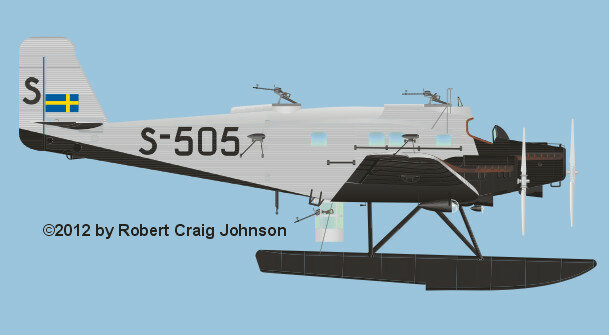

I've attached a couple of drawings that I did of the Junkers K.30/R.32 (militarized G.24).



[kyizelma]

does anyone have an idea of what this might be



[hesham]

does anyone have an idea of what this might be

Welcome aboard Kyizelma,

and you mean the drawing in reply # 4 ?.



[kyizelma]

Welcome aboard Kyizelma,

and you mean the drawing in reply # 4 ?.

yes, specifically the one on te bottom which seems to show a tailwing as the rest is blocked



[hesham]

yes, specifically the one on te bottom which seems to show a tailwing as the rest is blocked

Sorry,I really don't know,any help ?.
