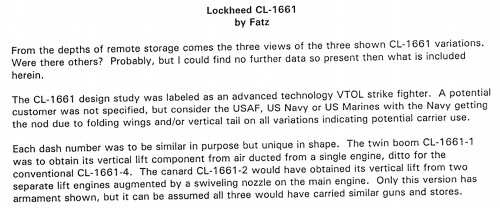

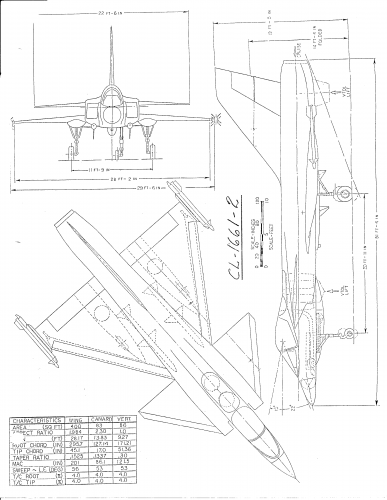

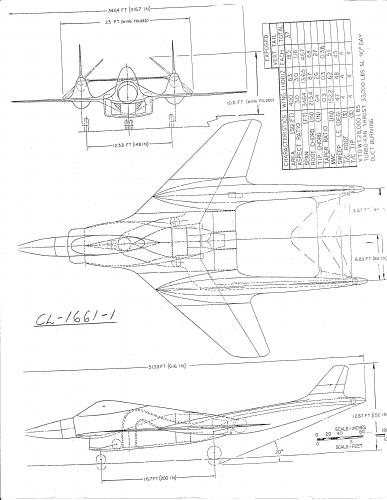

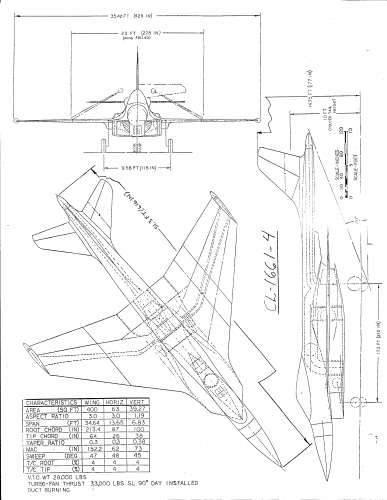

overscan (PaulMM) Administrator Staff member Joined 27 December 2005 Messages 16,476 Reaction score 19,213 5 January 2013 #1 Source: http://home.comcast.net/~wmiipms/NewsLetters/1995/WMIIPMS_07-1995_NL.pdf Attachments CL-1661-text.png 119.9 KB · Views: 589 CL-1661-drawing1.png 129.2 KB · Views: 597 CL-1661-drawing2.png 140.6 KB · Views: 554 CL-1661-drawing3.png 144.3 KB · Views: 507
E Evil Flower ACCESS: Secret Joined 12 October 2006 Messages 223 Reaction score 50 25 January 2013 #2 Now I'm confused, because the middle variant looks exactly like the later variants of the Convair Model 200A and 201 sea control ship fighter.
Now I'm confused, because the middle variant looks exactly like the later variants of the Convair Model 200A and 201 sea control ship fighter.
overscan (PaulMM) Administrator Staff member Joined 27 December 2005 Messages 16,476 Reaction score 19,213 25 January 2013 #3 Yes. Possibly they used this as a comparison point design for the other V/STOL concepts.
Michel Van ACCESS: Above Top Secret Senior Member Joined 13 August 2007 Messages 7,151 Reaction score 6,527 26 January 2013 #4 I think that not a coincidence, Lockheed buy Convair from General Dynamics in 1990s
overscan (PaulMM) Administrator Staff member Joined 27 December 2005 Messages 16,476 Reaction score 19,213 26 January 2013 #5 Way too old a project.
