Large SST project - Identify

[gabrielorosco]

Hi!

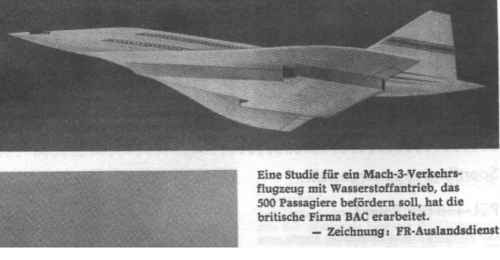

I've found this image on internet, it seems to be a larger SST project. Does anybody have more info and pictures? Thanks!



[taildragger]

It doesn't look to me like a serious M3 SST project to me. The low fineness ratio and what look like high drag features (the large wedge between the engine inlets, the apparent step at the aft end of the wedge) suggest to me that it's someone's doodle.



[Orionblamblam]

It looks like a mutant Concorde... all the bits are there, just sort of a caricature version.



[overscan (PaulMM)]

Caption says its a hydrogen powered SST.



[Antonio]

If I remember correctly it's a double decker McDD project from late 80's/early 90's (XX Century). Probably already posted in the forum. I'll check my books too.



[overscan (PaulMM)]

https://www.secretprojects.co.uk/forum/index.php/topic,2435.msg221740.html#msg221740

The picture is from Flieger Revue 5/1977.



[Antonio]

If I remember correctly it's a double decker McDD project from late 80's/early 90's (XX Century

I'm getting older ;D



[hesham]

https://www.secretprojects.co.uk/forum/index.php/topic,2435.msg221740.html#msg221740

The picture is from Flieger Revue 5/1977.

That's right my dear Paul,and the better if we can merge those topics.
