how to design aircraft even as "concept"

[Al3xM3rc3r0]

so i play juno, i think is final form of simple planes, as kid i made many "paper planes" like in japan culture. but problem is now with all parts like engine, i cannot even figure out for body, mostly i think about planes like ac3:electrosphere. but i have modeling program and juno game, and also an paper and automatic pencil.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
im also new here, hi for forum. also project archangel seems familiar to "real life" concept.



[riggerrob]

You might want to start by reading Dan Raymer's "Simplified Aircraft Design for Homebuilders."



[Apophenia]

I don't really understand your question. But if it is: 'How do I render this AC.3 Electrosphere thingie', you are in luck.

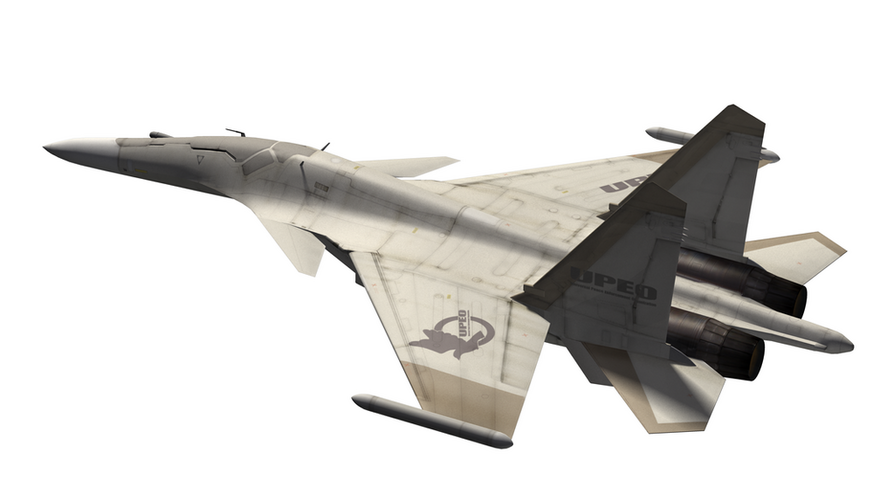

Just going on your attached image, this gamer AC.3 Electrosphere is a based on the Real World Sukhoi Su-27M/Su-33. As such, youonly need to source a Flanker cutaway drawing to give you a rough idea of internal structure. For engine references, do image searches of the Saturn AL-31F3. Glean measurements from the basic specifications tables for both airframe and engines which are available even on Wikipedia.

Attached is a retouched Flanker D with its canopy suppressed and a radar radome which is rather too small for the airframe (although I don't pretend to understand reasoning behind those AC.3 artist choices). I didn't bother changing the wingtip fairings - those on the Electrosphere remind me a bit of ACMI pods which is ... odd.



[Nahida1645]

so i play juno, i think is final form of simple planes, as kid i made many "paper planes" like in japan culture. but problem is now with all parts like engine, i cannot even figure out for body, mostly i think about planes like ac3:electrosphere. but i have modeling program and juno game, and also an paper and automatic pencil.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
im also new here, hi for forum. also project archangel seems familiar to "real life" concept.

Fellow SimplePlanes player here.

Looks like an unmanned Su-27 or a -37 and you may want to post in the Theoretical Projects sub-forum.
