Felix Wankel`s Zisch 39

[Wurger]

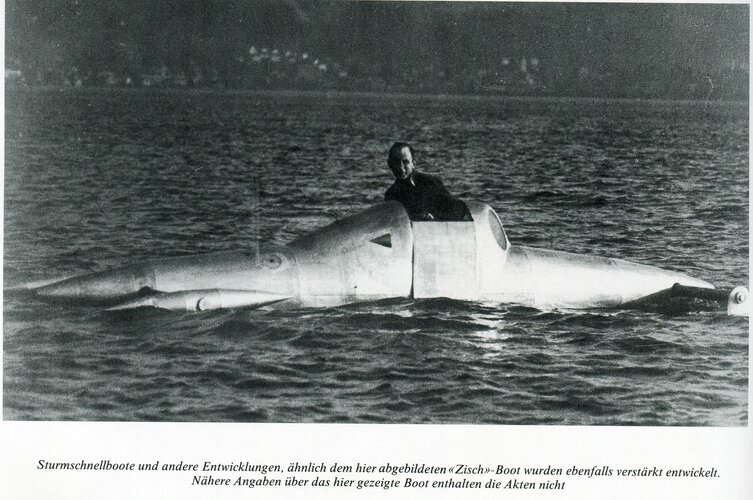

Félix Wankel, of rotary engine fame, endeavoured on "gleitkufenboote" during WW2. the Zisch 42 is most famous, but I did not know the Zisch 39, an interesting prototype pictured here. The projected torpedo carrier is reminiscent of some K-Verband proposals. I recall a model of a "gleitkufenboot" in a Harald Fock`s book.

The image was taken from Richard Lakowski`s "Reiches-und Kriegsmarine Geheim 1919-1945".



[cluttonfred]

Thanks, Wurger, but your image is so small it's hard to make out much of anything.



[Wurger]

I`m sorry, I`ve posted it in the wrong place. Can one of our moderators remove it to "Naval projects"?

I will try to post a bigger image.



[1946]

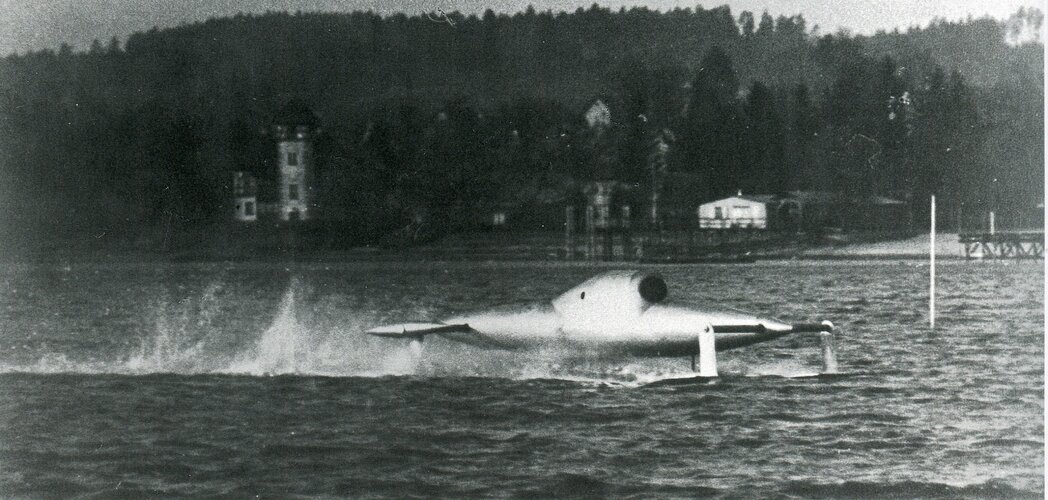

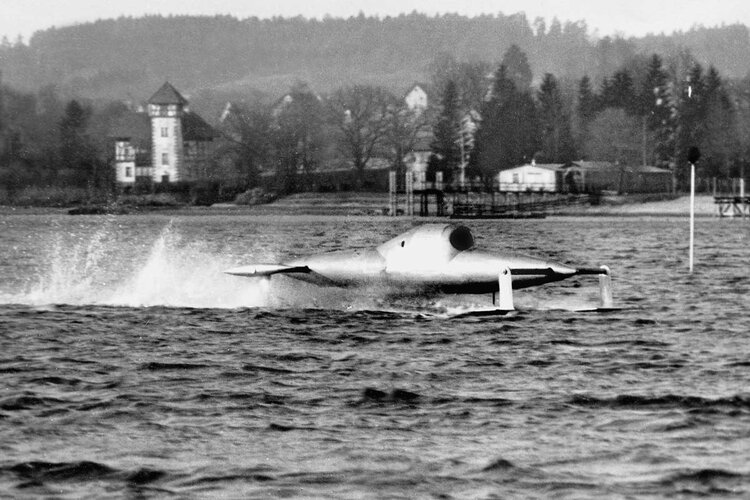

Here is the Zisch 42 on a trial run



[1946]

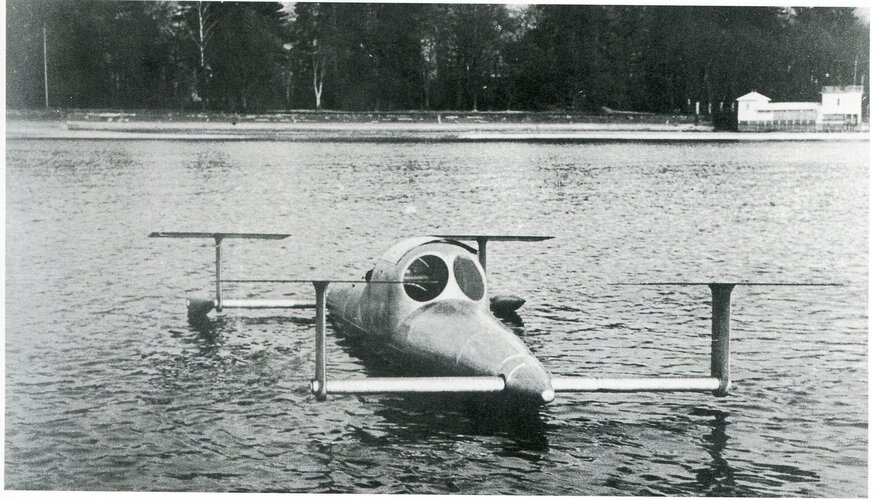

and the Zisch 42 at rest



[1946]

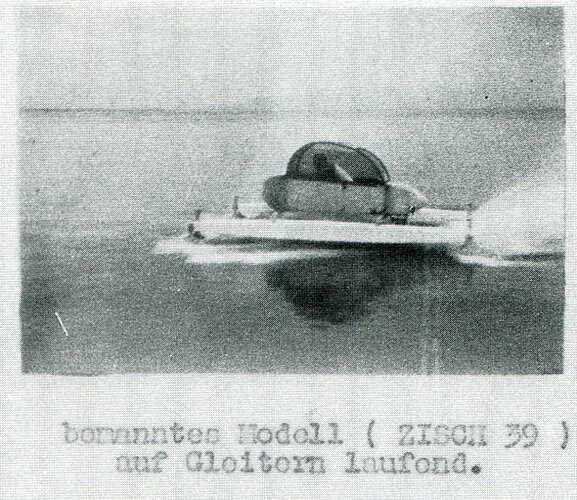

Here is the Zisch 39
