Computational Aerodynamics Study of Competing Conceptual Designs for ATF

hesham

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
33,234
Reaction score
13,078

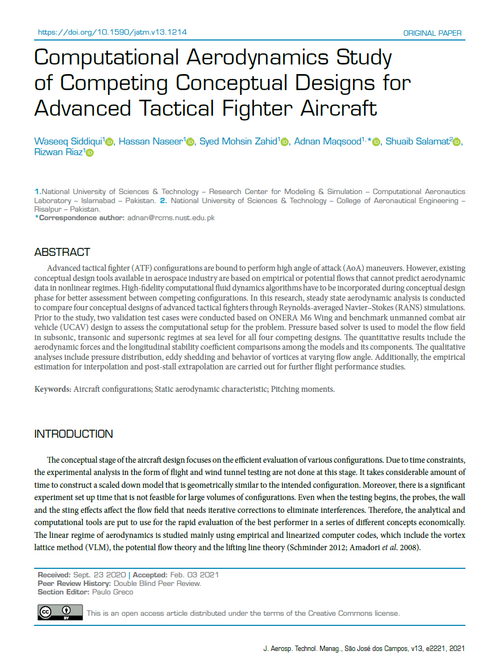

From this report.


Attachments

  • 10.png
    261 KB · Views: 58
  • 11.png
    392.7 KB · Views: 59
  • 12.png
    471.7 KB · Views: 59
  • 13.png
    366.1 KB · Views: 54
  • 14.png
    84.5 KB · Views: 52
  • 15.png
    204.3 KB · Views: 53
