Hi,


the Avro Model-509 was a two seat float seaplane aircraft,powered by two pusher
120 hp Austro-Daimler inline engines,and Model-513 was developed from 509 as
two seat twin float bomber seaplane,powered by two pusher 80 hp Gnome engines,
they remained a projects only.


http://flyingmachines.ru/Site2/Crafts/Craft29487.htm


Attachments

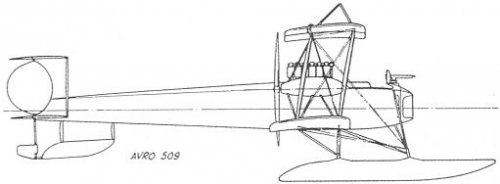

  • Avro-509.jpg
    13.1 KB · Views: 240
  • Avro 509.JPG
    Avro 509.JPG
    24.5 KB · Views: 237

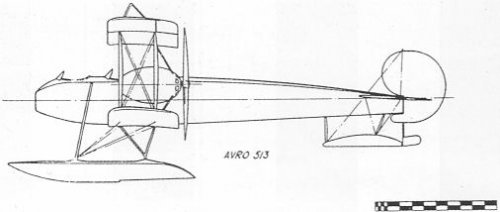

  • Avro-513.jpg
    14.4 KB · Views: 223
