Z-plane flying model

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

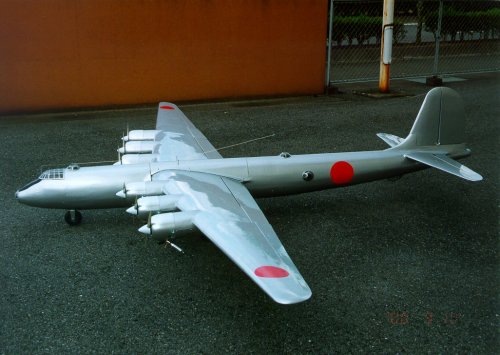

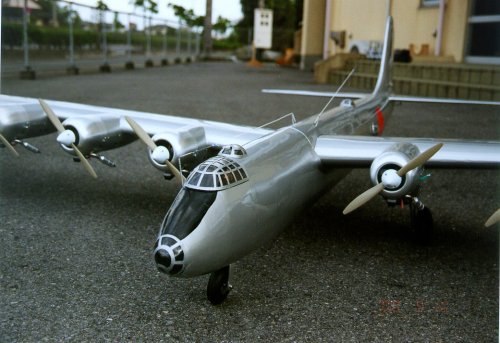

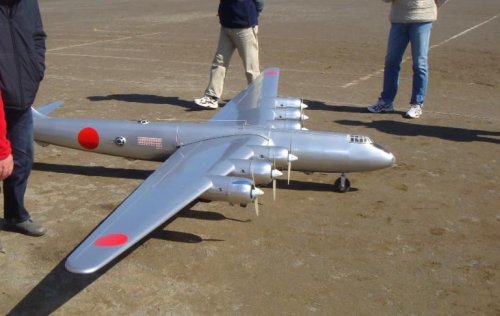

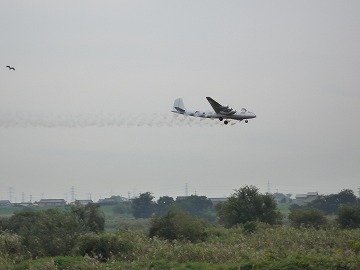

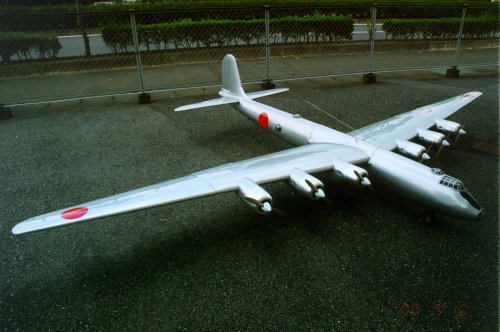

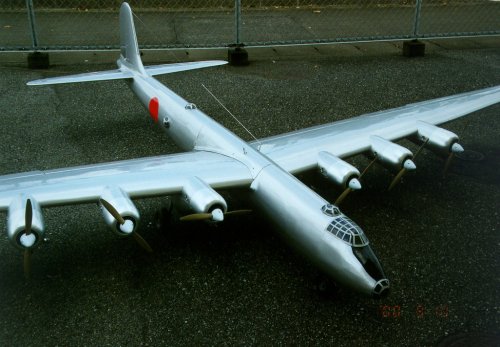

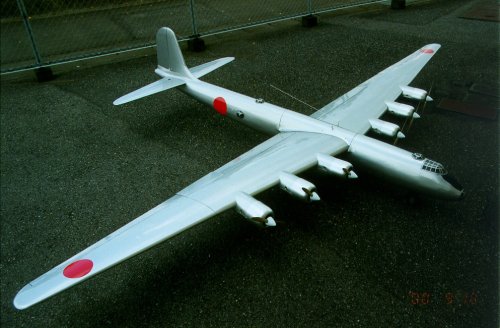

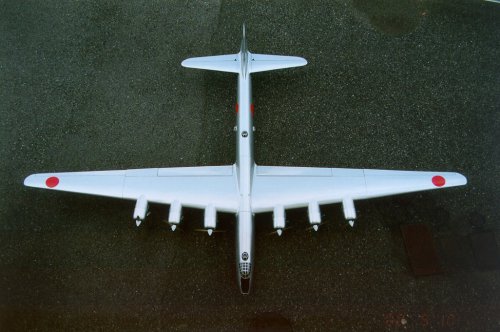

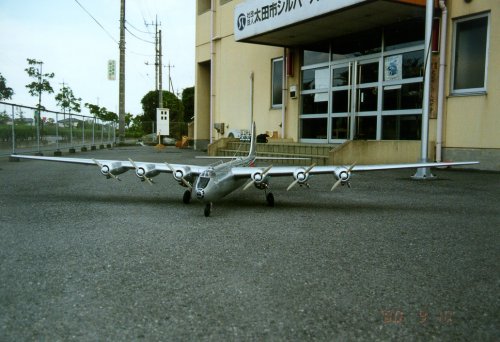

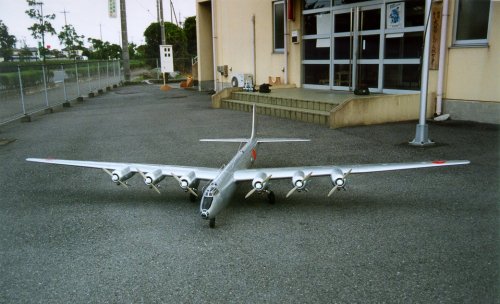

Hi Z-plane flying model.
http://www.geocities.jp/gallerytoki/Fugaku/index.htm
You will see flying video movie of this model clicking "ビデオ映像" then "TVニュース"of this site.
You will see design drawings of this model clicking "設計図" of this site.


Attachments

  • 1.jpg
    411.4 KB · Views: 948
  • 10.jpg
    423.4 KB · Views: 43
  • 8.jpg
    400.9 KB · Views: 35
  • 7.jpg
    366.1 KB · Views: 40
  • 6.jpg
    387.3 KB · Views: 640
  • 5.jpg
    385.8 KB · Views: 664
  • 4.jpg
    419.9 KB · Views: 740
  • 3.jpg
    430.2 KB · Views: 814

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

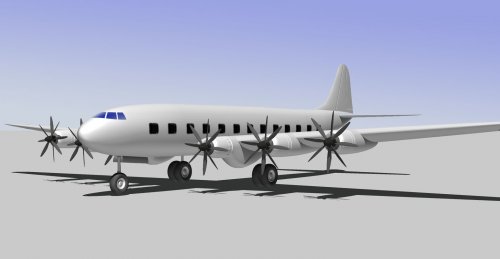

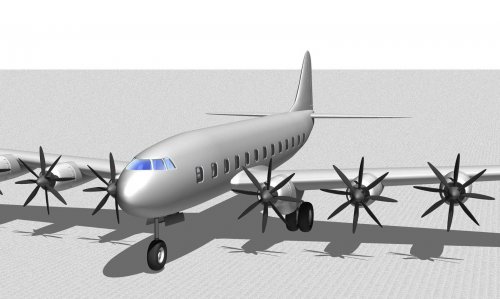

Z-plane transport version flying model. Under construction now.(Wing span:4.1m)

Trans port version's specification
Length;33.5m, Wing span;50m, Passengers;100(4×25)


Attachments

  • Z-plane transport version1.jpg
    Z-plane transport version1.jpg
    91.7 KB · Views: 59
  • Z-plane transport version2.jpg
    Z-plane transport version2.jpg
    256.6 KB · Views: 43
  • transport version.jpg
    transport version.jpg
    6.5 KB · Views: 1,566

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

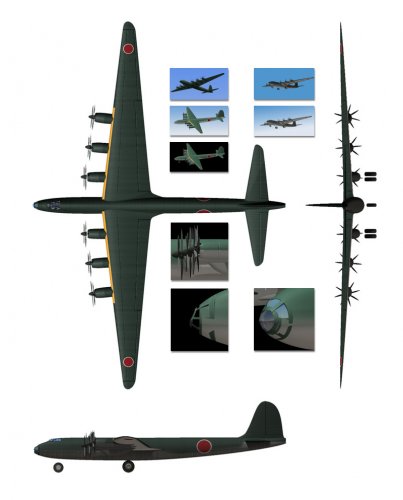

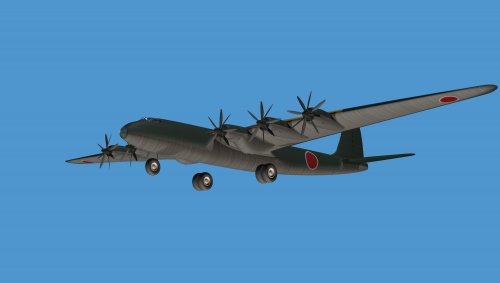

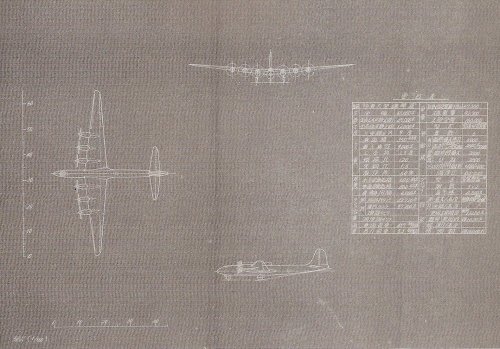

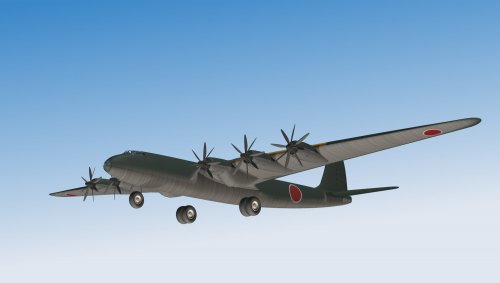

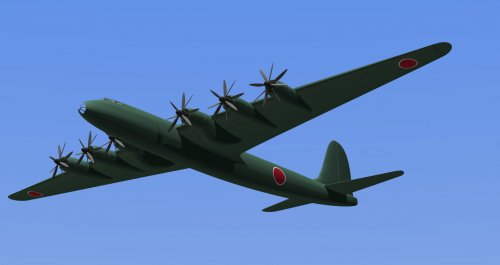

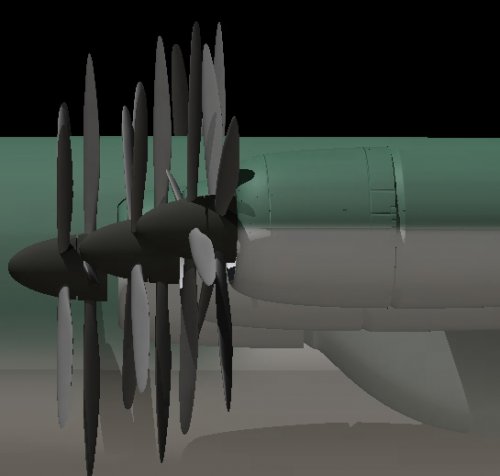

Hi 3-side view and other view of Z-plane.
I feel dihedral is little small and main landing gears are little strange. It's difficult to accommodate.


Attachments

  • image61.jpg
    10 KB · Views: 56
  • image21.jpg
    44.2 KB · Views: 31
  • image32.jpg
    162.4 KB · Views: 27
  • image31.jpg
    144.9 KB · Views: 43
  • image2.jpg
    160.3 KB · Views: 62
  • image1.jpg
    132.5 KB · Views: 84
  • plans.jpg
    110.2 KB · Views: 130

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,663
Reaction score
559
Thanks for your great contributions Blackkite, I love that aircraft!


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
25
Hi blackkite san these are very good photos and pics of the Fugaku!
Isay again the USA has all the luck of the world that japan hasnt the time to develop this awsome bomber further,and that the japanese has not the bomb in time.
Otherwhise they were facing a atomic respomse on maybe San Francisco and Los Angeles for bombing Hiroshima and Nagasaki
best regards T-50


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Many thanks Antonio-san and T50-san. ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Thanks my dear gerhard!


Attachments

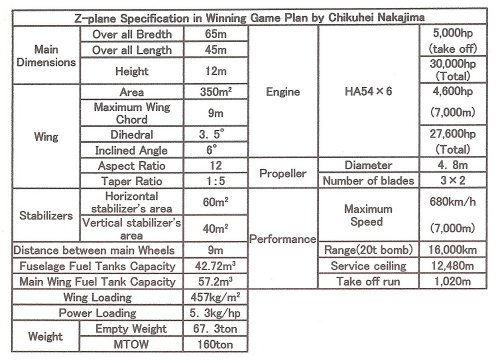

  • Z-plane specification.jpg
    Z-plane specification.jpg
    209.8 KB · Views: 59
  • Z-plane 3-side view.jpg
    Z-plane 3-side view.jpg
    190.3 KB · Views: 121
  • Z-from nakajima drawing.jpg
    Z-from nakajima drawing.jpg
    272.6 KB · Views: 108

lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
587
Reaction score
39
Website
defense-and-freedom.blogspot.de

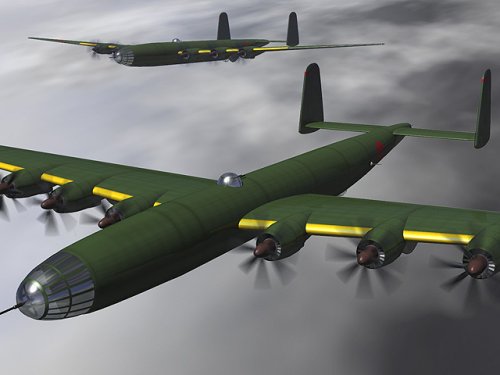

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=11811.0;attach=123549

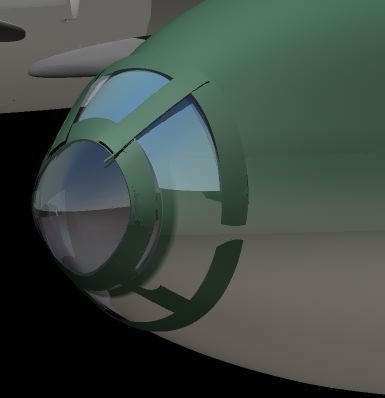

This cannot be right; bomb sights usually demanded a flat window.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
You are sharp eyed,too. B)

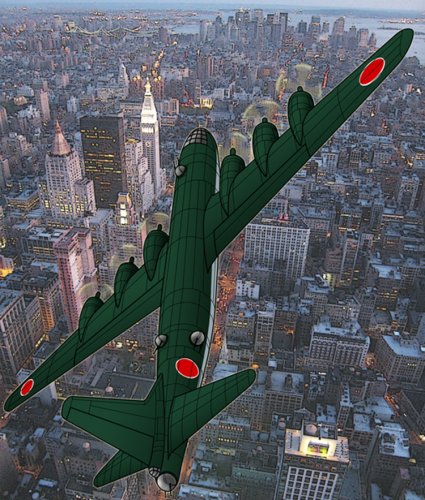

Attached picture is Fugaku, not Z-plane. The friendship flight to New York city and DC. ;D
Sorry off topic.(Source: internet site)


Attachments

  • Chikuhei's dream.jpg
    Chikuhei's dream.jpg
    808.9 KB · Views: 87

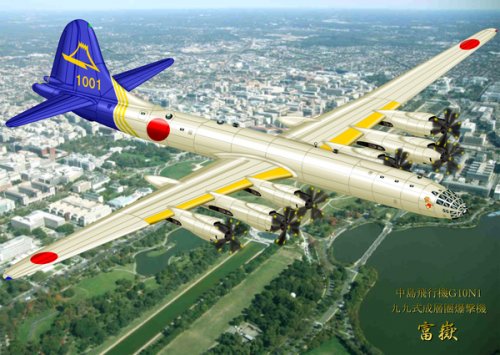

  • Fugaku flying over DC.jpg
    Fugaku flying over DC.jpg
    323.8 KB · Views: 117
  • FUGAKU.jpg
    15.2 KB · Views: 99

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

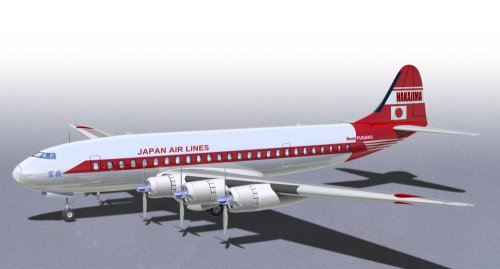

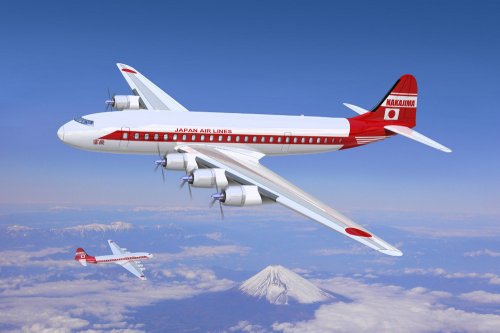

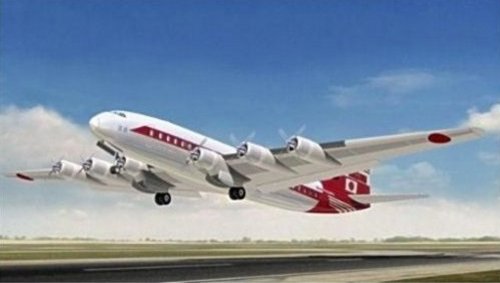

Hi Z-plane transport version picture. Enjoy.
Source: Internet site.


Attachments

  • fugaku transport version.jpg
    fugaku transport version.jpg
    65.4 KB · Views: 76

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,313
Reaction score
173
Website
zeef.com
Beatiful !
Z-Plane or better G10N1 Fugaku et similars !
Really nice civil variant : but i don't know if that's a speculation or really inspired by projects for also a civil variant !


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi. Good question!!
The team which constructing this model got the real Chikuhei's blue prints of this transport version that discovered by Mr.Shoda(Shoda enterprise) in 2008. Chikuhei and the Fugaku project team members had the dream to travel around the world by this transport after the war.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,313
Reaction score
173
Website
zeef.com
Guys, but biderive Fugaku was an idea of Kawanishi , Nakajima or Mitsubishi ?
???


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,313
Reaction score
173
Website
zeef.com
I have an impression that original Z-plane project was devoloped by core of G5N ! :eek:


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi! May be so.G5N was designed based on DC-4E.
It's true that Japanese aviation had no experience to design such a big aircraft at the day.
Source: internet site.


Attachments

  • FUGAKU2[1].jpg
    62 KB · Views: 183
  • fugaku.jpg
    68 KB · Views: 174

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
126
Airman,

For more info please see the Fugaku thread in the
Theroretical and Speculative designs chapter.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

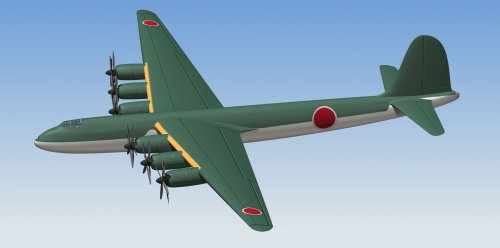

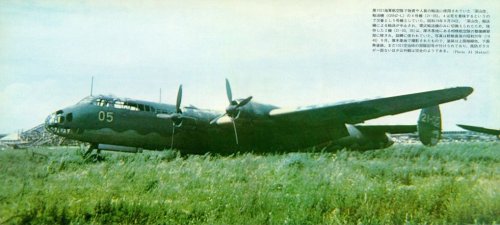

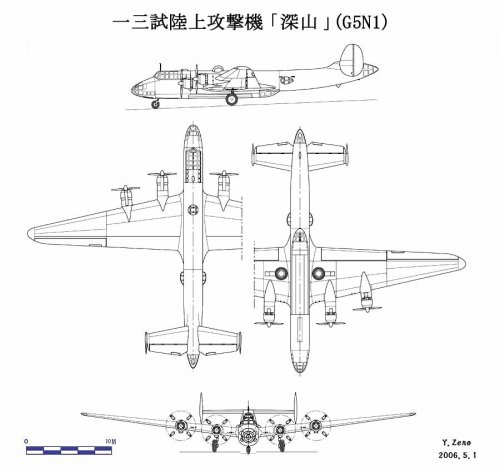

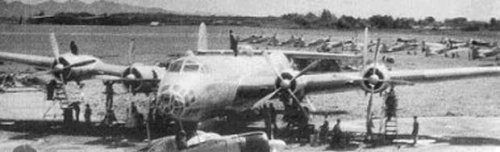

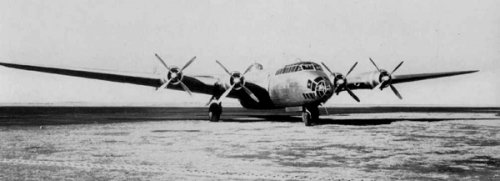

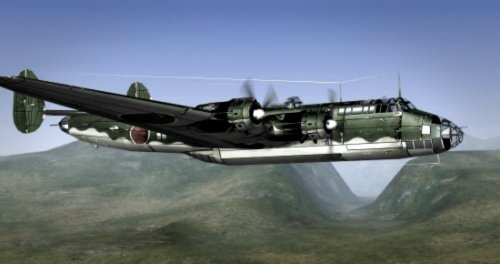

Hi! G5N1 Shinzan. Sorry off topic.
Because of it's poor maneuverability, luck of electric equipment reliability, Mamori engine's under power and vibration, 20% weight over, IJN called this plane as a "fool bird;馬鹿鳥(baka dori)". ;D
Specifications (G5N1)
General characteristics
Crew: 7-10
Length: 31.02 m (101 ft 9 in)
Wingspan: 42.12 m (138 ft 2 in)
Height: 8.4 m (27 ft 6 in)
Wing area: 201.8 m² (2,171.37 ft²)
Empty weight: 20,100 kg (44,300 lb)
Loaded weight: 28,150 kg (62,060 lb)
Max takeoff weight: 32,000 kg (70,528 lb)
Powerplant: 4× Nakajima NK7A "Mamoru-11" 14-cylinder air-cooled radial four-blade constant-speed, 1395 kW (1870 hp) each
Performance
Maximum speed: 420 km/h (227 kn, 261 mph)
Cruise speed: 370 km/h (200 kn, 230 mph)
Range: 4,260 km (2,302 nmi, 2,648 mi)
Service ceiling: 7,450 m (24,442 ft)
Armament
Guns
2× 20 mm Type 99 cannons
4× 7.7 mm (0.303 in) Type 97 machine guns
Ordinance
2,000-4,000 kg (4,408-8,816 lb) bombs


Attachments

  • G5N1 SHINZAN.jpg
    G5N1 SHINZAN.jpg
    119.2 KB · Views: 210
  • shinzan1.jpg
    17.7 KB · Views: 181
  • G5N1-N.jpg
    81.4 KB · Views: 200
  • G5N big.jpg
    G5N big.jpg
    39.8 KB · Views: 61
  • shinzan large.jpg
    shinzan large.jpg
    117.8 KB · Views: 79

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

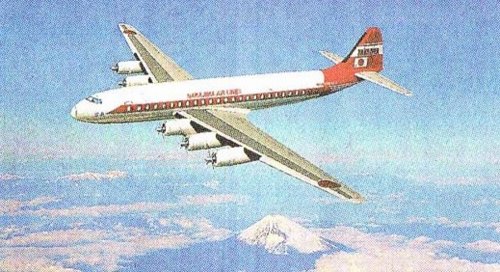

Hi! From JOMO news paper.


Attachments

  • Z-PLANE TRANSPORT VARIANT.jpg
    Z-PLANE TRANSPORT VARIANT.jpg
    476.7 KB · Views: 56

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,216
Reaction score
6,859
By any chance was coastal mine-laying one of the intended roles for the Shinzan? And was the 4,408-8,816 lb bomb-load projected or realised?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Grey Havoc said:
By any chance was coastal mine-laying one of the intended roles for the Shinzan? And was the 4,408-8,816 lb bomb-load projected or realised?
Hi I can't find any Shinzan's coastal mine-laying role by Japanese internet site. Shinzan was used as a torpedo carrier to the southern front. It could carry two 95- shiki submarine use torpedos(3,330kg total). 93-shiki torpedo was more heavy.
http://ja.wikipedia.org/wiki/%E9%85%B8%E7%B4%A0%E9%AD%9A%E9%9B%B7
http://www52.tok2.com/home/BByamato/heisou.html
魚雷 means torpedo.水上艦艇用 means for ships, 航空機用 means for aircrafts, 潜水艦用 means for submarines.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655
"It could carry two torpedo(3,330kg total)"

Then one torpedo would have had a weight of 1665 kg, quite heavy for an aerial
torpedo, i think. Was a special type envisaged for the Shinzan ?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi! You are right. I am not sure which type torpedo Shinzan carried to the southern front. It might be aircraft use torpedo.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
384
Reaction score
155
Japanese aerial torpedoes were 800 KG (@1700 lbs) if I remember correctly.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655
The answer probably is, that, as blackkite wrote, the 95- shiki torpedo was
a type principally used by submarines. But such a torpedo surely cannot just
be used as an aerial torpedo with intensive modifications. Maybe the Shinzan
was intended just for torpedo transport and not torpedo attack ?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi! Of course torpedo transport role only. It's impossible for low performance Shinzan to attack ships by torpedo. ;D
I think submarine torpedo transport by Shinzan was good idea,too. Because it's not necessary for submarine to return Japan to charge torpedo.
It's safer and faster than the surface transport.The weight of Submarine torpedo was 1.7ton.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655
Ok, this misunderstanding is cleared, my fault, sorry .
But wouldn't a flying boat have been a better transport then ?
This way of torpedo transport would have needed quite good
infrastructures, I think.

BTW, mass drops of long range torpedos against enemy fleets
(probably at night) was considered a viable tactic by some air arms,
although never used in anger, AFAIK.


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,875
Reaction score
1,202
Did you tried to do a Turbojet powered variant?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi! I believe there are no evidence for existence of jet powered version of this transport.


Attachments

  • 304e.jpg
    97.6 KB · Views: 44

Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,875
Reaction score
1,202
I once read somewhere a G10N2 Fugaku-Kai, a Turbojet powered Fugaku, but I don't know if it really existed as a proposal or not.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392

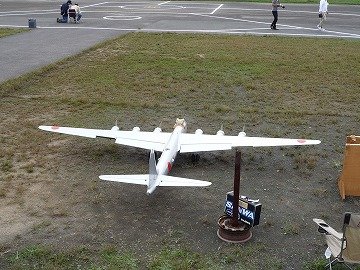

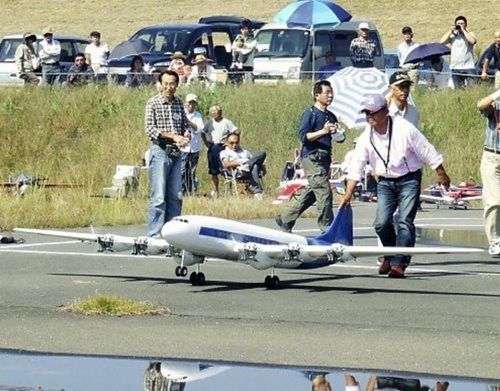

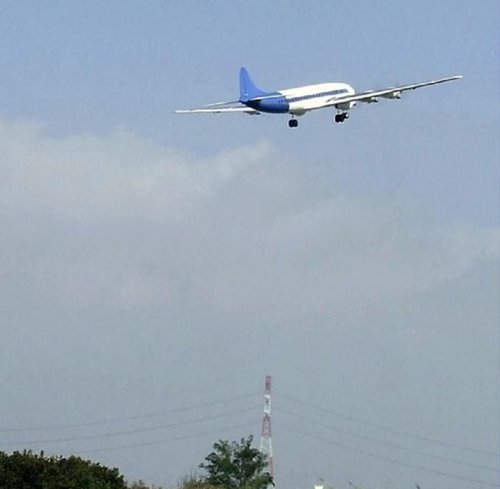

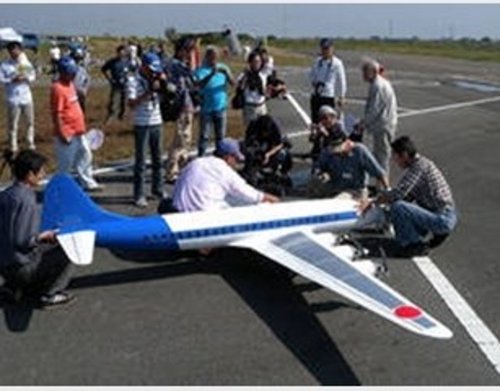

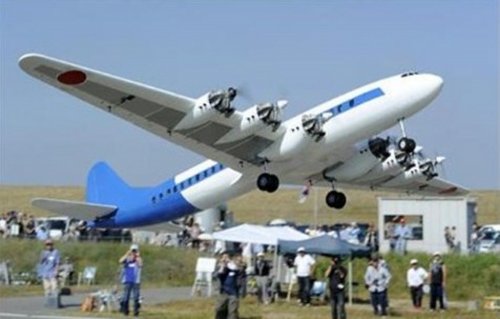

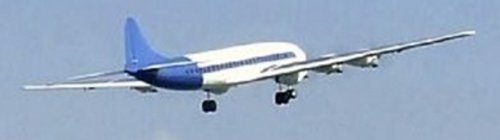

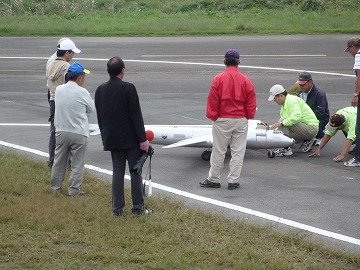

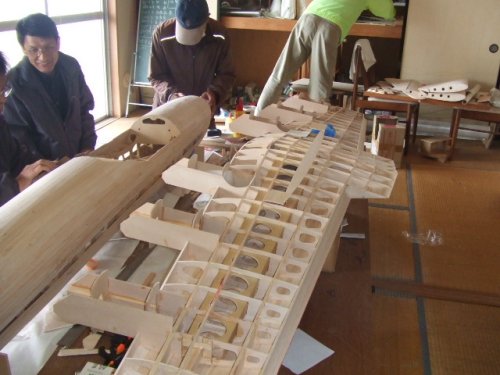

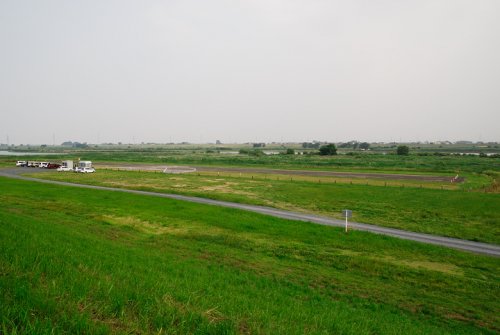

Hi! Fugaku(富嶽) transport version (or Z-plane transport version) 1/12 scale RC model(Span:4.12m, Length:2.8m) succeeded meiden flight in 2011/10/16 at Ohta(太田) city(市) Gunma prefecture(群馬県) near Tokyo(東京).
This model's and operator's level are very high. ;D

She will make demo flight at "2011 AERONAUTIC PAGENT(第25回RC航空ページェント)" in 2011/11/3 at Ohta city,Ojima(尾島) RC skyport.

Source:Japanese news papers and internet site.


Attachments

  • Z-PLANE TRANSPORT VERSION WING.jpg
    Z-PLANE TRANSPORT VERSION WING.jpg
    119.2 KB · Views: 17

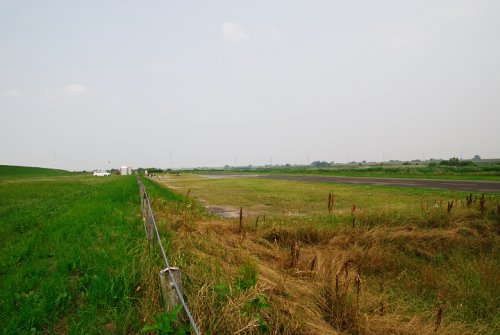

  • Ojima RC skyport 2.jpg
    Ojima RC skyport 2.jpg
    279.1 KB · Views: 18
  • Ojima RC skyport 1.jpg
    Ojima RC skyport 1.jpg
    279.7 KB · Views: 17
  • FUGAKU TRANSPORT VERSION 5.jpg
    FUGAKU TRANSPORT VERSION 5.jpg
    87.9 KB · Views: 447
  • FUGAKU TRAANSPORT VERSION 4.jpg
    FUGAKU TRAANSPORT VERSION 4.jpg
    276 KB · Views: 494
  • FUGAKU TRANSPORT VERSION 3.jpg
    FUGAKU TRANSPORT VERSION 3.jpg
    266.1 KB · Views: 521
  • FUGAKU TRANSPORT VERSION 2.jpg
    FUGAKU TRANSPORT VERSION 2.jpg
    197.5 KB · Views: 530
  • FUGAKUNTRANSPORT VERSION 1.jpg
    FUGAKUNTRANSPORT VERSION 1.jpg
    321.2 KB · Views: 568

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
890

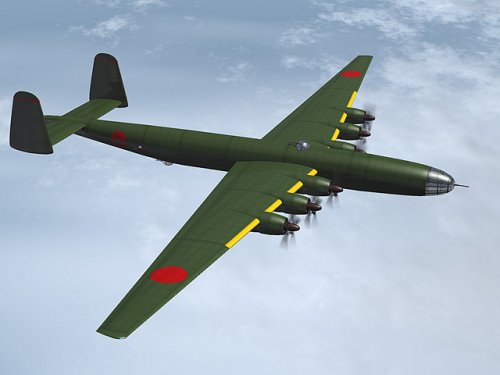

Was the commercial transport version of the Fugaku a real project? It is truly a beautiful design!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Stargazer2006 said:
Was the commercial transport version of the Fugaku a real project? It is truly a beautiful design!

Thanks!
Of course it was a real project. Recently Mr.Shoda, one of the leader of this flying model construction team, discovered the Nakajima's factory drawing of this transport version which Chikuhei Nakajima ordered Nakajima's engineers to design. Perhaps you will see the drawings of this transport version near future.
The nose and wing tip shape of this aircraft were similar to Lockheed Connie. The vertical stabilizer shape was similar to Electra.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Hi! Past Z-plane flight demonstration.


Attachments

  • Ojima RC skyport.jpg
    Ojima RC skyport.jpg
    38.3 KB · Views: 10
  • Z-PLANE MODEL 1.jpg
    Z-PLANE MODEL 1.jpg
    54 KB · Views: 32
  • Z-PLANE MODEL 2.jpg
    Z-PLANE MODEL 2.jpg
    46.7 KB · Views: 36
  • Z-PLANE MODEL 3.jpg
    Z-PLANE MODEL 3.jpg
    17 KB · Views: 35
  • Z-PLANE MODEL 4.jpg
    Z-PLANE MODEL 4.jpg
    39.7 KB · Views: 30

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
25
Hi Blackkite san I didnt know that the civil version was a real development! Its realy a marvelous plane!A pitty that this design also didnt make it to reality
best regards
T-50


Similar threads

Top
