Yokosuka MXY7 « Ohka » ("Baka") suicide plane

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689

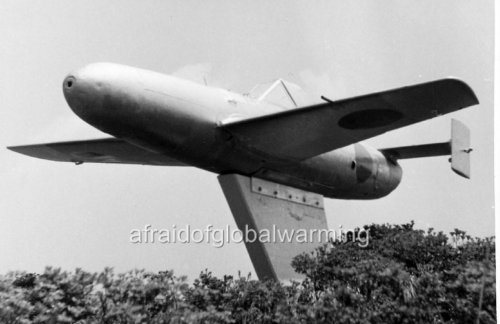

Japans Navy manned flying bomb
http://en.wikipedia.org/wiki/Ohka
http://commons.wikimedia.org/wiki/Category:Yokosuka_MXY_7_Ohka

there 53 Models proposed !

Type 1-10 ?
Type 11 most build version, 750 Units.
Type 12-20 ?
Type 21 one built.
Type 22 with the Tsu-11, a Campini type thermojet engine, Fifty built.
Type 23-32 ?
Type 33 larger version of Type 22 with Ishikawajima Ne-20 turbojet.
Type 34-42 ?
Type 43A to be launched from submarines,
Type 43B used catapult/rocket assisted version, with folding wings so that it could be hidden in caves.
Type 44-52 ?
Type 53 with Ne-20 turbojet, Towed launch.
Type K-1 Suicide Attack Trainer

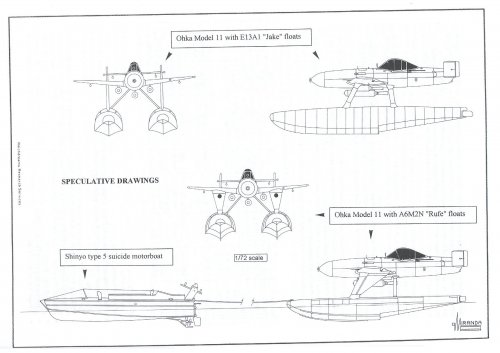

here Ohka Type 11 with Floats, towed launch.
http://www.secretprojects.co.uk/forum/index.php/topic,3562.0.html

has some one more info about the other Types ?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895

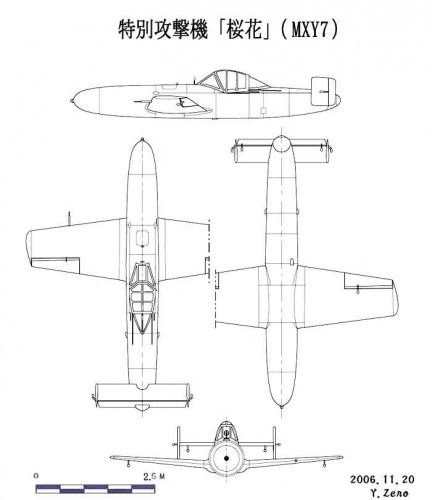

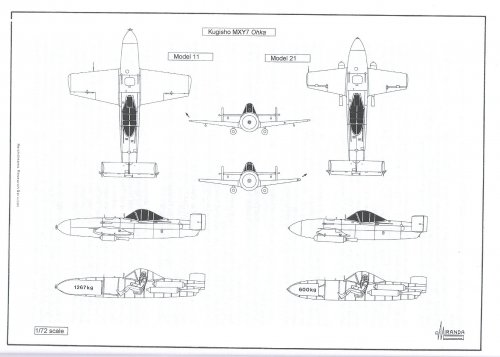

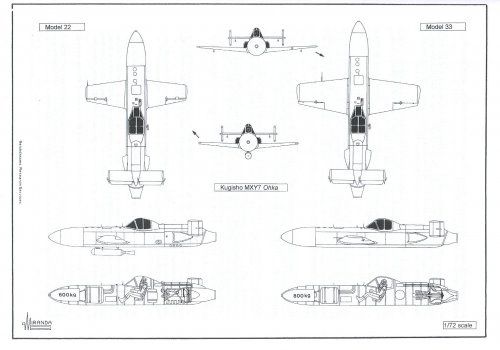

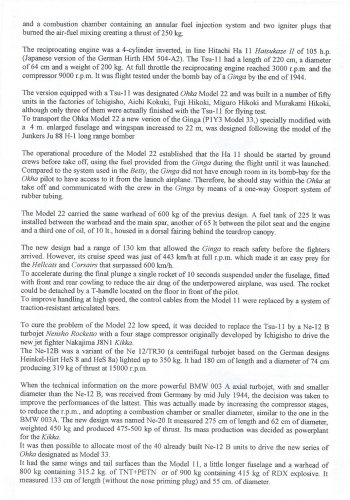

From "UNKNOWN" N.3 Post-1


Attachments

  • Escanear0001.jpg
    286.4 KB · Views: 713
  • Escanear0002.jpg
    363.8 KB · Views: 645

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895

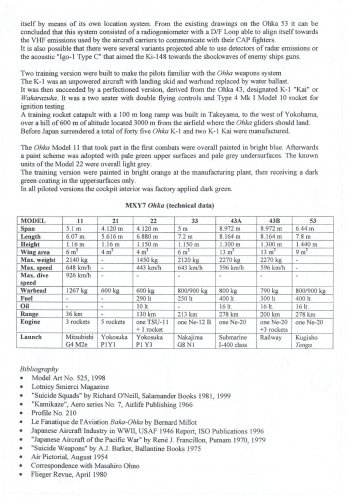

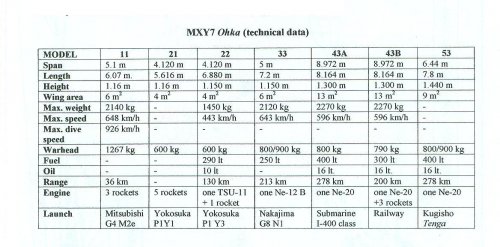

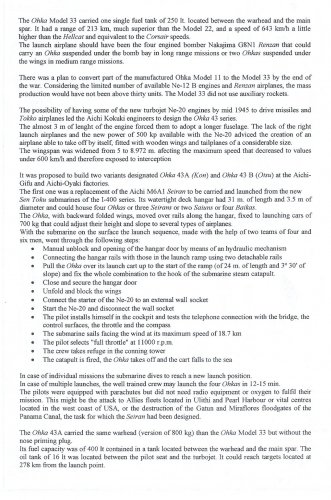

From "UNKNOWN" N.3 Post-2


Attachments

  • Escanear0003.jpg
    347.3 KB · Views: 598
  • Escanear0004.jpg
    347.4 KB · Views: 580

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
From "UNKNOWN" N.3 Post-3


Attachments

  • Escanear0005.jpg
    307.6 KB · Views: 118
  • Escanear0006.jpg
    309.3 KB · Views: 162

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
From "UNKNOWN" N.3 Post-4


Attachments

  • Escanear0008.jpg
    157.4 KB · Views: 346
  • Escanear0007.jpg
    151 KB · Views: 323

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
From "UNKNOWN" N.3 Post-5


Attachments

  • Escanear0009.jpg
    225.8 KB · Views: 308
  • Escanear0010.jpg
    154.3 KB · Views: 324

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
From "UNKNOWN" N.3 Post-6


Attachments

  • Escanear0011.jpg
    166.7 KB · Views: 268
  • Escanear0012.jpg
    187.4 KB · Views: 323

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
From "UNKNOWN" N.3 Post-7


Attachments

  • Escanear0013.jpg
    249 KB · Views: 456

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689

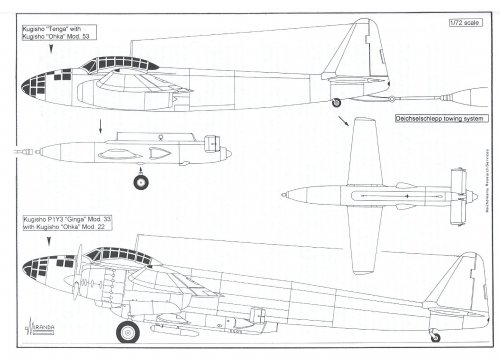

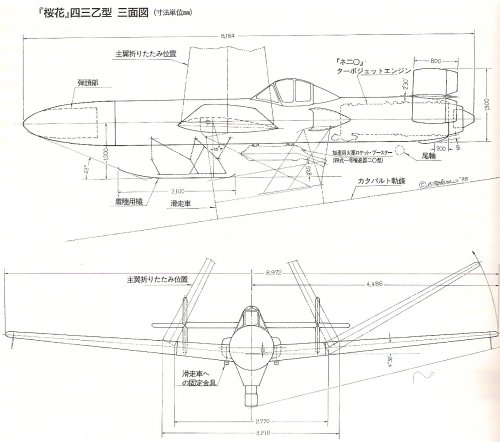

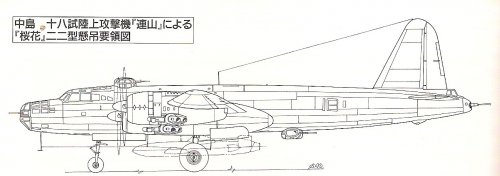

Wonderfull drawing Justo B)

do i see right the Type 43B Otsu is a Fighter, not a flying bomb ?

the Type 53 is not manned, was this a remote controlled flying bomb ?

this is odd, The Deichselschlepp (towing system) is a German system.
one of the Germans Technology transfer to Japan ?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
For the -53- info ,see :Japanese Rammer discussion...


ryusuke

ACCESS: Restricted
Joined
Jan 18, 2009
Messages
30
Reaction score
0
Hi Michel,

Type 43 Otsu is not a fighter. It is a flying bomb launched from a catapult.
Type 53 is not a remote controlled flying bomb. The drawing of type 53 is
from Tadeusz Januszewski's (my friend) Polish book. He tells me that the information
was from a German magazine article. But there is no information of wireless guided
missile version in Japanese source and US reports. So it is considered as
a fantasy created after the war.

Ryusuke


Michel Van said:
Wonderfull drawing Justo B)

do i see right the Type 43B Otsu is a Fighter, not a flying bomb ?

the Type 53 is not manned, was this a remote controlled flying bomb ?

this is odd, The Deichselschlepp (towing system) is a German system.
one of the Germans Technology transfer to Japan ?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689
thanks for Info ryusuke

the other Types (like 1-10) were studies only and why are so many Gaps between numbers ?


ryusuke

ACCESS: Restricted
Joined
Jan 18, 2009
Messages
30
Reaction score
0
Like other Japanese aircraft, the model was designated by 10 like Model 10, Model 20, Model 30, etc.
So there was no Model 1 or Model 5. They started from Model 11, and if they changed largely, they named it Model 21.
If their change was minor, it would be Model 22, Model 23, etc.

It is my understanding, sorry.

Ryusuke



Michel Van said:
thanks for Info ryusuke

the other Types (like 1-10) were studies only and why are so many Gaps between numbers ?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
XP67_Moonbat said:

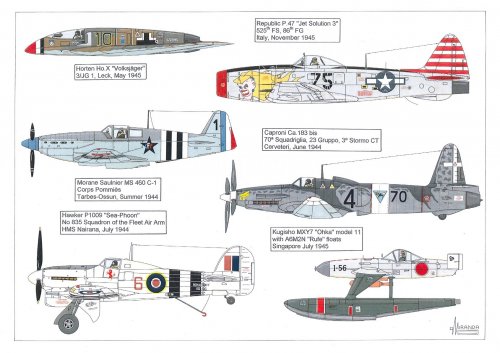

I remember seeing the "Jet Solution 3" in the Luftwaffe 1946 comic.

Ted Nomura version


Attachments

  • Escanear0002.jpg
    126.7 KB · Views: 265
  • Escanear0001.jpg
    380.2 KB · Views: 164

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689
Justo, yours looking better B)

but that can be, i allergic to Nazi UFO ;D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895
Many thanks!
Although the Nomura sales ratio to mine is 14000 to 1 :'(
In my opinion, the machine guns of the Ohka 43B were used for self defence only.
All written references on the Ohka 53 mentioned that it was "towed"


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

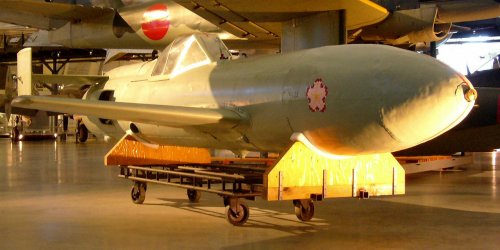

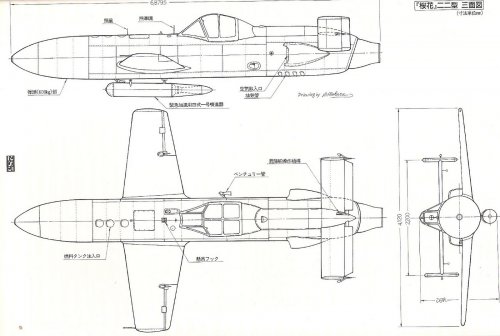

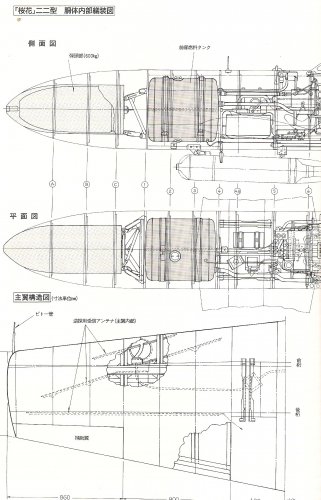

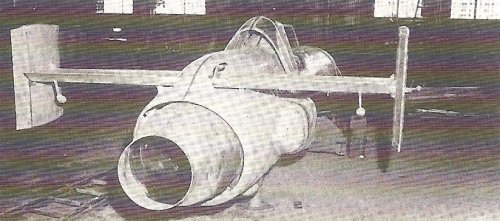

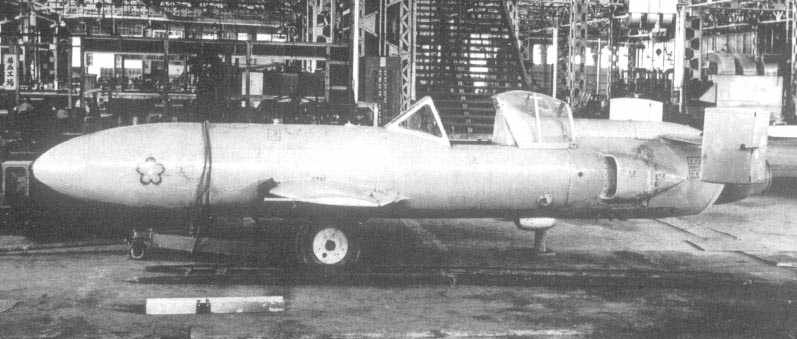

Tsu-11 in Ohka(桜花)22 type.
What a terrible plane!! :'(

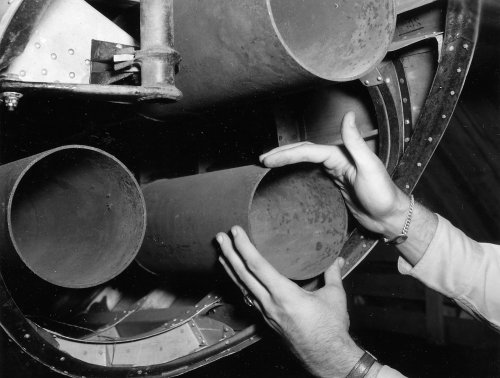

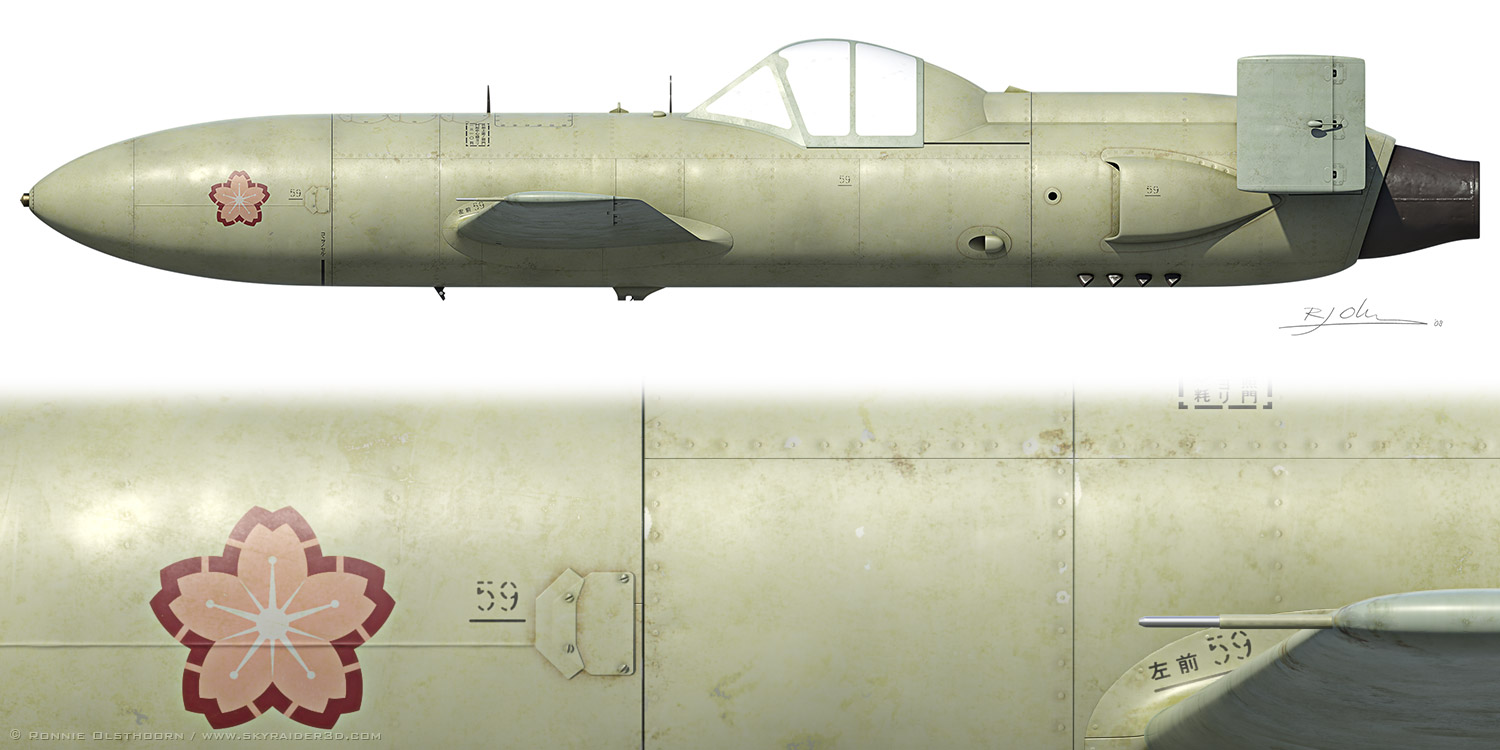

Ohka11type ; Maximum speed : 648km/h S.L. Flying speed : 370 - 556km/h, Launching altitude : 3500m, Range : 37km
Engine : 4shiki 1 go 20 gata solid rocket engine ×3, total thrust 800kg (burning time 9 seconds), Bomb : 1200kg


Ohka22 type ; Maximum speed : 426km/h, Launching altitude : 4000m, Range : 130km, Engine : Tsu-11 thrust 220kg, Bomb : 600kg


Attachments

  • Ohka 22 back view.jpg
    Ohka 22 back view.jpg
    176.3 KB · Views: 120
  • Ohka 22 rear.jpg
    Ohka 22 rear.jpg
    594.2 KB · Views: 140
  • Ohka 22 front.jpg
    Ohka 22 front.jpg
    527.5 KB · Views: 195
  • Renzan with Ohka22 not realized.jpg
    Renzan with Ohka22 not realized.jpg
    126.3 KB · Views: 526
  • Ohka 22 type 3 side view.jpg
    Ohka 22 type 3 side view.jpg
    183.4 KB · Views: 1,068
  • Ohka 11 type.jpg
    Ohka 11 type.jpg
    24 KB · Views: 1,075
  • Ohka22 type.jpg
    Ohka22 type.jpg
    159.4 KB · Views: 1,170
  • MXY7_Ohka22.jpg
    34.8 KB · Views: 1,188

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,240
Reaction score
1,895

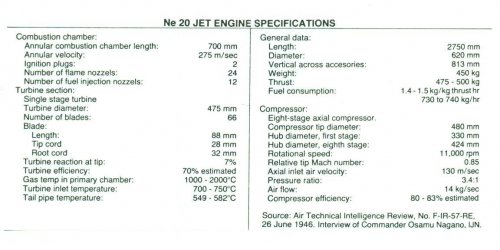

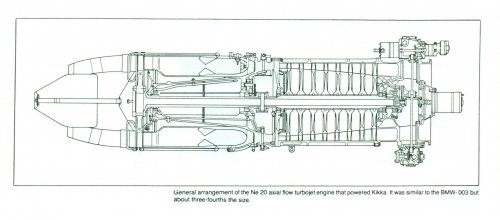

Ne-20 turbojet


Attachments

  • ñ.jpg
    205.8 KB · Views: 193
  • ñ 001.jpg
    ñ 001.jpg
    84.4 KB · Views: 185

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

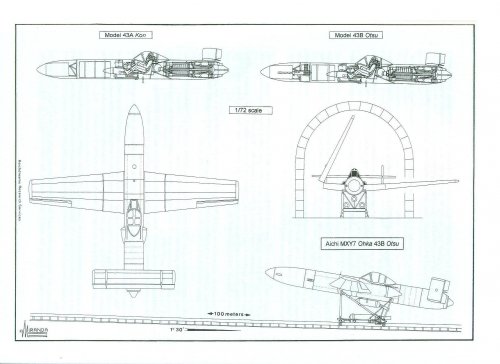

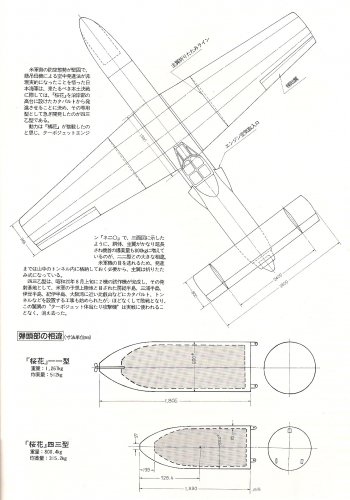

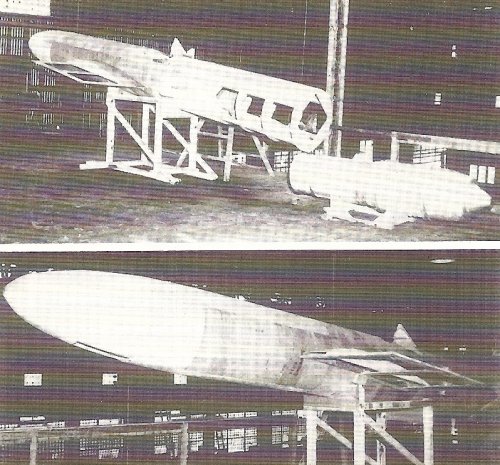

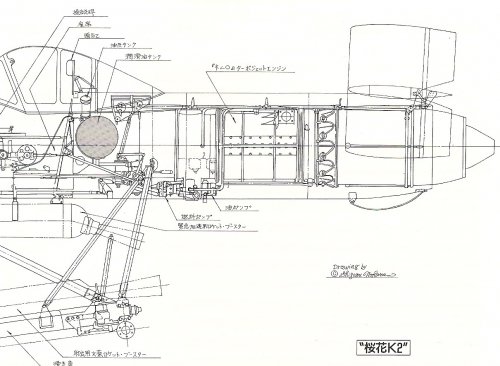

Ohka 43 otsu(乙) type powered by Ne-20 turbo jet engine same as Kikka(橘花) special attack aircraft.

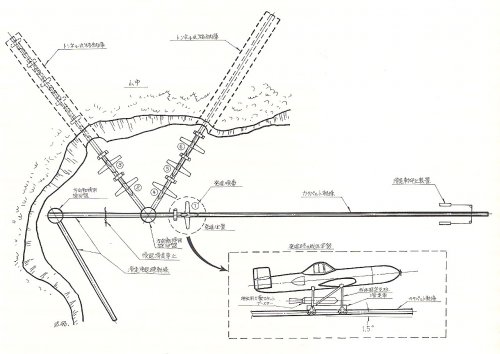

Ohka 43 was a ground launch aircraft(by catapult and solid rocket booster), because it's difficult to access U.S. NAVY carriers by the IJN's low speed bomber which carried Ohka to near carrier region.
I can't find any performance data.

Source : ILLUSTRATED WARPLANE HISTORY, THE X PLANES OF IMPERIAL JAPANESE ARMY & NAVY, GREEN ARROW TOKYO, 1999


http://www.youtube.com/watch?v=MONSFUS5iwI


Attachments

  • Ohka43 otsu.jpg
    Ohka43 otsu.jpg
    425.9 KB · Views: 192
  • Ohka43 otsu powered by Ne-20 turbojet engine.jpg
    Ohka43 otsu powered by Ne-20 turbojet engine.jpg
    229.7 KB · Views: 181

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
I don't know the performance of version 53 but i suppose ,theorically, was from 596 to less to 643 km/h consideering the surface wings


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Many thanks Justo,Airman and windswords!


Attachments

  • Ohka trainer with Hiryu.jpg
    Ohka trainer with Hiryu.jpg
    427.6 KB · Views: 148
  • Ohka 43 rear view.jpg
    Ohka 43 rear view.jpg
    226.7 KB · Views: 115
  • Ohka 43 otsu front.jpg
    Ohka 43 otsu front.jpg
    292.8 KB · Views: 115

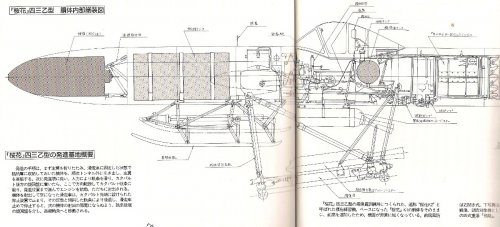

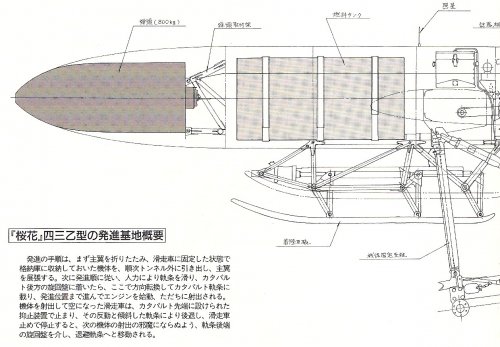

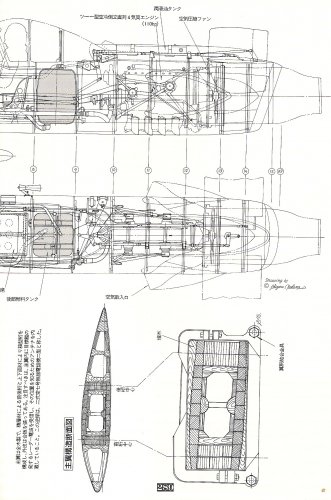

  • Ohka 43 otsu equipment arrangement plan.jpg
    Ohka 43 otsu equipment arrangement plan.jpg
    218 KB · Views: 120
  • Ohka 43 type otsu mockup.jpg
    Ohka 43 type otsu mockup.jpg
    321 KB · Views: 134
  • Ohka 43 launching system.jpg
    Ohka 43 launching system.jpg
    188.1 KB · Views: 131

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Hi all!

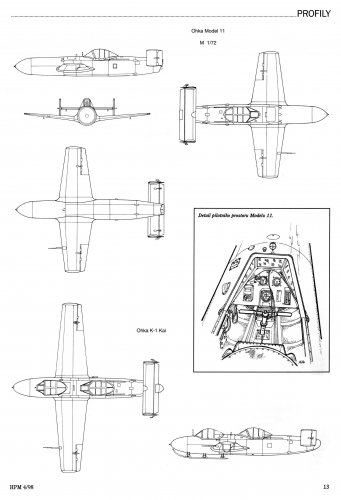

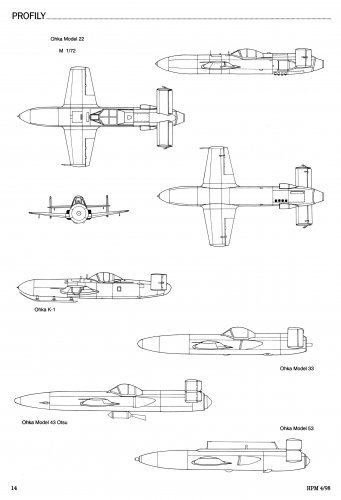

Some drawings from Czech HPM magazine (History & Plastic Modelling), No.4/1998.


Attachments

  • HPM 4-98_13.jpg
    HPM 4-98_13.jpg
    465.5 KB · Views: 146
  • HPM 4-98_14.jpg
    HPM 4-98_14.jpg
    362.2 KB · Views: 187

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

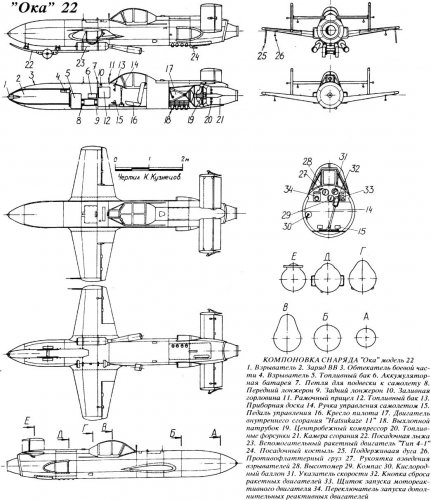

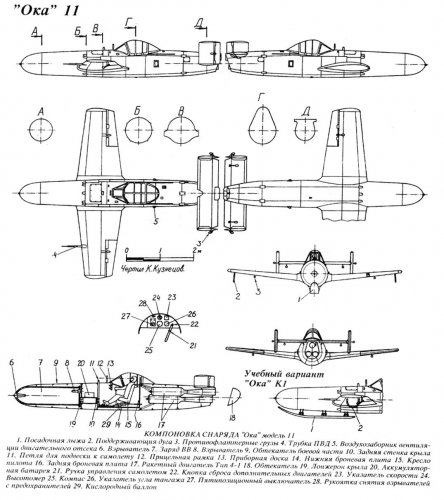

Also from Russian magazine Aviatsiya i Kosmonavtika, No.2/1999 (drawings by Konstantin Kuznetsov).


Attachments

  • 22-1.jpg
    161.1 KB · Views: 305
  • 23-1.jpg
    201.8 KB · Views: 316

Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
I've not been able to verify the existence of the Ohka Model 53 in wartime sources. Nevertheless, I don't fully discount that it wasn't an actual version of the Ohka. My reasoning is that while the IJA was investing in the I-Go series (Ki-147, Ki-148, and the I-Go-1-C) of air launched missiles, the IJN had only one, the Funryu 1, and it was a failure. So, with the IJN having the Ohka already in production and proven to work in so far as flying, it would make sense to attempt to modify it with a non-human guidance system as a means to quickly obtain a workable air-to-surface missile.

windswords said:
I heard that 53 was a postwar imaginary version.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

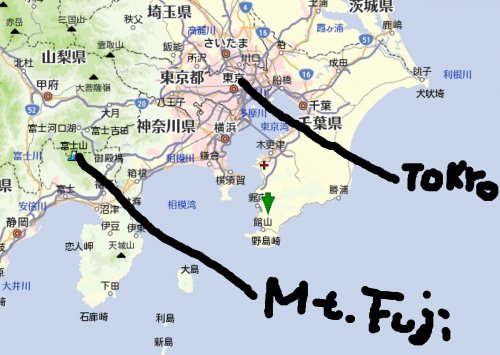

No no! Tateyama(館山)
Shimotakida base(下滝田基地)


Attachments

  • Shimotakida_Tateyama.jpg
    623.2 KB · Views: 629

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
9

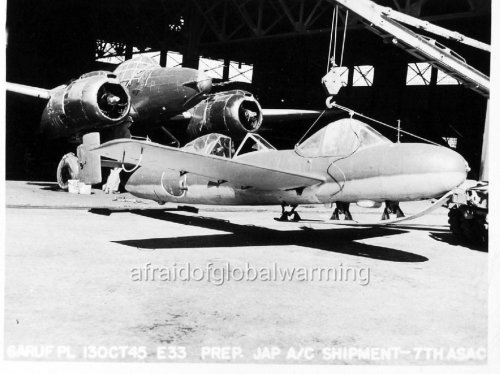

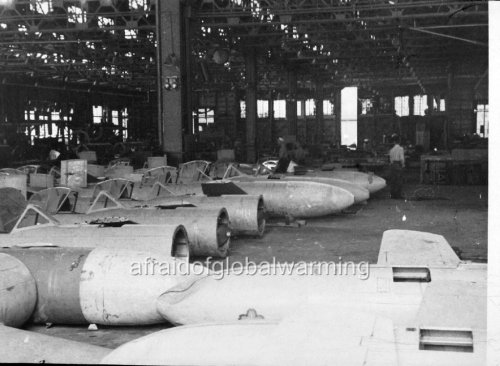

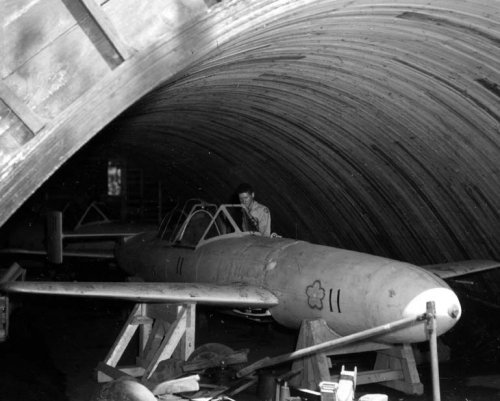

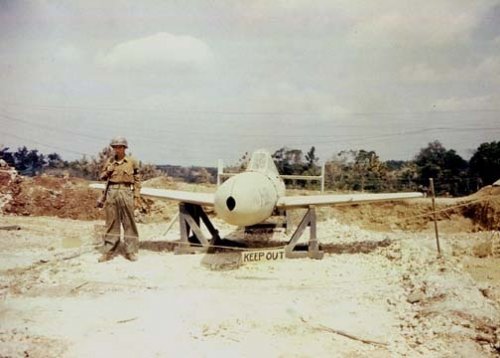

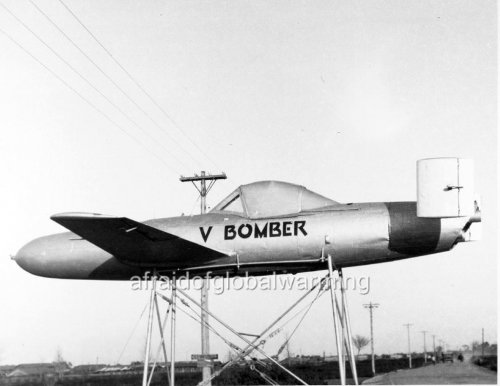

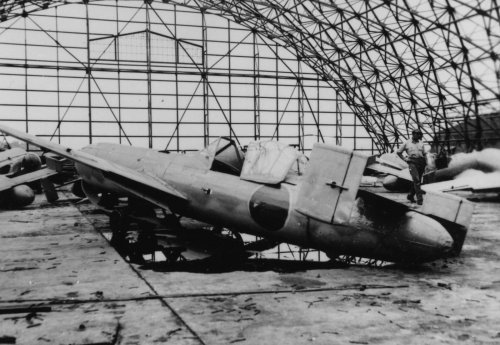

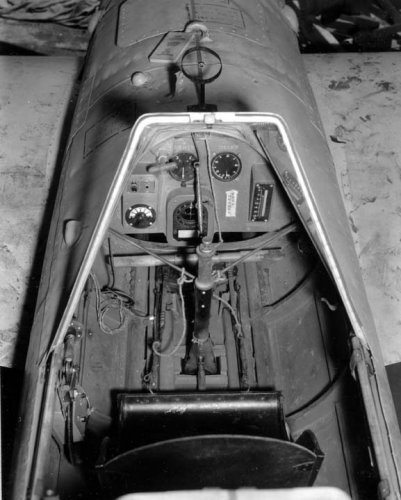

Few 1945 pics


Attachments

  • okha1.JPG
    332 KB · Views: 473
  • okha2.JPG
    71.8 KB · Views: 431
  • okha3.JPG
    373.5 KB · Views: 277
  • okha4.JPG
    34.7 KB · Views: 254
  • okha5.JPG
    72.6 KB · Views: 95

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
9

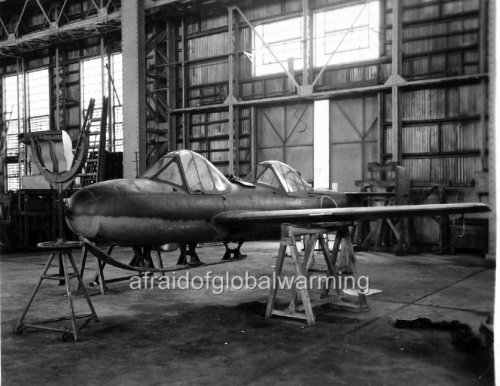

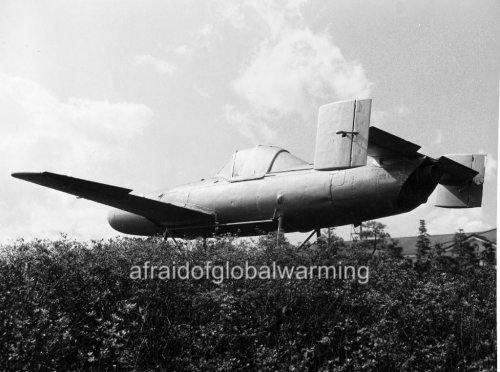

Another list of pics
