Yak 15? RD10?

Tojo633

ACCESS: Restricted
Joined
Dec 12, 2008
Messages
5
Reaction score
0
Hi
Anyone got any info on these pics, one is on Wikepedia as a Yak 15 but look again at the undercarriage? These are on the web on a couple of sites, no intention to breach any copyrights etc on the images. Ok look closely on the main undercariage layout so not quite a normal Yak 15, TSR joe reckons they could be test bed for Yak 23 development, laminar flow wings or Yak 23 wing/engine test bed??
Anyone got any info?
Thanks
Sandy


Attachments

  • Yak15-3.jpg
    34 KB · Views: 292
  • yakovlev_yak15(rd10)_01.jpg
    53.1 KB · Views: 278

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
585
Reaction score
85
Anyone got any info?

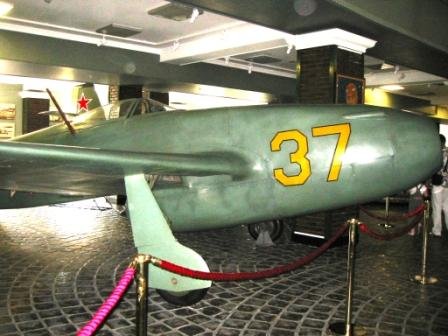

No new info, just a photo of a standard Yak-15's landing gear to show the difference. (Vadim Zadorozhny Museum, Moscow)


Attachments

  • Yak-15small.JPG
    32.7 KB · Views: 246

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,252
Reaction score
1,912
Found at http://xplanes.free.fr/lavo/arl-4.html


Attachments

  • 66.jpg
    53.1 KB · Views: 237

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

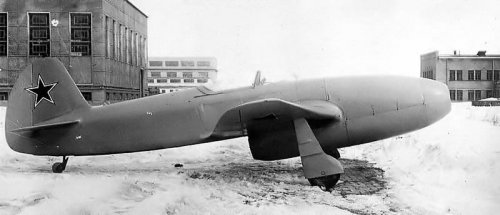

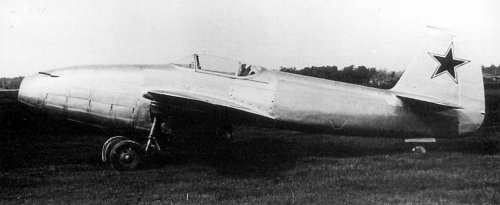

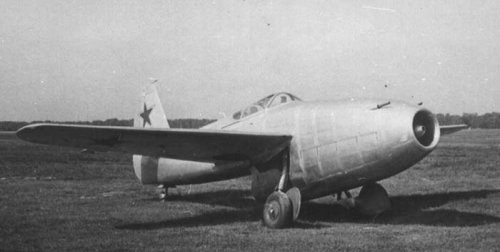

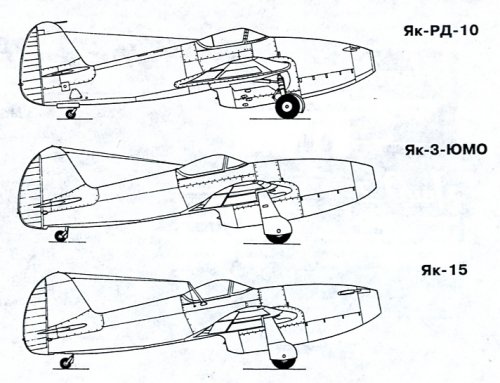

Experimental fighters Yak-RD-10 and Yak-3-YUMO(Jumo 004) / future Yak-15 / 1946
Yak-3-YUMO is a modification of the serial Yak-3,
Yak-RD-10 of his "rival" was an entirely new plane (despite the obvious similarities) with a more modern layout and wing feathers, which is its advantage. Nevertheless, preference was given exactly the Yak-3-YUMO as best suitable for the transition to the combatant forces reactive/jet technique.
AviO magazine #5; 6-94


Attachments

  • Yak-15 (early).jpg
    Yak-15 (early).jpg
    243.6 KB · Views: 282
  • Yak-RD-10.jpg
    99.9 KB · Views: 104
G

gery

Guest

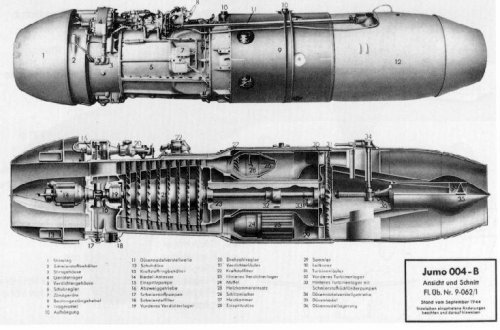

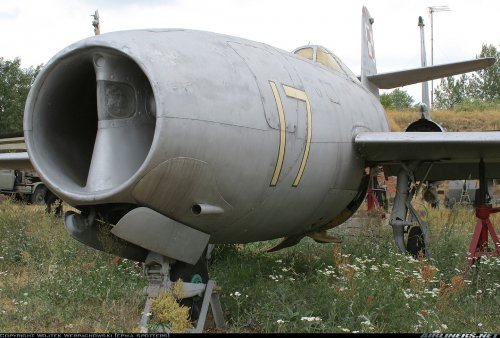

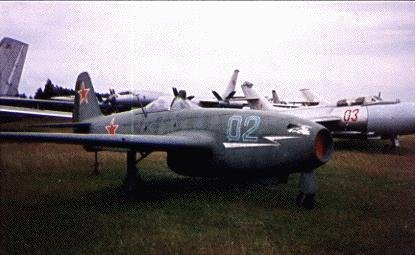

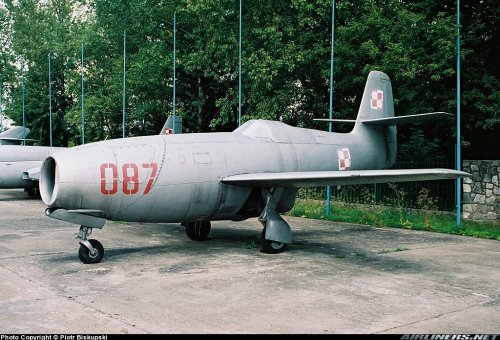

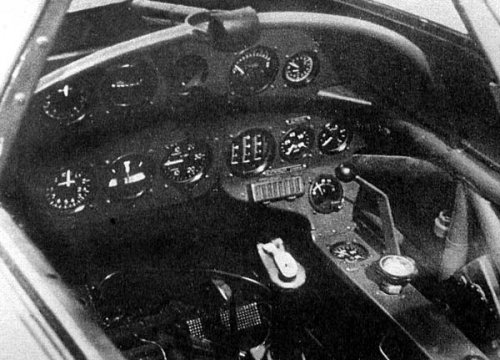

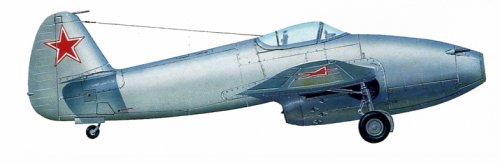

I love this plane....the son of german project....with a jumo 004..???


Attachments

  • yak-15-004.jpg
    68.4 KB · Views: 74
  • yak15 2.jpg
    yak15 2.jpg
    18.7 KB · Views: 56
  • yak-15-002.jpg
    30.6 KB · Views: 64
  • yak-15-001.jpg
    39.1 KB · Views: 67
  • yak15.JPG
    8.6 KB · Views: 1,007
  • attachment 2.jpg
    attachment 2.jpg
    75.7 KB · Views: 70
  • attachment.jpg
    98.2 KB · Views: 92
G

gery

Guest

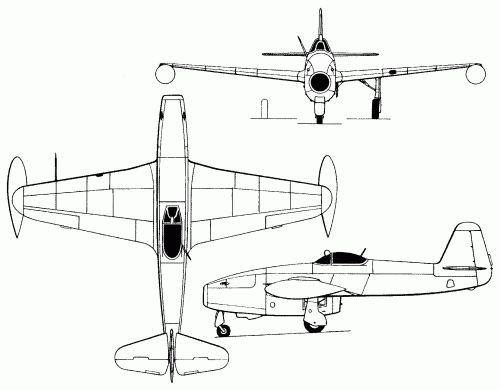

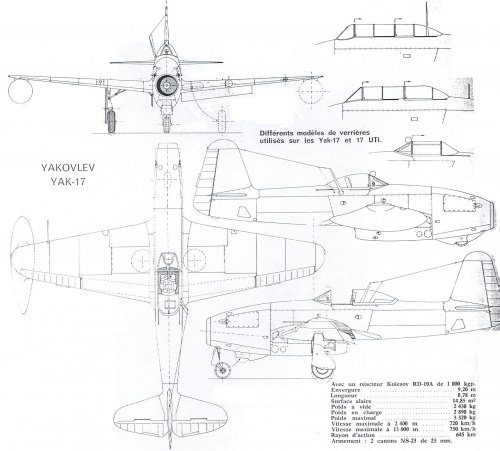

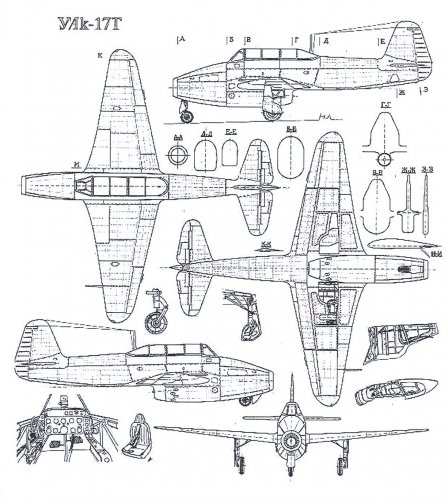

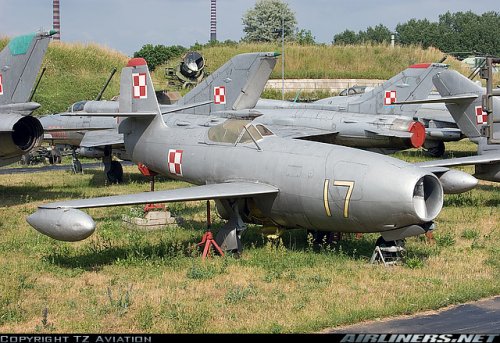

just a 3 view of yak 17 modified version of yak 15

and somepict of final modification about yak 23...


Attachments

  • 1097055 2.jpg
    1097055 2.jpg
    659.4 KB · Views: 52
  • 0785142.jpg
    424.8 KB · Views: 54
  • 1157964.jpg
    173.5 KB · Views: 65
  • yak-17.gif
    29.3 KB · Views: 74
G

gery

Guest
Two nice video...

http://www.youtube.com/watch?v=bFXAdrJoQl0

http://www.youtube.com/watch?v=uDPNZoGbRYg&feature=related


Tojo633

ACCESS: Restricted
Joined
Dec 12, 2008
Messages
5
Reaction score
0
Borovik
Many thanks for the images and input, much appreciated. Any further thoughts on the exact wing shapes? more Yak 3 than 23?

All
Thanks for the pics and replies,
Cheers
Sandy


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Tojo633 said:
Borovik
Any further thoughts on the exact wing shapes? more Yak 3 than 23?
Cheers
Sandy
Unfortunately in my files, no images of the wing, but of the many
a description of that is still closer to the Yak-3 (although the wing had a different form in terms of - front edge at the root of the wing was straight),
but mechanization wing with high-speed, laminar (laminizirovannymi) profiles
TsAGI was like the future of the Yak-23. In addition: ejector
seat, the presence of frontal armor glass thickness 55mm. The new chassis (the old not fit in
thin wing) main wheels 600h180mm size, the distance between them in the track 2m.,
tail metal 230h180mm.
Estimated maximum speed of the Yak-RD-10 (reference to another symbol of the Yak-17-RD-10 from E. Gordon /)-850km


Tojo633

ACCESS: Restricted
Joined
Dec 12, 2008
Messages
5
Reaction score
0
Borovik

Thanks for the reply, having looked at the 3/4 view picture the main wing appears to be straight by comparison to the normal Yak type wings. One last question looking at the picture does the main wheel tuck into a well on the underside of the wing even with the main leg etc retracting into the fuselage?
Cheers
sandy


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Main undercarriage is mounted to force the elements of the fuselage and remove the fuselage back to the niche with turning 180 degrees around the longitudinal axis of rack.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,252
Reaction score
1,912

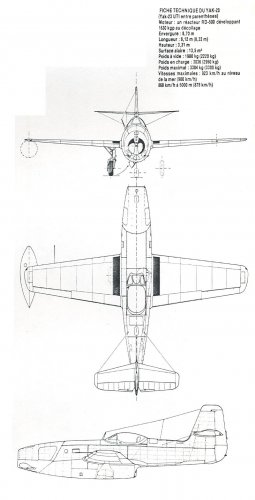

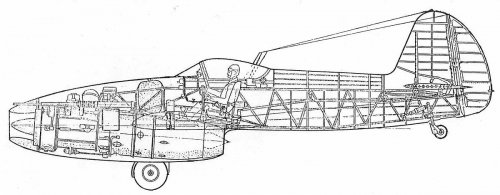

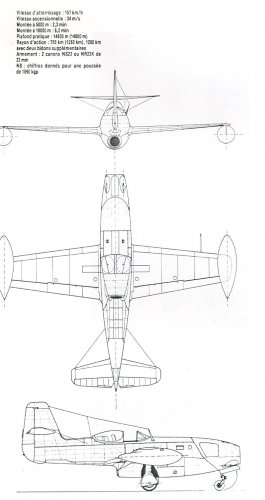

Found some drawings
I hope it is useful ...


Attachments

  • Escanear0004.jpg
    107.1 KB · Views: 84
  • Escanear0003.jpg
    113.9 KB · Views: 77
  • Escanear0002.jpg
    269.3 KB · Views: 78
  • Escanear0001.jpg
    236.4 KB · Views: 98
  • Escanear0004.jpg
    107.1 KB · Views: 84
  • Escanear0003.jpg
    113.9 KB · Views: 96
  • Escanear0002.jpg
    269.3 KB · Views: 118
  • Escanear0001.jpg
    236.4 KB · Views: 137

Tojo633

ACCESS: Restricted
Joined
Dec 12, 2008
Messages
5
Reaction score
0
All

Thanks for the input on the mystery Yak 15

Best wishes, now lets see if I can cobble one together.

Cheers

Sandy


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
Resurrecting this topic but has there been any evidence to suggest that Yakovlev's Yak-15 design was influenced in any way by German WW2 projects such as those from Focke-Wulf and Messerschmitt, the latter the P.1092 and P.1106?


foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
280
Reaction score
9
Thanks Justo, you're always an amazingly rich source of rare, interesting & top quality drawings. Much appreciated.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Hikoki1946 said:
has there been any evidence to suggest that Yakovlev's Yak-15 design was influenced in any way by German WW2 projects such as those from Focke-Wulf and Messerschmitt, the latter the P.1092 and P.1106?

Do you think we needed such kind of influence?

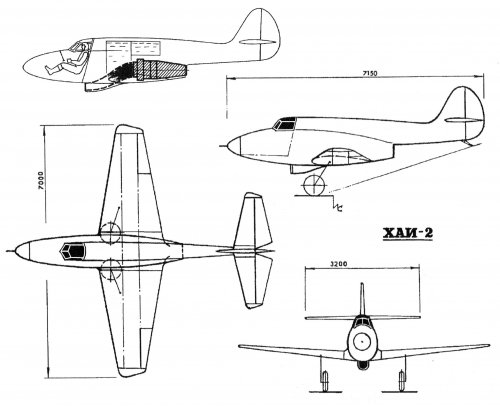

The "redan" layout was originally designed in the USSR, it was used first time by Anatoly Eremenko (or Yeryomenko, for more correct spelling) in his KhAI-2 project proposed already in 1937! This aircraft was discussed at http://www.secretprojects.co.uk/forum/index.php/topic,4919.0.html.

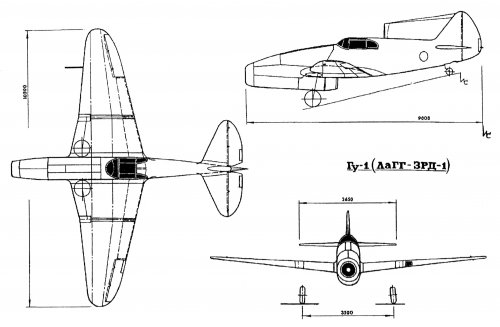

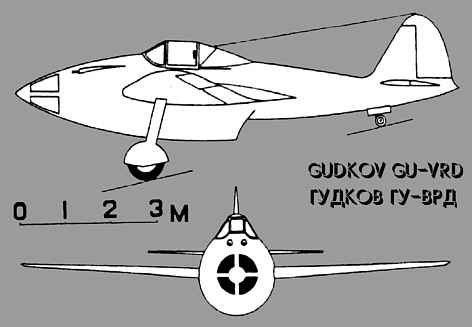

Then it was used by Mikhail Gudkov in his projects of LaGG-3 modification for Lyulka RD-1 engine (1942) and more advanced, special designed Gu-VRD (1943).
http://www.secretprojects.co.uk/forum/index.php/topic,2423.0.html


Attachments

  • KhAI-2_3view.jpg
    185.8 KB · Views: 215
  • LaGG-3RD-Sultanov_3view.jpg
    233.7 KB · Views: 195
  • guvrddr.jpg
    12.8 KB · Views: 175

Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
Given that none of the books I have on early Soviet jet development ever mention German influence in regards to the likes of the Yak-15, I was pretty sure there was none. Yet at least one book on German experimental planes tries to make that connection so I had to ask as I know there are a number of Russian aviation authorities here who can set the record straight. :)

redstar72 said:
Do you think we needed such kind of influence?


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

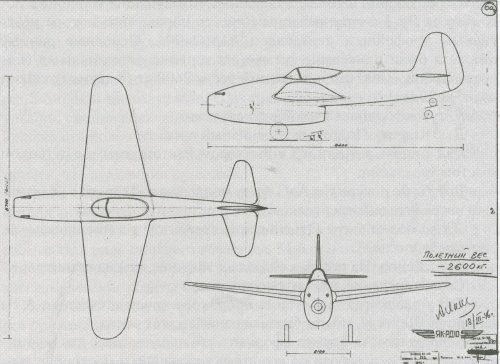

The Yak-RD-10 3-view sketch is discovered!
Now we KNOW its wing planform!


Attachments

  • Scan10634 resize.jpg
    Scan10634 resize.jpg
    791.6 KB · Views: 161
