WWI British Exp. Navyplane

memaerobilia

CLEARANCE: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
0
Website
www.memaerobilia.com
I have a LOT of Original aviation art, including over 100 original paintings and sketches that were exhibited in the Smithsonian, in a major exhibition. One set I have is a group of several dozens of beautifully detailed Original Pen & ink dwgs from 1946-1948 done by the World's leading authority on the subject of WWI British aircraft, the late J.M.Bruce. Bruce wrote the massive and definitive reference work on the subject. Here is one sample.

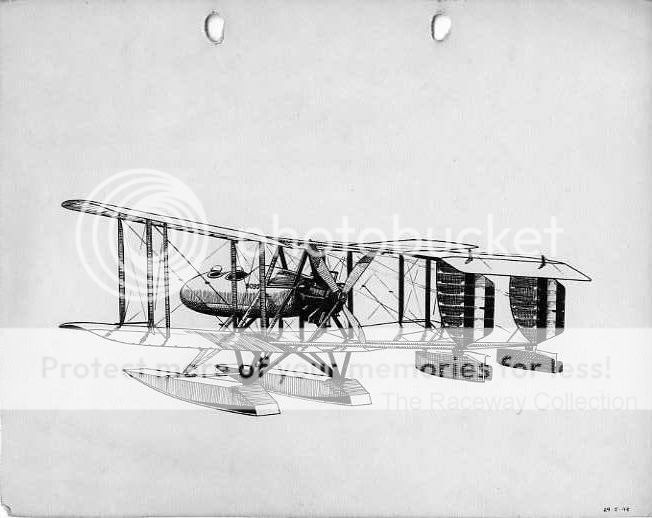

This is the A.D. (Air Dept.) Navyplane #9095 with Smith Static radial engine. 1916 design by A.J. Mitchell & Richardson of Supermarine. Only one built. This dwg. dated 29/5.48. The Smith radial was also one of the first radial aero engines to go though extensive R & D, at the time. I've left this scan at a decent size so you might be able to appreciate the detail. There were a great many one-of-a-kind experimental aircraft in WWI. Bruce did quite a few pen & ink dwgs of them.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,607
Reaction score
581
Hi Memaerobilia,


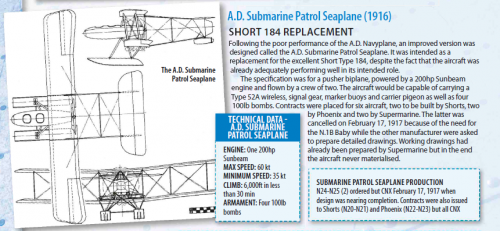

here is the Supermarine AD flying boat of 1916 3-view.


Attachments

Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,189
Reaction score
37
The AD Navyplane was not designed by Mitchell and Richardson but by Harold Bolas and the AD team.

Correct 3-view but wrong name, Hesham


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Do I have this right? The AD 1 was first powered first by the 10-cyl Smith Static, then re-engined with an AR I (Admiralty Rotary, aka BR.1 Bentley Rotary).

The Submarine Patrol Seaplane shown in Hesham's 3-view drawing was an unbuilt project. A bigger evolution of the AD 1, the Submarine Patrol Seaplane was to be powered by a 200 hp Sunbeam (Arab I V-8?).

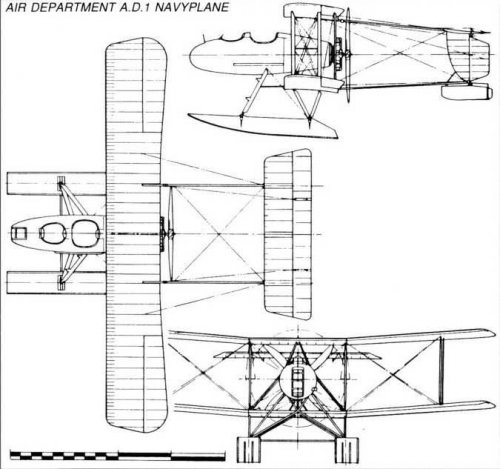

AD 1 3-view from Putnam's British Bomber Since 1914 by Francis K. Mason


Attachments

Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,189
Reaction score
37
Yes, that appears to be the story. I do not know the source for the Patrol Seaplane 3-view, the original blueprints do not appear to be in the Supermarine archive.


Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,189
Reaction score
37

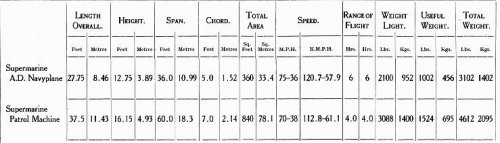

Here is a comparison between the AD Navyplane and the Patrol Seaplane from Supermarine's 1919 brochure. I was surprised how much larger the Patrol was to have been
