Wote: engines do u think suitable for those go 229 unbuilt variants

Which engine do u think that it suitable for go 229a,go 229b,go 229c.

  • BMW 003

    Votes: 2 22.2%
  • Heinkel He S 011

    Votes: 5 55.6%
  • Allison J35

    Votes: 2 22.2%

  • Total voters
    9

sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
Actually, a better but not mentioned engine would have been the HeS 30/109-006, which would have had the advantage of more power and more development potential than the similar sized BMW 109-003 which had been originally proposed for the Horton, and for that matter, potentially far better than the larger and heavier Jumo 109-004. Unfortunately, the RLM didn't want it, as it was behind the other two engines in the development curve at that point in '42, and it languished as only some prototypes.
The Horton would have done best with a narrow axial flow jet, perhaps one of the early Westinghouse types, if we include post war sources? Any of the advanced 109-004s would have a bit more power, but would still have a poor power to size/weight ratio. There was the possiblity of an advanced 109-003 or follow-on design with better power to size/weight ratio, but they were still not much more than paper or lab hardware stage. The HeS 109-011 was a bust as an engine, difficult to build and possibly not as powerful as planned(?) and a bit fat for the Horton.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,360
Reaction score
2,437
I'm for the BMW 109-003, proposed for the Horton brother

after the second world war,
the french SNECMA used BMW 109-003
as base for there new engine the Atar series
with help of Herman Őstrich and his team,
(the designer of BMW 109-003)


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210

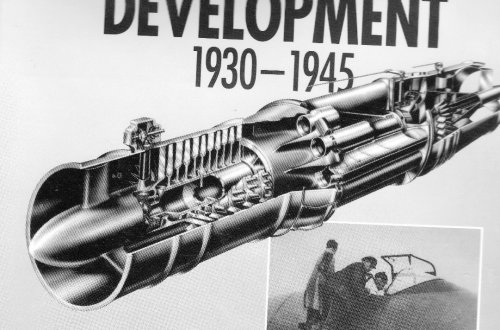

The designer of the 011 said the He 006 was the better engine If it was fully developed it was to put out 2650lb's. From the book German Jet Engine By Antony Kay my cutaway is not good enough.


Attachments

  • He 006.jpg
    He 006.jpg
    274.4 KB · Views: 47

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,075
Reaction score
240
The engine-in-wing design of the Ho-IX apparently caused problems for swapping engines. The need to upgrade the powerplants as better engines become available is apparently the priamry reason for the engine layout adopted by the Gotha follow-on project "P.60"
