Hi,

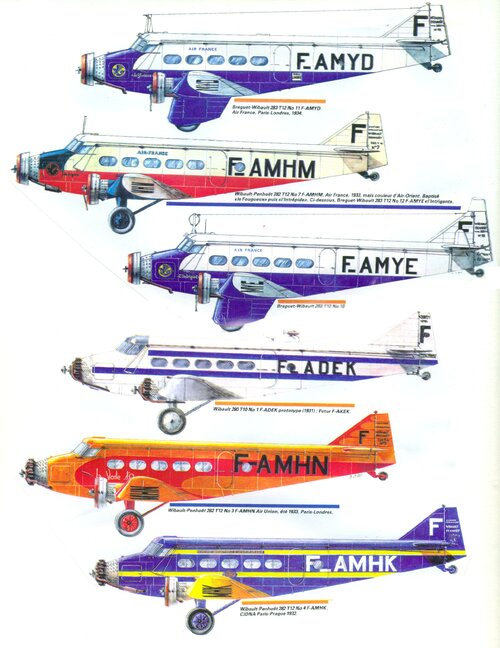

The Wibault-230T was three engined transport aircraft project,
but I have no more details.

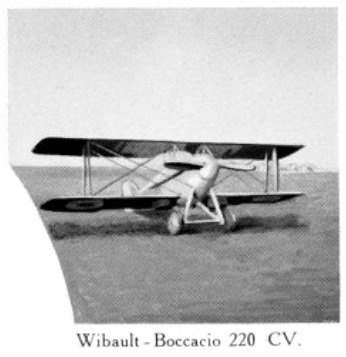

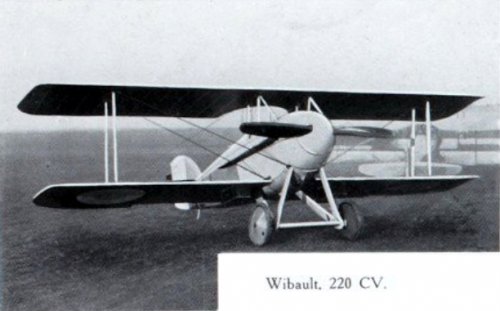

Just discovered this Wibault-Boccaccio biplane from World War I.

Didn't even know Wibault was already active in aviation at that time!


Attachments

  • Wibault-Boccacio 220 HP.jpg
    Wibault-Boccacio 220 HP.jpg
    56.3 KB · Views: 1,028
A better view of the Wibault-Boccaccio, now only called a Wibault (although it seems to be the same type):


Attachments

  • Wibault biplane.jpg
    Wibault biplane.jpg
    109.7 KB · Views: 980
Stargazer2006 said:
A better view of the Wibault-Boccacio, now only called a Wibault (although it seems to be the same type):


It was Wibault Wib.1 single seat fighter.

From "aviation magazine"
les avions Wibault

The Wibault 1 c1


Attachments

  • wib 1 c 1.jpg
    wib 1 c 1.jpg
    116.2 KB · Views: 1,146

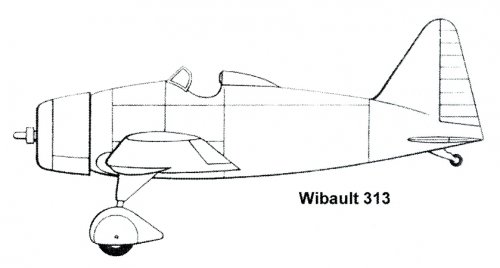

The Wibault 313 (also found variously as the Wibault Wib 313 or Wibault-Penhoët Wib 313) was a single engine, single seat low wing monoplane fighter submitted to the 1931 C1 (single-seat fighter) competition (won by the Dewoitine D.500). Only one prototype was built.

More info on Wikipedia and on AviaFrance.


Attachments

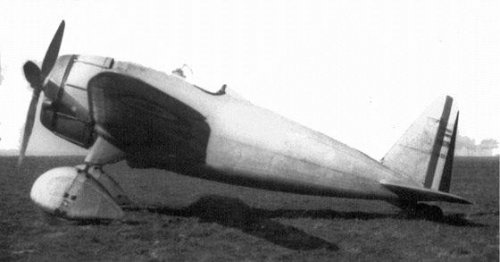

  • Wibault 313 side view.jpg
    Wibault 313 side view.jpg
    20.7 KB · Views: 615
  • Wibault 313 profile.jpg
    Wibault 313 profile.jpg
    77.8 KB · Views: 612
Stargazer2006 said:
Just discovered this Wibault-Boccacio biplane from World War I.

Again, that caption has a typo -- it should be Boccaccio (after Paul Boccaccio) not 'Boccacio'.

Apophenia said:
Again, that caption has a typo -- it should be Boccaccio (after Paul Boccaccio) not 'Boccacio'.

Thanks for the tip, I've corrected to spelling in the posts at least.

By the Way,


- The Wibault 310 was a single seat fighter with Lorraine Petrel engine.


- The Wibault 311 was a single seat fighter with Farman engine


- The Wibault 312 was a single seat fighter with Hispano-Suiza 12X engine.

Hi,

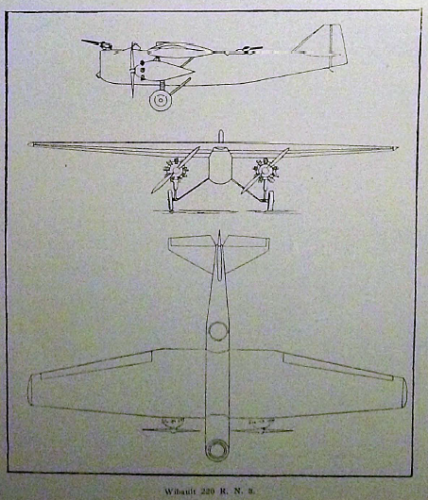

here is a 3-view to Wibault Wib.220 RN.3 airplane .

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201930%2005.pdf


Attachments

  • b.png
    502.5 KB · Views: 144

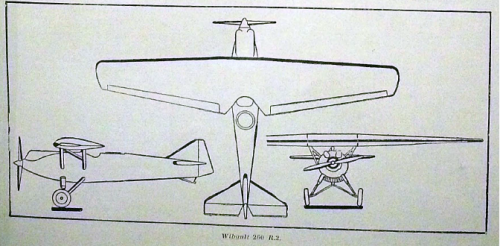

Also a 3-view to Wibault Wib.260 R.2 airplane.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201931%2002.pdf


Attachments

  • 1.png
    477.5 KB · Views: 121
Hi all,

Interesting to see info on the unknown projects of wibault, does anyone mabe have info (drawing, pictures, anything?) on the wibault 340? Very little to nothing to be found on the web... Thanks!

rlucas said:
does anyone mabe have info (drawing, pictures, anything?) on the wibault 340? Very little to nothing to be found on the web... Thanks!


rlucas said:
Hi all,

Interesting to see info on the unknown projects of wibault, does anyone mabe have info (drawing, pictures, anything?) on the wibault 340? Very little to nothing to be found on the web... Thanks!

Hi Rlucas,

all we know about this Designer and his aircraft and Projects is here;

http://www.secretprojects.co.uk/forum/index.php/topic,17963.msg171572.html#msg171572

Hello Hesham,

Ah! I did not see that thread in the designation system area, many thank in any case for the three view and picture! :)

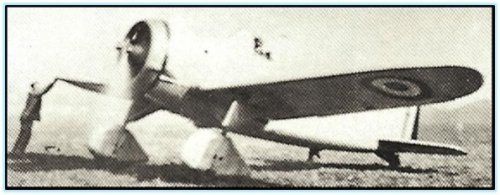

Hi! Wibault 313 picture.

https://raigap.livejournal.com/603808.html

https://en.wikipedia.org/wiki/Wibault_313


Attachments

  • Wibault 313.jpg
    Wibault 313.jpg
    55.6 KB · Views: 373

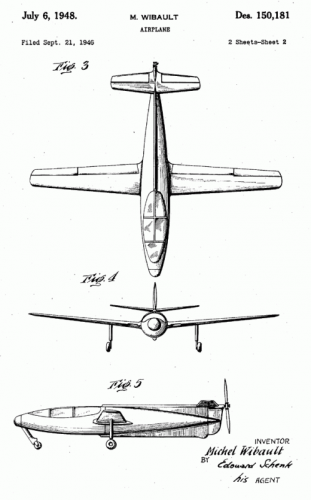

Curiously, my very first 3d project was about WIbault, I've re-created as a little model.
Enjoy!


Attachments

  • plane_153_l.preview.png
    39.8 KB · Views: 309
  • wibault per render interno 2013-01-12 20291500000.png
    wibault per render interno 2013-01-12 20291500000.png
    1.3 MB · Views: 320
I also really liked your model. In fact, I happened to be discussing jet-like propeller-driven designs over at homebuiltairplanes.com and shared your images over there with a link back to this page. I hope you don't mind. Cheers, Matthew

http://www.homebuiltairplanes.com/forums/showthread.php?t=28923&p=414808&viewfull=1#post414808

cluttonfred said:
I also really liked your model. In fact, I happened to be discussing jet-like propeller-driven designs over at homebuiltairplanes.com and shared your images over there with a link back to this page. I hope you don't mind. Cheers, Matthew

http://www.homebuiltairplanes.com/forums/showthread.php?t=28923&p=414808&viewfull=1#post414808

Thank you!

From Aviation Magazine 1966,

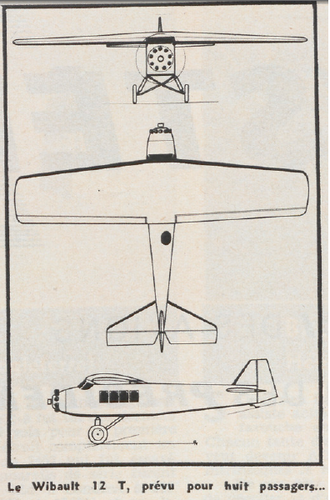

here is a Wibault Wib.12T,a light transport version Project of Type-12.


Attachments

  • 1.png
    411 KB · Views: 122
  • 2.png
    131 KB · Views: 102
Last edited:
From Aviation Magazine 1966,

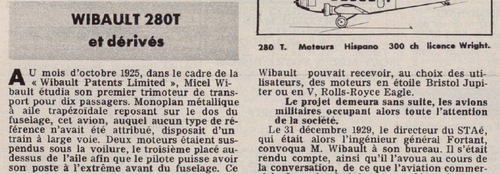

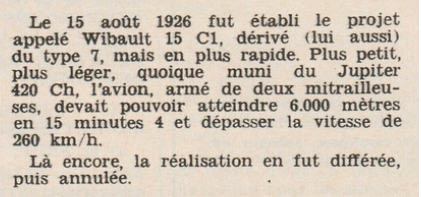

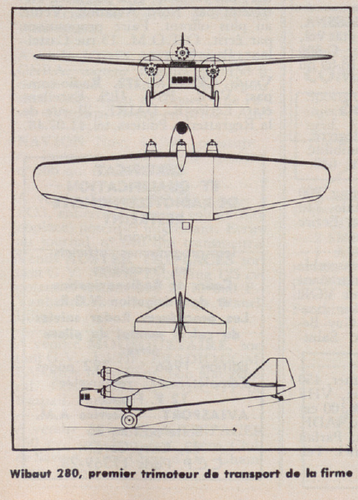

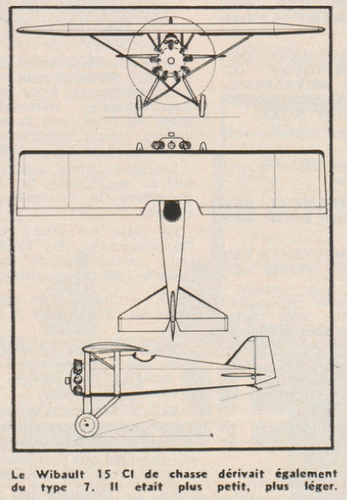

here is a Wibault Wib.15 C.1 single seat fighter Project,and Wib.280T early concept,which
powered by three engined,one of them mounted above the wing,only Project.


Attachments

  • 1.png
    451.5 KB · Views: 86
  • 2.png
    474.7 KB · Views: 83
  • 3.png
    177.7 KB · Views: 76
  • 4.png
    526.1 KB · Views: 98
From Aviation magazine 1966,

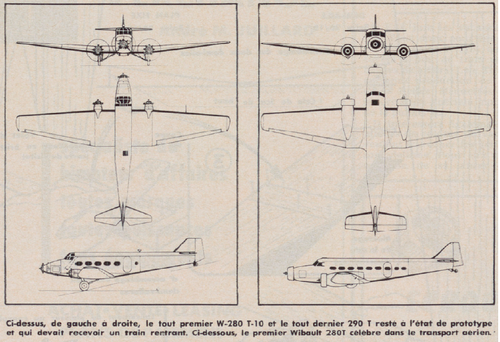

here is a Wibault Wib.290T,a low-wing three engined medium transport monoplane Project,which was developed from Wib.280,powered by three Hispano-Suiza 9 Va engines,(at the right)


Attachments

  • 1.png
    843.7 KB · Views: 125
Last edited:
From Aviation magazine 1966,

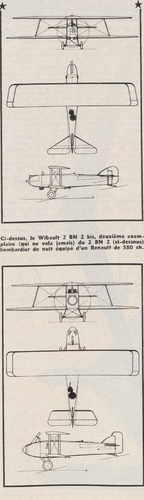

here is a two different shapes for Wibault Wib.2 ?.


Attachments

  • 1.png
    1.5 MB · Views: 107
Random question, what is the point of having the shorter biplane wing on the top? I have seen inverted sesquiplane designs with the smaller, narrower-chord wing on top to improve the pilot/observer's visibility or the gunner's field of fire but I don't see the advantage in this case.

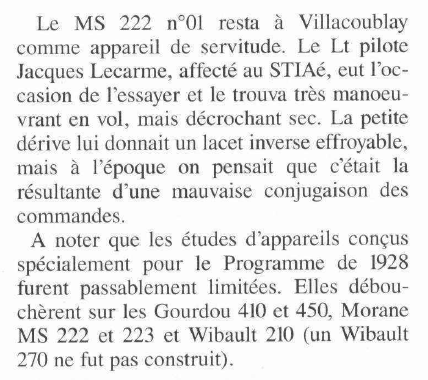

From the magazine,Avions 75,

here is a hint to Wibault Wib.270 single seat fighter Project.


Attachments

  • 270.png
    107.9 KB · Views: 83
From Aviation magazine 1963,

here is a small Info about Wib.364,maybe a Project ?;

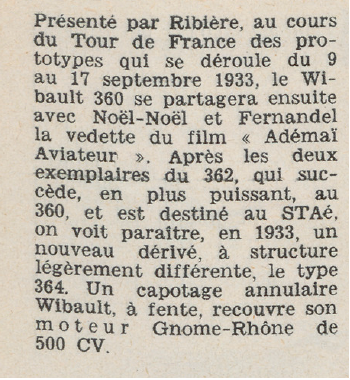

Presented by Ribière, at the Cours of the Tour de France of prototypes which takes place from September 9 to 17,
1933, the Wibault 360 will then be shared with Noël-Noël and Fernandel the star of the film “Adémaï Aviator ”. After
the two copies of 362, which succeeds, in more powerful, to 360, and is intended for STAé, we see, in 1933, a new derivative, structured slightly different, the type 364. An annular cover Wibauit, slit, covers its Gnome-Rhône engine
500 hp.


Attachments

  • Wibault.png
    277.7 KB · Views: 52
From Aviation Magazine 1966,

here is a Wibault Wib.12T,a light transport version Project of Type-12.
More Info from TU magzine,

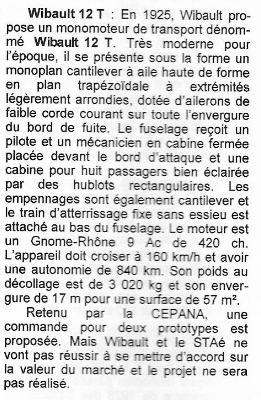

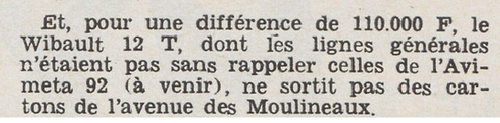

Wibault 12 T: In 1925, Wibault offered a single-engine transport called Wibault 12 T. Very modern for
epoch it comes in the form a
cantilever monoplane with high arch
in trapezoidak plan with ends
slightly rounded, with ailerons of
weak rope running across the span
from the trailing edge. The fuselage receives a
Pilot and mechanic in closed cabin
placed in front of the leading edge and a
Gabine for eight passengers well lit
by rectangular portholes. The
empennages are also cantilevered and
fixed landing gear without axle is
attached to the bottom of the fuselage. The engine is
a Gnome-Rhône 9 Ac of 420 hp.
The aircraft must cross at 160 km / h and have
a range of 840 km. Its weight at
take-off is 3,020 kg and its wingspan of 17 m for a surface area of 57 m2,

Retained by CEPANA. a
order for two prototypes is
proposed. But Wibault and the STAé do not
will not be able to agree on
the market value and the project will not be
not realised.


Attachments

  • 1.png
    112.7 KB · Views: 64

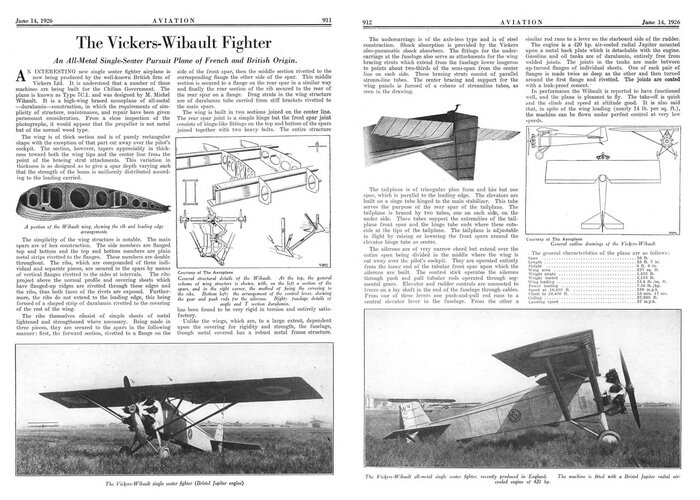

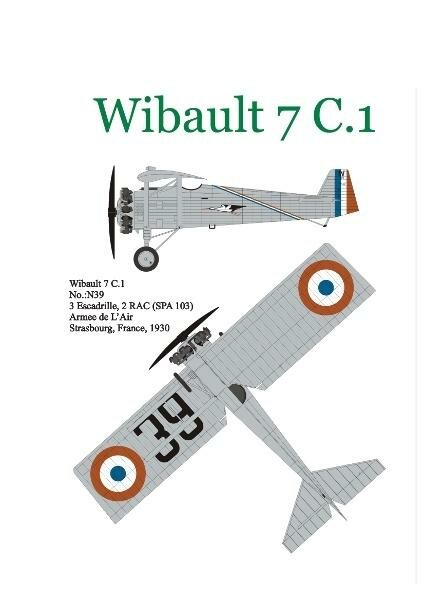

The Wibault Wib.7 C1, winner of the French 1923 pursuit tender, was also produced in Britain by Vickers, as part of their commercial agreement. This double-page article was published in the June 14, 1926 issue of U.S. magazine Aviation, and mentions the fact that some of the production was destined to Chili.


Attachments

  • Vickers-Wibault (Aviation 1926-06-14).jpg
    Vickers-Wibault (Aviation 1926-06-14).jpg
    773.7 KB · Views: 57
BAE Systems has a page on the Vickers-built Wib.7 C1 (ignore the '7.C2' typo in the title) which includes photos of airframes being assembled at Weybridge for Chile.
-- https://www.baesystems.com/en/heritage/vickers-wibault-scout

Vickers referred to the type as their Type 121 Wibault Scout. Apparently, the Aviación Militar and then Fuerza Aérea Nacional referred to its fighter simply as 'Vickers Wibault I'. These aircraft served (1927-1937) alongside the similarly-powered prototype Vickers Type 131 Valiant (although the latter crashed at the Escuela de Aviación Militar within a year).

BAE Systems has a page on the Vickers-built Wib.7 C1 (ignore the '7.C2' typo in the title) which includes photos of airframes being assembled at Weybridge for Chile.
-- https://www.baesystems.com/en/heritage/vickers-wibault-scout

Vickers referred to the type as their Type 121 Wibault Scout. Apparently, the Aviación Militar and then Fuerza Aérea Nacional referred to its fighter simply as 'Vickers Wibault I'. These aircraft served (1927-1937) alongside the similarly-powered prototype Vickers Type 131 Valiant (although the latter crashed at the Escuela de Aviación Militar within a year).
Very nice, thanks!

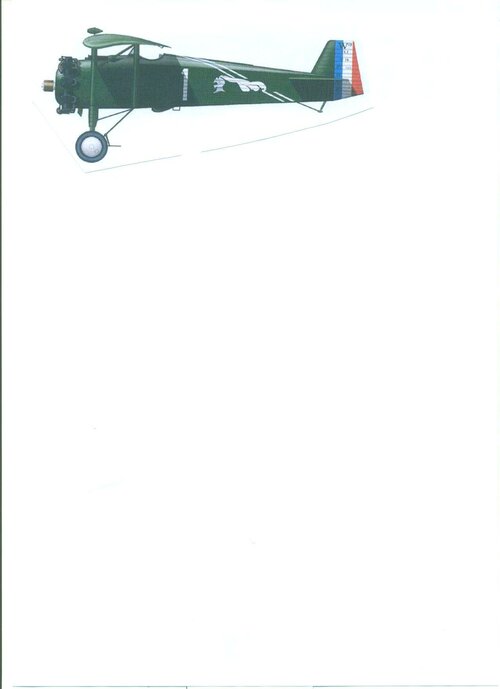

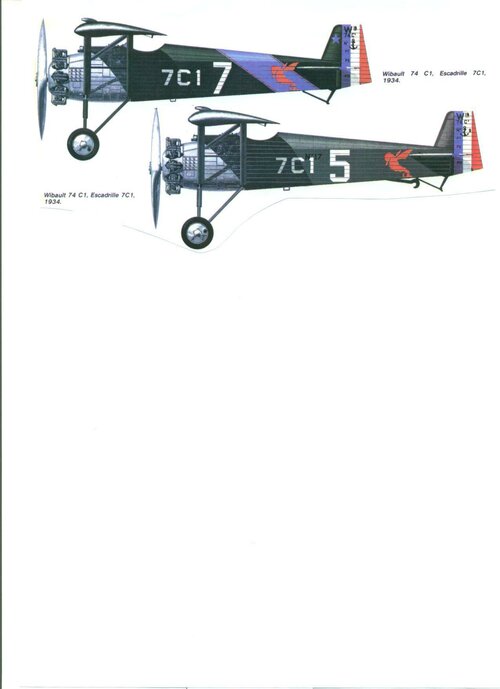

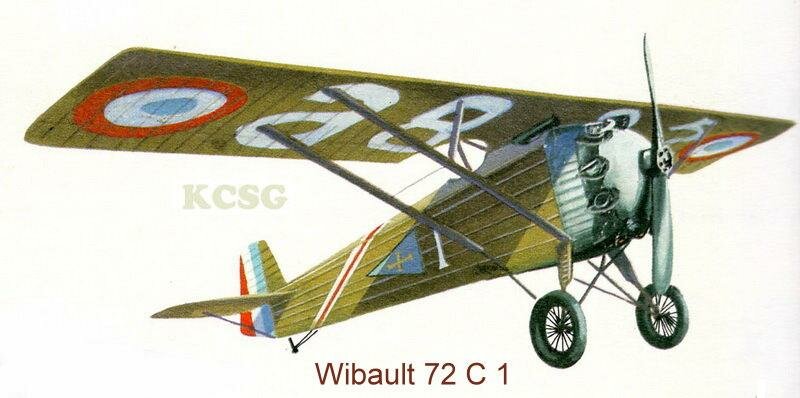

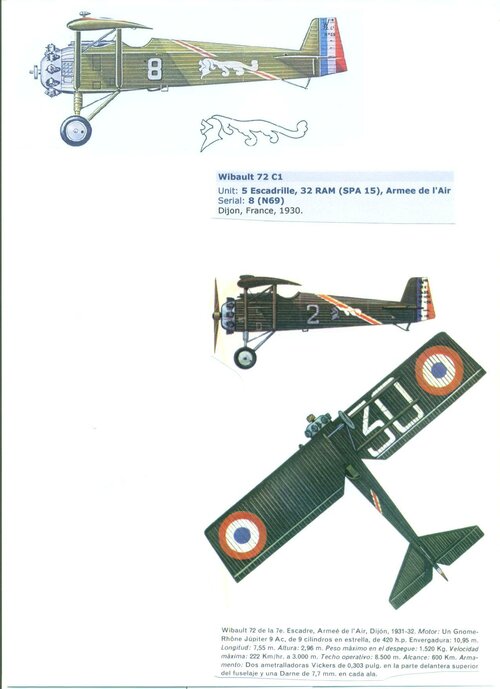

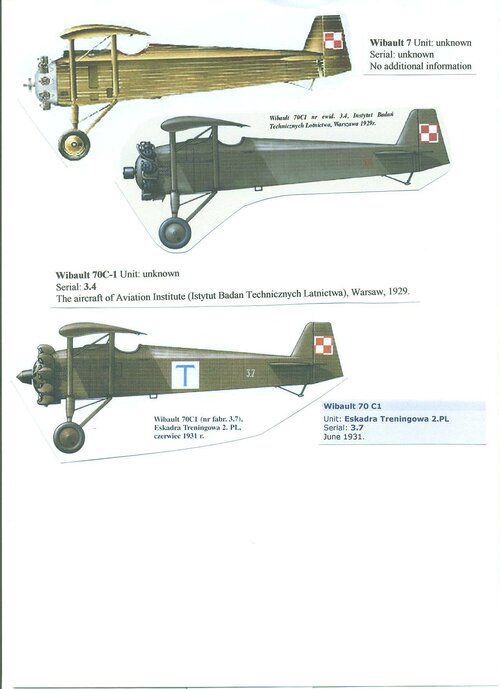

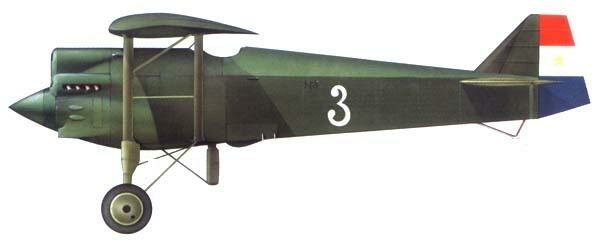

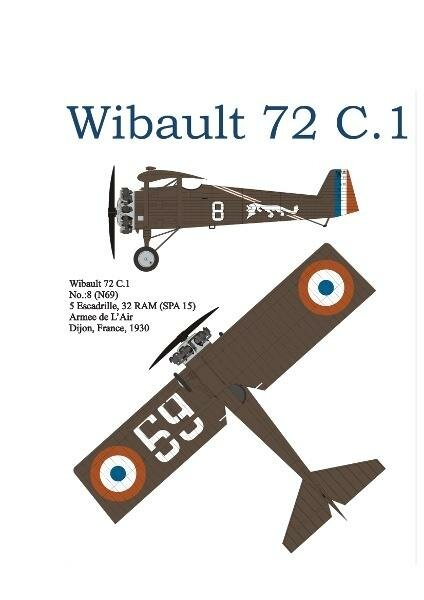

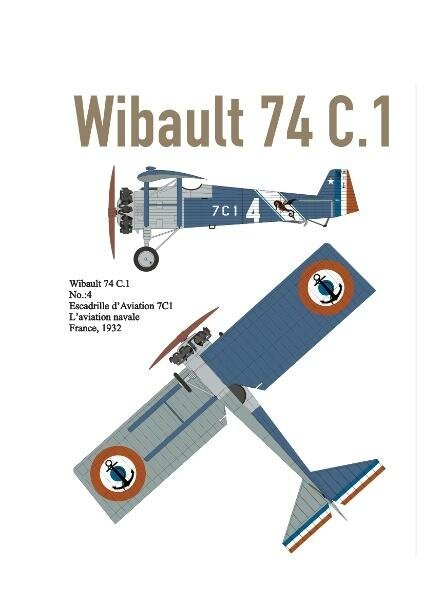

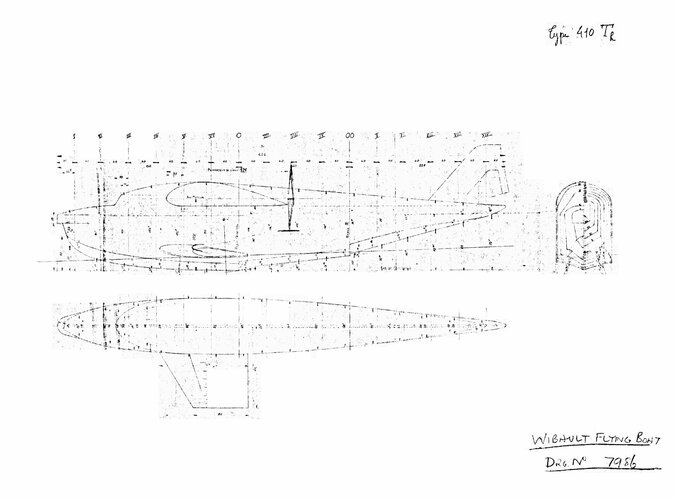

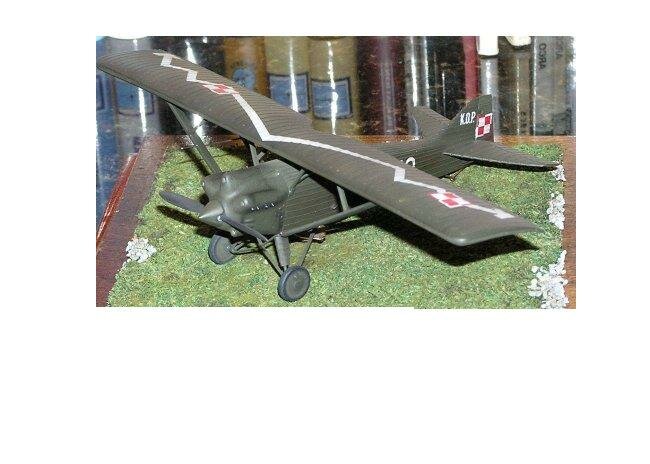

Hi


Attachments

  • 100.jpg
    176.1 KB · Views: 40
  • 200.jpg
    98.3 KB · Views: 29
  • 300.jpeg
    27.2 KB · Views: 35
  • 500.jpg
    717.4 KB · Views: 37
  • 6007404206_254b319787_b.jpg
    44.2 KB · Views: 30
  • ñ 001.jpg
    ñ 001.jpg
    155.3 KB · Views: 26
  • ñ 002.jpg
    ñ 002.jpg
    62.9 KB · Views: 25
  • ñ.jpg
    176.1 KB · Views: 26
  • photos_1223335419.jpg
    41.4 KB · Views: 24
  • phpThumb_generated_thumbnail.jpeg
    26.5 KB · Views: 28
  • phpThumb_generated_thumbnailjpg.jpeg
    26.3 KB · Views: 29
  • wibault7-c1.jpg
    23.4 KB · Views: 50

Attachments

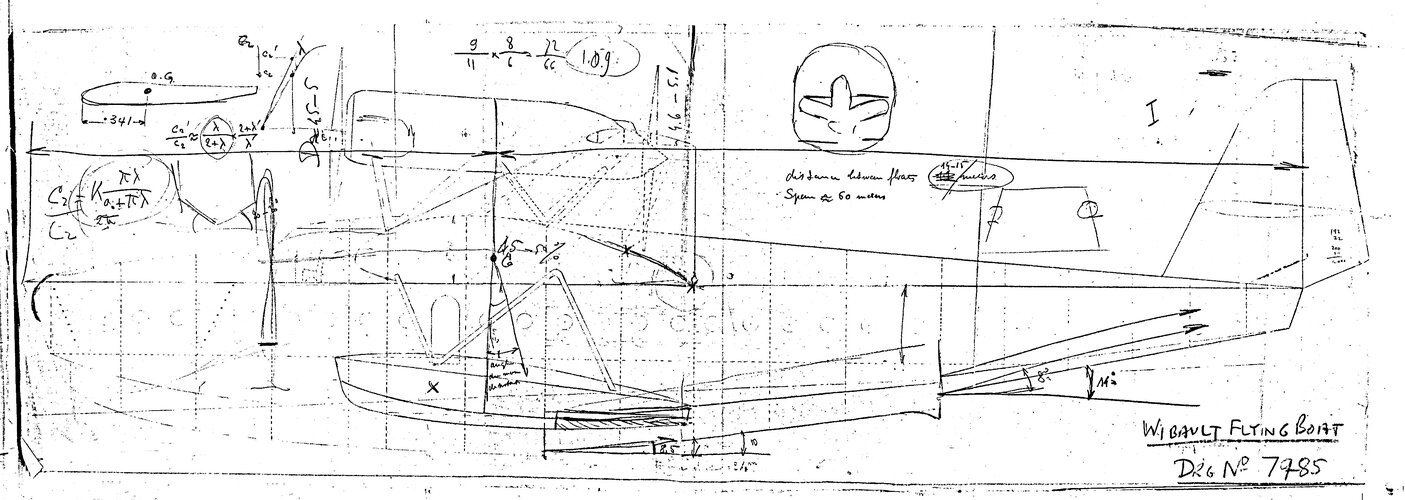

  • 7664 21_7_30.jpg
    7664 21_7_30.jpg
    295.7 KB · Views: 49

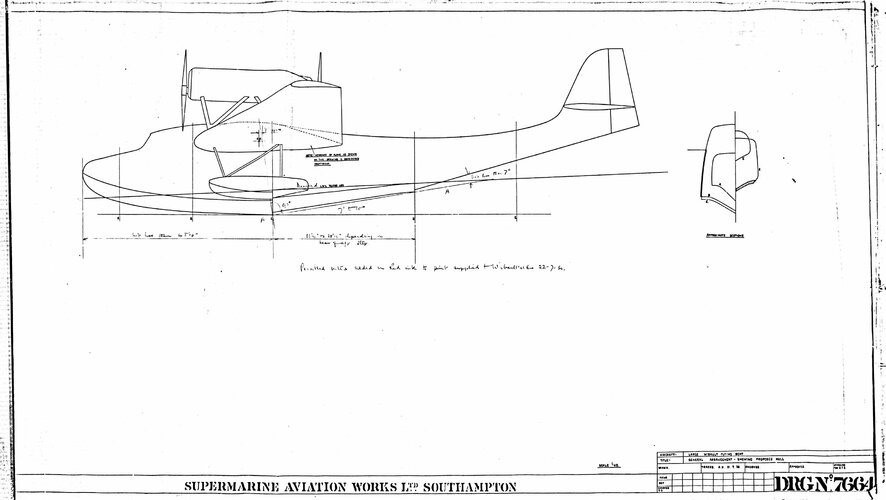

  • 7985.jpg
    1.7 MB · Views: 52
  • 7986 Type410.jpg
    7986 Type410.jpg
    781.8 KB · Views: 48

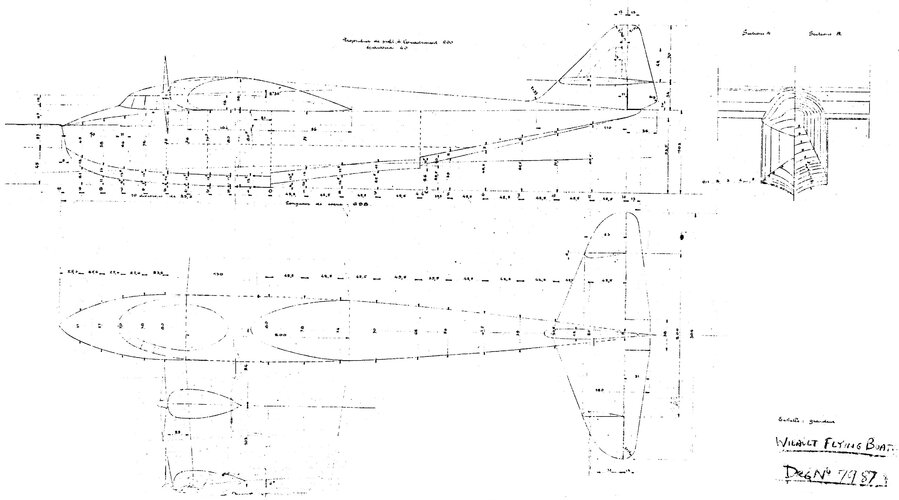

  • 7987 Type440.jpg
    7987 Type440.jpg
    809.1 KB · Views: 60
The Wibault 313 (also found variously as the Wibault Wib 313 or Wibault-Penhoët Wib 313) was a single engine, single seat low wing monoplane fighter submitted to the 1931 C1 (single-seat fighter) competition (won by the Dewoitine D.500). Only one prototype was built.

More info on Wikipedia and on AviaFrance.

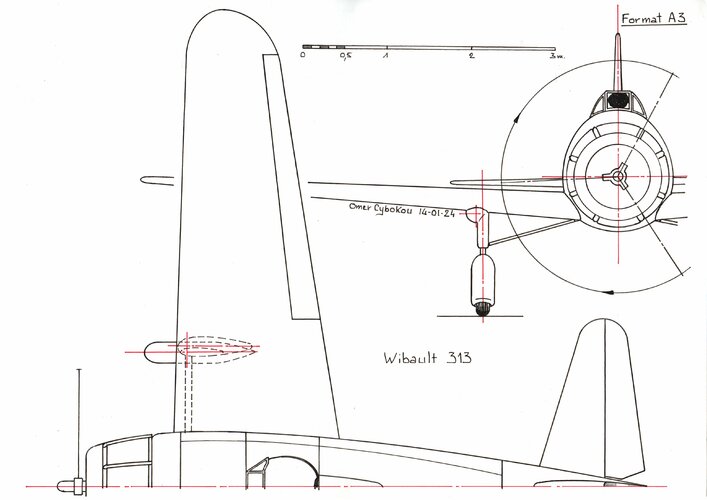

I took the profile drawing of the Wib 313 in my own way trying to get as close as possible to the truth. This profile is certainly far from perfect, especially for the rear of the fuselage, but I tried to solve the details of the engine hood where it seems to me, but without being able to affirm it, that the engine is equipped with propellant exhaust pipes ...


Attachments

  • 20240113-WIBAULT 313 GAUCHE.jpg
    20240113-WIBAULT 313 GAUCHE.jpg
    659.8 KB · Views: 42
In the rest of my previous post here is my version of the top and front views of the Wib 313. I have doubts about the accuracy but in the absence of more information available one can only indulge in speculation... Hoping that this little dilettante work can inspire some fixed or radio-controlled modeller ...


Attachments

  • 20240113-WIBAULT 313 DESSUS-FACE.jpg
    20240113-WIBAULT 313 DESSUS-FACE.jpg
    526.7 KB · Views: 32

Attachments

  • NACA 9 Wibault two-seat monoplane 8C2 - an all-metal pursuit and observation airplane.pdf
    1.2 MB · Views: 17
The full name is Wibault Wib-8 Simoun,
In French, Simoun is a strong hot wind in the Eastern Mediterranean sea, Syria, Israel and the Arabian peninsula.
