Why These Badass Balloons Are the Pentagon's New Secret Weapon

New long-range U.S. weapons will be able to hit tactical targets like missile bases and air-defense radar from a thousand miles away or more, but only if they have aerial scouts to pinpoint their targets. The U.S. military has used stealth drones as spies to this point, but now, experimental stratospheric balloons are becoming viable, capable alternatives that can go undetected by enemy air defenses. Balloons combine remote capabilities with stealth to perform missions impossible for other aircraft, and they’re graduating from tests and demonstrations to live military operations.

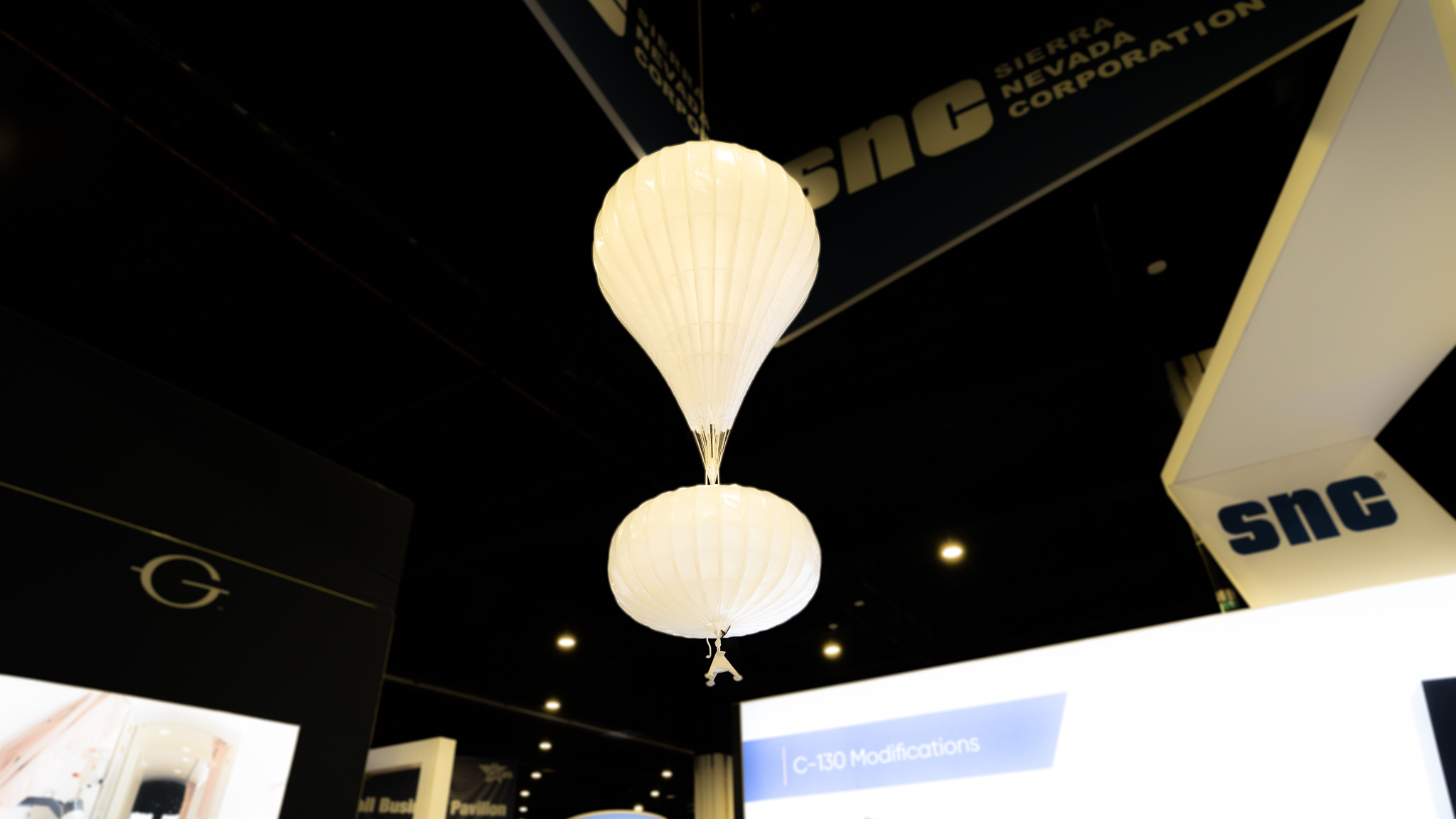

Near-space craft like stratospheric balloons lurk anywhere between 60,000 and 80,000 feet, far above normal aircraft flight paths. The balloons come in the tradition of those used for artillery spotting in the Civil War, but they’re so high-tech today that they are sometimes mistaken for UFOs. The Pentagon is advancing its balloon program to put better eyes on a post-Afghanistan world marked by near-peer threats in Russia and China, and locally, it’s possible balloons will surveil the drug trade and smuggling networks via their unique integrated sensors and communications.

Better than Satellites
Reconnaissance aircraft like drones and balloons are limited by how long they can survey an area of interest—an attribute Justin Bronk, analyst for the UK defense thinktank RUSI, calls persistence. “Even with something like the Global Hawk [the U.S. main strategic reconnaissance drone] you only get about twenty hours over the area of interest, and less than that if they have to travel a significant distance to get there,” he says. The ability to keep eyes on an area for days at a time with a low-cost platform would mean a huge increase in the military’s intelligence-gathering capability.

Satellites fill some of the persistence gap, but low Earth orbit satellites 100-1,200 miles from the Earth’s surface only catch infrequent glimpses of a specific area, while satellites in geostationary orbit—meaning they travel with the Earth as it spins, staying above one location on the ground—are only useful for strategic applications like spotting ballistic missile launches.

Balloons’ durability and carrying strength could help them cover the bases neglected by those craft. World View Enterprises, a private company which develops near-space technology for the Pentagon and NASA, calls their balloons Stratollites. These giant pumpkin-shaped aircraft measure up to 800,000 cubic feet in volume. Their gondolas can house daylight and thermal cameras, radar, radio frequency sensors, and solar panels.

With a newly developed sensor that can measure wind patterns, and a design that can execute flight changes efficiently based on those readings, a Stratollite can change altitude, catch winds, and maintain position within 12 miles of a specified target for four days. “We think this has the potential to be a game-changer for us: a great, long-duration, long-dwell surveillance platform,” said Admiral Tidd, Commander of U.S. Southern Command over Central America, South America, and the Caribbean.

The Ascent to the Stratosphere
Japanese scientists were first to harness intercontinental balloons for military purposes in 1944. Their ‘Fu-go’ balloons carried incendiary bombs at 30,000 feet in an unsuccessful attempt to ignite forest fires across the Pacific Northwest.

A range of high-altitude balloon projects between 50,000-100,000 feet followed during the Cold War. The USAF’s Project Genetrix released spy balloons disguised as weather balloons over the Soviet Union in 1956, their downward-pointing cameras intending to photograph top-secret installations. This was the only way to see inside the country before satellites, but as the unpowered balloons could only drift at random with the wind, they gathered little useful information.

A solution to the navigation challenge appeared by way of accessing the stratosphere, a convection-less portion of the atmosphere in which higher altitudes coincide with warmer temperatures. Without convection, wind patterns stay consistent at a given altitude, so with enough weather information, a balloon can go in any desired direction by adjusting to the right altitude and riding the wind. Project Loon, run by Google parent company Alphabet, developed stratospheric balloons with this capability in 2017. Several of these balloons rode countervailing winds at different heights to stay over Puerto Rico after Hurricane Maria in 2017, providing internet access for 100,000 people.

Microwaves with Lasers
Both World View and Loon refined wind-prediction algorithms for their balloon projects, feeding weather reports and flight data into machine-learning processes to help their balloons find the right altitude at which to fly. But the Defense Advanced Research Projects Agency (DARPA), developed a laser-based sensor to measure winds directly, rather than use a predictive model. Known as Strat-OAWL (Stratospheric Optical Autocovariance Wind Lidar), the sensor is derived from a NASA instrument used to observe the atmosphere from space. The original tech was the size of a kitchen table, says Alexander Walan, program manager for the now-complete Adaptable Lighter Than Air (ALTA) project at DARPA, but Strat-OAWL is the size of a microwave oven.

Strat-OAWL uses a Doppler sensor to track air movement. It bounces a laser beam off particles in the air and gathers the return with a telescope in order to measure the changes in the laser’s wavelength and “read” the wind. It was a high-risk project for DARPA, with little precedent for the technology, but in a 2019 capstone experiment, the ALTA project equipped outside balloon programs with Strat-OAWL sensors to fly their crafts across America with reliable, precise navigation. “We showed we could maneuver a stratospheric lighter-than-air craft across the continent,” says Walan. “We travelled to specific points of interest that we chose ahead of time, and showed we could loiter in any area we chose.” A purpose-built turbo compressor helped the balloons change heights with speed and efficiency.

ALTA also gave valuable operational experience for stratospheric balloon flights. The developers learned they needed rugged electronics that could withstand the space-like conditions at altitude. The equipment had to withstand a low-pressure environment that often saw extreme temperatures. According to Walan, the balloons themselves might last up to a month at these altitudes, though weeks-long missions are a safer bet.

Later balloon generations might have more endurance, able to watch over a point of interest for months. Today, that persistence requires relays of drones, with ground crew members managing landings and takeoffs.

ALTA transferred its technology to the U.S. military for operational use, and though Walan cannot provide further detail, budget documents hint the tech could reach near-space platforms operating at the level of the experimental balloons.

COLD STAR's UFO Problem
The Pentagon’s efforts to operationalize the stratosphere begin with the classified program COLD STAR (COvert Long Dwell STratospheric ARchitecture), a balloon that can lurk undetected in enemy airspace. COLD STAR’s balloon has autonomous navigation, high fidelity sensors, and on-board AI. Budget documents note it participated in joint exercises this year, so it might be the unnamed balloon seen in photos of exercise Northern Edge in Alaska, an “experimental balloon operation” with the USAF.

COLD STAR’s plastic balloon is transparent to radar, and its gondola can be made stealthy by eliminating the straight lines and sharp corners that produce strong radar reflections in aircraft design. “It still has to stay within certain bounds dictated by the payload and the need for solar cells,” Bronk says. “But it does open the doors to different ways of shaping to minimize the radar cross section compared to other aircraft.” The ideal shape might look more like an egg than a typical balloon basket.

Bronk notes that many older radars automatically filter out slow-moving objects more likely to be birds or insects, so even a non-stealthy balloon would be invisible to dated tech. Further, there are no hot jet engine exhausts or wing edges heated by air friction on a balloon—both shine like beacons when viewed in the infra-red.

No balloon is going to be completely invisible, however. Even at 80,000 feet an object the size of a Stratollite is visible as a bright blob if caught by sunlight at the right angle. Multiple balloon programs, including ALTA, have inspired reports of extraterrestrial aircraft. “We were placing bets on how long it would take us to start getting UFO reports,” says Walan.

When Balloons Attack
COLD STAR will “refine hypersonic and long-range fires kill chains to counter time-sensitive targets,” per the Department of Defense’s budget documents for the fiscal year 2022. This suggests balloons will spot targets like mobile missile launchers for weapons like the Army’s Long-Range Hypersonic Weapon, which is intended to hit targets from 1,725 miles away.

“Relaying back data from these assets in real time, especially in high-resolution, is a real challenge at present,” Bronk says.

Only a handful of specialized support aircraft, called Battlefield Airborne Communications Nodes, or BACNs, do this job now. Stratollites offer a solution as long-endurance communication relays, and COLD STAR is equipped with electronics for processing and disseminating information.

The military has also tapped stratospheric balloons for seeding areas behind enemy lines with thousands of tiny radio-frequency sensors meant for cyberspace situational understanding—mapping enemy positions through electronic signals like radio waves and wi-fi. Precision strikes can use these maps to take out otherwise invisible targets, with the sensors also able to confirm those strikes’ effectiveness.

The seeding project is likely to build on CICADA – ‘Close-in Covert Autonomous Disposable Aircraft’ – circuit boards folded into aerodynamic shapes like a paper plane. Each CICADA can glide from a balloon to a specific point on the ground. The balloon then acts as a communication node, passing data from the CICADA sensors back to headquarters, and distributing more sensors on areas of interest.

Other Army presentations indicate plans to release swarms of small drones from stratospheric balloons, either for detailed up-close reconnaissance and intelligence gathering, or for strikes on critical targets such as radar and communications.

The Future of Balloon Warfare
Another program, TRIPPWIRE -- The Tactical Responsive Intelligence, Surveillance, and Reconnaissance (ISR) Platforms and Payloads Watching Isolated Remote Environments – will include a Counter-Stratospheric Operations experiment in the next year. This apparently means balloon vs. balloon warfare.

Knocking out a balloon will probably require a hit on the gondola, which is more difficult than targeting a jet or drone because the gondola doesn’t have a pressurized cockpit, fuel tanks, munitions, or high-speed turbines. It’s hard to blow one up. “It’s a different target set,” Bronk says. “You would not create an explosive event as a hit on an aircraft might, but there’s still a good chance of taking it out of commission.”

It might be cheap to replace balloons relative to other aircraft—World View claims a month-long Stratollite mission will be "orders of magnitude" cheaper than, say, a drone mission of the same duration—so the Pentagon might rely on a combination of stealth and redundancy when approaching these aircraft for combat. If one is shot down, another could be nearby to take over.

President Biden indicated that after the withdrawal from Afghanistan, the U.S. will rely more on ‘over the horizon’ operations, in which there are no boots on the ground. This will place more reliance on remote sensors such as drones, meaning balloons might start to supplement and replace traditional varieties of drone. Theaters like the South China Sea, which call for persistent observation, might be a good fit for balloons. Closer to home, Southern Command has suggested using balloon technology to counter drug smuggling through surveillance.

Balloon technology is fast moving into practical use, be it in stealth use cases or combat. Expect more projects in the U.S. and among its competitors—and prepare for more UFO sightings.



skyblue

ACCESS: Confidential
Joined
Sep 20, 2009
Messages
58
Reaction score
38
The Future of Balloon Warfare
Another program, TRIPPWIRE -- The Tactical Responsive Intelligence, Surveillance, and Reconnaissance (ISR) Platforms and Payloads Watching Isolated Remote Environments – will include a Counter-Stratospheric Operations experiment in the next year. This apparently means balloon vs. balloon warfare.
So, the implication is the the adversary (China/Russia) are also working on similar high altitude balloons


sublight is back

ACCESS: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
870
Reaction score
189
The U.S. military has used stealth drones as spies to this point, but now, experimental stratospheric balloons are becoming viable
Near space airships have been more than viable going on 35 years now.

Even at 80,000 feet an object the size of a Stratollite is visible as a bright blob if caught by sunlight at the right angle.
Unless you are a V shaped airship with the pointy end pointing at the earth below.....

Last edited:

muttly

ACCESS: Confidential
Joined
Jun 15, 2020
Messages
178
Reaction score
89
Anyway to cover them in something nonreflective so that sunlight
wouldn't show their position ?


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,351
Reaction score
4,726
Website
www.amazon.com

Under the codename Project Mogul, the USAAF conducted long range detection tests of Soviet nuclear detonations, using constant-high-altitude large clusters of weather balloons that carried low frequency acoustic infrasound detectors to the stratosphere. Between June 4, 1947 and October 5, 1948 eight Moguls were launched from Holloman AFB (New Mexico) but the experiment did not get any results.

On September 3, 1949 a Boeing WB-29 weather reconnaissance plane detected radiological debris during a routine flight from Japan to Alaska. Twenty days later the White House announced the evidence of an atomic explosion occurred in the U.S.S.R.

Early in 1947 the U.S. Navy developed a new type of polyethylene weather balloon, under the codename Project Skyhook (Weapons System WS 119L).

Skyhook balloons were manufactured in two sizes: 122 TT with a volume of 800,000 cu ft. and 75,000-85,000 ft. ceiling and 66 CT with 60,000 ft. ceiling.

According to the weather conditions, some balloons attained altitudes of 100,000 ft. at a time when the service ceiling of the MiG-9, the best Soviet fighter, was just 44,280 ft.

The U.S. Navy decided to use them in spy flights over the Soviet Union. The RAND Corporation started an extensive testing program to develop different elements that compounded the reconnaissance system: nuclear particles detectors, photographic equipment, ELINT sensors, tracking devices, parachutes, and recovery planes.

The project was denominated Gopher in 1950, Moby Dick in 1951, Grandson in 1953, Grayback in 1954 and Genetrix (the operational phase) in 1956.

By early 1951, 270 Gopher balloons had been launched to test the automatic ballasting systems and ensured that they would not descend below 40,000 ft.

Moby Dick balloon launches began on February 19, 1953 to obtain information of wind at high altitudes.

In 1954 the Flying Cloud project (WS-124 A) was started using Skyhook balloons specially designed for bacteriological warfare. To accurately predict the balloon’s course, 41 launches were made in USA with 24 per cent success only, the project was cancelled.

Between January 10 and March of 1956, 448 Genetrix balloons were launched from Scotland, Norway, Giebelstadt-West Germany, and Incirlik-Turkey carrying DMQ-1 and DMQ-2 Perkin-Elmer cameras, but only 66 of them, with 13,000 photographs, were recovered over the Pacific by the C-119F airplanes of the 456th Wing. The photographs covered only the 8 per cent of the Soviet territory but in January 1957 a Genetrix gondola recovered on the Aleutian Islands containing photos of the Krasnoyarsk atomic facilities.

Some Genetrix balloons were detected by the Soviet radar but the 57,400 ft. ceiling of the MiG-19 Farmer A fighters was insufficient to intercept them, because at those altitudes they were at the limits of controllability.

It would have been preferable to build a subsonic version of the MiG-17 (I-340) with increased wing surface and more powerful engines.

During the first half of 1956 was underway an elaborate cover plan called White Cloud beginning with the launch from Alaska and Hawaii of twenty weather research Skyhook balloons.

In July 1958 the US Navy began Operation Melting Pot (WS-461L) with the launch from aircraft carriers in the Pacific of several Skyhooks modified to reach 100,000 ft.

In the higher winds the balloons were expected to pass through Soviet air space flying from east to west carrying panoramic cameras HYAC-1. But the calculations were wrong and all Melting Pot balloons fell into in Soviet territory.

In August 1951 the CIA's Special Procedures Group began the Project Ultimate, a campaign to launch eleven million leaflets propaganda on Czechoslovakia using 2,000 hydrogen-filled, weather balloons with 4 ft. in diameter.

These launches on Czechoslovakia were repeated in July 1953 (Operation Prospero) and 1954 (Operation Veto), also in 1954 on Hungary (Operation Focus) and in 1955 on Poland (Operation Spotlight).


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
995
Reaction score
579
With a newly developed sensor that can measure wind patterns, and a design that can execute flight changes efficiently based on those readings, a Stratollite can change altitude, catch winds, and maintain position within 12 miles of a specified target for four days.
Staying 4 days and more over target can be done by photoelectric-powered drones , so that is not a unique capability.
Lighter-Than-Air contraptions can surely achieve all the points described, but drones can too. But LTAs are horribly unwieldy and slow. They tend to suffer weather catastrophes regularly, even if a stream of optimistic investors keep making new ones.

Further, I fail to see how LTAs could make sense over really unfriendly areas, say anyplace being disputed against China or Russia. Over narco-traffic routes, yes, but those seem to be pretty well monitored already.

Basically: yes it can surely be done. Yes it is new, fashionable and all. But is it so much better than existing tech to justify its horrible drawbacks ? Color me unconvinced...


iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
543
Reaction score
462

Under the codename Project Mogul, the USAAF conducted long range detection tests of Soviet nuclear detonations, using constant-high-altitude large clusters of weather balloons that carried low frequency acoustic infrasound detectors to the stratosphere. Between June 4, 1947 and October 5, 1948 eight Moguls were launched from Holloman AFB (New Mexico) but the experiment did not get any results.

On September 3, 1949 a Boeing WB-29 weather reconnaissance plane detected radiological debris during a routine flight from Japan to Alaska. Twenty days later the White House announced the evidence of an atomic explosion occurred in the U.S.S.R.

Early in 1947 the U.S. Navy developed a new type of polyethylene weather balloon, under the codename Project Skyhook (Weapons System WS 119L).

Skyhook balloons were manufactured in two sizes: 122 TT with a volume of 800,000 cu ft. and 75,000-85,000 ft. ceiling and 66 CT with 60,000 ft. ceiling.

According to the weather conditions, some balloons attained altitudes of 100,000 ft. at a time when the service ceiling of the MiG-9, the best Soviet fighter, was just 44,280 ft.

The U.S. Navy decided to use them in spy flights over the Soviet Union. The RAND Corporation started an extensive testing program to develop different elements that compounded the reconnaissance system: nuclear particles detectors, photographic equipment, ELINT sensors, tracking devices, parachutes, and recovery planes.

The project was denominated Gopher in 1950, Moby Dick in 1951, Grandson in 1953, Grayback in 1954 and Genetrix (the operational phase) in 1956.

By early 1951, 270 Gopher balloons had been launched to test the automatic ballasting systems and ensured that they would not descend below 40,000 ft.

Moby Dick balloon launches began on February 19, 1953 to obtain information of wind at high altitudes.

In 1954 the Flying Cloud project (WS-124 A) was started using Skyhook balloons specially designed for bacteriological warfare. To accurately predict the balloon’s course, 41 launches were made in USA with 24 per cent success only, the project was cancelled.

Between January 10 and March of 1956, 448 Genetrix balloons were launched from Scotland, Norway, Giebelstadt-West Germany, and Incirlik-Turkey carrying DMQ-1 and DMQ-2 Perkin-Elmer cameras, but only 66 of them, with 13,000 photographs, were recovered over the Pacific by the C-119F airplanes of the 456th Wing. The photographs covered only the 8 per cent of the Soviet territory but in January 1957 a Genetrix gondola recovered on the Aleutian Islands containing photos of the Krasnoyarsk atomic facilities.

Some Genetrix balloons were detected by the Soviet radar but the 57,400 ft. ceiling of the MiG-19 Farmer A fighters was insufficient to intercept them, because at those altitudes they were at the limits of controllability.

It would have been preferable to build a subsonic version of the MiG-17 (I-340) with increased wing surface and more powerful engines.

During the first half of 1956 was underway an elaborate cover plan called White Cloud beginning with the launch from Alaska and Hawaii of twenty weather research Skyhook balloons.

In July 1958 the US Navy began Operation Melting Pot (WS-461L) with the launch from aircraft carriers in the Pacific of several Skyhooks modified to reach 100,000 ft.

In the higher winds the balloons were expected to pass through Soviet air space flying from east to west carrying panoramic cameras HYAC-1. But the calculations were wrong and all Melting Pot balloons fell into in Soviet territory.

In August 1951 the CIA's Special Procedures Group began the Project Ultimate, a campaign to launch eleven million leaflets propaganda on Czechoslovakia using 2,000 hydrogen-filled, weather balloons with 4 ft. in diameter.

These launches on Czechoslovakia were repeated in July 1953 (Operation Prospero) and 1954 (Operation Veto), also in 1954 on Hungary (Operation Focus) and in 1955 on Poland (Operation Spotlight).
The reconnaissance balloon projects, Genetrix and WS461L, were essentially failures, as far as I know. They were justified to the US President on the grounds that the balloons were both undetectable and deniable. They were neither, being easily detectable by radar and often visible to the naked eye. At best, they were hard to shoot down. But that was little help given their tendency to come down of their own accord.

They did, however, cause the Soviets to develop some truly imaginative fighter concepts and give the UFO believers something to work with.

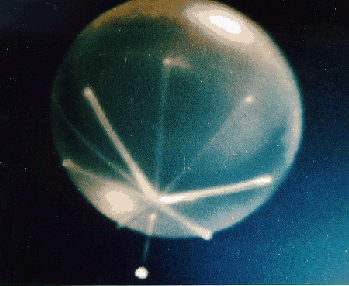

I've attached a PDF of an article from Chandelle and some pictures of the balloons.

For more info, see:

* http://ufxufo.org/russell/gophergenetrix.htm
* http://ufxufo.org/sturgeon/sturgeon.htm
* http://stratocat.com.ar/bases/30e.htm
* https://www.cbc.ca/news/canada/new-brunswick/thing-in-the-woods-cia-spy-camera-1.4221705
* http://www.designation-systems.net/dusrm/app4/ws-119l.html


Attachments

  • Genetrix, WS-461L, and Chaika- Cold War Balloons and Balloon Fighters.pdf
    437.5 KB · Views: 2
  • balloon_float.jpg
    29.4 KB · Views: 8
  • float.gif
    57.7 KB · Views: 8
  • image.jpg
    92.6 KB · Views: 8
