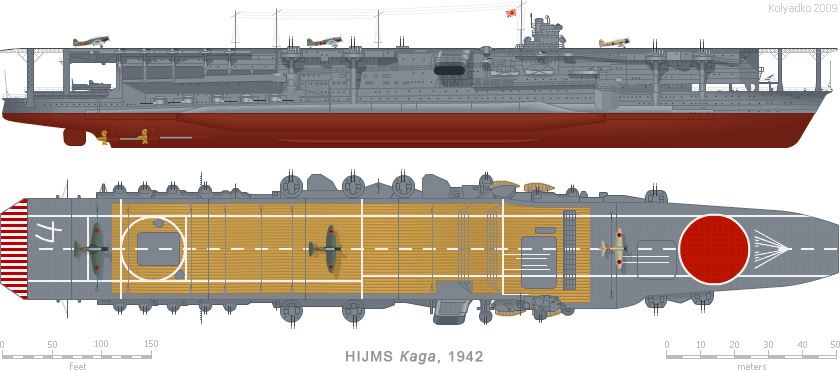

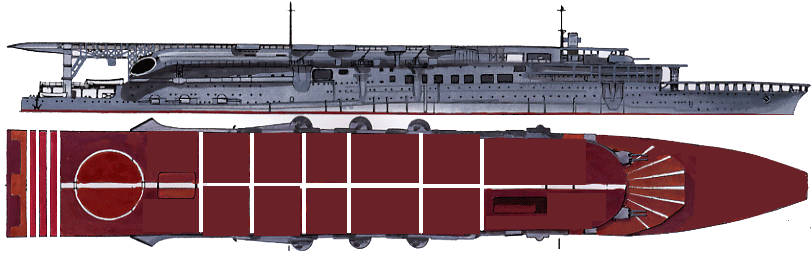

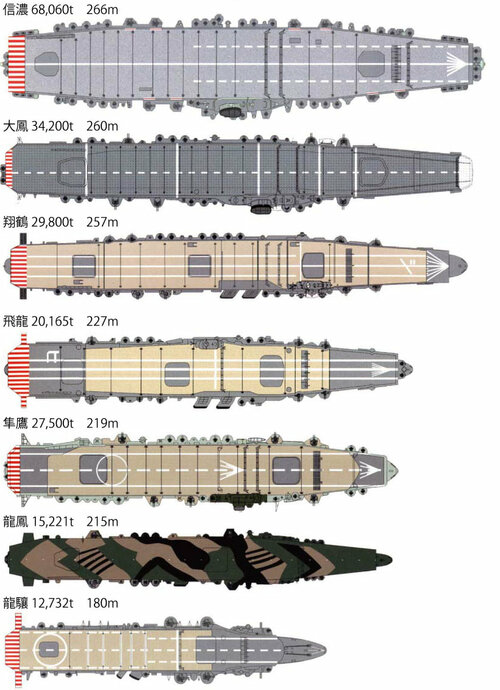

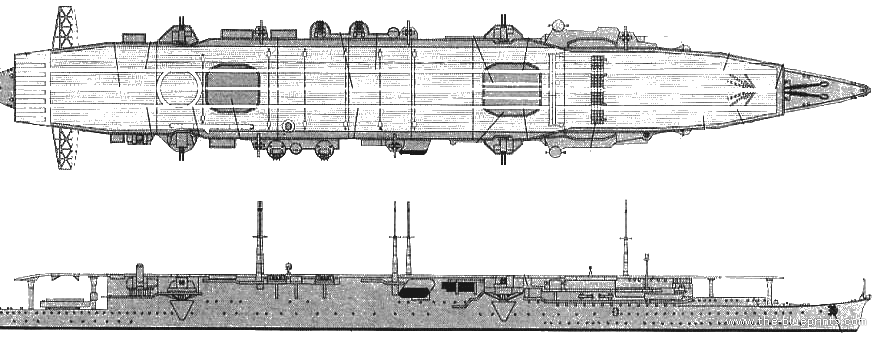

What Was the Purpose of the Arrow Deck Markings on Pacific War Era Japanese Aircraft Carriers?

[archipeppe]

I've always wondered about those lines, up to today....

View: https://www.youtube.com/watch?v=djR63vwT6Mo



[starviking]

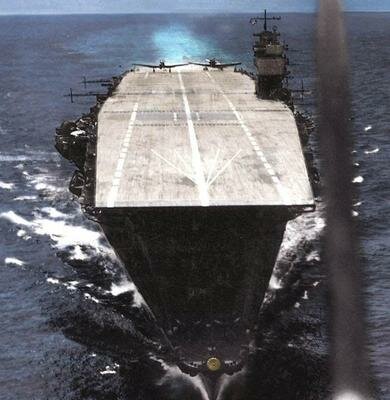

Was there a steam outlet at the confluence of all the lines? Then they might have been for showing wind direction.



[archipeppe]

Was there a steam outlet at the confluence of all the lines? Then they might have been for showing wind direction.

Exactly.



[Justo Miranda]

I've always wondered about those lines, up to today....

View: https://www.youtube.com/watch?v=djR63vwT6Mo

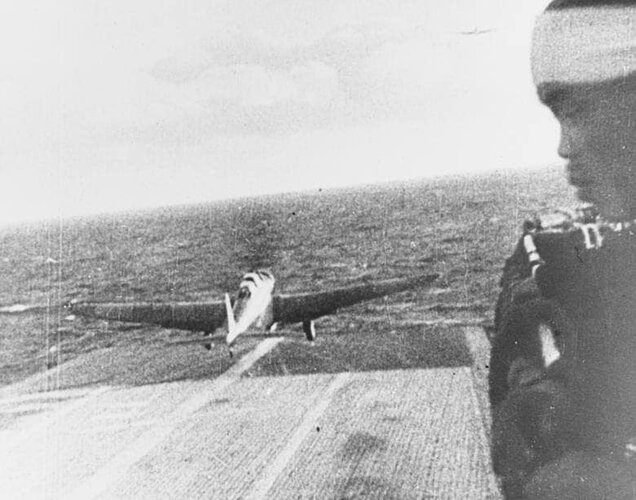

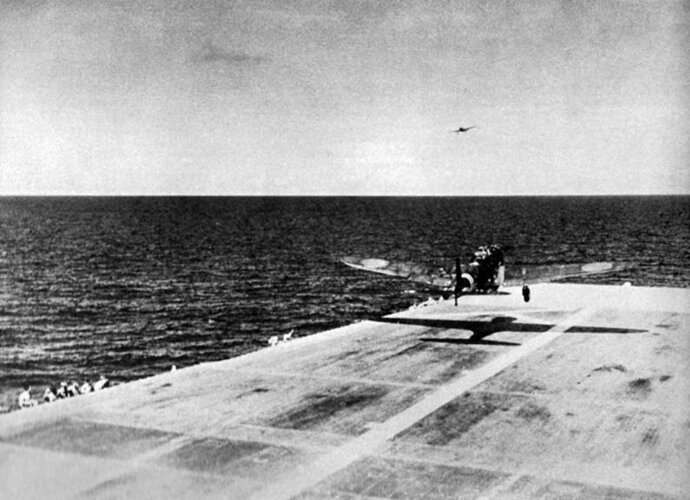

I have seen photos of a flare located at the bow of the ship emitting smoke to indicate the direction of the wind. This was useful during takeoff for pilots of heavily loaded bombers.



[Justo Miranda]

I think at the time of Pearl Harbor the system was not yet used.
