Thanks for that. Anyone want to venture a guess at the upper weight limit that this technology might be useful?
I suspect it's going to be fairly scalable. I'm assuming* the basic functionality is somewhat like a feathered paddlewheel, where the blades are feathered on the upstroke, but providing lift and thrust on the downward and rearward part of the stroke. If that's the case then you should be able to scale the rotors by radius - somewhat limited by fuselage length**, width, and RPM. Which gives you quite a lot of potential for increasing performance.

* If someone's got a better interpretation I'd definitely like to hear it.
** Though you could stick the rotors on outriggers to increase the space available


UpForce

ACCESS: Secret
Joined
Feb 5, 2011
Messages
292
Reaction score
224
I'm assuming* the basic functionality is somewhat like a feathered paddlewheel, where the blades are feathered on the upstroke, but providing lift and thrust on the downward and rearward part of the stroke.

My impression also, having thought of this solution on and off for years (not seriously enough to make anything out of it). I'd like to see the mechanism adjusting the blades, the sides of the wheel seem pretty slim for whatever is in there. If the adjustment happens by some kinds of servos even the finest control of thrust can be a breeze (pun intended) though I'm also wary of the various failure modes this might present.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,002
Reaction score
6,638


shin_getter

ACCESS: Top Secret
Joined
Jun 1, 2019
Messages
617
Reaction score
678
View: https://youtu.be/l_I9Qg-1_QI?t=9629


Autonomous, Roadable, Electric Aircraft? Talk about aiming for the stars.

First: X2 Vehicle, 400V architecture, 4 battery backup, octo-rotor, max speed 130km, max weight 710kg (payload 200kg), ballistic parachute

2:43:03 Flying car configurations

2:43:08 flying car section

Aim for 4 star crash rating,
5m x 2m footprint as a car
7m x 12m footprint flying configuration

computer assisted control with driver and environmental vetting. Night flying may be banned due to powerlines.

Distributed ballistic parachute under development
Target weight of 900kg with advanced materials (carbon fiber, titanium, magnesium alloy) and power system

Target date 2024 (how is that for Elon time~)
Target price <1,000,000 RMB (160k usd)


Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
658
Reaction score
1,052

Regarding extraordinary claims for electric motors, beware of figure fiddling;- it’s easy to do in a plausible manner and attracts publicity then investors. Typically it consists of publishing numbers from regions of the power or torque curves which are possible but real world impractical;- operation is only possible for a second or so after which the thing either melts or shuts down having exceeded its curie temperature.

Seen this many times over the years and we’re still stuck at 4-5kw/kg for a liquid cooled motor.

Last edited:

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,002
Reaction score
6,638

Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
658
Reaction score
1,052

Big investor News - Only it’s no different to what they’ve done on the previous 39 test flights….Indeed achieved no more than any other self respecting quadcopter.

With a flight time of 2mins 20sec have they logged one whole hour in the air since 2017?

At a rate of one flight hour (ish) every 5 years I wonder how long a typical 2000 hr commercial flight certification program will take? 36 months is the claim .


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429

Big investor News - Only it’s no different to what they’ve done on the previous 39 test flights….Indeed achieved no more than any other self respecting quadcopter.

With a flight time of 2mins 20sec have they logged one whole hour in the air since 2017?

At a rate of one flight hour (ish) every 5 years I wonder how long a typical 2000 hr commercial flight certification program will take? 36 months is the claim .
40 knots is still WAY below stall and transition speed....like not even halfway for a vehicle with high wingloading. Not impressed


litzj

BLOG : http://jaesan-aero.blogspot.com/
Joined
Feb 4, 2012
Messages
279
Reaction score
75
Website
jaesan-aero.blogspot.com

There was Volocopter Demo in Korea (K-UAM Confex) near RKSI

I participated that event and record its demo flight - about 5 min

https://jaesan-aero.blogspot.com/2021/11/k-uam-confex-20211116.html

with some photos

Last edited:

UpForce

ACCESS: Secret
Joined
Feb 5, 2011
Messages
292
Reaction score
224
There was Volocopter Demo in Korea (K-UAM Confex) near RKSI

I participated that event and record its demo flight - about 5 min

Thank you, an interesting display. I'm a more "fixed wing" kinda person myself but Volocopter has always been quirky enough (while I'm still undecided about how rational it is) for me to find it appealing.


Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
658
Reaction score
1,052
Here’s the problem…..

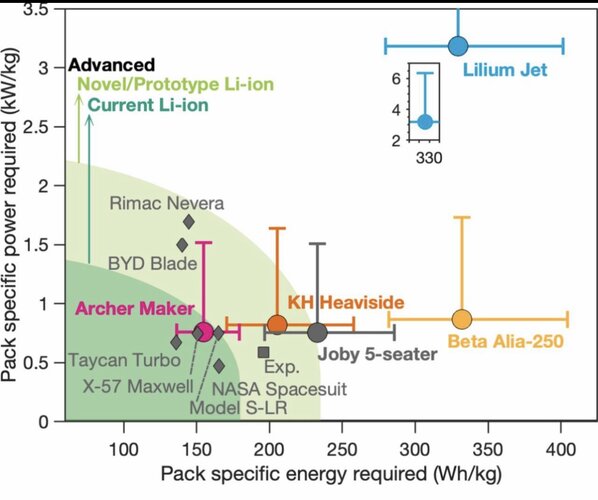

Below is a nice graphic taken from;-


Credit to S Sripad and V Viswanathan

By all accounts a chap who put this on a professional social media channel has received cease and desist legal threats from two eVTOL organisations mentioned below. It has since been removed…… and the scaming continues.


Attachments

  • D13E0D35-2A2F-4556-9957-B06BF52B6F16.jpeg
    179.5 KB · Views: 30

alberchico

I really should change my personal text
Joined
Jan 14, 2014
Messages
124
Reaction score
261
So based on that chart the Lilium jet will essentially require a revolution in battery technology to be viable, even if they manage to perfect the design of their vehicle, which is a tall order in and of itself. Other companies like Joby or Archer have a better prospect of success. The main problem with the Evtol revolution is that it was launched 10-15 years too early, the battery tech simply isn't there yet.

Last edited:

Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
658
Reaction score
1,052
The main problem with the Evtol revolution is that it was launched 10-15 years too early, the battery tech simply isn't there yet.

There’s no guarantee the magic battery will ever arrive;- just as 25years of focused and extensive effort failed to find a better mono propellant than the one they started with ie HTP. Predicting when scientific discoveries will be made, thus enabling new industries, is well, not a science.

Last edited:

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429
By all accounts a chap who put this on a professional social media channel has received cease and desist legal threats from two eVTOL organisations mentioned below. It has since been removed…… and the scaming continues.
Hahahahaha...i guess for once it pays off to download on the spot any technical paper that looks vaguely interesting. Mark Moore commented on it on LinkedIn and i thought it might be worth a look. I must've downloaded it right under the wire :)


shin_getter

ACCESS: Top Secret
Joined
Jun 1, 2019
Messages
617
Reaction score
678
Last edited:

VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
784
Reaction score
452

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,905
Reaction score
1,649

As expected the US OEM are waiting to see if the eVTOL effort is going to develop or not. Good article with some interesting considerations for the future of commercial aviation at the bottom.


UpForce

ACCESS: Secret
Joined
Feb 5, 2011
Messages
292
Reaction score
224

On first glance this doesn't seem entirely horrible. Unsure about just how draggy those uncovered liftfans might be or why this configuration should be superior to others.


CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
476
Reaction score
949

I can't fathom how those small propellers are going to do much of anything.
Except noise. Lots of it.


VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
784
Reaction score
452

VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
784
Reaction score
452

Attachments

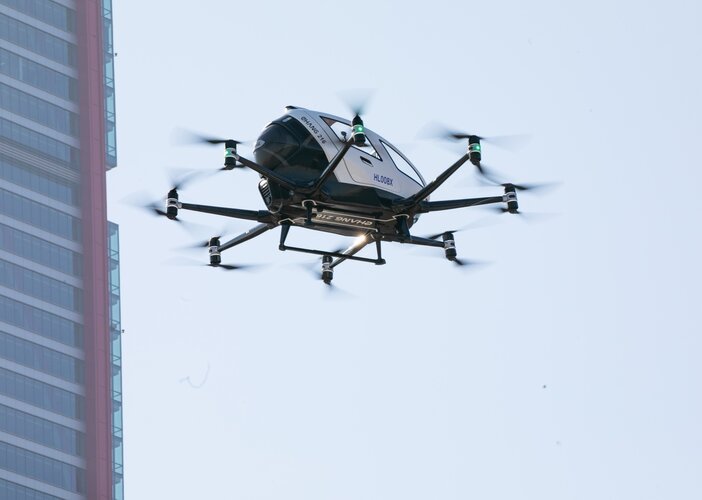

  • Ehang-SK-1400x1000-1.jpg
    313.1 KB · Views: 4
Last edited:

VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
784
Reaction score
452
Btw, EH216 has a max range of 30 km, a max endurance of 25 min and is limited to 200 m AGL. Possible applications are hard to imagine.... At least on my part :)


coanda

ACCESS: Secret
Joined
Feb 3, 2009
Messages
306
Reaction score
294

On first glance this doesn't seem entirely horrible. Unsure about just how draggy those uncovered liftfans might be or why this configuration should be superior to others.

Wing Spars.

This and post 752 are right up there on the ridiculous scale.

Does no one ever look at what we've done in the past at NASA and other places around the world?

Investors clearly don't.
