Vought V-526 & X-100: Fighters to 1974 VFAX requirement

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
I believe Vought's VFAX was V-526.

It is slightly complicated by the fact there were two "VFAX" competitions, one in the mid 1960s, which turned into VFX/F-14, and then the 1973 one we are discussing here. There was a 1965 VFAX design, V-484, to the earlier competition.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551

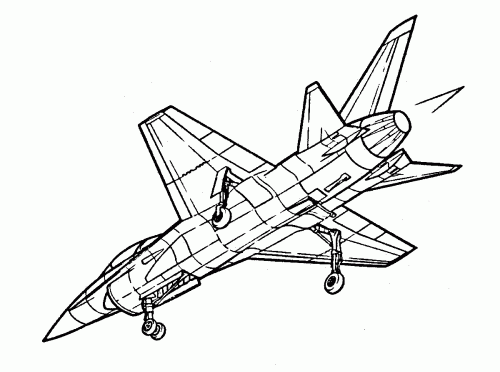

This is the Vought X-100, discussed in American Secret Projects, an alternative concept studied towards the VFAX specification (Originally posted by Gary Morelock/"Elider")


Attachments

  • Vought X-100.jpg
    Vought X-100.jpg
    143.7 KB · Views: 1,965

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
Vought seems to have done two main studies for the VFAX proposal: V-484 and V-526. To which of these would the "X-100" proposal be related?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,701
Reaction score
842
Greetings All -

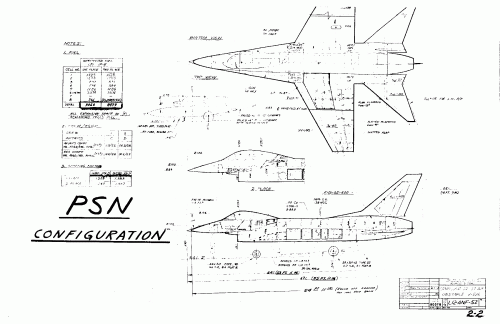

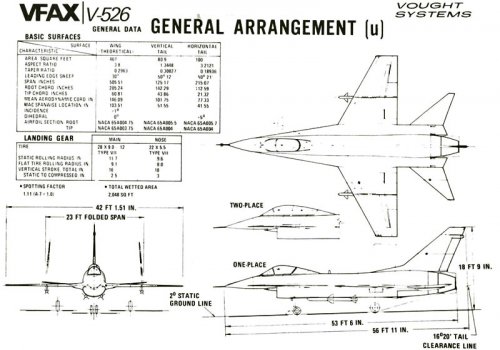

Here is Vought's V-526 proposal. The 2 view is noted as being an "configuration study - unstable V-526" and is dated Aug-7-74. From the Vought Archives....

Enjoy the Day! Mark


Attachments

  • Vought V-526 L12-ANF-52 3V.gif
    Vought V-526 L12-ANF-52 3V.gif
    95 KB · Views: 2,057
  • Vought V-526 Section Assemblies.gif
    Vought V-526 Section Assemblies.gif
    171.2 KB · Views: 1,822
  • Vought V-526 lower view.gif
    Vought V-526 lower view.gif
    18.8 KB · Views: 1,698

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,701
Reaction score
842
Greetings All -

A few drawings of the X-100 concept for your perusal and viewing pleasure courtesy of the Vought Archives.

Enjoy the Day! Mark


Attachments

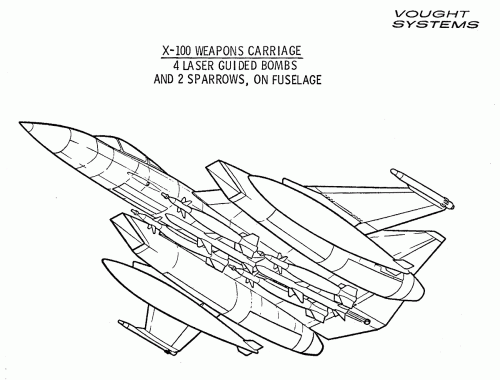

  • X-100 Weapons Carriage - 2 copy.gif
    X-100 Weapons Carriage - 2 copy.gif
    74.9 KB · Views: 614
  • X-100 Weapons Carriage - 1 copy.gif
    X-100 Weapons Carriage - 1 copy.gif
    90.6 KB · Views: 829

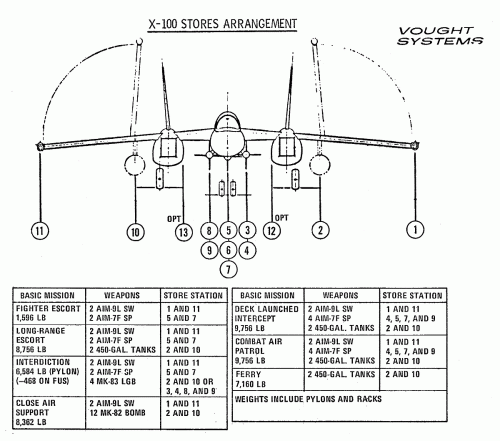

  • X-100 Stores Arrangement copy.gif
    X-100 Stores Arrangement copy.gif
    124.9 KB · Views: 771

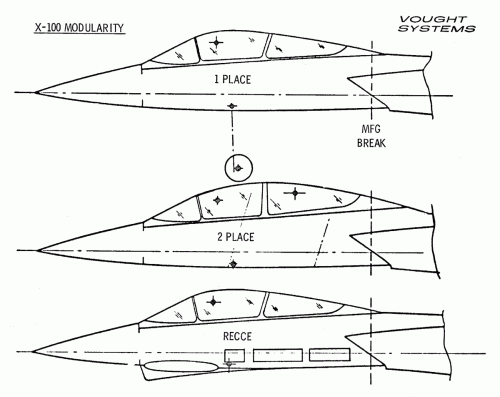

  • X-100 Modularity copy.gif
    X-100 Modularity copy.gif
    99 KB · Views: 758

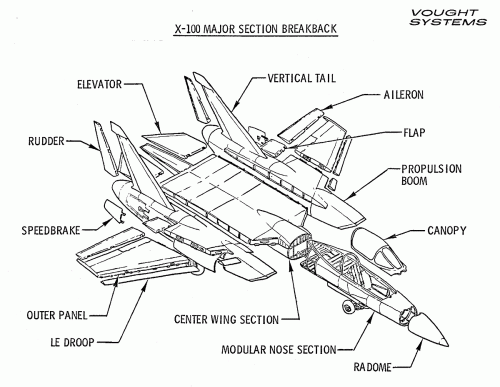

  • X-100 Major Section Breakback copy.gif
    X-100 Major Section Breakback copy.gif
    108.5 KB · Views: 897

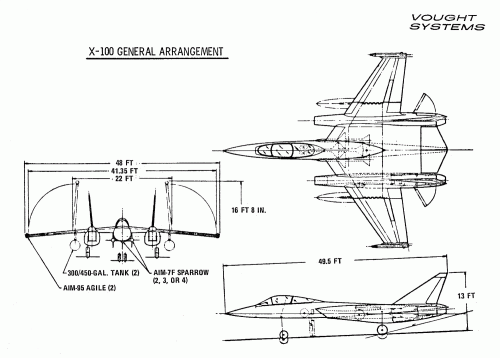

  • Vought X-100 General Arrangement copy.gif
    Vought X-100 General Arrangement copy.gif
    164.9 KB · Views: 2,047

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
Stargazer2006 said:
Vought seems to have done two main studies for the VFAX proposal: V-484 and V-526. To which of these would the "X-100" proposal be related?

You are mixing up two different VFAX competitions.

V-484 was part of the VFAX pre-VFX studies, mid/late 1960s, smaller and multimission compared to the F-14.
V-526 was design to the early/mid 1970s VFAX requirement, which was replaced by NACF when Congress decreed the Navy would have to base their aircraft on the LWF.

X-100 was an alternative concept studied in the latter timeframe, and hence was an alternative to the V-526.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
646
More V-526 slides from an August 1974 presentation.
Vought Historical Archives.

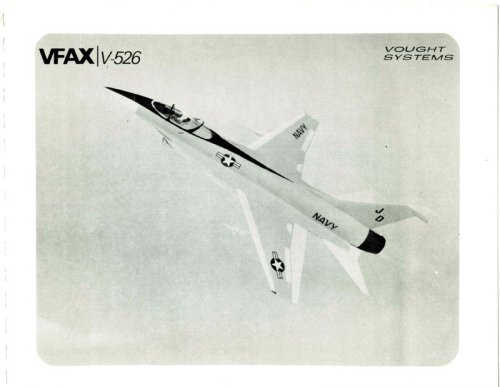

Slide 1 Artwork

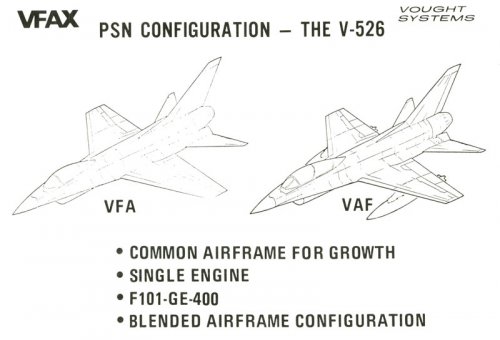

Slide 2 Configuration
Slide 3 V-526 General Arrangement

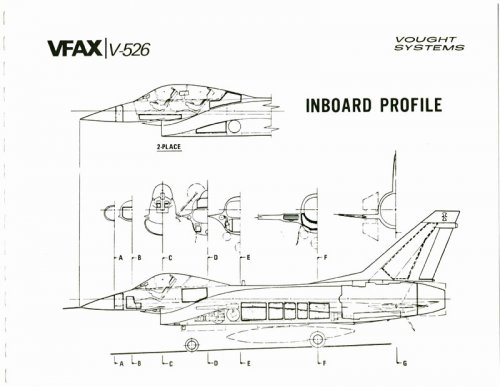

Slide 4 V-526 Inboard Profile

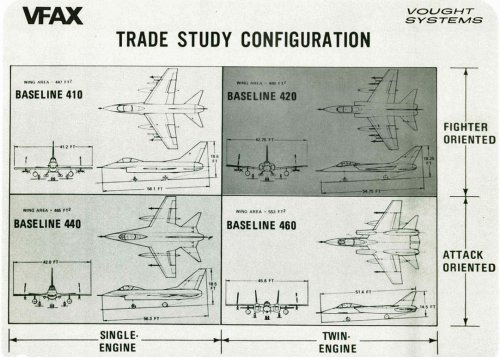

Slide 5 Trade Study Configurations

Enjoy!

bill


Attachments

  • V-526_Slide5.jpg
    189.7 KB · Views: 766
  • V-526_Slide4.jpg
    61.3 KB · Views: 691
  • V-526_Slide3.jpg
    82.1 KB · Views: 719
  • V-526_Slide2.jpg
    55.3 KB · Views: 629
  • V-526_Slide1.jpg
    66.1 KB · Views: 515

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
646
More V-526 slides from an August 1974 presentation.
Vought Historical Archives.

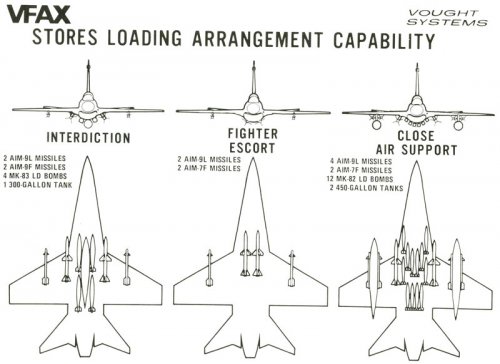

Slide 6 Stores Loading Arrangement

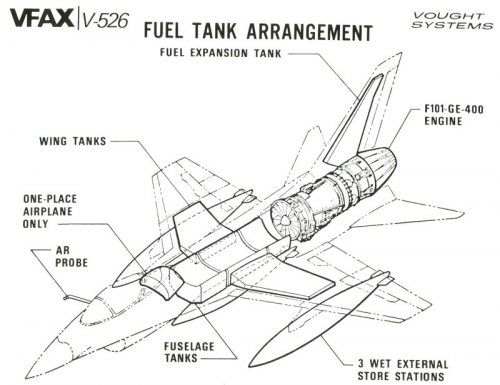

Slide 7 Fuel Tank Arrangement

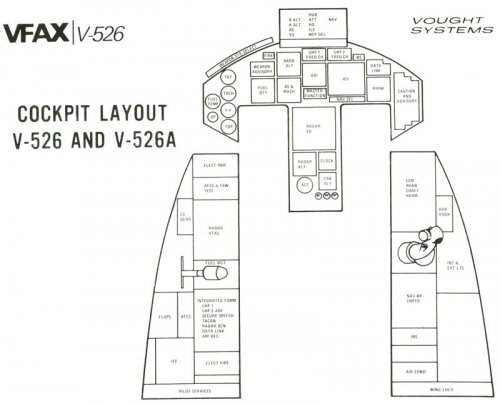

Slide 8 V-526 and V-526A Cockpit Layout

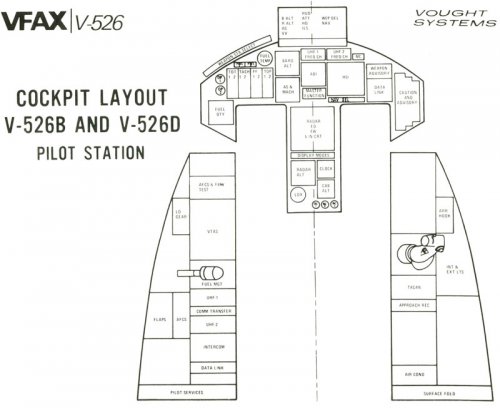

Slide 9 V-526B and V-526D Pilot Cockpit Layout

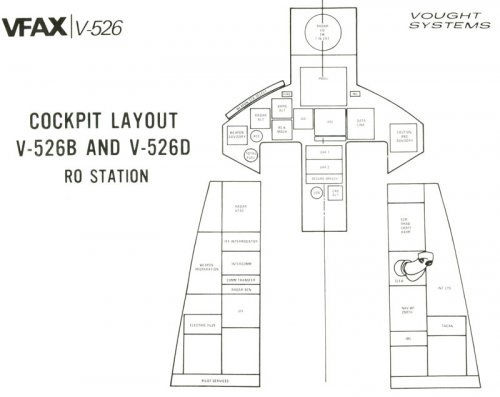

Slide 10 V-526B and V-526D RO Cockpit Layout

Enjoy!

bill


Attachments

  • V-526_Slide10.jpg
    49 KB · Views: 382
  • V-526_Slide9.jpg
    60.1 KB · Views: 359
  • V-526_Slide8.jpg
    58.1 KB · Views: 459
  • V-526_Slide7.jpg
    79.4 KB · Views: 619
  • V-526_Slide6.jpg
    66.1 KB · Views: 635

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
Great, thanks for sharing! Which takes me back to the old question: did the General Dynamics F-16 design originate in the V-526?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,944
Reaction score
967
Stargazer2006 said:
did the General Dynamics F-16 design originate in the V-526?
Most definitely not. The V-526 presentation posted by Bill S are from 1974:
More V-526 slides from an August 1974 presentation.
This is from 'The Pentagon Paradox' by James P Stevenson, Naval Institute Press 1993, p.145:
The Lightweight Fighter prototype contract was awarded to General Dynamics and Northrop on April 13, 1972. General Dynamics was awarded a contract for $37,943,000 for its model 401, and Northrop received $39,878,715 for its twin-engined model P-600.
GD's model 401 became the YF-16, Northrop's P-600 became the YF-17. The contract, and by inference GD's model 401-which-led-to-the-YF-16 predates the V-526 by some years.

Related post here.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
Bill S said:
More V-526 slides from an August 1974 presentation.
...
Slide 5 Trade Study Configurations

Enjoy!

bill


Trade Study 460 looks similar to the "X-100".


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
646

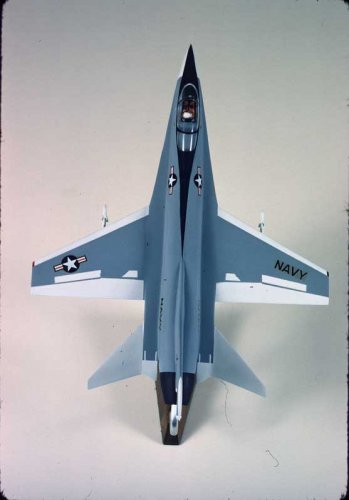

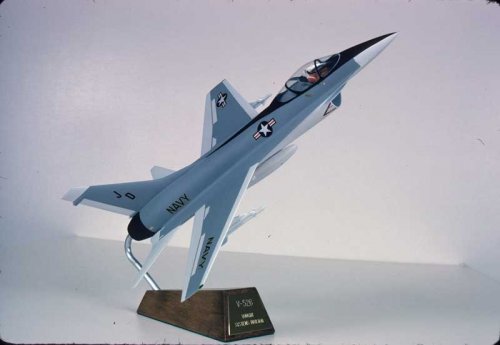

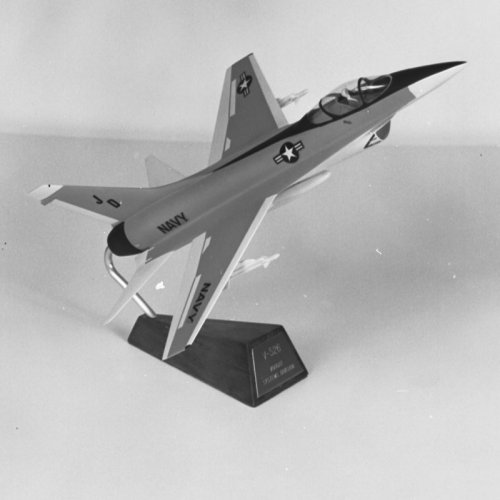

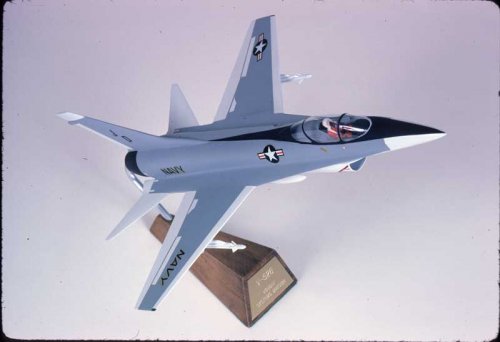

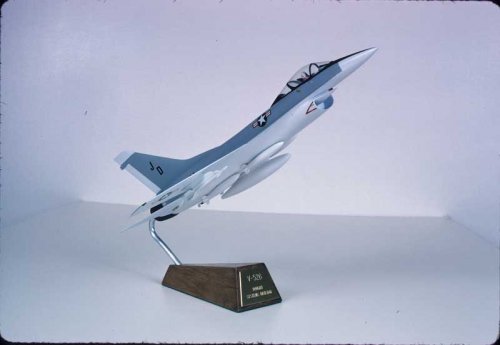

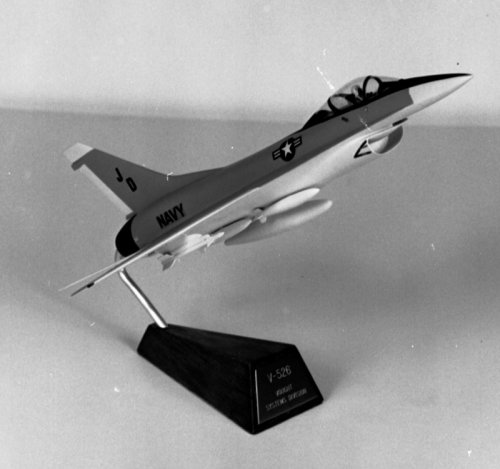

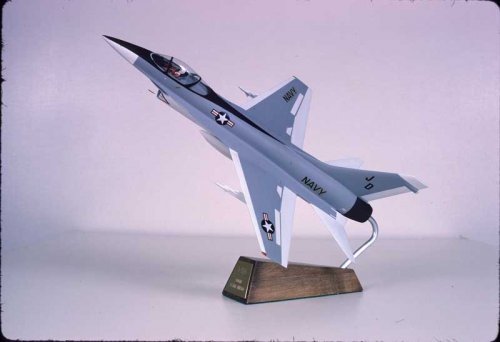

A couple new images just recently uncovered of the V-526 model from the 1974 time frame.
Vought Heritage Archives.

bill


Attachments

  • xV-526-Model-Vought-Heritage-Archives.jpg
    56.3 KB · Views: 1,146
  • xV-526-Model-Vought-Heritage-Archives-1.jpg
    69 KB · Views: 1,136

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,701
Reaction score
842
Greetings All -

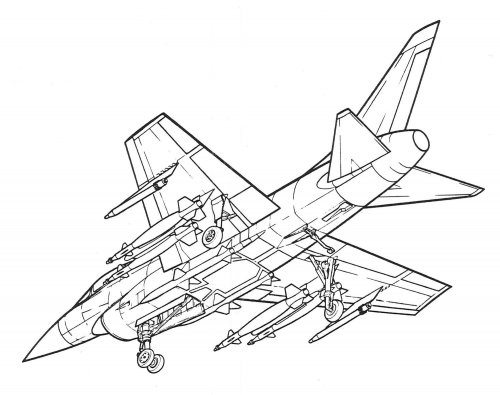

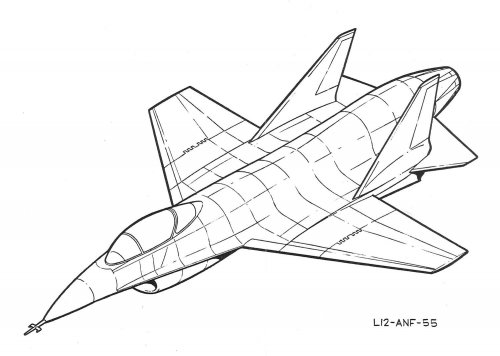

During this last trip to Vought a few weeks back, I pulled a set of drawings from a V-526 folder that essentially covered the design evolution and trade offs leading to the final V-526 design. I'll attach the final V-526 designs first as reference then walk thru the design evolution from there.

Enjoy the Day! Mark


Attachments

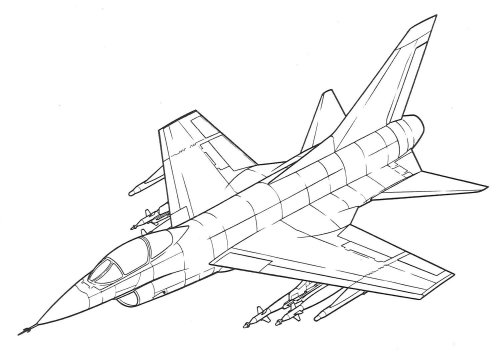

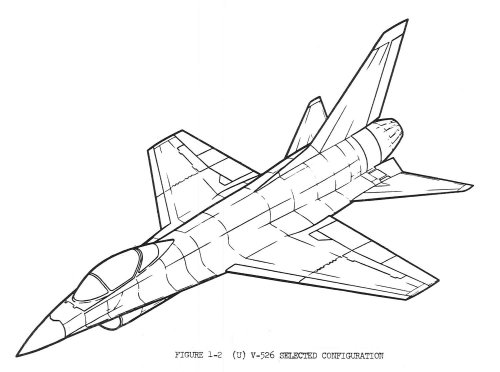

  • xV-526 Selected Configuration.jpg
    xV-526 Selected Configuration.jpg
    111.9 KB · Views: 348

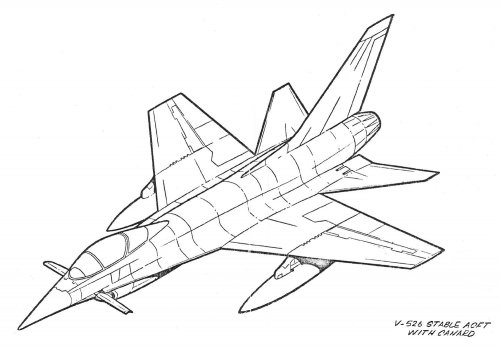

  • xV-526 Stable Configuration with Canard.jpg
    xV-526 Stable Configuration with Canard.jpg
    113.8 KB · Views: 306

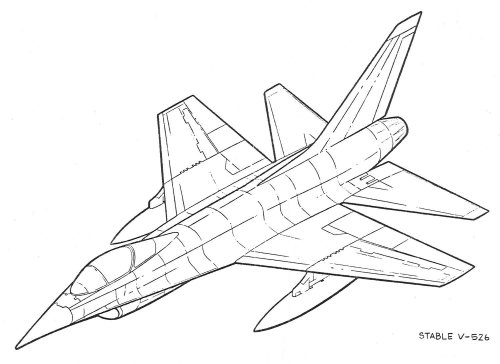

  • xV-526 Stable Configuration.jpg
    xV-526 Stable Configuration.jpg
    119.9 KB · Views: 282

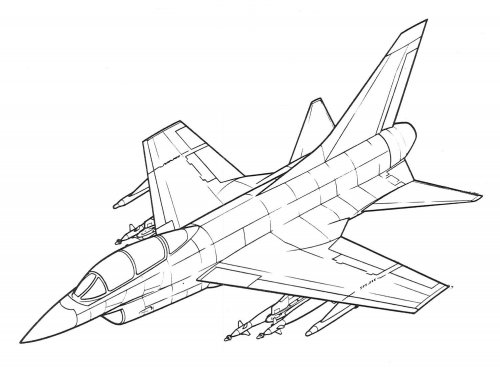

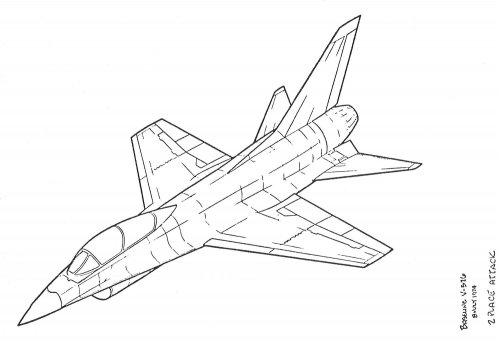

  • xV-526 Baseline Two Seat Jul-8-74.jpg
    xV-526 Baseline Two Seat Jul-8-74.jpg
    94 KB · Views: 267

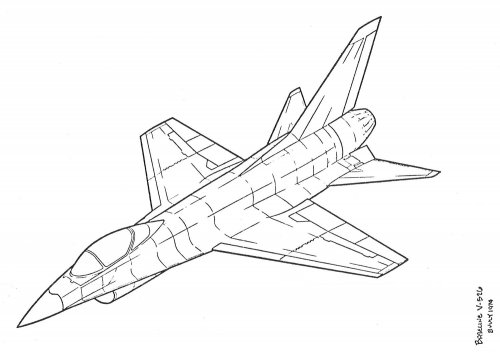

  • xV-526 Baseline Single Seat Jul-8-74.jpg
    xV-526 Baseline Single Seat Jul-8-74.jpg
    98 KB · Views: 289

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,701
Reaction score
842

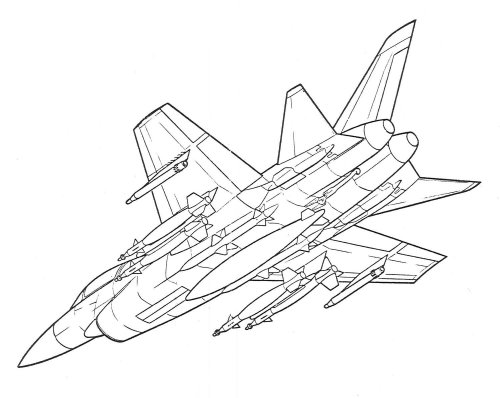

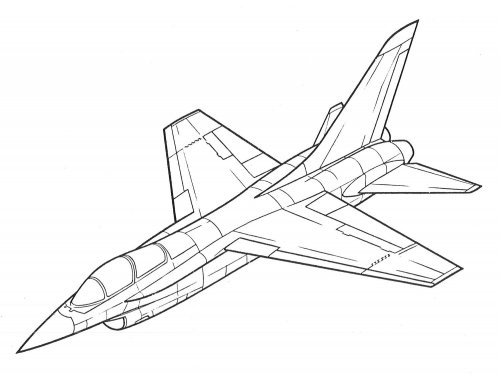

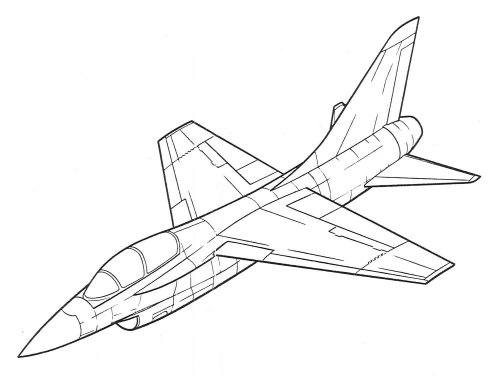

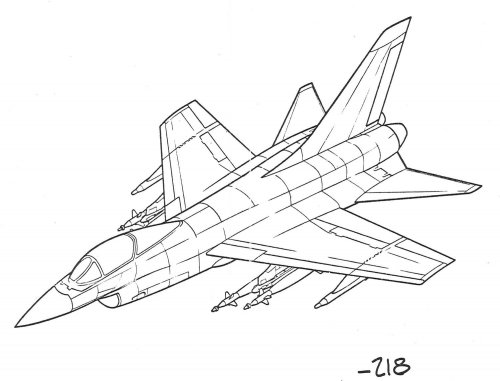

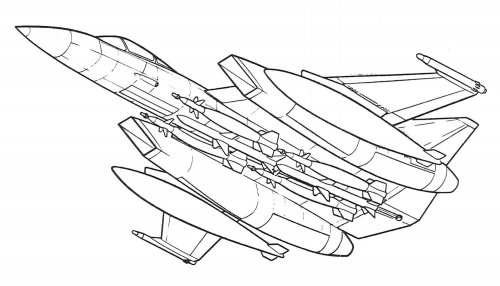

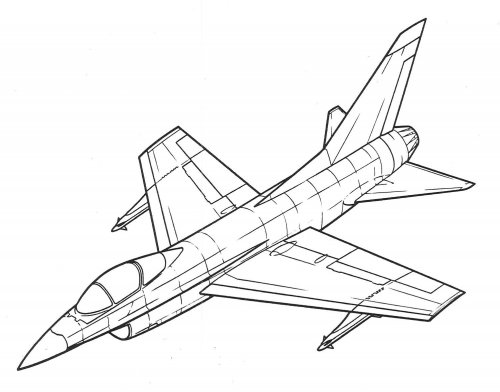

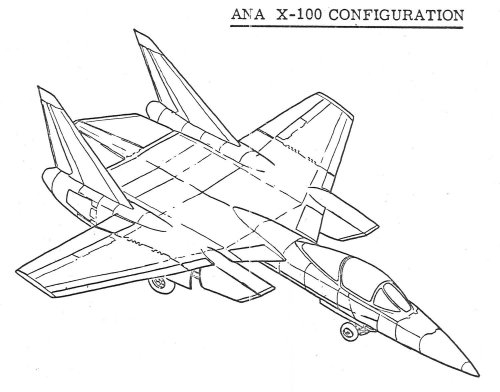

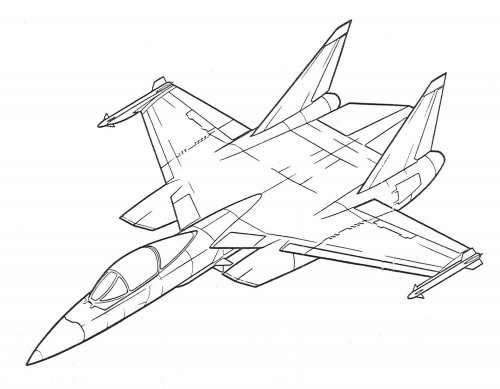

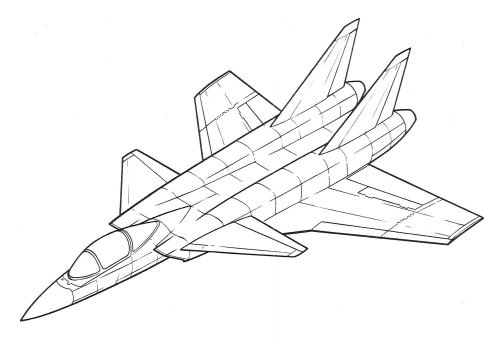

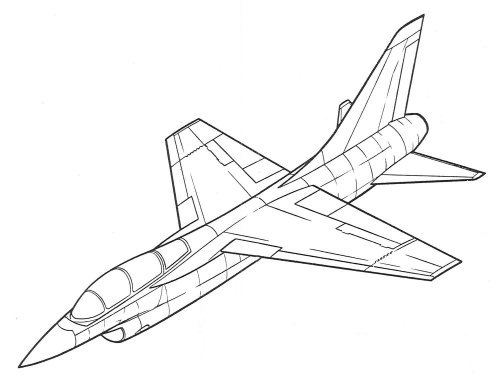

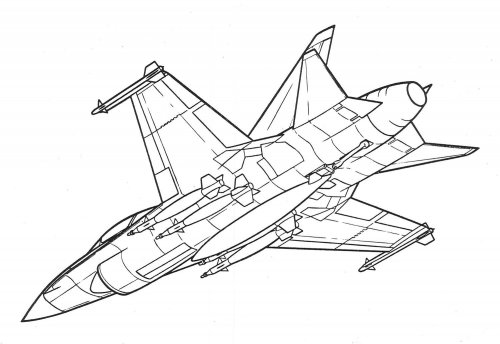

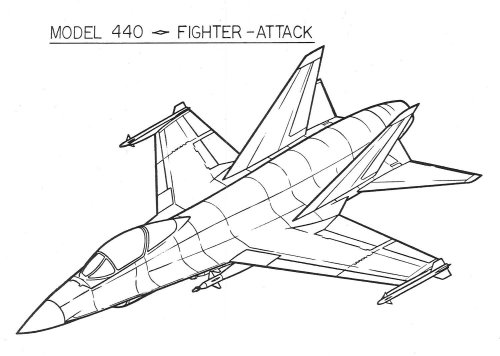

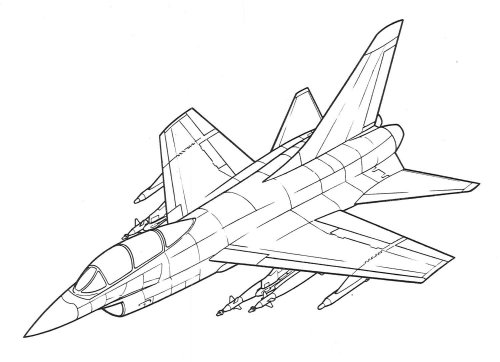

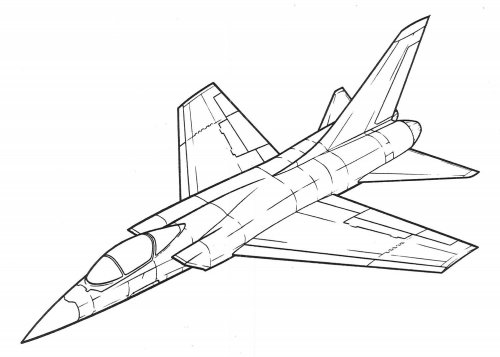

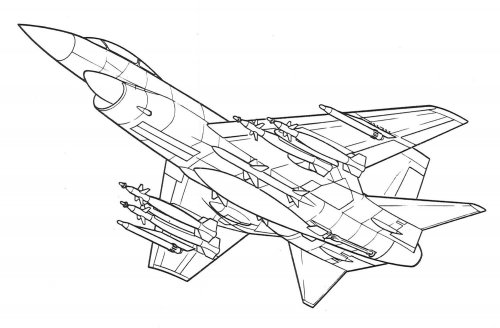

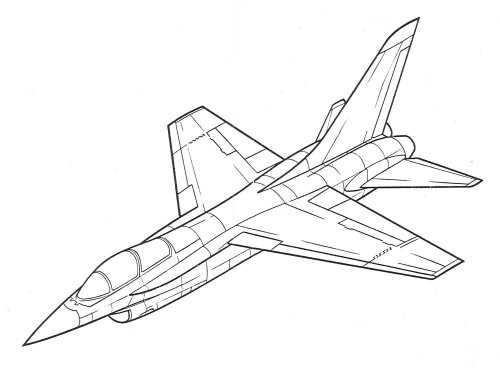

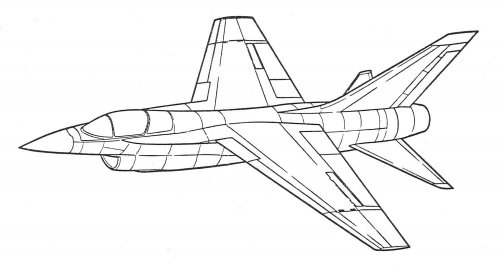

Now the beginning of the design evolution. The initial baseline design looks to me to have a bit of F-8 DNA in the vertical fin, wing planform and position along with the inboard ailerons.


Attachments

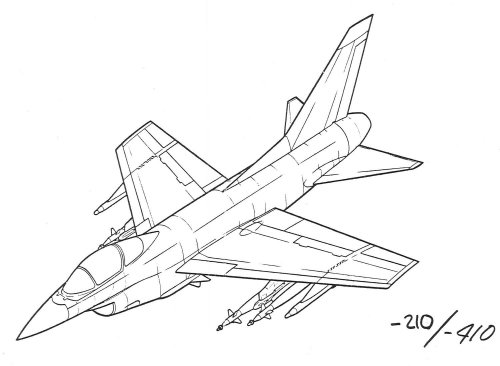

  • x-210 -410 - 2.jpg
    x-210 -410 - 2.jpg
    151.4 KB · Views: 328
  • x-210 -410 - 1.jpg
    x-210 -410 - 1.jpg
    109.3 KB · Views: 276
  • x-17.jpg
    102 KB · Views: 255
  • x-10.jpg
    103.1 KB · Views: 239
  • x-9.jpg
    104.9 KB · Views: 230
  • x-6.jpg
    98.9 KB · Views: 224
  • x-5.jpg
    101.4 KB · Views: 241
  • xBaseline 1 2 & 3.jpg
    xBaseline 1 2 & 3.jpg
    85.6 KB · Views: 1,406

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,701
Reaction score
842
...and more...


Attachments

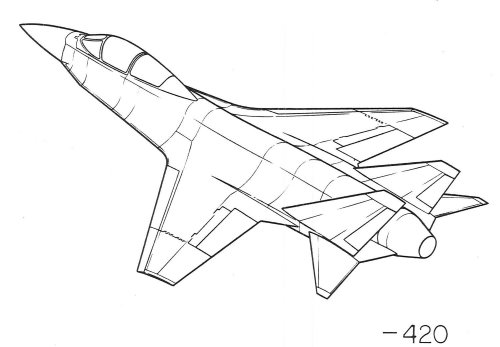

  • x-420 Baseline Jul-8-74.jpg
    x-420 Baseline Jul-8-74.jpg
    100.2 KB · Views: 297

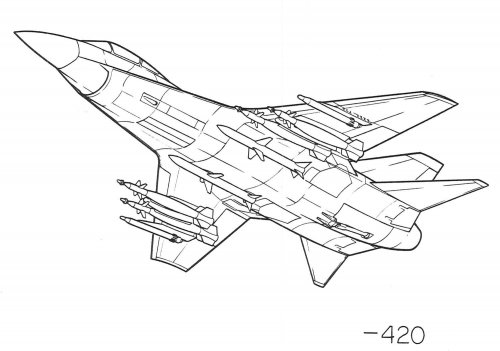

  • x-420 - 2.jpg
    x-420 - 2.jpg
    120.5 KB · Views: 314
  • x-420 - 1.jpg
    x-420 - 1.jpg
    96.7 KB · Views: 263

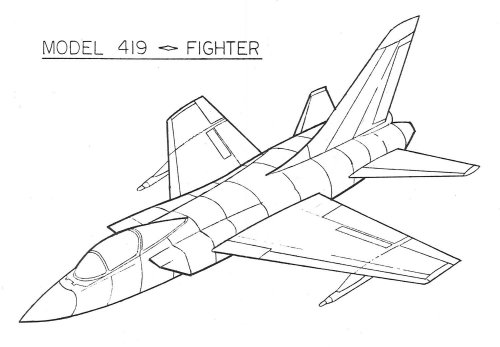

  • xModel 419 Fighter.jpg
    xModel 419 Fighter.jpg
    105.6 KB · Views: 956

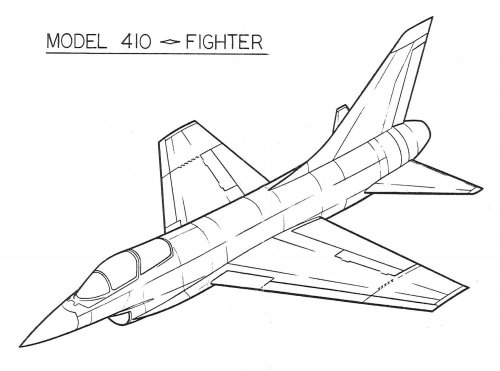

  • xModel 410 Fighter.jpg
    xModel 410 Fighter.jpg
    108.6 KB · Views: 968
  • xModel 410 Baseline.jpg
    xModel 410 Baseline.jpg
    117.5 KB · Views: 1,002
  • xModel 318.jpg
    xModel 318.jpg
    113.6 KB · Views: 1,043
  • xModel 311.jpg
    xModel 311.jpg
    116.5 KB · Views: 1,070

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,938
Reaction score
493
Wow, that's a mother load of drawings! Thank you. BTW, I take it the twin engine variants had the same mass flow together as the single engine since the nose/inlet looks the same for many of them.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
646
Some new images of the V-526 Concept Model and an artist concept in color of the X-100.
VAHF archives

Bill


Attachments

  • X-100-Artist-Concept-VAHF.jpg
    73.8 KB · Views: 408
  • V-526-Concept-Model-Upper-Right-Turn-VAHF.jpg
    24.2 KB · Views: 441
  • V-526-Concept-Model-Upper-Left-Turn-VAHF.jpg
    25.4 KB · Views: 365
  • V-526-Concept-Model-Top-View-VAHF.jpg
    25.6 KB · Views: 381
  • V-526-Concept-Model-Right-Turn-VAHF.jpg
    22 KB · Views: 358
  • V-526-Concept-Model-Left-Turn-VAHF.jpg
    25.3 KB · Views: 1,066
  • V-526-Concept-Model-Climbing-VAHF.jpg
    25.6 KB · Views: 408

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
701
Reaction score
501
V-526 model- very nice! Thanks!


SSgtC

ACCESS: Top Secret
Joined
Jul 13, 2020
Messages
737
Reaction score
1,249
Sorry for the necro, but does anyone know roughly what Vought was projecting for the V-526 performance wise? Just guessing from the info provided in the drawings and the mention of F101 engine, my WAG would be a top speed somewhere around Mach 1.7-1.9 with a combat radius of between 300 and 600 miles depending on load out and a max TO weight somewhere between 35,000 and 45,000 pounds. Does that sound about right or am I way off?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
I’ll check the proposal docs tonight. The V-1602 with the same engine had increased range as expected over the F401 engined version but max speed wasn’t affected.
Also note there is no concept here of not posting in old topics. I’d rather keep discussions together.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
So - there were 5 different versions proposed.
V-526CV-526V-526AV-526BV-526D
Fighter CapabilityCAM FighterCAM FighterSparrow FighterSparrow FighterSparrow Fighter
Attack CapabilityA-7 LevelA-7 LevelA-7 LevelA-7 LevelAdvanced All-Weather Attack
Crew11122
Weight, FE, lb28,54029,42031 ,49031,45132,048
FE radius NM450450483390375
Interdiction Radius NM1,0711,0561,038932901
Max catapult weight is 48,906lb for all versions.

I'll add more later - bedtime.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
CAM Fighter - 15" diameter antenna pulse-doppler radar, Sidewinders, guns, agile fire control
Sparrow Fighter - 23"x 33" antenna pulse-doppler radar, added Sparrows.
Advanced All-Weather Attack - added radar power, TWS, terrain avoidance, MTI, beacon modes


SSgtC

ACCESS: Top Secret
Joined
Jul 13, 2020
Messages
737
Reaction score
1,249

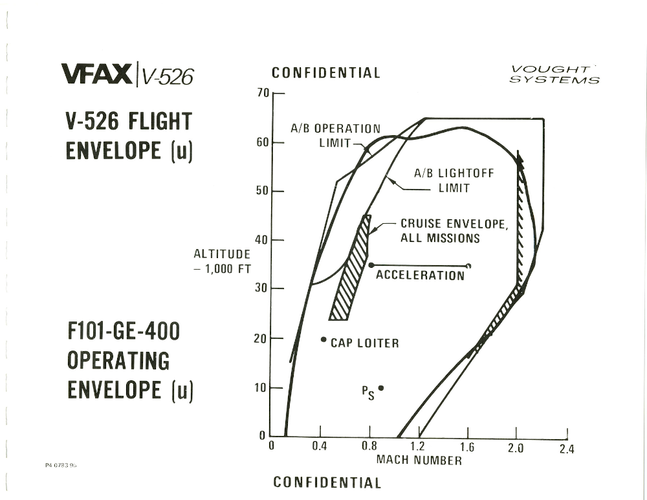

Speed / altitude graph
That's a lot more performance than I thought it would have. That's actually very impressive. How in the hell didn't this design get more consideration from the Navy?! (Partly rhetorical, I know they were ordered to use one of the two USAF LWF designs)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
The V-1602 with the F101 engine only had a ceiling of 44000 ft and max speed was Mach 1.95, but according to the brochure the high speed and acceleration performance were quite dependent on a modified intake with pre-compression ramp with the F101. Most likely with plain pitot intake it would be more like an F-18.

V-1602 was as close to V-526 as you could get away with while still looking like an F-16 derivative. The high aspect ratio (3.8) 30 degree wing is very Vought. Weak point of performance for F101 was ceiling and speed in intermediate thrust - it'd burn more fuel in dogfights by needing afterburner more often.


FrankM

ACCESS: Restricted
Joined
Oct 22, 2006
Messages
5
Reaction score
0
The V-1602 with the F101 engine only had a ceiling of 44000 ft and max speed was Mach 1.95, but according to the brochure the high speed and acceleration performance were quite dependent on a modified intake with pre-compression ramp with the F101. Most likely with plain pitot intake it would be more like an F-18.

V-1602 was as close to V-526 as you could get away with while still looking like an F-16 derivative. The high aspect ratio (3.8) 30 degree wing is very Vought. Weak point of performance for F101 was ceiling and speed in intermediate thrust - it'd burn more fuel in dogfights by needing afterburner more often.

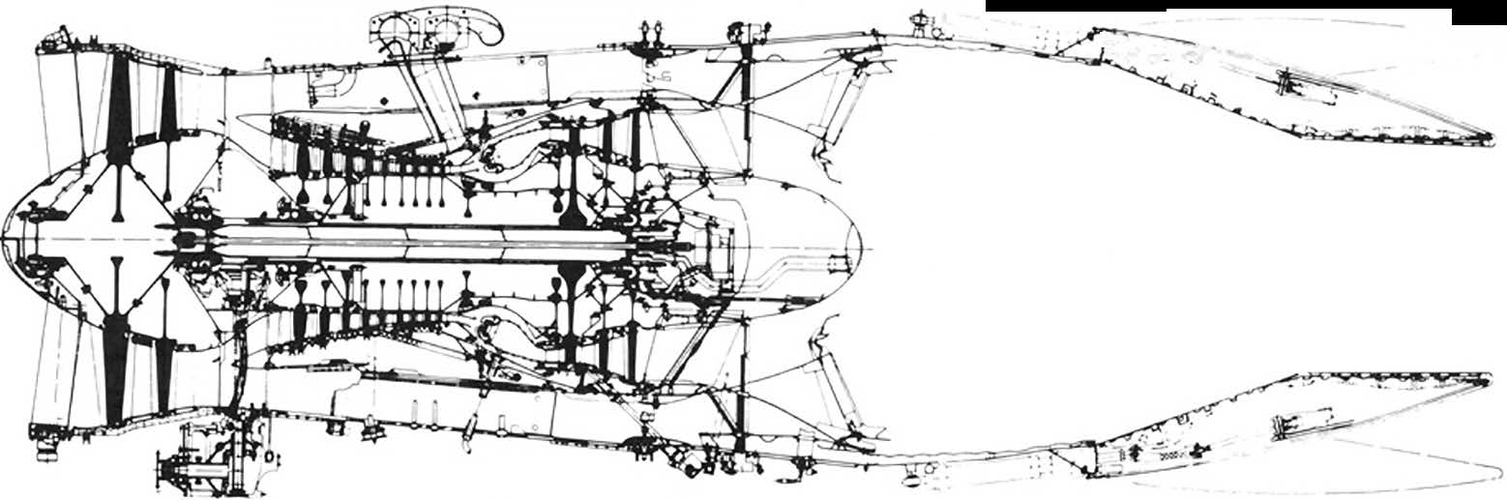

Does the brochure by any chance tell how the F101-GE-400 was related to the B1-engine in terms of thrust, bpr and airflow?

Best regards,
Frank M.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551
Yes.

MAX POWER, THRUST, LB29,861
MAX POWER, SFC, LB/HR/LB2.46
MAX POWER, AIRFLOW, LB/SEC352
NTERMEDIATE THRUST, LB16,150
INTERMEDIATE SFC, LB/HR/LB0.556
BYPASS RATIO (BPR)2.01
OVERALL COMPRESSION RATIO26.5
TURBINE INLET TEMPERATURE (MAX), °F2,550
DRY WEIGHT, LB4,235
LENGTH, IN.180.7
INLET DIAMETER, IN.45.0
MAX DIAMETER, IN.58.0

Configuration of stages was 2 fan / 9 compressor / 1 turbine / 2 turbines F101GE400.png


FrankM

ACCESS: Restricted
Joined
Oct 22, 2006
Messages
5
Reaction score
0
Yes.

MAX POWER, THRUST, LB29,861
MAX POWER, SFC, LB/HR/LB2.46
MAX POWER, AIRFLOW, LB/SEC352
NTERMEDIATE THRUST, LB16,150
INTERMEDIATE SFC, LB/HR/LB0.556
BYPASS RATIO (BPR)2.01
OVERALL COMPRESSION RATIO26.5
TURBINE INLET TEMPERATURE (MAX), °F2,550
DRY WEIGHT, LB4,235
LENGTH, IN.180.7
INLET DIAMETER, IN.45.0
MAX DIAMETER, IN.58.0

Configuration of stages was 2 fan / 9 compressor / 1 turbine / 2 turbinesView attachment 643991
Great, many thanks!

Top
