Vought-Sikorsky VS-302B

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655

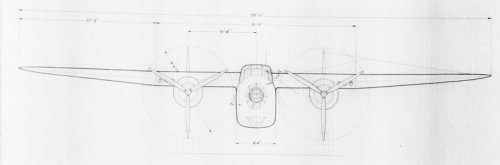

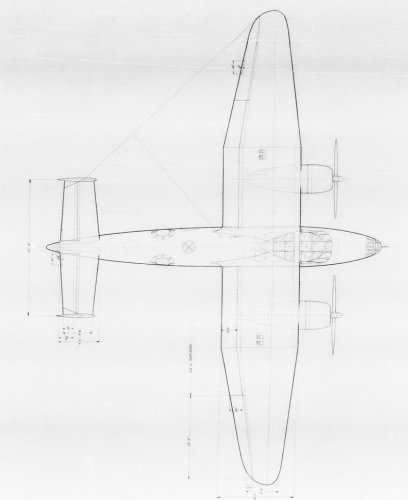

2 Engined Bombardment Airplane June 30, 1939
Vought Archives


Attachments

  • VS-302B_Front_View.jpg
    17.4 KB · Views: 902
  • VS-302B_Side_View.jpg
    38.2 KB · Views: 969
  • VS-302B_Top_View.jpg
    53.4 KB · Views: 920

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
511
USAAC High performance bomber according to "Les Avions Vought" (Bernat Millot)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
The first name of the author is "Bernard", not Bernat.

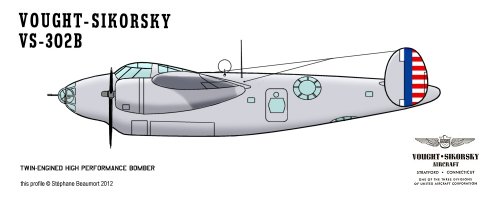

Allow me to share my own rework of the aircraft's profile view.


Attachments

  • VS-302B.jpg
    90.2 KB · Views: 702

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
Neat, it looks quite sleek for its day and one can easily imagine one fitted out with a gun nose or the side gun packs like the B-25. Those circular rear positions are odd and it would be great to learn more. Are they lateral/rear defense gun positions, like a PBY Catalina, but with small transparent ball turrets instead of the big teardrop blisters on the Cat'?


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
Nice illustration Stargazer! Mole will add info as I come across it.


bill


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
VS-302A details


2 Wright 2600 Engines
Design alt. 27,000ft
High speed at design alt 348mph
High speed at sea level 293mph
Service Ceiling with design load 35,600ft


VS-302B


2 P&W 2800 Engines
High Speed at 25,000 350mph
Service Ceiling 30,000ft


Normal Loading (both)
4-500lb bombs
1-2000lb bomb
20-100lb bombs
2-1100lb bombs


bill


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655

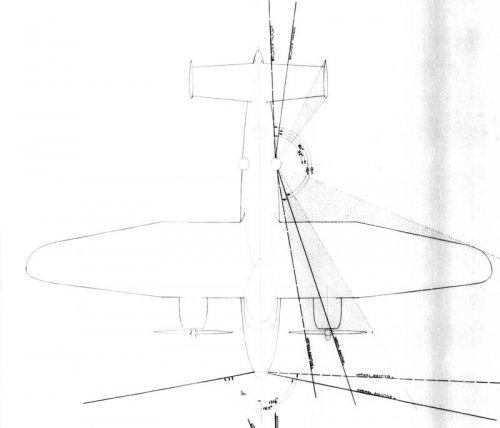

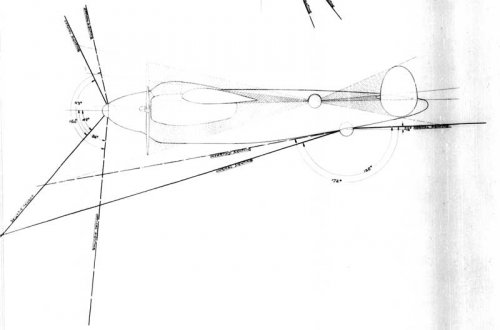

The gun firing angles diagram adds some information about the gun positions.


Vought


bill


Attachments

  • VS-302A-B-Firing-Diagram-Flexible-Guns.jpg
    21.3 KB · Views: 290
  • VS-302A-B-Firing-Diagram-Flexible-Guns1.jpg
    24.5 KB · Views: 71
