Vought Kingfisher II seaplane UAV

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
From Flight International March 29, 2005.


"Vought aims for US Navy with seaplane UAV concept"

Jet-powered Kingfisher II intended to challenge Fire Scout for LCS support role

Vought Aircraft Industries is studying the feasibility of launching its first all-new aircraft in decades, proposing a seaplane unmanned air vehicle concept to the US Navy called the Kingfisher II.

Vought seeks to enter the UAV market with a design that offers an alternative to the USN's plans to support the future Littoral Combat Ship (LCS) with helicopter UAVs – namely, the Northrop Grumman RQ-8B Fire Scout.

"We want to support ships, too, but don't want to take off vertically," says Chris Wilt, Vought's business development director for research, development and technology programmes.

An infant technology programme, backed by a small grant from the US Defense Advanced Research Projects Agency (DARPA), is seeking tools for makingautonomous take-offs and landings on the water, which the company believes would be a breakthrough capability in the UAV field.

Flying demonstrations later this year using a manned surrogate aircraft are intended to stir interest in follow-on funding by DARPA or the USN to fund more basic engineering work and perhaps develop a prototype.

Vought is also seeking to partner a prime contractor for full-scale development. Talks have started with Lockheed Martin.

The jet-powered Kingfisher II would be Vought's first new-start since the A-7 Corsair in the 1960s. Performance projections are based on an above-fuselage-mounted 4,100lb-thrust (18kN) Pratt & Whit­ney Canada PW525B. The concept calls for a 250kt (460km/h) cruise speed at 20,000ft (6,100m) with a 2,500lb (1,135kg) payload.

"The wingspan would measure 41ft, with overall length about 38ft," says Wilt.

The design calls for retractable wingtip floats, variable incidence/variable camber wings and all-flying V tail. The payload is optimised to carry a surveillance package and a 750lb Mk54 torpedo, says Wilt.

STEPHEN TRIMBLE/WASHINGTON DC

Sources:
http://www.flightglobal.com/articles/2005/03/29/195920/vought-aims-for-us-navy-with-seaplane-uav-concept.html
http://forum.keypublishing.com/showthread.php?t=40469

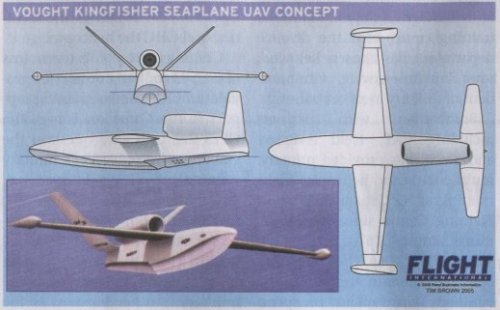

Artist's impression of Vought Kingfisher II seaplane UAV concept.


Attachments

  • ScanImage003.jpg
    31.9 KB · Views: 575

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
676

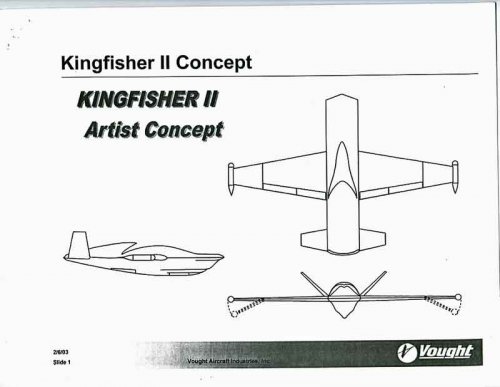

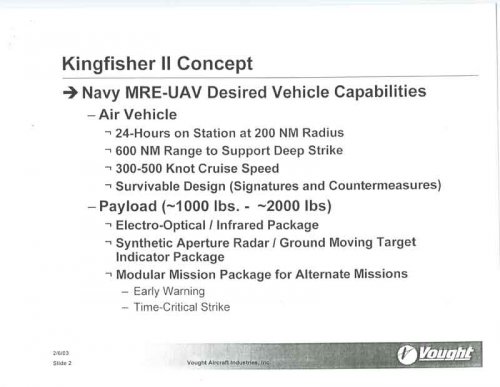

Here are a couple slides from the Vought Archives


Attachments

  • 2011-03-06-0002.jpg
    23.3 KB · Views: 532
  • 2011-03-06-0003.jpg
    28.4 KB · Views: 496

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,636
There seems to be a strong possibility that this project may yet be revived.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,234
Reaction score
365
Bill S said:
Here are a couple slides from the Vought Archives

Looks a lot like the Lockheed MRE UAV:
http://www.secretprojects.co.uk/forum/index.php?topic=227.0
