Vickers Type 559 (F155T) fighter

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

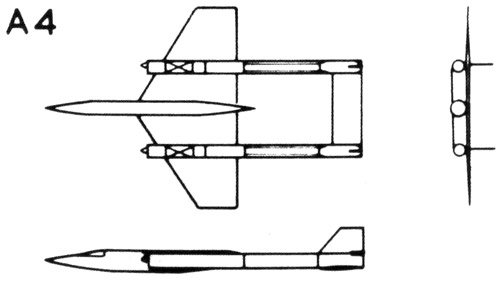

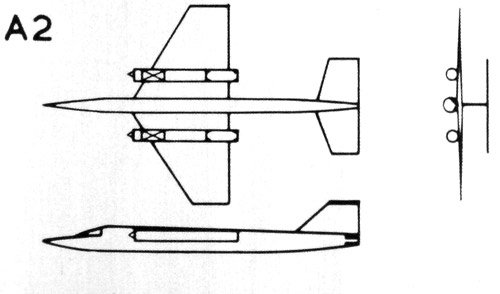

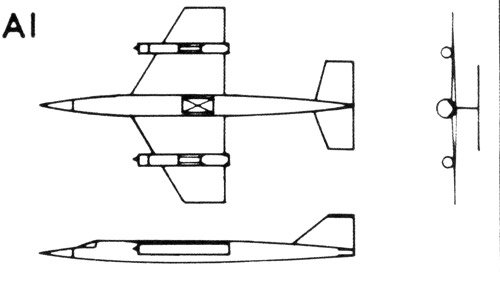

Tailed designs


Attachments

  • VickersA2.jpg
    22.6 KB · Views: 1,050
  • VickersA3.jpg
    18.5 KB · Views: 955
  • VickersA4.jpg
    16.9 KB · Views: 911
  • VickersA1.jpg
    17.5 KB · Views: 876

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

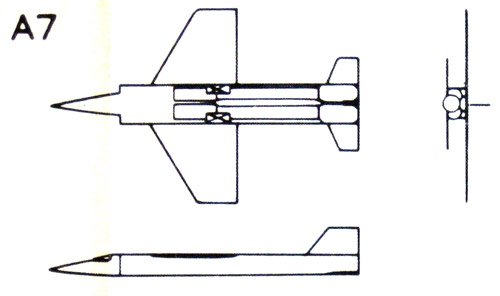

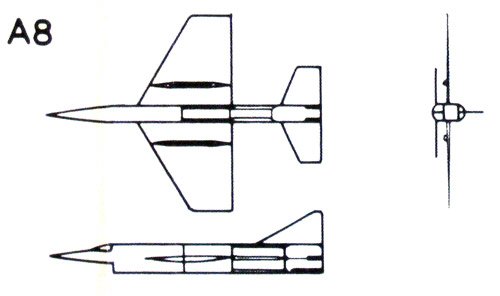

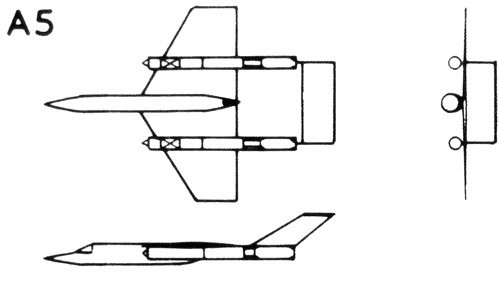

more


Attachments

  • VickersA8.jpg
    21 KB · Views: 72
  • VickersA7.jpg
    20.5 KB · Views: 72
  • VickersA6.jpg
    22.7 KB · Views: 81
  • VickersA5.jpg
    17.1 KB · Views: 848

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

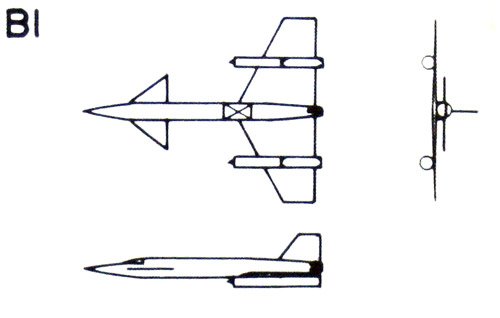

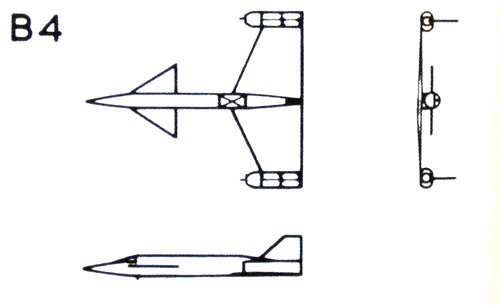

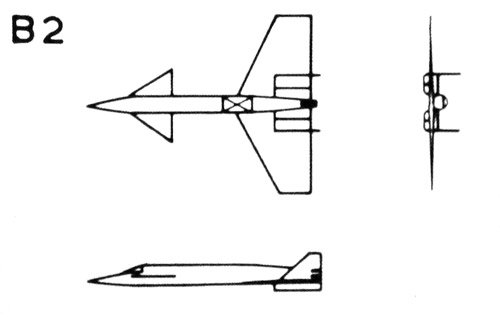

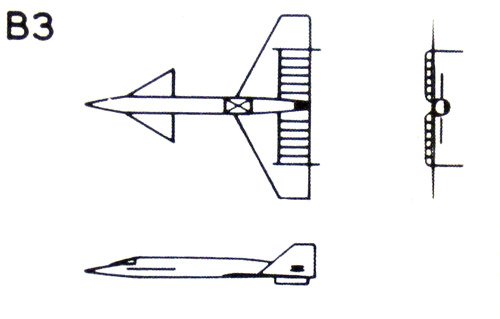

B: Canard designs


Attachments

  • VickersB1.jpg
    19.1 KB · Views: 52
  • VickersB2.jpg
    14.5 KB · Views: 59
  • VickersB3.jpg
    19.1 KB · Views: 60
  • VickersB4.jpg
    17.9 KB · Views: 60

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

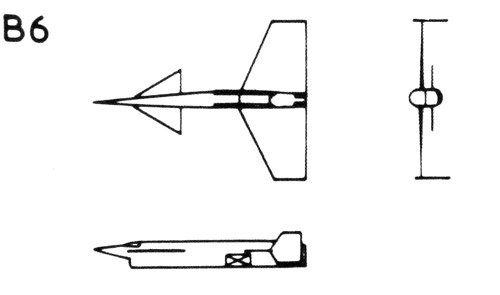

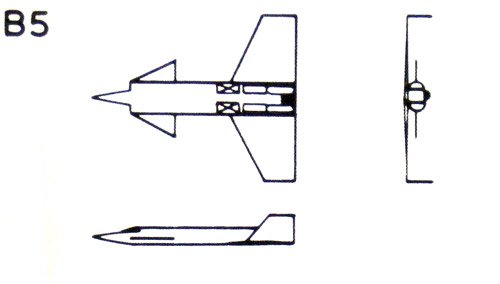

And the last 2


Attachments

  • VickersB6.jpg
    12.8 KB · Views: 73
  • VickersB5.jpg
    16 KB · Views: 81

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382
These pictures were taken from the brochure for the Vickers 559. They were very small in the original, they are pleasingly odd.


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,008
Reaction score
711
Fascenating, stuff. Where did you get to see the brochure?


danielgrimes

ACCESS: Confidential
Joined
Oct 8, 2007
Messages
57
Reaction score
0
The more convertional designs appear similar to the Type 799 and Type 583; Especially B3 with the multiple engines. It goes to show the research required to create something that could achieve F1/55's far reaching requirements!!


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

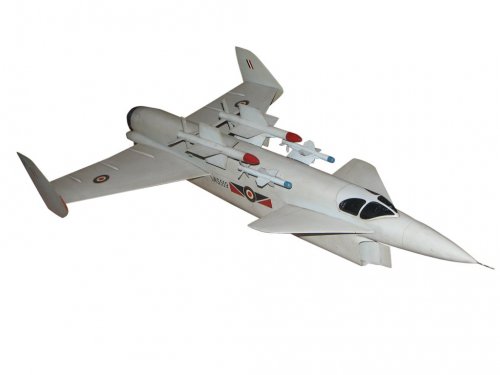

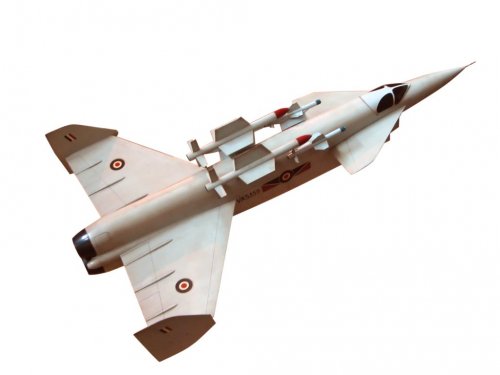

A couple of my pics of the Vickers 559 model from RAF Stafford collection.


Attachments

  • Vickers559-1.jpg
    44.6 KB · Views: 868
  • Vickers559-2.jpg
    40.7 KB · Views: 295

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,060
Reaction score
145
overscan said:
A couple of my pics of the Vickers 559 model from RAF Stafford collection.

Arming that beast would have been quite a task! That said, it is my favourite F.155 submission - very Thunderbirds-esque.

Also, this is the first time I've seen the 559 with a Red Top missile fit - my gut feeling is that the staggered ventral carriage of the Red Dean and Red Tops would have imposed a rigid sequential pattern - Deans away before Tops.


Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
7
starviking said:
overscan said:
A couple of my pics of the Vickers 559 model from RAF Stafford collection.

Arming that beast would have been quite a task! That said, it is my favourite F.155 submission - very Thunderbirds-esque.

Also, this is the first time I've seen the 559 with a Red Top missile fit - my gut feeling is that the staggered ventral carriage of the Red Dean and Red Tops would have imposed a rigid sequential pattern - Deans away before Tops.
That would make sense IMHO - better to first take down (some of) the bombers from a "safe" distance before having to chase either bombers or (escort?) fighters.


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,008
Reaction score
711
Red Hebe's are for the head on, first pass, Red Tops for the follow up stern chase. Idea being to break up formations and get them to abandon the attack.

Thus the idea of fitting Red Hebe with a nuclear warhead, increasing lethality and making bomber formations a dangerous way to approach UK airdefences.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Model of Vickers Type 559 held by RAF Museum Cosford Curator Nick Sturgess.

Source:
http://www.warbirdsnews.com/avaition-museum-news/raf-museum-cosford-exhibits-models-cancelled-concept-aircraft.html#more-5849


Attachments

  • Nick-Sturgess-with-two-concept-models2.jpg
    257.8 KB · Views: 697

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,060
Reaction score
145
Triton said:
Model of Vickers Type 559 held by RAF Museum Cosford Curator Nick Sturgess.


I don't recall seeing that missile configuration on the 559 before. Certainly requires a fixed firing sequence for the missiles: the Red Tops are going last.


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
564
Reaction score
194
Judging from the misalignment on the aft pylon(s) - I have to wonder if the model re-assembly is incorrect... ?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382
The pylons are alternatives, only one pair can be used at once. This is not a real configuration.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,649
Reaction score
666
I do not understand, the idea to put the Pylons on top of Aircraft ?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382
According to the brochure:


Best fit for conforming to Area Rule is just ahead of wing
Fuselage mounted weapons possibly lower drag than wing mounted
Little possibilty of buffet from weapon wake


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

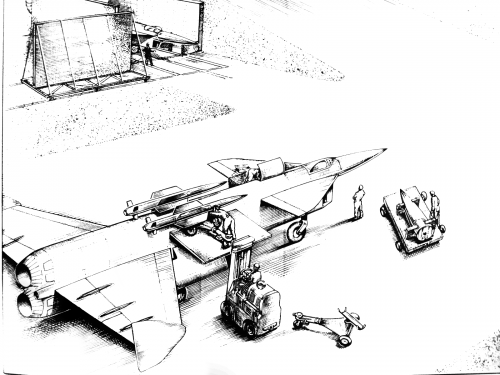

A brochure drawing with perplexing perspective.


Attachments

  • 559-drawing.png
    337.6 KB · Views: 621

CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,431
Reaction score
649
"Fuselage mounted weapons possibly lower drag than wing mounted"

...and less assymetric drag effects if one missle was fired. Air Staff reckoned that a Midge with tip-mounted Blue Jays would have been difficult to control unless both were fired at once. See Battle Flight Page 141

I wonder if a large store such as Red Hebe would have the same effect on a large fighter such as the Vickers 559?

Paul, any mention of this in relation to the Hawker P.1103 and tip=mounted Red Hebes?

Chris


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
976
Reaction score
468

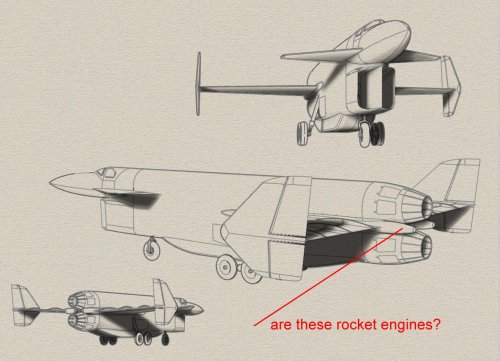

this bird is near to top of my internal buffer what to do. I hope I will do only planes from this buffer


Attachments

  • 559.jpg
    169.4 KB · Views: 512

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,649
Reaction score
666
PlanesPictures said:
this bird is near to top of my internal buffer what to do. I hope I will do only planes from this buffer

that are two De Havilland Spectre Junior kerosene/hydrogen peroxide rocket motor, with thrust of 5,000 lbf (22 kN) each


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

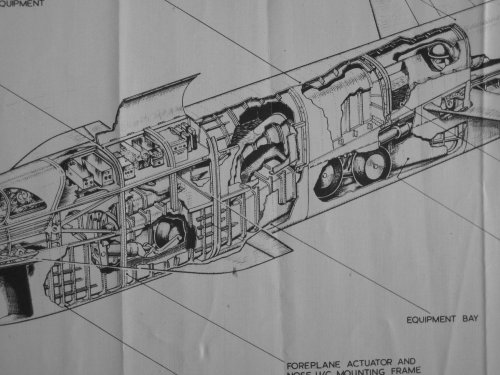

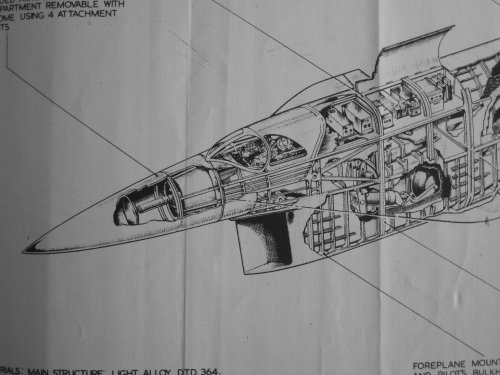

Some details for modelling purposes.


Attachments

  • IMG_1216.jpg
    299.8 KB · Views: 466
  • IMG_1218.jpg
    321.4 KB · Views: 447
  • IMG_1219.jpg
    280.8 KB · Views: 233
  • IMG_1226.jpg
    233.1 KB · Views: 221

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,386
Reaction score
1,427
Archibald said:
sferrin said:
Probably my favorite British might-have-been.

Seconded. Only the Saro P.187 beat it in pure brutishness.

Thirded. (Agree with your second statement as well.)


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
614
Reaction score
65

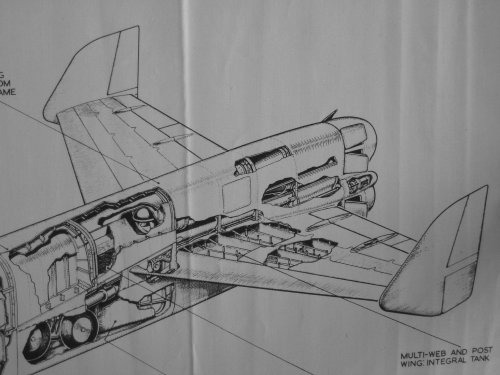

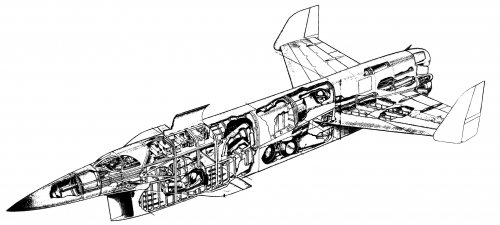

Cutaway Vickers Type 559 (F155T) Fighter retouched by Motocar


Attachments

  • Cutaway Vickers Type 559 Fighter en limpio en blanco y negro.jpg
    Cutaway Vickers Type 559 Fighter en limpio en blanco y negro.jpg
    595.5 KB · Views: 628

FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
1,571
Reaction score
334
Motocar said:
Cutaway Vickers Type 559 (F155T) Fighter retouched by Motocar

What happened to the Vickers Type 559? Was it too advanced for its time or did it suffer a similar fate like the TSR-2? Either way it is a stunning aircraft.


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
953
Reaction score
457

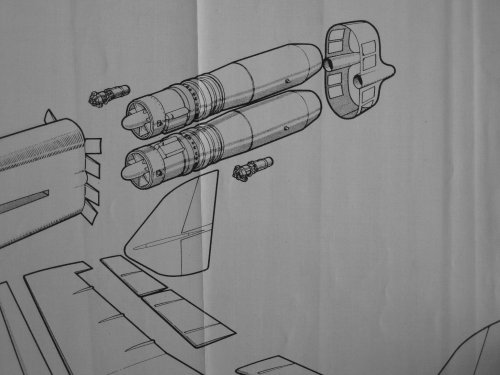

Detail from another brochure pic...



andy_d

ACCESS: Restricted
Joined
Aug 17, 2008
Messages
18
Reaction score
1
It seems an awful lot of aircraft to carry just two missiles.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,386
Reaction score
1,427
andy_d said:
It seems an awful lot of aircraft to carry just two missiles.

YF-12 or F-108 would have only carried 3. Back then though they had more airplanes. 12 planes with 2 missiles each vs 2 planes with 12 missiles. Probably figured by the time they reached the bombers they'd only have enough gas to go after one of them anyway.


andy_d

ACCESS: Restricted
Joined
Aug 17, 2008
Messages
18
Reaction score
1
Hopefully not too much off topic - the F155T designs were obviously intended for similar performance to the Lightning, but with greater range. Was this because, even before the Lightning entered service, its range was recognised as being inadequate for interceptions over the North Sea? Bill Gunston said that the first Lightnings had about enough fuel "to defend one English county."
