Very early French helicopters: Santos-Dumont, Bréguet, Cornu...

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528
Adapted from Jean Boulet's Histoire de l'hélicoptère racontée par ses pionniers – 1907-1956:

Several individuals attempted to build and fly helicopters in the very first years of the 20th century. Historians agree to consider 1907 as Year 1 of the helicopter, with Paul Cornu's and Louis Bréguet's attempts.

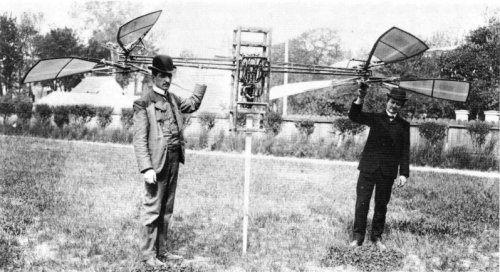

  • Félix Faure's machine (1903). This had coaxial rotors and weighed 85 kg.
  • Colonel Renard's machine (1904). It was fairly large, with two rotors on each side, but insufficient lift prevented it from taking off.
  • Léger machine (1905). Not strictly French, this machine built by an engineer from Monaco featured two coaxial blades, the axle of which could be tilted forward. A large rudder with oblique hinge might have enable control of the machine. Weight was 110 kg while power was 6 hp. It never took off.

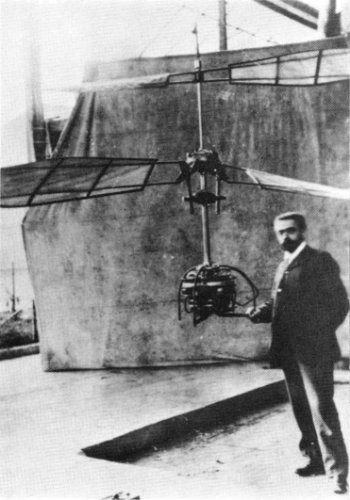

  • Dufaux machine (1905). In May 1905, the Dufaux brothers made some very popular flying demonstrations of a helicopter model in the Parc de Saint-Cloud, near Paris. Again they were not French, being from Geneva in Switzerland. They machine had two side-by-side rotors (with a 2-meter diameter), driven at 250 rpm by a 3 hp engine that was perfectly apt to lift off the 17-kg machine.
  • Santos-Dumont helicopter (1905). Aiming to win the Archdeacon Prize — which granted a FF. 50,000 reward to the first pilot who would complete a one-kilometer round in closed circuit with a heavier-than-air machine — the famed inventor/socialite/aviator built a helicopter, a photo of which was published in the January 12, 1906 issue of La Vie au Grand Air. Discouraged by the difficulties he encountered in developed the machine, however, Santos-Dumont renounced to use a helicopter and opted for an aeroplane configuration (one that gave him the victory and largely contributed to his legend!).
  • Bréguet-Richet gyroplane (1907). This was the first helicopter that actually lifted its pilot into the air (on August 27). It was heavy and powerful, but it had to be "guided" by four helpers on the ground because of its lack of controls.

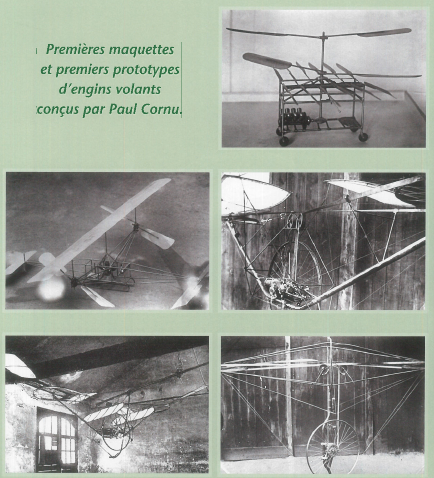

  • Cornu helicopter (1907). This machine made the world's first genuine untethered flight (on November 13). However, despite his flying successfully a sub-scale model a year before that was duly documented, no photos or official witness (other than Cornu himself) make it possible to verify that the piloted machine could have made more than a few hops into the air: lateral instability and lack of efficient aerodynamic control surfaces make Cornu's particular claims for this first flight unlikely.
  • Douheret helicopter (1919). Two superimposed rotors were driven by a 50 hp birotary Gnôme engine, loated between the rotors. The machine only made a few attempts at taking off.
  • Damblanc helicopter (1920). After building a first model with two superimposed rotors, Louis Damblanc built in 1920 the world's first twin-engine helicopter. The machine consisted of an aircraft's fuselage with one 120 hp rotary engine on each side, each driving a rotor with large adjustable blades. It was damaged during the initial flight test phase.

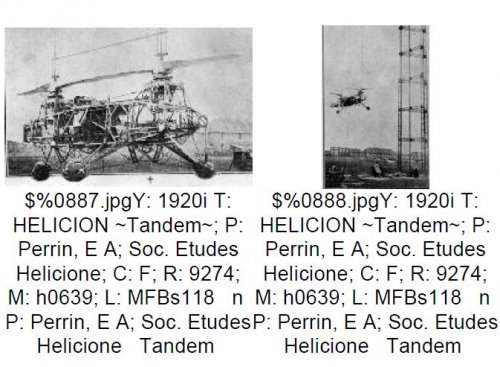

  • Perrin's Helicion (1922). This machine actually lifted off, but hooked from a crane! In actual fact it never went past the static test phase.
NOTE: the Bréguet and Cornu machines are fairly well known and are therefore not part of these attachments.


Attachments

  • Félix Faure (1903).jpg
    Félix Faure (1903).jpg
    128 KB · Views: 548
  • Perrin (1922).jpg
    Perrin (1922).jpg
    290.4 KB · Views: 69
  • Damblanc (1920).jpg
    Damblanc (1920).jpg
    245.6 KB · Views: 41
  • Douheret (1919).jpg
    Douheret (1919).jpg
    108.8 KB · Views: 40

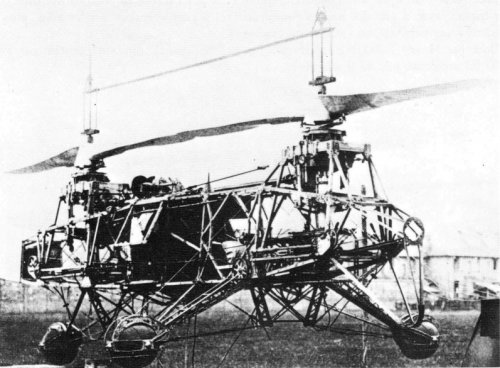

  • Santos-Dumont (1905).jpg
    Santos-Dumont (1905).jpg
    404.7 KB · Views: 401
  • Dufaux (1905).jpg
    Dufaux (1905).jpg
    259.5 KB · Views: 428
  • Léger (Monaco, 1905).jpg
    Léger (Monaco, 1905).jpg
    282.3 KB · Views: 456
  • Renard (1904).jpg
    Renard (1904).jpg
    262.6 KB · Views: 501

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Hi Stargazer,
Could you briefly describe the contents of this book ? I read that there are interviews of pioneers. Are there good pictures? Drawings?
Does it cover designs from all countries in equal depth, or is it more about French machines?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528
c460 said:
Hi Stargazer,
Could you briefly describe the contents of this book ? I read that there are interviews of pioneers. Are there good pictures? Drawings?
Does it cover designs from all countries in equal depth, or is it more about French machines?

It is an absolute MUST HAVE title for any serious collection! Don't know if it's still available though...
Bought it about 20 years ago, but only started to scan and translate bits of it for this forum today...
  • All countries and types are covered.
  • The book is filled to the brim with photos, but all black and white (only 7 color pics!).
  • Being written by a prominent test pilot, it contains many first hand testimonies and anecdotes (all in French of course...).
  • The book is packed with interviews from French, Russian, American and other engineers and pilots.
  • The book was published in 1991 by Éditions France-Empire, which is no longer available.
  • The bulk of the book tells the story up to 1956. A handful of pages were added for the reissue to (very) quickly summarize the next 35 years.
  • It has 262 pages in A4 format.
  • ISBN number was 2-7048-0676-4.

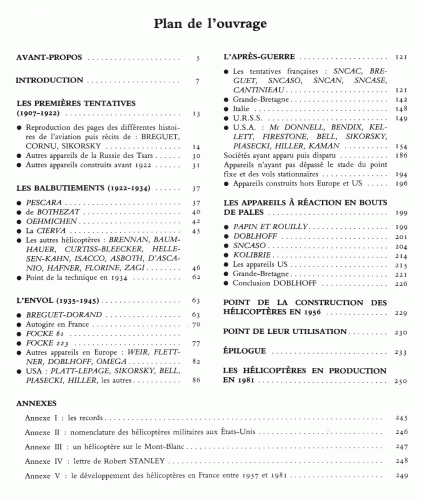

I'm attaching the contents table for your information.


Attachments

  • Boulet (plan).gif
    Boulet (plan).gif
    293.6 KB · Views: 47

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
From l'Aeronautique 1930,

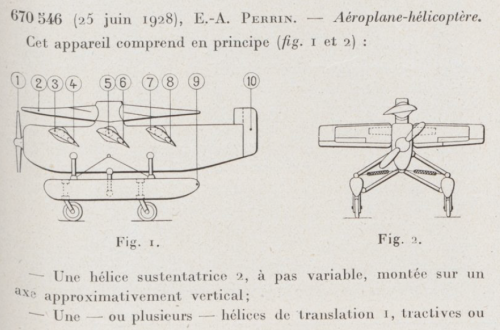

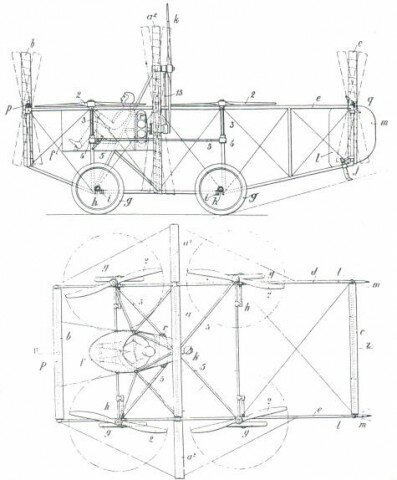

here is anther design to Perrin in a patent.


Attachments

  • Perrin I.png
    Perrin I.png
    785.6 KB · Views: 38
  • II.png
    428 KB · Views: 26
  • III.png
    341.8 KB · Views: 40

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

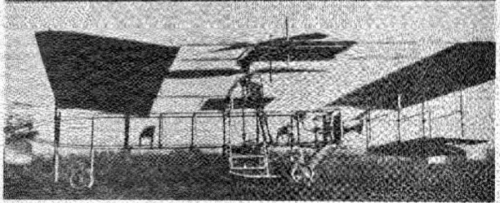

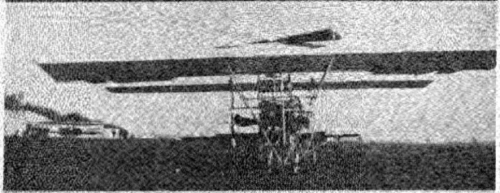

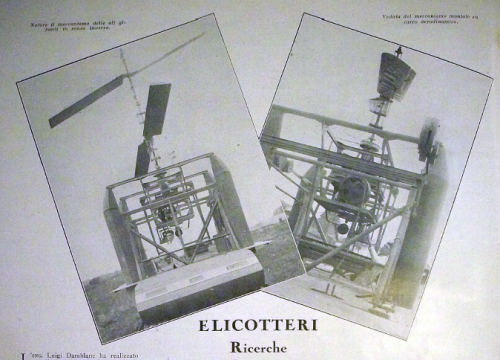

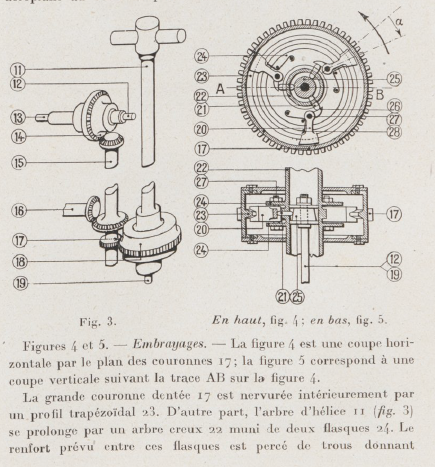

here is again, Damblanc helicopter pictures.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201931%2002.pdf


Attachments

  • 4.png
    649 KB · Views: 39
  • 3.png
    751.5 KB · Views: 33

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

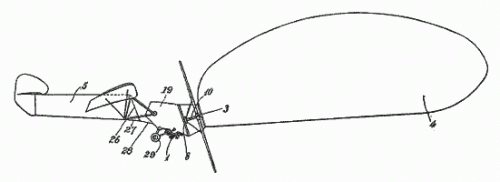

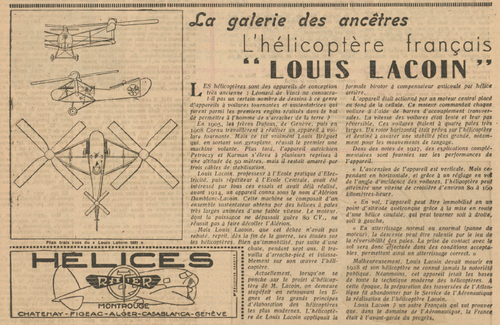

here is a helicopter from Lacoin-Damblanc.


Attachments

  • Lecoin-Damblanc.jpg
    91.3 KB · Views: 36

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Also a Maurice Lamé concept.

http://alain.vassel.pagesperso-orange.fr/appareils-oehmichen.html


Attachments

  • 6.gif
    7 KB · Views: 26
  • 5.gif
    4.3 KB · Views: 25
  • 4.jpg
    4.2 KB · Views: 31
  • 3.jpg
    19.6 KB · Views: 32
  • 2.jpg
    9.5 KB · Views: 33
  • 1.gif
    18.5 KB · Views: 38

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
848
Reaction score
380
hesham said:
here is a helicopter from Lecoin-Damblanc.
It is called the "Alérion", by frenchmen Louis Lecoin and Louis Damblanc.
AFAIK it crashed on its 1st flight in 1920.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
dan_inbox said:
It is called the "Alérion", by frenchmen Louis Lecoin and Louis Damblanc.
AFAIK it crashed on its 1st flight in 1920.

Nice Info my dear Dan.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
hesham said:
Hi,

here is a helicopter from Lacoin-Damblanc.

The same helicopter.


Attachments

  • 1.png
    440.2 KB · Views: 42
  • 2.png
    142.1 KB · Views: 42

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
848
Reaction score
380
This machine was called the Alérion.

And as far as I know, its progeny is Lecoin-Damblanc, not LAcoin-Damblanc. After Messrs Louis Lecoin and Louis Damblanc.

The correction is not only for being pedantic, it is important to spell it right for the search to perform usefully.


Aerohydro

Early aviation enthusiast
Joined
Mar 6, 2015
Messages
31
Reaction score
52
Skyblazer said:
Adapted from Jean Boulet's Histoire de l'hélicoptère racontée par ses pionniers – 1907-1956:

An English-language version is also available:

"History of the Helicopter as told by its pioneers 1907-1956"
by Jean Boulet
Published by Editions France-Empire (1984)

I have a copy of this, and it is very good!


Aerohydro

Early aviation enthusiast
Joined
Mar 6, 2015
Messages
31
Reaction score
52
hesham said:
Also a Maurice Lamé concept.

http://alain.vassel.pagesperso-orange.fr/appareils-oehmichen.html

The Maurice Lamé concept was realized, at least in part.

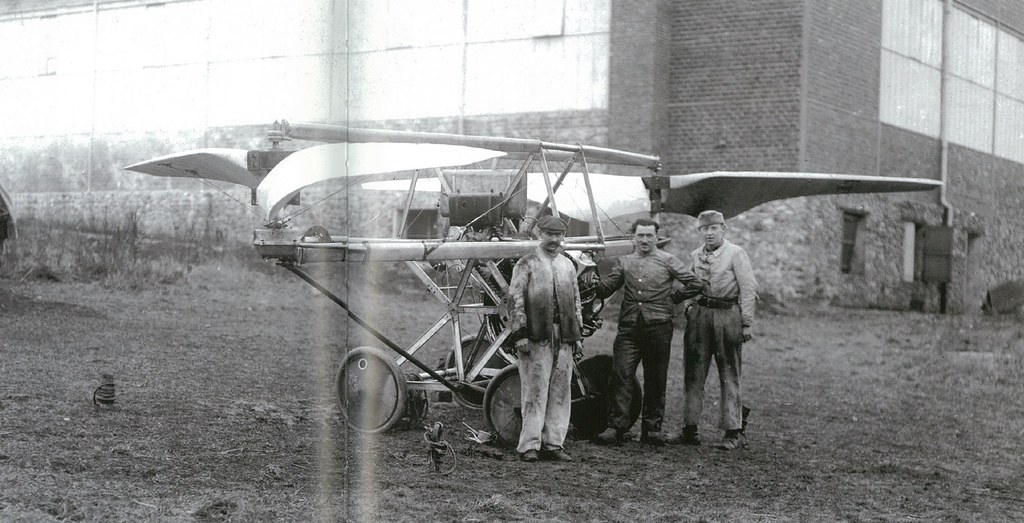

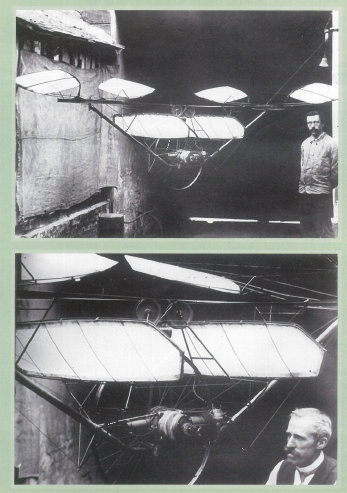

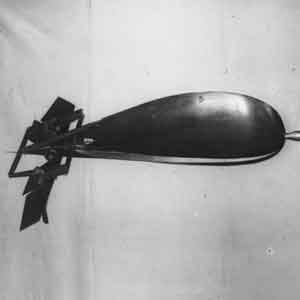

This shows the central engine/rotor section of Lamé's design. Has an 80hp engine, and an empty weight of 400kg. The section containing the wings and tail would be attached to the left, while the envelope would be fixed above the rotors.

The photograph was taken at Chalais-Meudon in 1922 and was sourced from "Hélicoptères: la génèse, de Léonard de Vinci à Louis Breguet by Bernard Bombeau (ISBN 978-270899205). The photograph appears on pp 226-227 of the publication, hence the vertical 'valley' that appears within the image.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Amazing Info,than you Aerohydro and welcome aboard.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

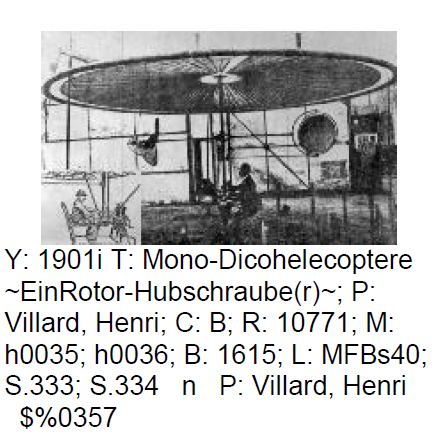

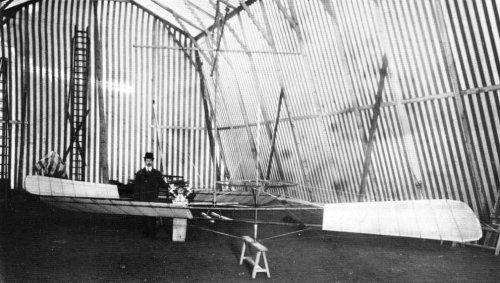

here is a helicopter designed by Henry Villard in 1901.


Attachments

  • a.png
    105.3 KB · Views: 139

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

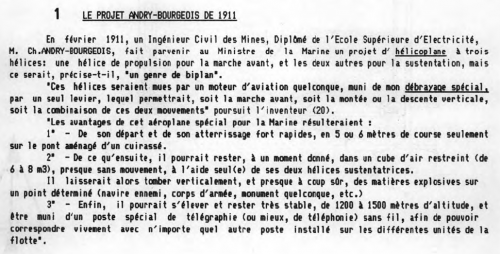

here is an Info about Andry-Bourgedis helicoplane,TU issue 122.


Attachments

  • 2.png
    281.7 KB · Views: 62
  • 1.png
    548.9 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044

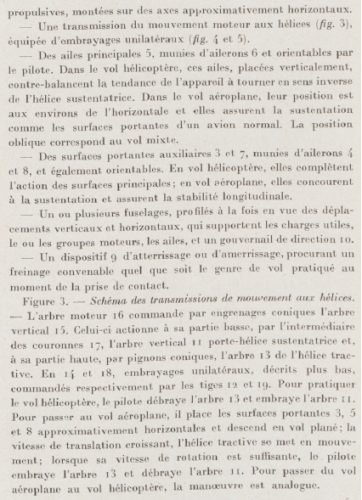

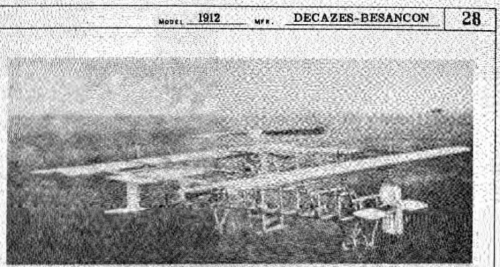

From, rotary-wing-aircraft-handbooks-and-history-volume-13,

here is an Info about Viscount Decazes and a co-operation with G. Besancon.


Attachments

  • 1.png
    202.8 KB · Views: 23

cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
42

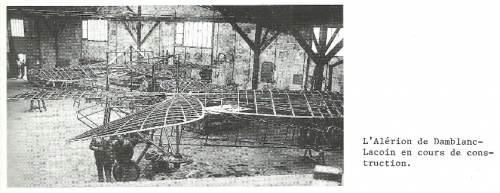

This machine was called the Alérion.

And as far as I know, its progeny is Lecoin-Damblanc, not LAcoin-Damblanc. After Messrs Louis Lecoin and Louis Damblanc.

The correction is not only for being pedantic, it is important to spell it right for the search to perform usefully.

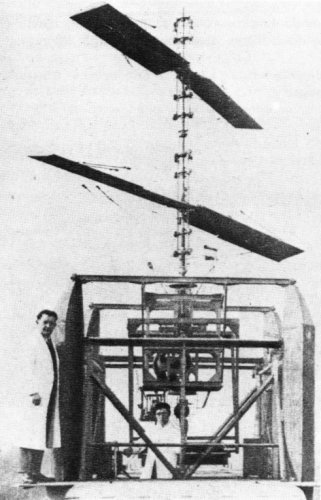

Just a few details about Damblanc's work on helicopters.
The Alérion was destroyed during a ground test when only one of the large airscrew was fitted. So he never flew.

After his separation from Lacoin, Damblanc embarked on the study of double counter-rotating airscrews.

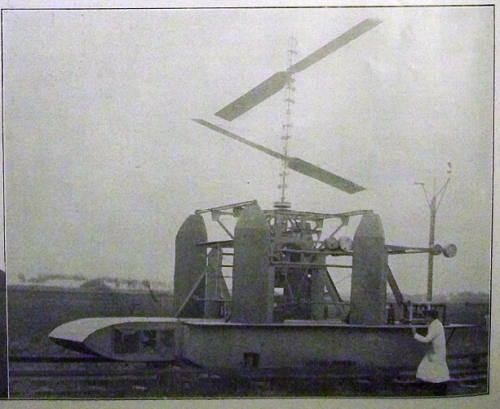

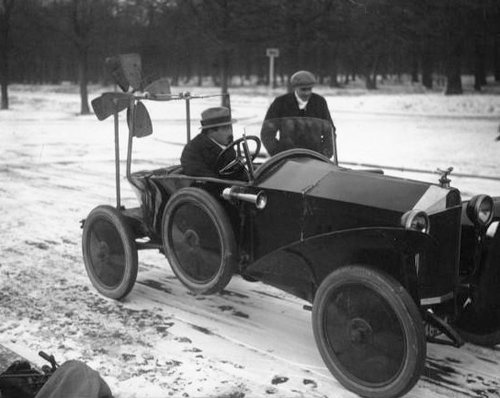

- 1920-1921 : tests on model mounted on a car.
Damblanc 1921.jpg

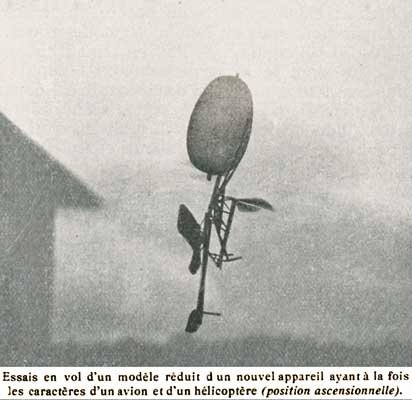

- 1923 : tests on model dropped from a balloon (1st version)
Damblanc 1923.jpg

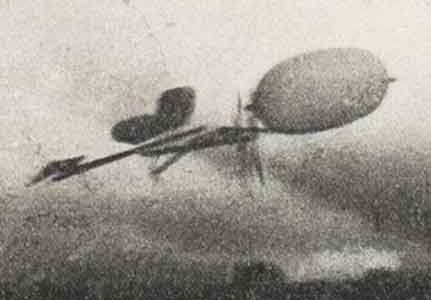

- 1927 : tests on model dropped from a balloon (2nd version)
Damblanc 1927.jpg

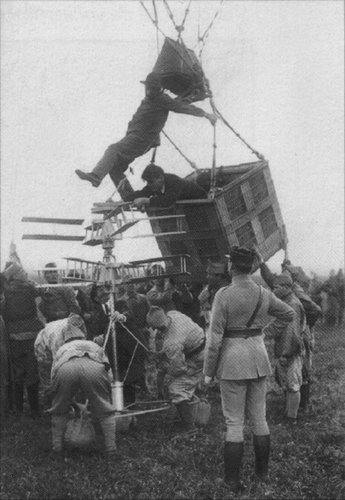

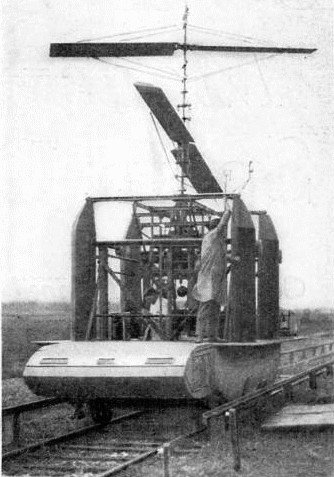

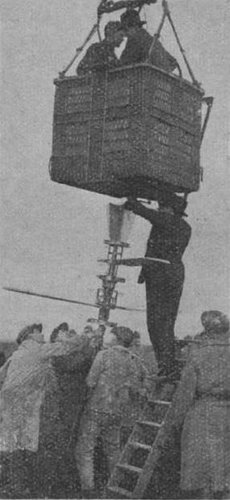

- 1930 : tests on electrically powered wagon of the Saint Cyr aerotechnic institute.
Damblanc 1930.jpg

After, from the early 1930s, Damblanc embarked on the study of rockets.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Amazing Info and Pictures,thank you dear Cardonet.


cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
42

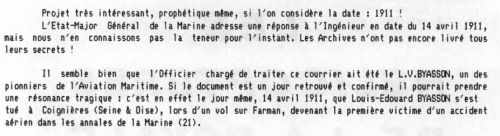

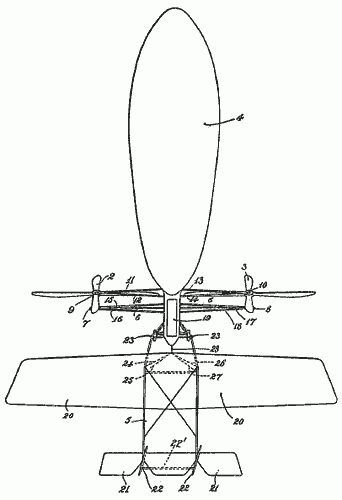

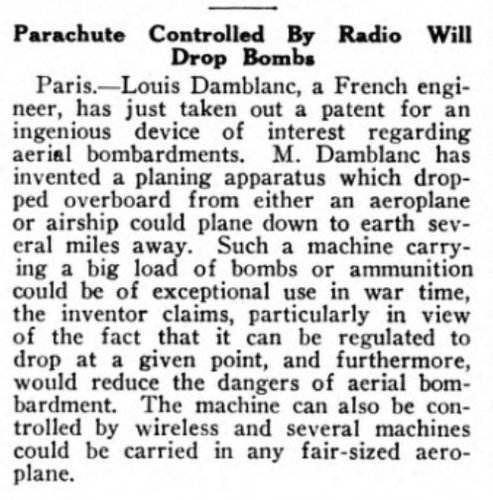

An amusing detail: In the (Belgian) patent in which Damblanc describes his model dropped from a balloon, he plans to pilot it by remote control. One of the planned applications was to drop bombs with great precision. This remote control has never been carried out but has given rise to numerous articles abroad.
(see this article from Aerial Age of April 4, 1921)
19210404 AerialAge Vol13_p76.jpg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Very cool dear Cardonet,

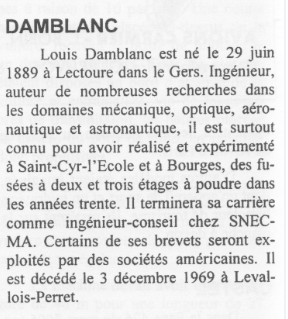

and from TU magazine,here is a small article about him;

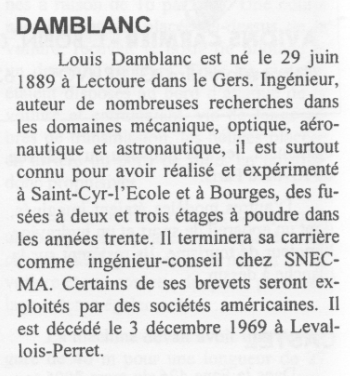

DAMBLANC

Louis Damblanc was born on June 29 1889 in Lectoure in the Gers. Engineer,author of numerous researches in
mechanical, optical, aeronautical and astronautical fields, it is above all known to have achieved and experienced
in Saint-Cyr-l'École and in Bourges, two and three stage powder rockets in the thirties. He will end his career
as a consulting engineer at SNECMA. Some of its patents will be exploited by American companies. he
died on December 3, 1969 in Levallois-Perret.


Attachments

  • e.png
    118.3 KB · Views: 14

cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
42
Very cool dear Cardonet,

and from TU magazine,here is a small article about him;

DAMBLANC

Louis Damblanc was born on June 29 1889 in Lectoure in the Gers. Engineer,author of numerous researches in
mechanical, optical, aeronautical and astronautical fields, it is above all known to have achieved and experienced
in Saint-Cyr-l'École and in Bourges, two and three stage powder rockets in the thirties. He will end his career
as a consulting engineer at SNECMA. Some of its patents will be exploited by American companies. he
died on December 3, 1969 in Levallois-Perret.

About the Damblanc rockets, I presented a paper at the IAC in 2012. There is a summarized version online (in French) on the 3AF website.

I am not a helicopter specialist, but since I had to talk about Damblanc's life, I analyzed all of his research themes, even his work in optics :)

Still on the subject of helicopters, it should be noted that in May and June 1921, Damblanc tested a helicopter powered by rockets. This 3 meter wingspan device was set in motion by two rockets attached to either side of a cell to which they gave a rotational movement. Unfortunately, I did not find any drawings or photos.
These experiments were intended for the development of a machine that could compete for the AéCF prize which awarded a sum of 25,000 Frs to the first helicopter capable of climbing vertically to a height of 25 meters. This height was not reached and the tests were stopped.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
233
Reaction score
380

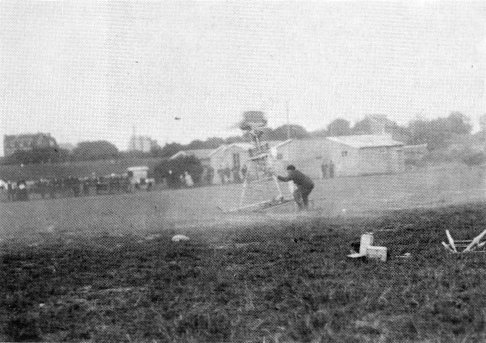

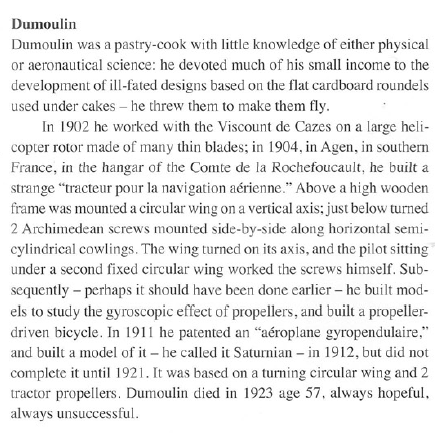

Dufaux machine (1905). In May 1905, the Dufaux brothers made some very popular flying demonstrations of a helicopter model in the Parc de Saint-Cloud, near Paris. Again they were not French, being from Geneva in Switzerland. They machine had two side-by-side rotors (with a 2-meter diameter), driven at 250 rpm by a 3 hp engine that was perfectly apt to lift off the 17-kg machine.

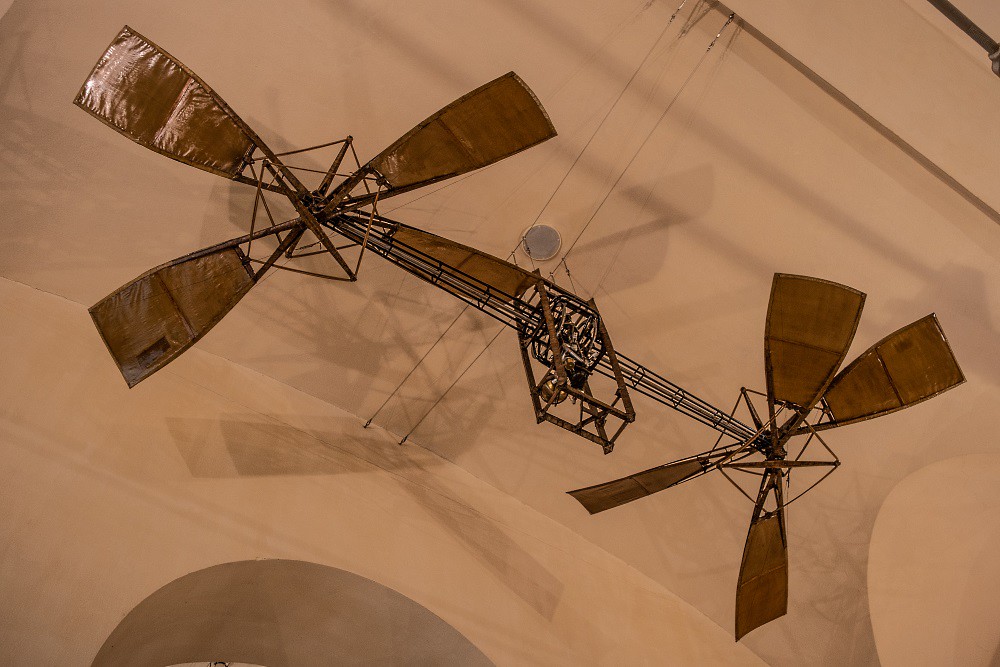

The Dufaux helicopter survives, in the Musee des Arts et Metiers in Paris.

Europe 218

The Dufaux brothers did not restrict themselves to model rotor craft either, constructing a couple of aircraft. Their Dufaux 4 aeroplane of 1909 was their first to take flight and it survives at the Swiss Museum of Transport in Lucerne.

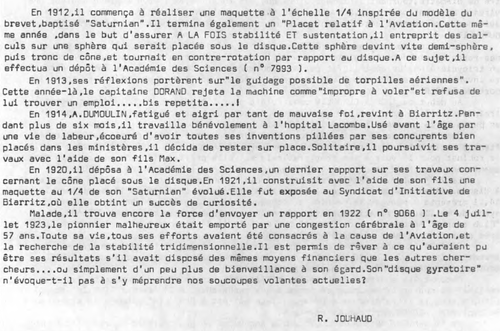

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
From TU 236,

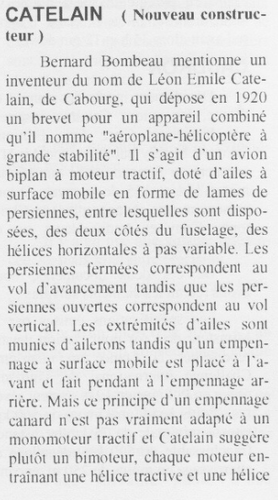

Mr. Léon Emile Catelain designed an airplane-helicopter Project of 1920;


Bernard Bombeau mentions a inventor of the name of Léon Emile Catelain. de Cabourg, which deposits in
1920 a patent for a combined device which he calls “airplane-helicopter to great stability ”. This is an airplane
biplane with traction engine, with wings movable surface in the form of blades shutters, between which are
arranged. on both sides of the fuselage,variable pitch horizontal propellers.The closed shutters correspond
to progress flight while the open shutters correspond to the flight vertical. The wing tips are fitted with fins
while a tail unit with a movable surface is placed at the front and adjoins the rear tail unit. But this principle
of a tail duck is not really suitable for a single-engine and Catelain suggests rather a twin engine, each engine
driving a propeller propeller and a propeller with vertical axis Like so many other ideas of helicopter, this
Project will remain on paper.


Attachments

  • 1.png
    180.5 KB · Views: 11
  • 2.png
    31.1 KB · Views: 11

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
From TU 230.


Attachments

  • 4.png
    83.5 KB · Views: 18

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

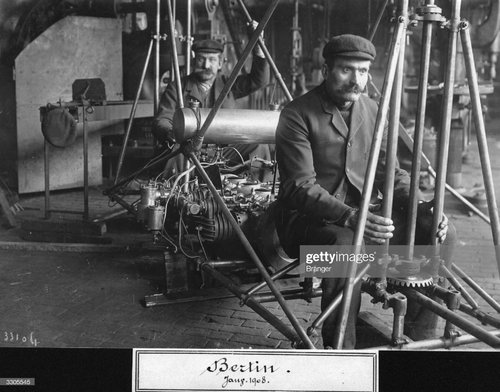

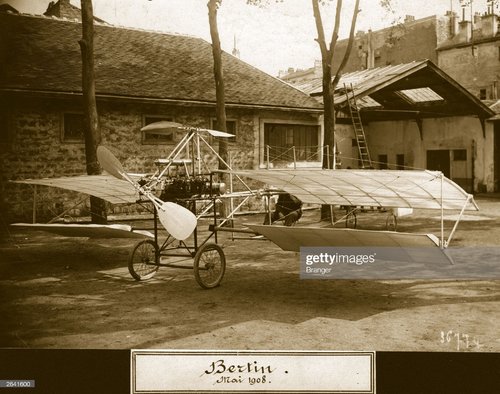

here is a two pictures to a Leonce Bertin helicopter of 1908.


Attachments

  • gettyimages-2641600-2048x2048.jpg
    1.2 MB · Views: 20
  • gettyimages-3305545-2048x2048.jpg
    925.5 KB · Views: 21
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
OK dear Avion,

I will correct it and sending again in anther topic.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044

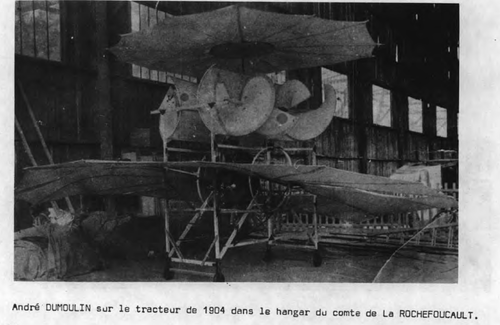

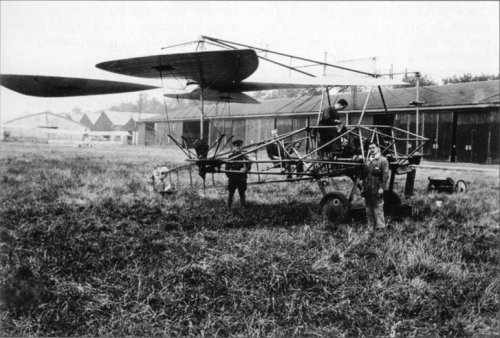

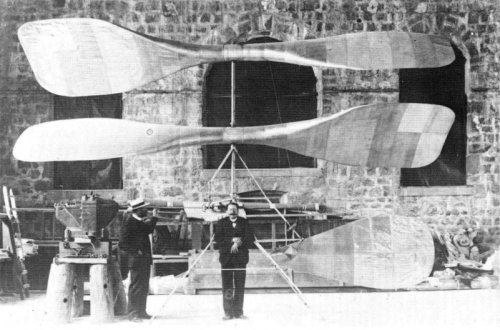

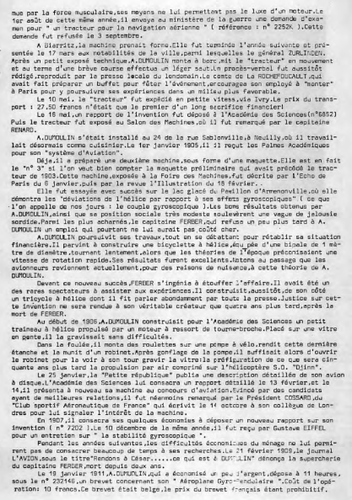

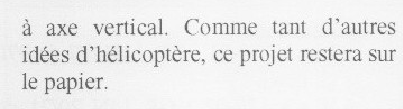

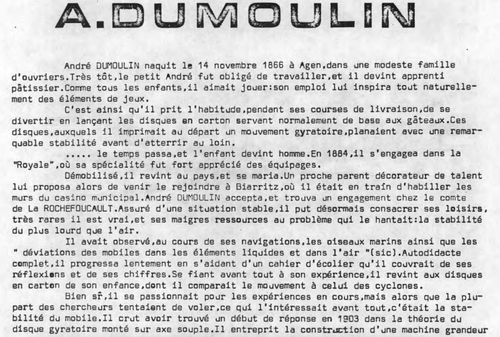

From TU 46 and French Aircraft Before the Great War,

here is all Info about Andre Dumoulin gyroplanes.


Attachments

  • 1.png
    128.3 KB · Views: 17
  • 2.png
    394.5 KB · Views: 15
  • 3.png
    377.9 KB · Views: 15
  • 4.png
    507.4 KB · Views: 14
  • 5.png
    267.6 KB · Views: 12
  • 6.png
    477.3 KB · Views: 33

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044

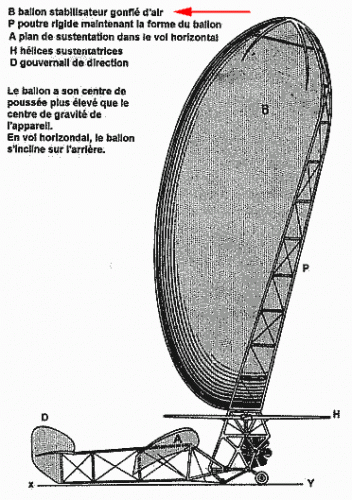

From Aviation Francaise 1947,

a strange drawing to Lacoin helicopter.


Attachments

  • l-1.png
    929.8 KB · Views: 37

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
Hi,

a good article about Damblanc helicopter is on Aviation Historical magazine,issue 31.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
From Icare 200.


Attachments

  • 1.png
    414 KB · Views: 13
  • 2.png
    349.4 KB · Views: 14

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044
In 1921, a quad-lifting propeller compound was built at the Sanchez-Besa Plant near Paris by Albert Toussant. The design was depicted in his patent, shown in Figure 3. To allow the aircraft to glide in the event of engine failure, five arrays of 10 very high aspect ratio tiltable wings (like venetian blinds) were used, one in the front, three just aft of the pilot, and one in the rear.

Power: Le Rhône 60 hp (45 kW) rotary engine

Propeller: The lifting propellers were 2.7 m (8.85 ft) in diameter; the propulsive propeller diameter was 1.5 m (4.93 ft).

Overall width: 6 m (19.6 ft)



Attachments

  • 1.jpg
    38.6 KB · Views: 10

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,044

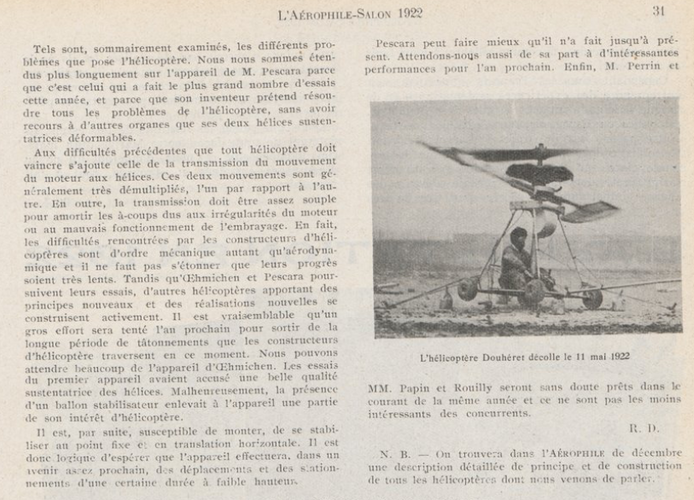

From Aerophile 1923.


Attachments

  • 5-1922.png
    716 KB · Views: 5
Top
