Before Sukhoi got the nod to build the Russian Regional Jet, I remember seeing a photo in Air International from somebody/something called Irkutsk that was offering a lifting-body short haul jet. Any body have any info?


DWG

CLEARANCE: Secret
Joined
Feb 11, 2007
Messages
469
Reaction score
143
Armchair Admiral said:

somebody/something called Irkutsk
Irkutsk is a city in Siberia and home to the Irkutsk Aircraft Production Association (IAPO), builder of the two-seat Flanker variants.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

In the Sukhoi second series,the Su-10 was a project of four
engined supersonic bomber,does anyone get a drawing to it ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

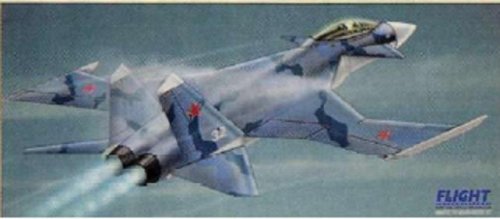

The Flightglobal imagine for Sukhoi S-32 or S-37.



http://www.flightglobal.com/FlightPDFArchive/1997/1997%20-%202600.pdf


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,630
Reaction score
1,164

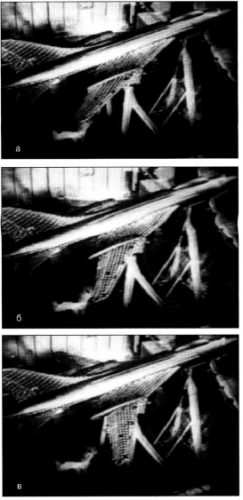

Not quite. Su-9 based, not MiG-21.

There were supposedly up to 20 variants of wings, fuselage and other parts of the T-4 aircraft tested on the Su-9 (100L-1). In the period from 1967 to 1969 eight wing configurations were tested.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

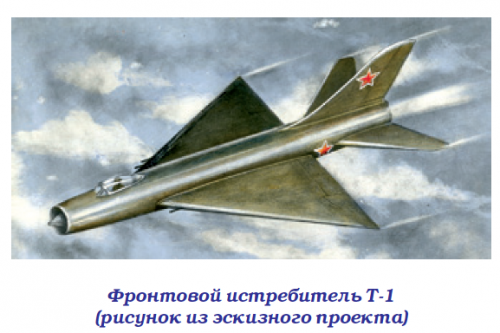

again I found in that gear site,two unknown Sukhoi designs;
T-60 of 1961 and S-60 also 1961,has anyone more info about
them ?.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/7/

http://translate.google.com/translate?js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&sl=ru&tl=en&u=http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/7/


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

for the Sukhoi T-60 of 1961,I think my dear Paul (Overscan)
spoke about it before;
http://www.secretprojects.co.uk/forum/index.php/topic,556.msg4138/highlight,t-60.html#msg4138

and there is also anther new aircraft in the same site,the PT-1.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

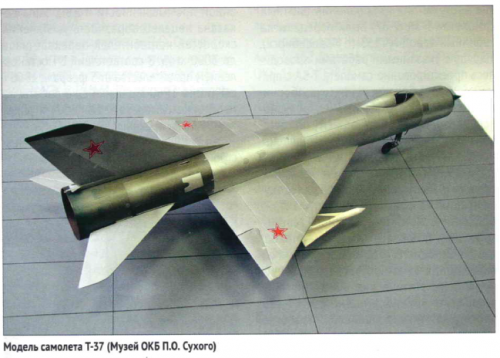

also in that site,many unknown projects to me,such as;

Su-9UT two seat trainer,Su-9 interceptor with radar
Thorium,anther Su-9 with engines mounted looks like
the Su-11,anther Su-13 fitted with only two guns
and two projects related to Su-13; MA and M as a
fighter-bomber aircraft,Su-15UT two-seat trainer,
anther Su-15 as escort fighter with increased VTB,
Su-15 powered by only one TR-3 engine as escort

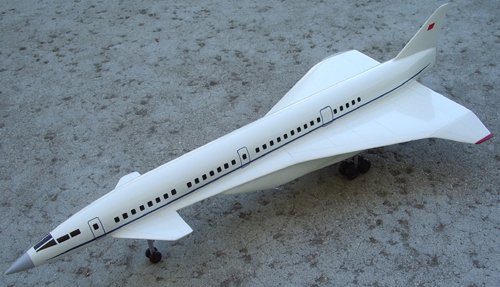

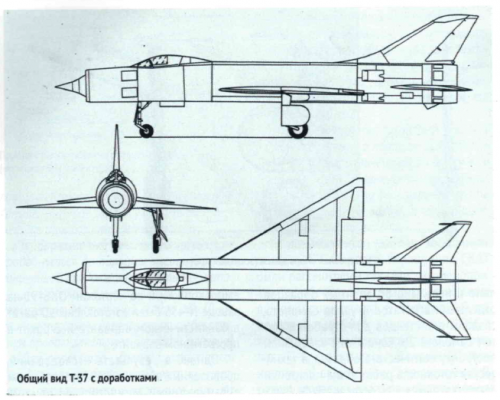

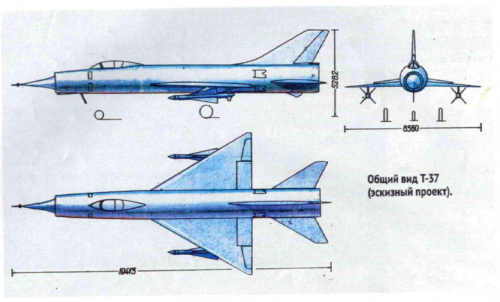

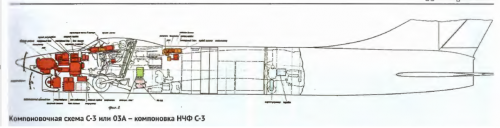

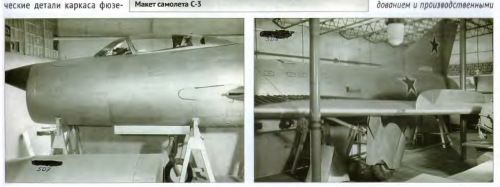

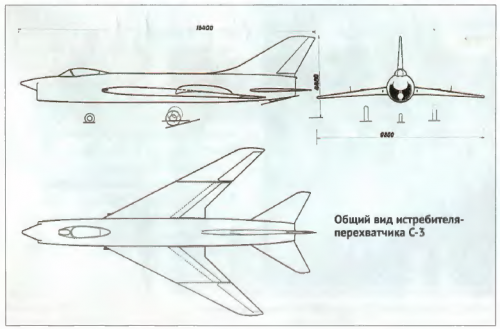

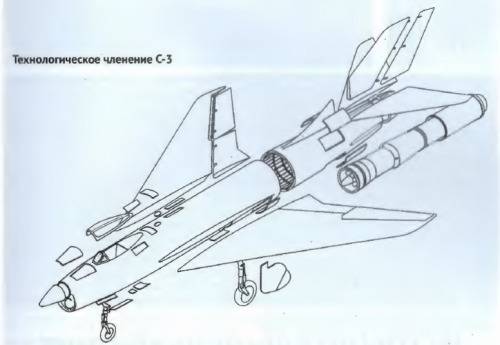

fighter of 1948 and S-3 fighter-interceptor with swept
wing project of 1954.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/68/

http://translate.google.com/translate?js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&sl=ru&tl=en&u=http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/68/


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

also Sukhoi PT-1 and S-16 are a mystery designs.


http://ram-home.com/ram-old/missing.html


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
102
Topic consolidated with posts from older thread. Please use this for post-war projects that are insufficiently documented for now to have their own topic.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,


from the book; Sukhoi Su-27 Flanker,by Yefim Gordon and Peter Davison.


The Sukhoi early T-10 configurations.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
hesham said:
Hi,

also in that site,many unknown projects to me,such as;

Su-9UT two seat trainer,Su-9 interceptor with radar
Thorium,anther Su-9 with engines mounted looks like
the Su-11,anther Su-13 fitted with only two guns
and two projects related to Su-13; MA and M as a
fighter-bomber aircraft,Su-15UT two-seat trainer,
anther Su-15 as escort fighter with increased VTB,
Su-15 powered by only one TR-3 engine as escort
fighter of 1948 and S-3 fighter-interceptor with swept
wing project of 1954.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/68/

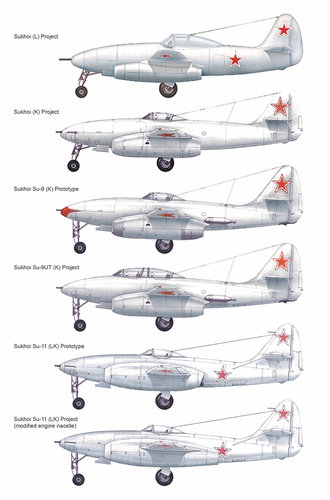

There is also many little known Sukhoi projects in this site;

-Su-9 anther aircraft with two RD-14 turbojet engines of 1947
-Su-10 with four TR-2 turbojet engines of 1948-1949

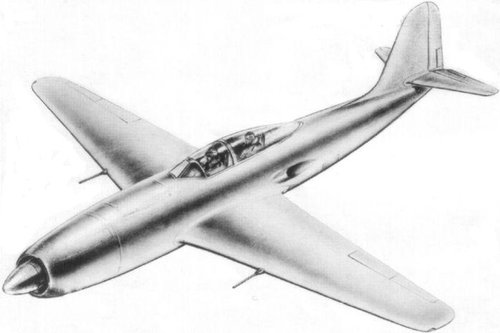

-no name, but just two-seat escort fighter powered by one VK-2 engine of 1948
-S-1 early design,as a tactical fighter project,with mid-wing looks like North American
F-100,in 1953

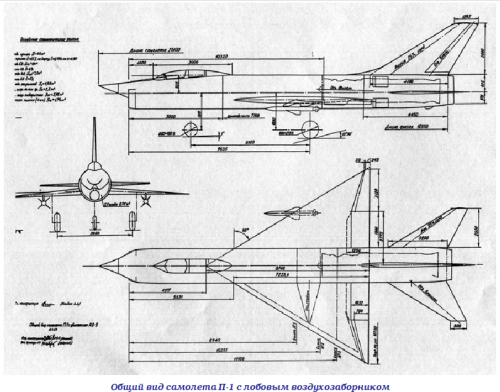

-P-1 two seat interceptor with one VK-13 engine


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,


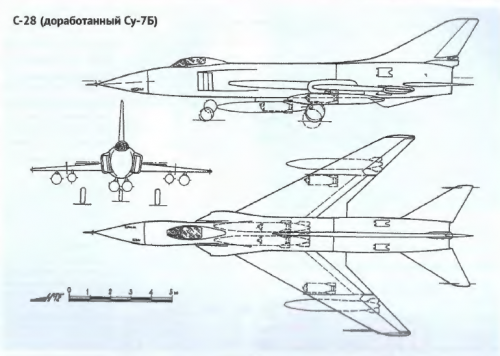

the Sukhoi S-54 (Su-17M4N) which later redesigned as S-56 (Su-17M5) was a fixed
wing project version of Su-17,it had 45 degree of swept,can anybody imagine its
shape ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
famvburg said:
Su-17 fuselage with Su-7 wing?

No my dear Famvburg,


the same wing of Su-17,but as a fixed wing,not swing wing.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,630
Reaction score
1,164
It would have looked like an Su-17 with wing fixed at 45 degrees.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,405
Reaction score
118
@ hesham: fixed wing, just like PaulMM and you yourself write.

From the Midland 'OKB Sukhoi' by Yefim Gordon et.al. about the S-54N/S-56
A decision was made to return to a fixed wing design based on a new aerodynamic configuration. A new wing was designed that was fixed at the intermediate sweep (45o) of the original movable wing.
Most likely the same fuselage for the S-56 as the one on the S-54.
Su-7 had a 60o wing sweep angle.
famvburg suggestion would be close to what the S-56 would have looked like, just with a less sharply swept wing.

The export version of the S-54/Su-17M4 was the S-54K/Su-22M4. Both were identified as Fitter-K by NATO.

Image of Su-22M-4 Fitter-K from wikimedia


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
PaulMM (Overscan) said:
It would have looked like an Su-17 with wing fixed at 45 degrees.

Where my dear Paul ?,


and for my Arjen,it was not fixed wing.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,405
Reaction score
118
hesham said:
and for my Arjen,it was not fixed wing.
Yefim Gordon and his co-authors write it would have had a fixed wing.

Apologies for some heavy editing in my previous post.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

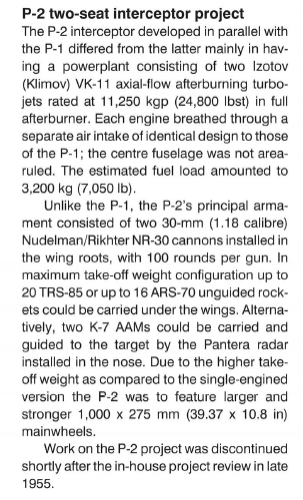

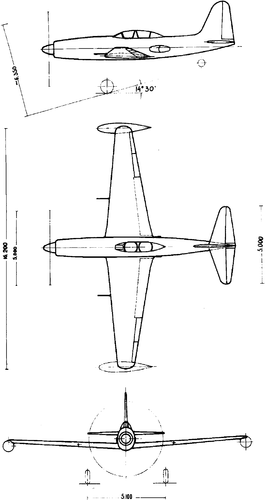

we have in this great site a good painters,can we imagine the shape of Sukhoi P-2
two seat interceptor project from a small article description it in the book; Sukhoi
Interceptors ?.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
Hi,

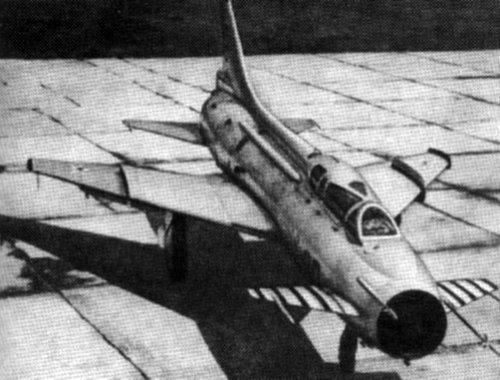

here is the Su-7 Model with VG wing,later became Su-17.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
In my files,

there is a version to Su-27 at the end of the 1980s,had a vectored thrust nozzle,does
anyone hear about it before ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
hesham said:
In my files,

there is a version to Su-27 at the end of the 1980s,had a vectored thrust nozzle,does
anyone hear about it before ?.
Here is the Aircraft which I meant.

Су-27.История истребителя (1999)


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,806
Reaction score
266
http://www.secretprojects.co.uk/forum/index.php/topic,13938.0.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
flateric said:
http://www.secretprojects.co.uk/forum/index.php/topic,13938.0.html
Thank you my dear Flateric,but no one answered me at first.


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
784
Reaction score
36

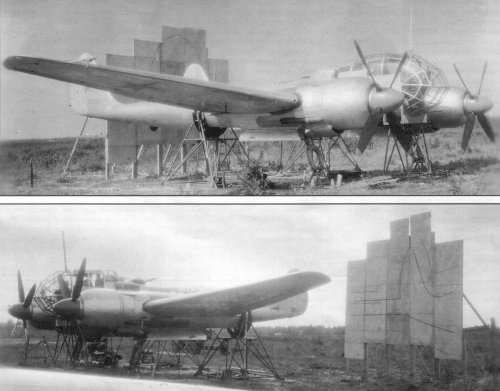

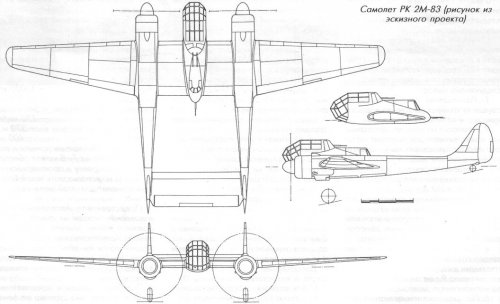

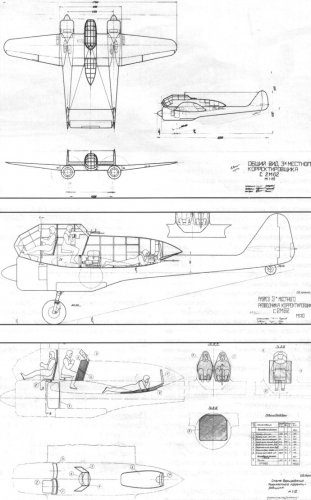

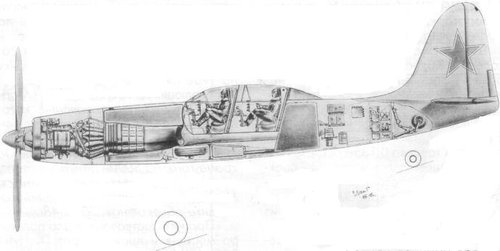

What is RC plane?
Разведчик-Корректировщик артиллерийского огня = reconnaissance aircraft artillery spotter


redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
518
Reaction score
19
blackkite said:
What is booking plane?
That's Google Translator "jokes":). The Russian caption of this picture says: "RK 2M-62 aircraft armoring layout". But in Russian, the word "bronirovanie" means not only "armoring", but also "booking/reservation" (for example, of tickets or hotel place). So the program translated the caption in such a ridiculous way:)))


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Masters! Thanks a lot. :D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
What is this? Alternative Su-34 design or Fake?


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
paralay said:
Истребитель Су-27. Рождение легенды ч.2
Thank you my dear Paralay.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Carrier version Su-27?
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=5702.0;attach=61971;image
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=5702.0;attach=61973;image

http://www.paralay.com/su33.html


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446

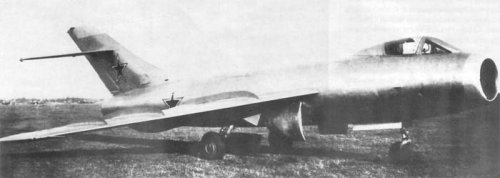

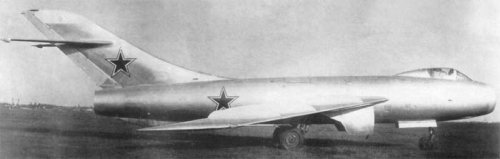

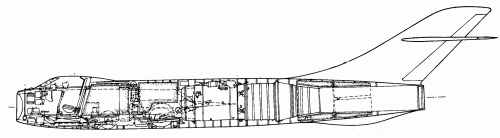

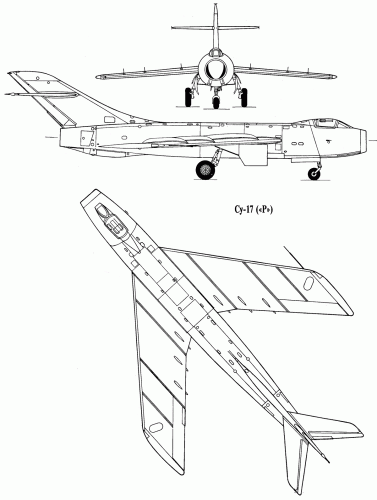

Hi! Very beautiful Su-17.

"The plan of experimental aircraft at 1948 on the Sukhoi Design Bureau provided one more task:
To design and build an experimental fighter with swept wings 50 degree, and with the following
data:
• Maximum speed at an altitude of 10,000 m - M = 1
• The crew - 1 person.
• To provide space for 2 x 37mm-caliber guns.
The aircraft built in 2 copies and take flight data in the first instance in September 1949
In early July, Air Marshal KA Vershinin approved TTT for new aircraft, according to which it was
intended to:
• Achievements in steady level flight Mach number of unity, and studies of the flight
at a speed corresponding to Ma = 1;
• Mining structure Hermetic discharged the cab;
• Development of prototype front-line fighter high speeds.
By the schematic design of the aircraft, the designation "P" or Su-17 began in the month of June.
Creating an airplane with swept wings 50 degree was very difficult, primarily related to the issues
of sustainability, manageability, structural strength.
A certain complexity in the design process is detachable nose of the fuselage with a cabin at emergency condition,
which had no analogues in the domestic aircraft.
The construction of the prototype was completed in late July 1949.
High speed taxi test were conducted several times in summer of 1949.
But the flight test was not performed perhaps mainly by the political reason.

Wingspan, m 9.95
Length m 15.25
Height, m
Wing area, m2 27.50
Weight, kg
empty aircraft 5932
maximum take-off 7890
engine's type 1 TRD TR-3
Thrust, kgf 1 x 4600
Maximum speed km / h 1209
Cruising speed, km / h 980
Practical range, km 1080
Combat range, km 855
The maximum rate of climb, m / min 2273
Practical ceiling, m 15000
Crew 1
Armament: two 37-mm guns N-37 (with ammunition - 80 rounds) "

In addition,
"Combined pilot rescue system in emergency situations included detachable foreward fuselage and ejection seat. This bailout was possible from free-falling detachable foreward fuselage overload 5-6cf and without separation of the detachable foreward fuselage with an overload to 18d. "

"The second ( "alternate") Su-17 at the time of liquidation of the OKB had readiness around 30%. "


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
From; Авиация и Космонавтика 2017-06,

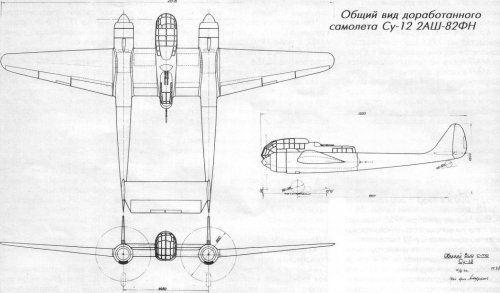

here is a first time to see drawing for Sukhoi P-2.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,345
Reaction score
1,094
In my files,

there was two little projects developed from Sukhoi Su-33,the first was a Jammer
and the second was a Tanker aircraft,and they had two-seat,does anyone know
them ?.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,698
Reaction score
58
Website
beyondthesprues.com
Top
