Hi,

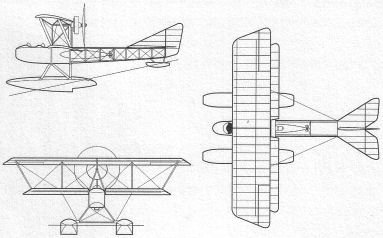

we can speak here about Russian aircraft prototypes and project during and pre WW1,

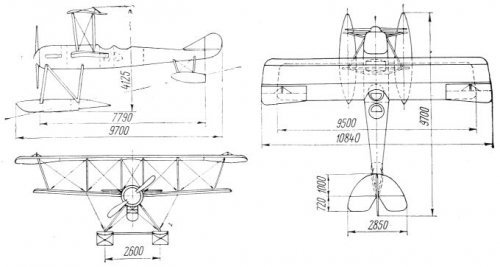

the engineers P.A. Shishkov and Sushenkov designed many airplanes,one was a two-
seat torpedo carrier pusher biplane seaplane and second was a anther two-seat seaplane,
but as I know there is also some unknown projects for AIS ?.


http://flyingmachines.ru/Site2/Crafts/Craft28249.htm
http://flyingmachines.ru/Site2/Crafts/Craft28250.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

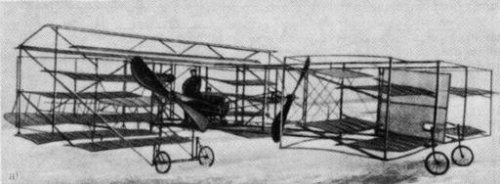

Mr. A.P. Vernander designer a triplane "Swallow" with the front runners in the elevators,looks
like Wright type,called APV aircraft of 1909,never finished.


http://flyingmachines.ru/Site2/Crafts/Craft26773.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

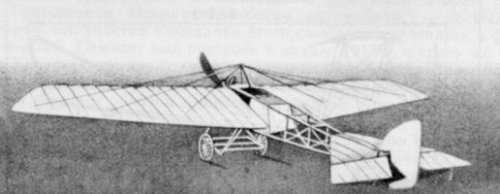

the designer Georgy Demkin created a monoplane in 1910,powered by one Anzani
engine,followed by a biplane of 1911,also powered by Anzani engine.


http://flyingmachines.ru/Site2/Crafts/Craft26829.htm
http://flyingmachines.ru/Site2/Crafts/Craft26830.htm


Attachments

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
15
I have the Demkin 1 image (above) recorded as the Demkin Monoplane.

The first Russian aircraft with bicycle landing gear. This was supplemented by twin outrigger wheels beneath the wing. Monoplane with uncovered fuselage. Rudder had aerodynamically compensation.

Aircraft was tested in 1910 at St.Petersburg by Georgy Konstantinovich Demkin himself (who was a law student). The aircraft only achieved short hop flights.

DETAILS:
ENGINE: 1 x Anzani (25hp)
FIRST FLIGHT: 1910



I have also got Hesham's Demkin 2 image recorded as the Demkin Biplane.

An experimental tractor biplane, resembling BIS-2 and S-3, but lower wing was substantially smaller than the upper one which carried ailerons. Struts had oval crossection, whole design was more clean. Despite low engine power, short straight flights were performed during summer 1911.

DETAILS:
ENGINE: 1 x Anzani (25hp)
WING SPAN UPPER: 8.0 m
WING SPAN LOWER: 4.6 m
WING AREA: 17.0 sq m (11.2 upper, 5.8 lower)
ACCOMODATION: 1
FIRST FLIGHT: 1911
POWER LOADING: 13 kgs/hp



SOURCES:

Not recorded - but I suspect translated from old Krilya Rodiny magazine from a date before 1997. The information is similar to Hesham's quoted source so the magazine translation may have been originally from Shavrov's History of Aircraft Construction in the Soviet Union Until 1938 book.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Thank you my dear Cy-27,

and here is anther Russian little know aircraft,designed by Drzewiecki,called SK and it was
a pusher tandem wing aircraft,powered by Gnome engine,built in 1912.


http://flyingmachines.ru/Site2/Crafts/Craft26878.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr. O.S. Kostovich was a Hungarian originally and work in Russia,in 1879 created a helicopter,
aeroplane and ornithopter,he designed and built an aeroplane with 40 hp engine in 1911,followed
by a seaplane in 1914 and amphibian monoplane powered by one 100 hp engine in 1916,who
has a drawings or pictures to the last three aircraft ?.


bigvlada

CLEARANCE: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
3

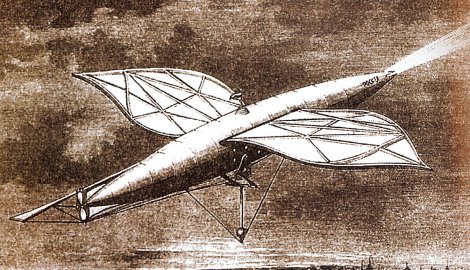

Ognjeslav Kostović - Stepanović was a Serbian inventor, who spent most of his life in Russia. He had several advanced projects including the airship, aircraft, ornithopter, flying torpedo, submarine and hydroplane. Airship Russia had water cooled eight cylinder 80HP internal combustion gasoline engine with electric ignition. The airship was nearly complete in 1888 when he ran out of money. Russian military wasn't interested in his aircraft and it sat unfinished in a shipyard until it was destroyed in a fire. It had a length of 60 meters and width of 12 meters. He invented a type of plywood, arborite for the airship frame. Considering his favorite writer was Jules Verne, nobody should be surprised that he designed something that looks like aircraft from one of Verne's novels. :D
Submarine project was for eight people, which could stay submerged for up to 20 hours.
He was notoriously secretive, didn't want to patent his inventions because he wanted to keep his inventions only for russian consumption. Can't find more pictures in local sources. He filed a patent for his engine only in 1888, when the airship was nearly complete. He invented arborite in 1879 but didn't file US patent for it until 1906.
His grandparents were grain merchants from Novi Bečej, where he spent his summers and where a good part of my family resides. He is a local legend there. :)
https://sr.wikipedia.org/wiki/Огњеслав_Костовић_Степановић


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Thank you my dear Bigvlada,


and I hope to get a drawings or pictures for his 1910s aircraft.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr. Gebauer designed a triplane of 1909,powered by one engined driven two
pusher propellers.


http://flyingmachines.ru/Site2/Crafts/Craft26771.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr. V.S. Keburiya built a glider aircraft in 1909,also designed and built a monoplane in 1912
or No.2,followed by No.3 in 1913,which similar to Morane but Nieuport-type undercarriage,
who has a pictures or drawings to them ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr V.L. Aleksanderov,who was worked on AK-1 with Kalinin,and in pre-WW1 in Moscow Tech School,
he designed a monoplane,remained unfinished,has anyone a more Info about it or drawing ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


has anyone a picture or drawing to Duhovetsky D-1 of 1913,which powered by
one 8 hp engine ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr A.A. Porokhovshchikov was very famous in Russia,and created a series of aircraft
began with Model or P.I up to P.IV,the last one developed into P.IVbis or P.14 ?,I don't
know why they called it P.14,and that means he had unveiled projects from P.7 to
P.13 or not ?.


http://www.airwar.ru/other/ussr.html


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
784
Reaction score
36

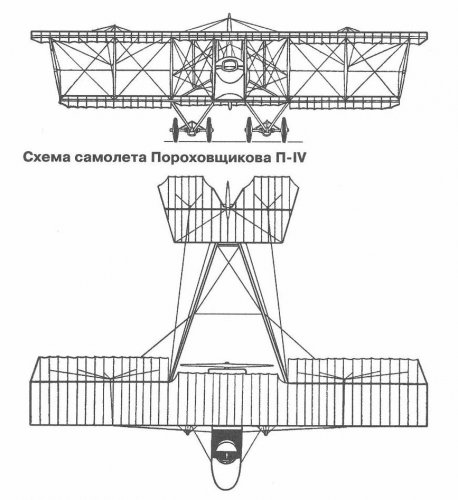

My opinion is (P-14) banal misprint or confusion associated with the use of Roman numerals.
Link refers to the P-IV.
Using the same constructive scheme P-IV, Porokhovshchikov built machines - P-IV 2bis(П-IV 2бис), P-VI, P-VI bis, that are were manufactured in small quantities and used to training pilots to the mid-20s.
His last project was a fighter aircraft P-VII (1935) with the engine "Hispano-Suiza" 700 hp, which tried unsuccessfully to build a factory №1. No other data.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Excellent my dear Borovik,


I never heard about P-VII.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

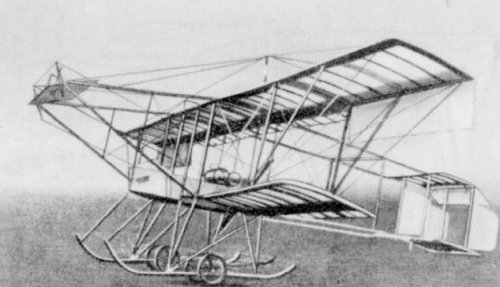

the Peterburgskii Tovarishchyestva Aviatsii or PTA designed and built the No.1 it
was based on Farman IV,and powered by one 50 hp IV Gnome engine,was there
any picture for it ?.


redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
518
Reaction score
19

Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Many thanks my dear Redstar72.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
hesham said:
has anyone a picture or drawing to Duhovetsky D-1 of 1913,which powered by
one 8 hp engine ?.

Here is a Dukhovetsky D-2 light biplane aircraft,which powered by one 50 hp Anzani
engine.


http://flyingmachines.ru/Site2/Crafts/Craft26847.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


here is a Dooks twin engined pusher scout biplane aircraft of 1916/17,powered by
two 80 hp Rhone engines,never finished.


http://flyingmachines.ru/Site2/Crafts/Craft28238.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr. G.V. Rudlitsky designed and built a biplane with forward elevator in 1911,powered
by one 45 hp Anzani engine,has anyone a picture for it ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
hesham said:
Mr. G.V. Rudlitsky designed and built a biplane with forward elevator in 1911,powered
by one 45 hp Anzani engine,has anyone a picture for it ?.

Also this designer made anther aircraft,maybe a biplane with a butterfly tail ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

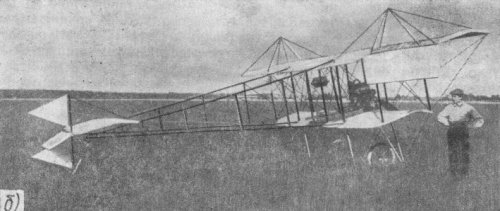

Mr. A.V. Shiukov designed the Model-1 and Model-1bis,they were a canard or duck shape
monoplanes (tail-first),followed by Model-2,also a duck or canard aircraft with some main
modifications,the later never completed and powered by one 80 hp Gnome engine in 1914.


http://flyingmachines.ru/Site2/Crafts/Craft26864.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


for Mr.A.V. Shiukov,he built a number of gliders,has anyone a pictures for them ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

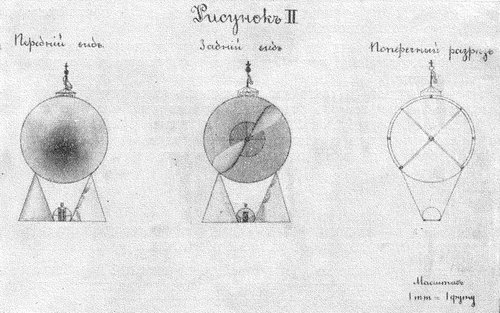

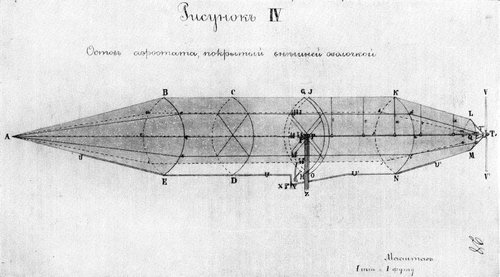

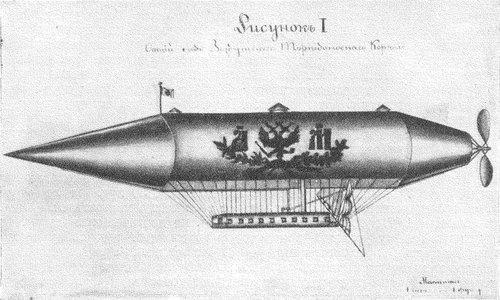

here is a project for all-metal history aircraft,designed by Tsiolkovsky.


http://coollib.com/b/228703/read


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,


Mr. V.V. Slyusarenko made many modifications to some French aircraft,his original design
was a small fighter with monocoque fuselage,powered by one 130 Clerget engine in 1917,
has anyone a picture or drawing to it ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

also for Mr. V.V. Slyusarenko,he left unfinished biplane,with 3-seat nacelle and two
100 hp Isotta-Fraschini engines,mounted in fronts of tail booms,does anyone hear
about it before ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

Mr. A.N. Sveshnikov designed his first aircraft in France with Vandom,return to Kiev and
built the No.2,the No.3 was built in 1914,and powered by one 75 hp engine,also no picture
was survivor for the last one.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
Hi,

Capt. A.N. Vegener built a two-seat trainer aircraft in 1911,based on Farman design,but with
streamlined nacelle and with ability for instructor to engage or disengage pupil's controls,the
first in the world.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
hesham said:
here is a project for all-metal history aircraft,designed by Tsiolkovsky.

http://coollib.com/b/228703/read

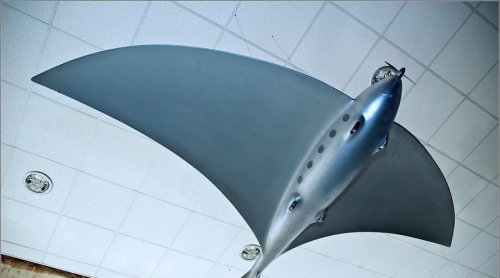

The same concept from Tsiolkovsky,but as an airliner plane.

http://www.vest-news.ru/article/67490


Attachments

Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107

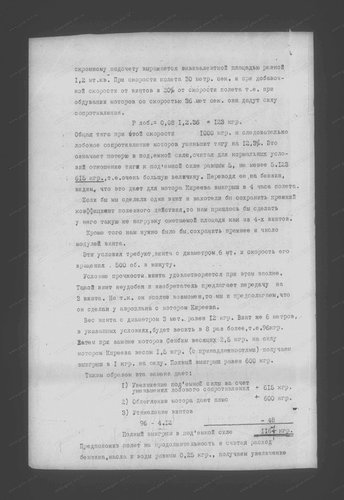

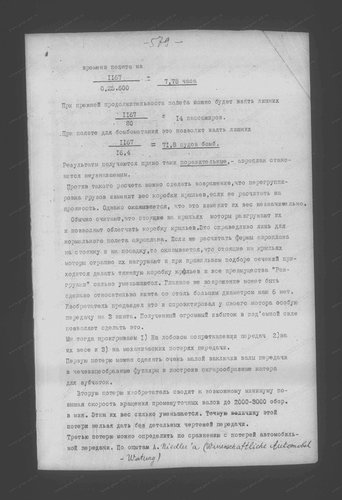

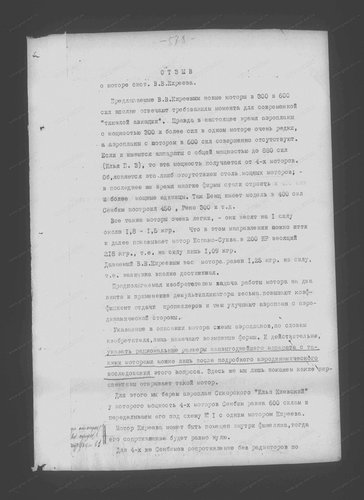

About Kireev engine (projected in 1917-1919; 600 HP, 1800 rpm, I12, 38.18 L, dry weight 530-550 kg):
Modernization of "Ilya Muromets", from 4x150 HP Sunbeam to 1x600 HP Kireev
With three 3-metres propellers, weight 3x12 kg:
- Flight time + 7.78 hour (original, 4-5 hour)
- Or, bombs + 71.8 pood / 1176 kg (original, 400-500 kg)
- Or, passengers + 14 person
Also, projected single-propeller variant - 6 metres diameter, weight 96 kg, 500 rpm.
Also, told about designing of "optimal airplane for this engine", and, looking at all, bigger than "Ilya Muromets", "Svyatogor" and Izhora's bombers.

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,346
Reaction score
1,094
The designer was named Kireev,new for me,thank you Iron.


Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107
The designer was named Kireev,new for me,thank you Iron.
Engineer Kireev - one of engineers, who works at aircraft engines in Russian Empire and early RSFSR/USSR. Most famous engine, who made by Kireev - RBVZ-6, or, also, M-1, I6, 150 hp, based on German 150 hp "Benz". RBVZ-6 used on "Ilya Muromets", builted 45 engines. Also, worked at other serial engine, Vorobyev DEKA M-100, I6, 100 hp.
...
Other interesting Russian WW1 project - new 280-300 hp engine, based on French 220-240 hp "Renault". Many Russian airplanes projected with this engines, late "Ilya Muromets" - four engines, Izhora's bomber - six engines. Experimental engine was a more economical, used upgrade fuel system. Planned, produce this engine on "Russian Renault" plant, and, replacement of standart 220-240 hp "Renault". But, in USSR produced only standart French engine.

Last edited:

Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107

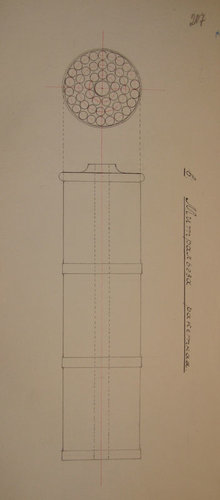

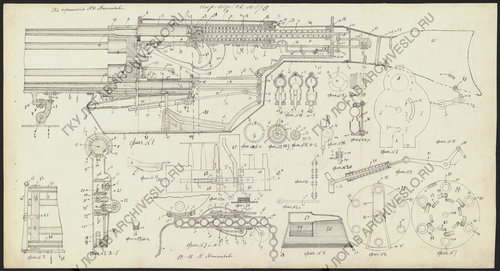

Plan of Panenkov 1915 six-barrel machine gun. Project watched in 1919, and not realised. I haven't data about this weapon.
Russian analog of "Fokker-Leimberger" :)
Panenkov 1915 machine gun.jpeg

Last edited:

Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107

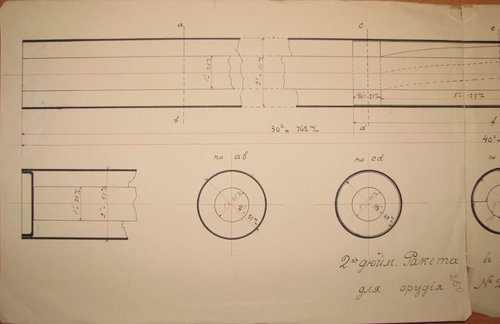

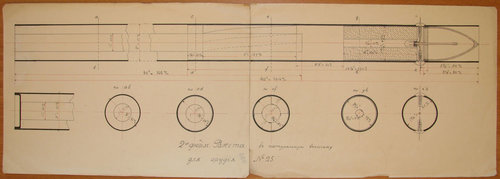

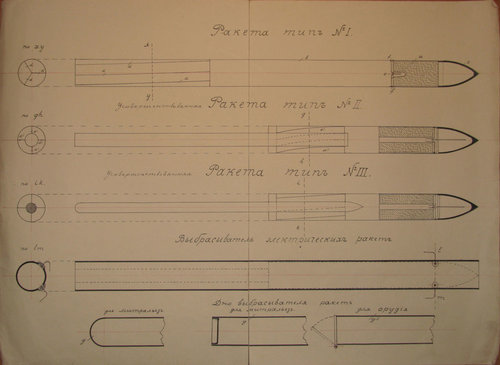

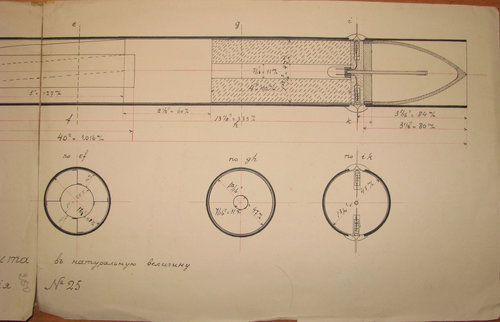

Volovskiy 1912 project of "Rocket mitraliese" for airplanes (not realised)
Rocket (caliber 2 inch/50.8 mm, lenght 40 inch/1016 mm, electro-firing, rotating):
20-rocket mitraliese:
50-rocket mitraliese:


Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107
Ognjeslav Kostović
Kostovich projected weird hybrid between airplane and airship, and named "Aeroskaf". Steam engine, flapping wings, light gas... And, strange speed. In original project told - "Flight from St-Petersburg to Moskow in 1 hour 15 minutes". But, it's ~635 km. And, average speed is 508 kmph (?!). But, on latest drawings of "Aeroskaf" we can see jet engines (it's 1910 paint):


Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107

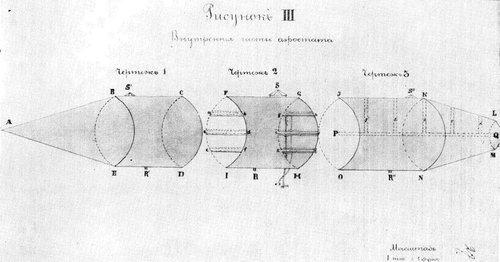

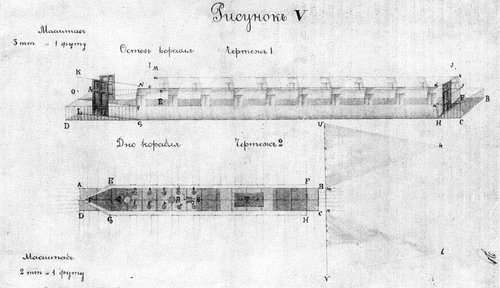

Malikhin 1886-1887 "Torpedo airship"
Balloon - lenght 297 foot (90.53 m), diameter 50 foot (15.24 m)
Platform - lenght 80 foot (24.38 m), width 7 foot (2.13 m), diameter of room 10 foot (3.05 m)
Steam machine, fuel - turpentine essence, "more effective than oil and coal".
Weapons - 1x37 mm Krupp Ballonabwehrkanone (yes, for fighting with enemy airships and balloons :) ), to 10 5-pood (81.9 kg) or 6-pood (98.3 kg) "torpedoes", full load to 60 pood (983 kg).
Malikhin 1.jpg


Attachments

Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107
Kashirin two-stroke valveless gas engine project (1917-1918) - "for airplane, airships, automobiles, etc..."
V6 (three double-cilinder blocks), bore 110 mm, stroke 130 mm, diceplacement - 7.41 L, 240 HP (32.4 HP/L), 1400 rpm.

Last edited:

Iron Felix

CLEARANCE: Confidential
Joined
Jun 30, 2019
Messages
95
Reaction score
107

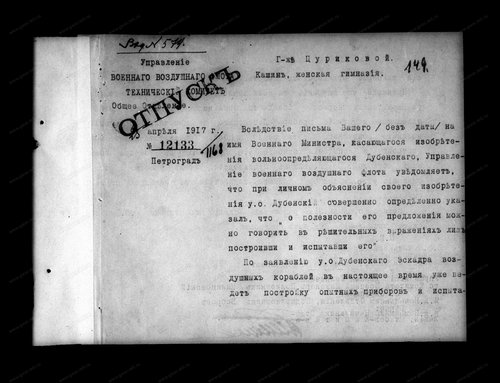

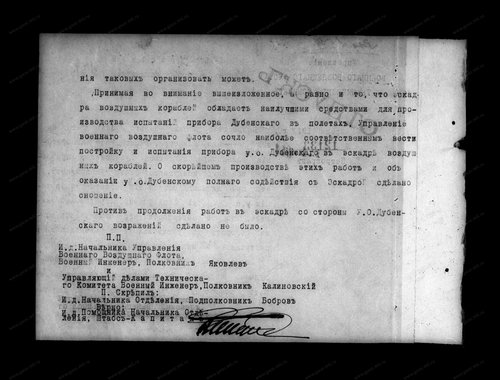

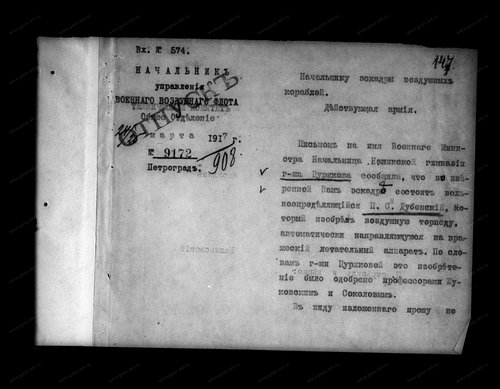

About weird Dubenskiy "air torpedo", "who automatic targeting on enemy flying apparatus". Also, "approved by professors Zhukovskiy and Sokolov", and, construction in progress in "Air ships squadron" (name of bomber squadron with "Ilya Muromets" airplanes).


Attachments

Top
