Hi,

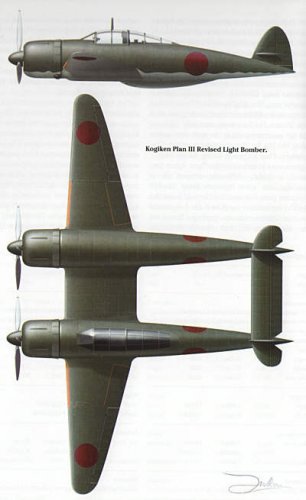

Rikugun Kogiken plan II and III land based light bombers
Rikugun Kogiken plan VI land based heavy bomber
Rikugun Kogiken plan IV reconnaissance aircraft


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,421
Reaction score
4,912
Website
www.amazon.com
Japanese stuff (Post 3 )

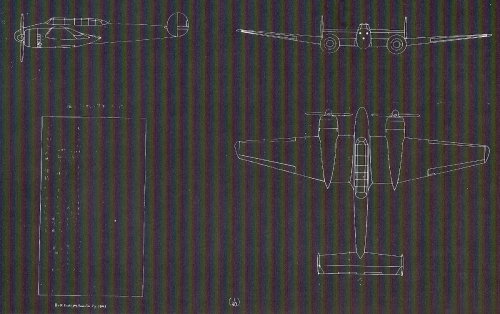

Probably Tachikawa projects, Unknown source ...


Attachments

  • Escanear0001.jpg
    223.9 KB · Views: 907
  • Escanear0002.jpg
    131.1 KB · Views: 731
  • Escanear0003.jpg
    134 KB · Views: 711
  • Escanear0004.jpg
    68.1 KB · Views: 629
  • Escanear0005.jpg
    73.8 KB · Views: 604

Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
40

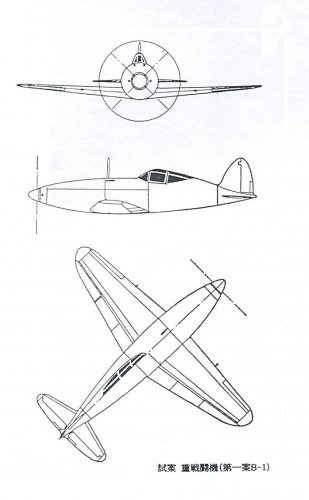

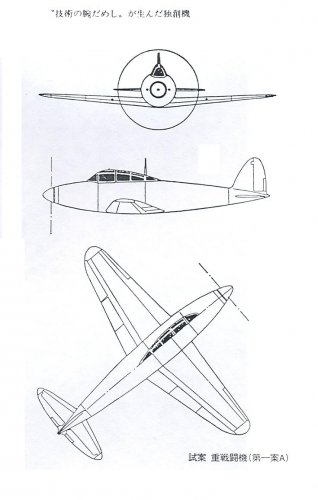

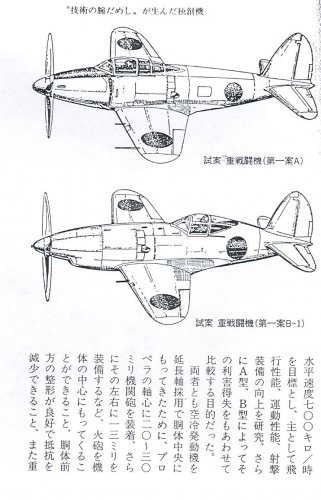

The two fighters in the first image are Rikugun "Kogiken" fighter designs. The top is the "B" type and the bottom one the "A" type. Both existed only as paper projects.


Justo Miranda said:
Hi,

Could anybody help me identify these projects?
Post-2


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
55
Website
cmeunier.chez-alice.fr
hesham said:
Thanks lark,
but there are a really projects,such as :

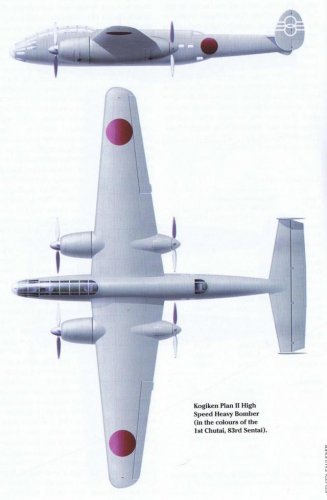

Rikugun Kogiken plan II and III land based light bombers

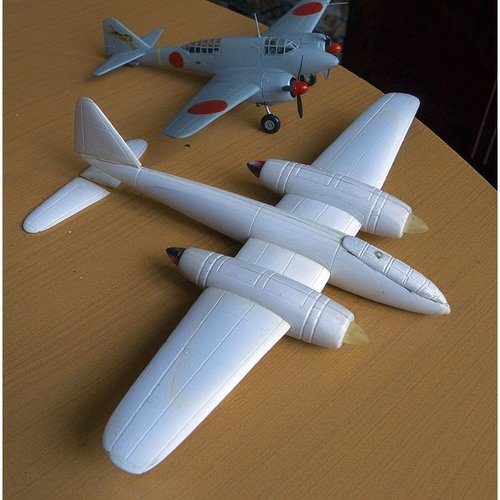

Have you seen the Unicraft model of the Plan III at http://www.unicraft.biz/on/kogiken-3/kogiken-3.htm ? (this is a twin-fuselage beautiful plane)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,641
Reaction score
6,498
hesham said:
Thanks lark,

but there are a really projects,such as :

Rikugun Kogiken plan II and III land based light bombers
Rikugun Kogiken plan VI land based heavy bomber
Rikugun Kogiken plan IV reconnaissance aircraft

Excellent my dear Tophe,

believe me I forgot them at all,and from the site you mentioned it,
the Rikugun Plan III land based light bomber;

http://www.unicraft.biz/on/kogiken-3/kogiken-3.htm


Attachments

  • kogiken-3-art.jpg
    25.5 KB · Views: 238

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,641
Reaction score
6,498
Hi,

here is the Rikugun Kogiken Plan I Type A experimental
aircraft project.

http://www.unicraft.biz/on/kogiken-1/kogiken-1.htm


Attachments

  • kogiken-1-dr.jpg
    12 KB · Views: 280

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,665
Reaction score
564
Kind of a Japanese Airacobra... but where's the air intake?

following the unicraft link you can see a dorsal intake that was not included in hesham's posted profile


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
392
Reaction score
69
Website
www.aviationart.aero
The original drawings for this project do not show any air intakes, so it was decided not to "invent" them. Of course, in reality, it would've have had them... somewhere. Perhaps on the starboard side? ;)


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
40
The various Kogiken aircraft were discussed in the first Japanese Secret Projects book from Midland. However, not all of them were illustrated.

Cheers,

Ed


airman said:
wow, i hope to see these of next issue of japanese projects of Midland ! B)


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
40
The Kogiken Plan I Type A may have looked like the Bf 110 but there is no evidence to support there was any influence on the Kogiken designers by it. I tend to think the inspiration came more from the Mitsubishi Otori built and flown in 1936 (around the same time as the Bf 110 was in development/testing).

Cheers,

Ed


Winston said:
Plan no.1 B looks a lot like a Bf110 any relation?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Yes Ed's "JAPANESE SECRET PROJECTS EXPERIMENTAL AIRCRAFT OF THE IJA AND IJN 1939-1945" (ISBN 978-1-85780-317-4) has beautiful colored drawings and detail explanation of these aircrafts.
Ed thought us the existence of "The story of IJA's aircrafts plan(日本陸軍機の計画物語)".(Aviation Journal 1980, stop the publication).the source of the drawings of these aircrafts.
We are waiting for his second volume of "JAPANESE SECRET PROJECTS EXPERIMENTAL AIRCRAFT OF THE IJA AND IJN 1939-1945". ;)


Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
127
Reaction score
23
Hikoki1946 said:
The Kogiken Plan I Type A may have looked like the Bf 110 but there is no evidence to support there was any influence on the Kogiken designers by it. I tend to think the inspiration came more from the Mitsubishi Otori built and flown in 1936 (around the same time as the Bf 110 was in development/testing).

Cheers,

Ed


Winston said:
Plan no.1 B looks a lot like a Bf110 any relation?


Thanks for the clarification! :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,641
Reaction score
6,498

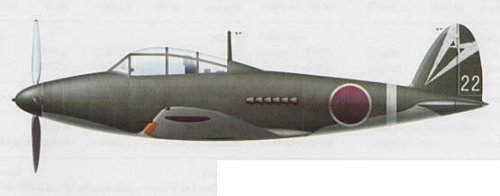

Also from the Russian site;


Rikugun Type A
Rikugun Plane II
Rikugun Plane V
Rikugun Plane VIII


Attachments

  • Rikugun_Kogiken Plane VIII.JPG
    Rikugun_Kogiken Plane VIII.JPG
    46.3 KB · Views: 496
  • Rikugun_Kogiken Plane V.JPG
    Rikugun_Kogiken Plane V.JPG
    17.3 KB · Views: 518
  • Rikugun_Kogiken Plane II.JPG
    Rikugun_Kogiken Plane II.JPG
    43.6 KB · Views: 532
  • Rikugun_Kogiken Type A.JPG
    Rikugun_Kogiken Type A.JPG
    17.2 KB · Views: 524

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
384
Reaction score
155
Pic number 1 looks like an ME-110. Can anyone verify this was an actual Japanese design?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Hi! It's very similar original drawing, but little different.
Nose, rudder......... Sorry for low quality.
Source : The IJA's projected aircraft story by famous Nario Ando.(日本陸軍機の計画物語)


Attachments

  • long range fighter type A.jpg
    long range fighter type A.jpg
    313.7 KB · Views: 419

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,641
Reaction score
6,498
My dear Blackkite,

can you ID those Projects in reply # 1,and thanks ?.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Hi!

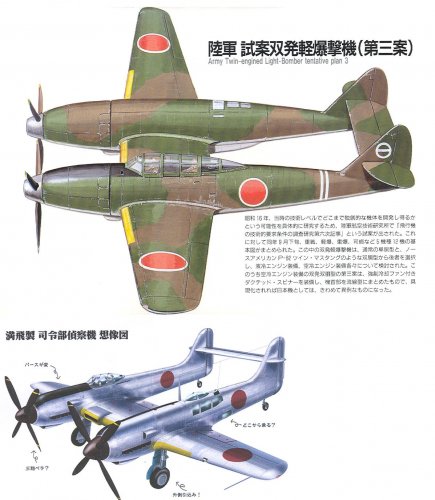

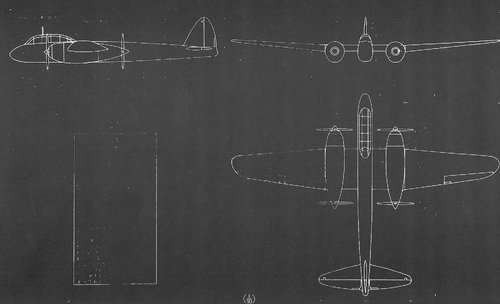

1. The IJA Air Technical Research Institute(日本陸軍究所, Kogiken) planned twin engine light bomber tentative plan3 with ducted
spinner and forced cooling fan..
2. Speculative drawing of Manpi(Manshu Hikoki, 満州飛行機) strategic reconnaissance aircraft.

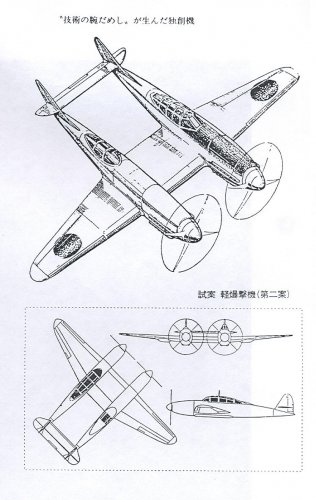

3. The IJA Air Technical Research Institute planned Light bomber tentative plan2.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Looking at the existing three-sided view of this plane, I don't think this configuration provides enough cooling for the rear engine.
This is because the hot air after the cooling of the front engine covers the rear engine.
To ensure that the rear engine is cooled, for example, all the hot air after cooling the front engine flows to the lower side of the wing, and the cooling air intake of the rear engine is installed on the upper surface of the wing. So box picture needs little modification. Box picture is good, but model is......
Anyway it is still better than the desperate difficulty of cooling the fourth row of cylinders of the Fuji Ha-54 engine.

Last edited:

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
384
Reaction score
155

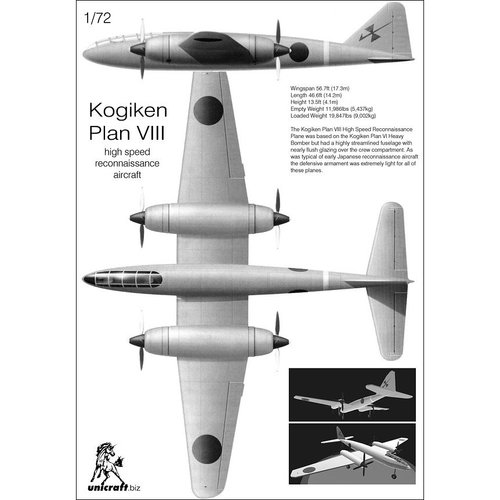

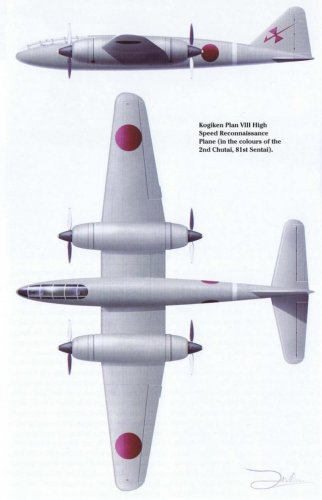

As your 2nd picture says the the Kogiken plan Ⅷ high speed reconnaissance airplane was based off the plan VI heavy bomber. Here is the actual drawing of that airplane: (my notes identify it as the Rikugun Army Experimental Model 7 Heavy Bomber


Attachments

  • Rikugun Army Experimental Model 7 Heavy Bomber 3 view.jpg
    Rikugun Army Experimental Model 7 Heavy Bomber 3 view.jpg
    1,000.2 KB · Views: 92

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,398
Oh I see!. Thanks for a good find.:)


Noveos

I really should change my personal text
Joined
Mar 8, 2019
Messages
43
Reaction score
25
