People I thrust know that I am a strong supporter of organized chaos
since it's helps me to keep my memory sharp. But as you see
sometimes I has it's disadventages I know. :D


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Justo Miranda said:

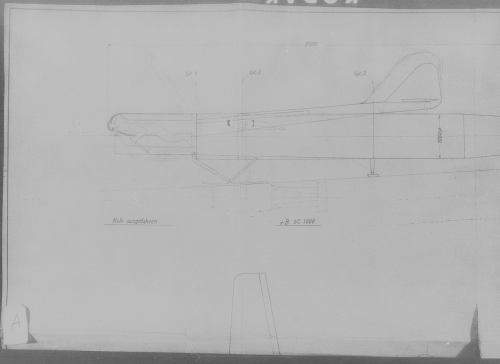

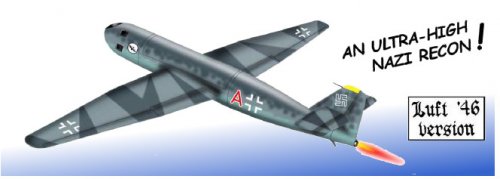

Soviet era project

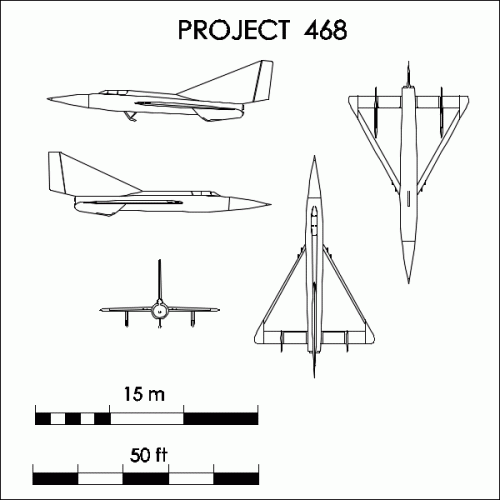

Indeed, but AFAIK based on wartime research work by DFS. Must admit, that sometimes I'm losing the
overview and cannot find drawings, mails and sources, although knowing for sure, that they are ....
somewhere ! Of the Soviet offspring, I once made a speculative 3-view, but about the details,
boxkite could come to my rescue.... :-\


Attachments

  • OKB2_Project_468.GIF
    18.7 KB · Views: 499

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Amazing drawing my dear Jens,


and I saw a 3-view to it in a Russian book,but where in my files now,always ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Hi,


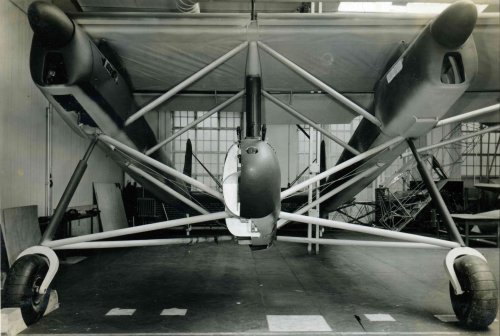

here is a Model for Fieseler Fi.333 transport aircraft project.


http://en.wikipedia.org/wiki/Fieseler_Fi_333


Attachments

  • Fieseler Fi.333.jpg
    Fieseler Fi.333.jpg
    20.1 KB · Views: 674

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

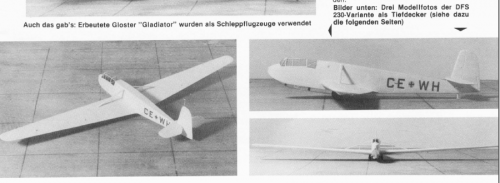

From Flugzeug 4/1986,

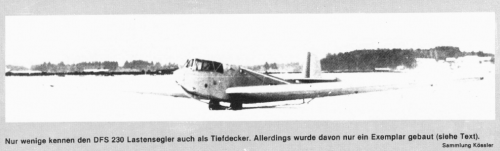

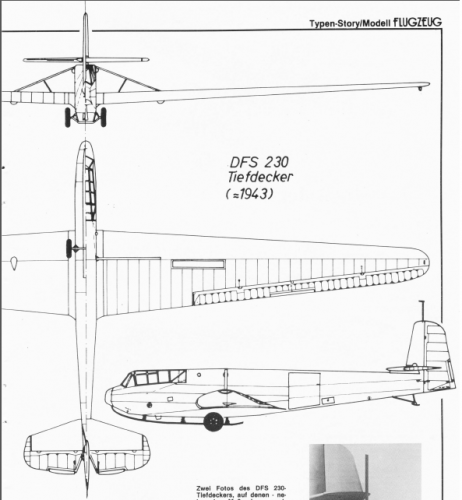

consider not project,but rare aircraft,here is the DFS-230 with low-wing.


Attachments

  • DFS-230   I.png
    DFS-230 I.png
    201.5 KB · Views: 1,020
  • DFS-230   II.png
    DFS-230 II.png
    259.5 KB · Views: 988
  • DFS-230   III.png
    DFS-230 III.png
    605 KB · Views: 934
  • DFS-230   IV.png
    DFS-230 IV.png
    164.3 KB · Views: 856

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

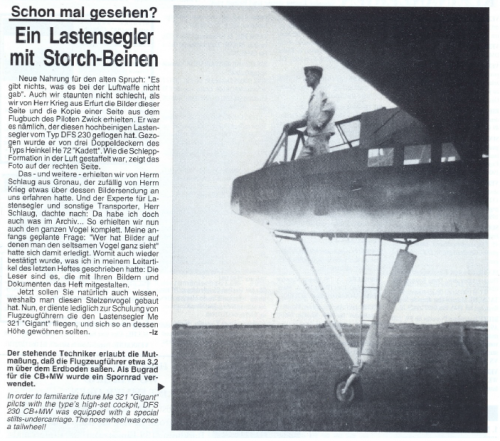

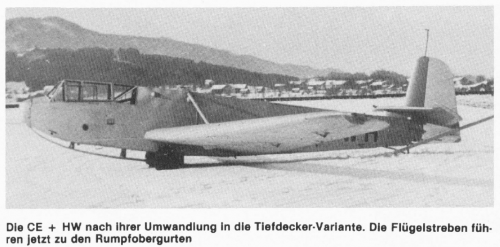

From Jet & Prop 4/1998,

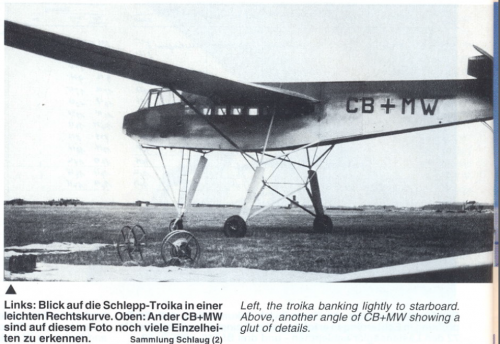

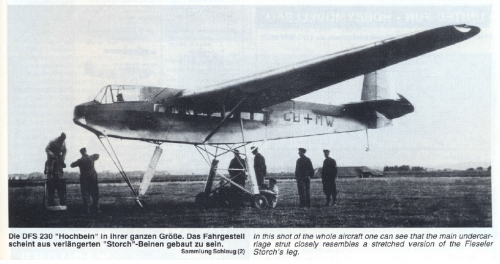

here is the DFS-230 with long undercarriage legs,consider a little known aircraft.


Attachments

  • DFS-230   III.png
    DFS-230 III.png
    794.6 KB · Views: 141
  • DFS-230   II.png
    DFS-230 II.png
    1 MB · Views: 132
  • DFS-230   I.png
    DFS-230 I.png
    1,009.6 KB · Views: 725

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,944
Reaction score
967

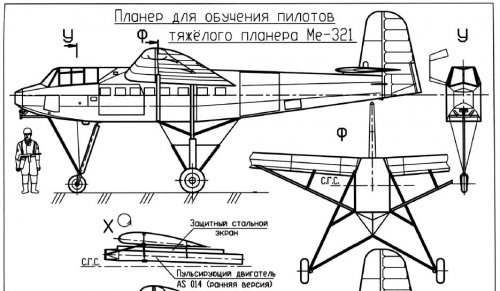

Text in the third image says the aircraft was used to train Me 321 'Gigant' pilots. Nice find.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
711
Reaction score
398
Here is a much higher resolution photo of the 168 by way of wikipedia


Attachments

  • Fieseler_Fi_168.jpg
    447 KB · Views: 494

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
In "Deutsche Lastensegler" by Heint Mankau and Peter Petrick, a prototype is shown, called "Robbe" (seal),
which was obviously based on the DFS 230 assault glider and is said to have been indended as a means of
transporting an unmanned weather station. There even seems to be a kit available, but I haven't found many
information about it still yet. Anybody else ?


Attachments

  • DFS Robbe.jpg
    DFS Robbe.jpg
    57.3 KB · Views: 198

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Got "Deutsche Flugzeugbewaffnung bis 1945" (German Aircraft Armament until 1945), written by
Manfred Griehl, a good book with regards to the content, but with regards to typos and proof reading
one of the worst I have ... ::)
There are some information about the Fi 168, too. Intended as communications and ground attack
aircraft, armament is given as 2 to 4 fixed 7.9 mm guns MG 17 and a flexible MG 15 of the same
calibre for the "B-Stand" (rear gunner). Use of the 20 mm MG FF "was principally approved", I suppose
as replacement for the MG 17. If the ground attack version would have had a rear gunner, too, or
the communications aircraft (which seems to have been in direct competition to the Fi 156) only
isn't mentioned unfortunately.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
989
Reaction score
141
I do have that book, and I do not cherish it much. Not only typos, switched captions and sketchy treatment of some massively important german aircraft weapons.
Unfortunatelly, with Herr Griehl`s passing away last November, his book on Fieseler ("Typenkompass" series by Motorbuch Verlag) is not to see light, I`afraid.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Hi,

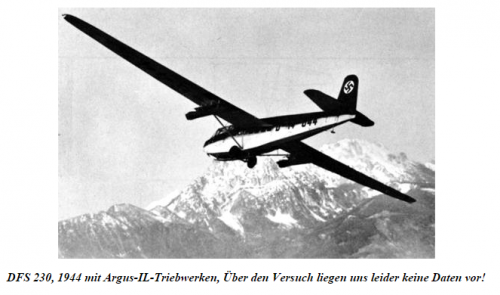

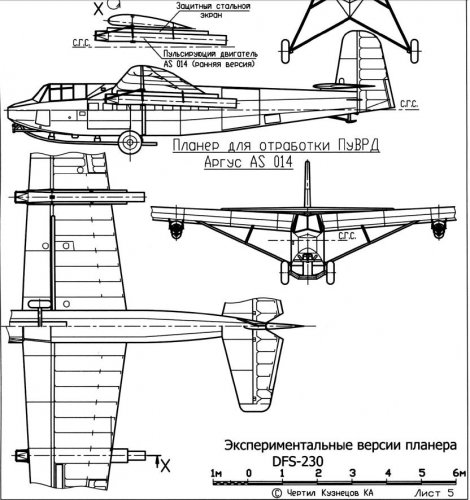

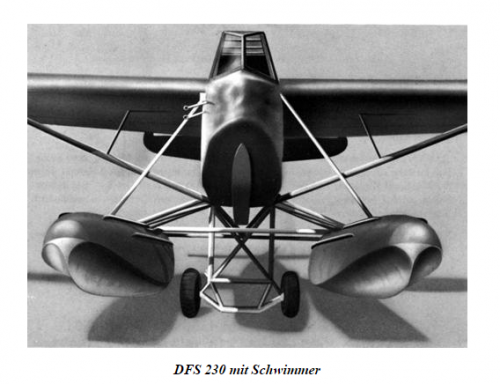

here is in the picture one,the DFS-230 with float as a project,and in second picture the DFS-230
with Argus engines as a variant.


In the third picture,the drawing for Gotha Go.345 (as I think) with DFS-230 tail,am I
right ?.


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/s/Schleppkupplungen/Kampf%20und%20Lastensegler%20DFS%20230%20DFS%20331/Lastenseagler%20DFS%20230.html


Attachments

  • 1.png
    187.7 KB · Views: 107
  • 2.png
    170.5 KB · Views: 106
  • 3.png
    106 KB · Views: 114

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Already got an answer and a "thank you !", that actually is due to hesham ! ;)
The error will be corrected soon.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Jemiba said:
Already got an answer and a "thank you !", that actually is due to hesham ! ;)
The error will be corrected soon.


OK my dear Jemiba.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Hi,

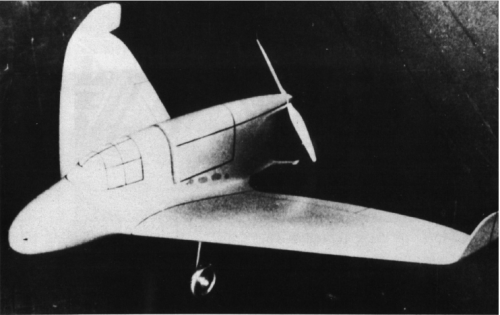

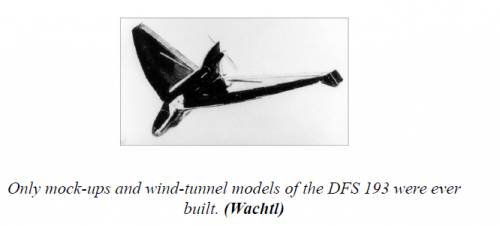

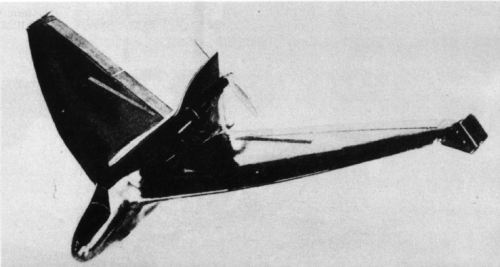

a wind tunnel Model of DFS-193.


Attachments

  • 193.png
    57.9 KB · Views: 115

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

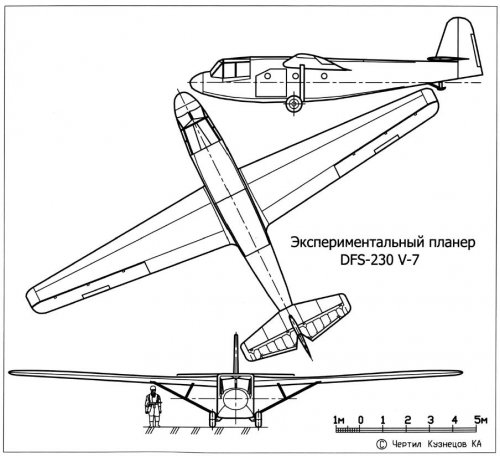

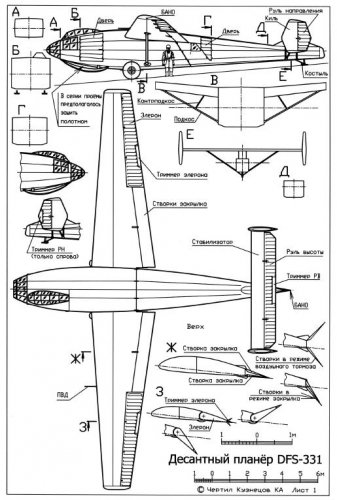

Hi,

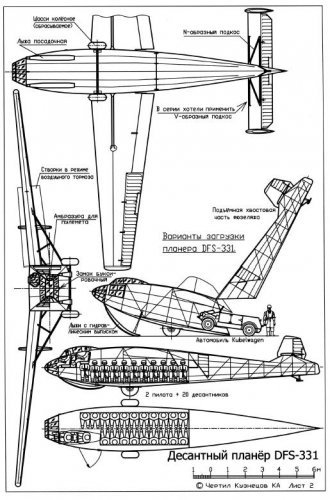

here is some drawings to DFS-230 and DFS-331.


Воздушно-десантные операции Люфтваффе. Все боевые планеры III Рейха, Италии и Японии


Attachments

  • DFS-331  II.JPG
    DFS-331 II.JPG
    89 KB · Views: 145
  • DFS-331.JPG
    79.5 KB · Views: 123
  • 230 V-7.JPG
    230 V-7.JPG
    81 KB · Views: 114
  • 230-2.JPG
    109.4 KB · Views: 122
  • 230-1.JPG
    85.5 KB · Views: 131

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

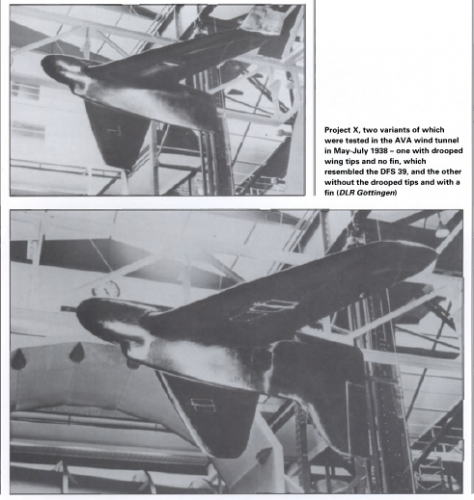

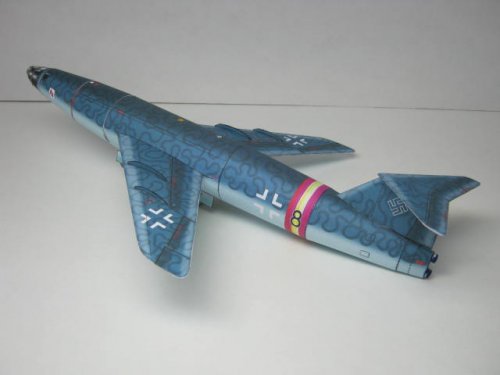

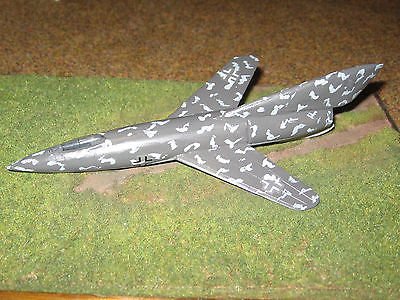

From Jagdgeschwader 400,Germany's Elite Rocket Fighters;

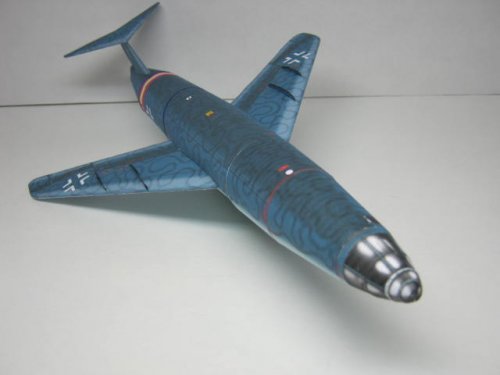

here is the DFS Project-X in two variant Models.


Attachments

  • X.png
    366.9 KB · Views: 133

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Some more views of the two variants , from "Ein Dreieck fliegt" by Alexander Lippisch


Attachments

  • Numériser 2_2.jpg
    Numériser 2_2.jpg
    134.2 KB · Views: 857

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

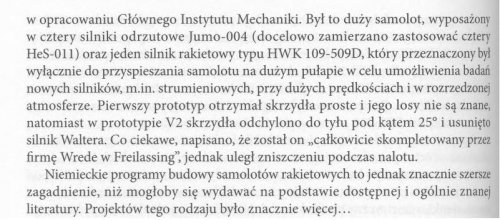

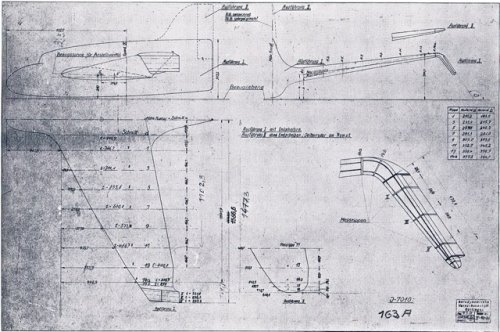

It seemed to be there was an early version of DFS Project-X.

Waffen-Arsenal 113 Messerschmitt Me 163 Komet


Attachments

  • 1.png
    266.5 KB · Views: 66
  • 194.png
    287.8 KB · Views: 407

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

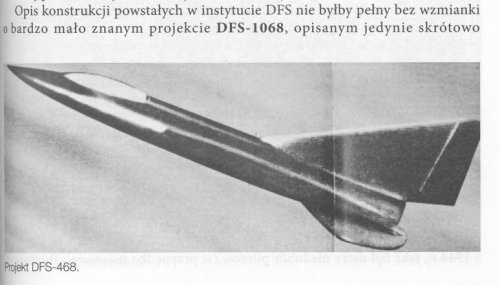

Attachments

  • DFS-468-Überschalljäger-1-72.jpg
    42.2 KB · Views: 88

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
My dear Jemiba,

the DFS 466,468 & 486 were a real aircraft Projects,we don't know only their shapes,except
DFS 486,please see;

http://www.secretprojects.co.uk/forum/index.php/topic,4171.msg32888.html#msg32888


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

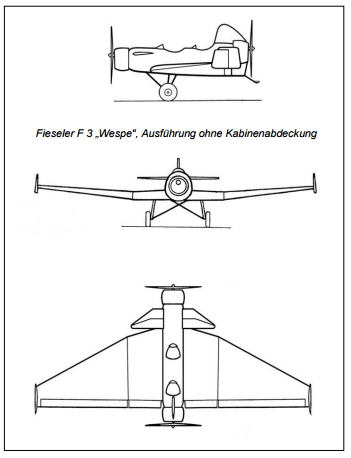

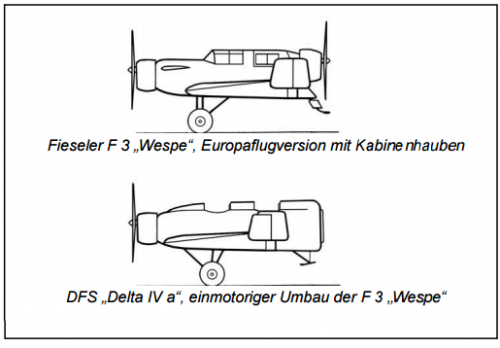

Fieseler F.3 Wespe;

http://adl-luftfahrthistorik.de/dok/Fieseler_Wespe_Teil2.pdf


Attachments

  • 1.png
    44.2 KB · Views: 190
  • 2.png
    50.3 KB · Views: 221

newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,164
Reaction score
939

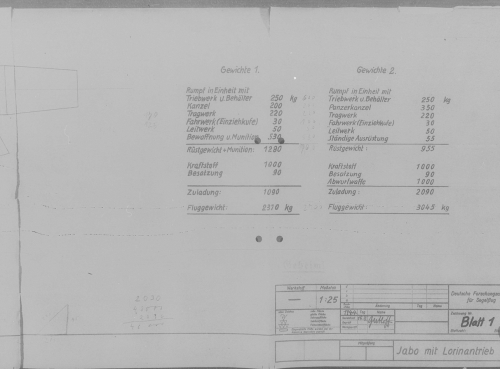

DFS Jabo mit Lorinantrieb - March 1944.


Attachments

  • Jabo mit Lorinantrieb 1.png
    Jabo mit Lorinantrieb 1.png
    1.2 MB · Views: 162
  • Jabo mit Lorinantrieb 2.png
    Jabo mit Lorinantrieb 2.png
    1.1 MB · Views: 155
